Simplicity 1694677 Manuel utilisateur

Rev. 04/2004

TP 200-4078-00-AT-S

Manufacturing, Inc.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com 4

Grass Bag Installation:

1. Bag MUST be installed at all times

when using Chute Adaptor.

2. Open latches

3. Slide Grass Bag over chute opening

until bead on bag opening is in latch.

4. Close latches on each side to secure

Grass Bag.

5. Place handle on rear of bag over pre-

viously installed Rod Hanger.

Replacement Parts List

Description Part Number

Grass Catcher Bag 1727063

Grass Bag Hanger Rod 1727064

Grass Bag Hanger Rod Bracket 1727065

Adapter Chute Bracket 1727066

Adapter Chute 1709135

Wingnut 1679163

Bag Attachment Latch 1727067

Blade 1706739

Installation Instructions Side Mounted Grass Catcher Installation

Instructions

Side Mounted Grass Catcher

Mfg. No. 1694677

For Pacer Series Mower

Pacer

Side Mounted Grass Catcher

P/N 1694677

Installation Instruction Manual

Installation Instructions Side Mounted Grass Catcher

2 3

Installation Instructions Side Mounted Grass Catcher

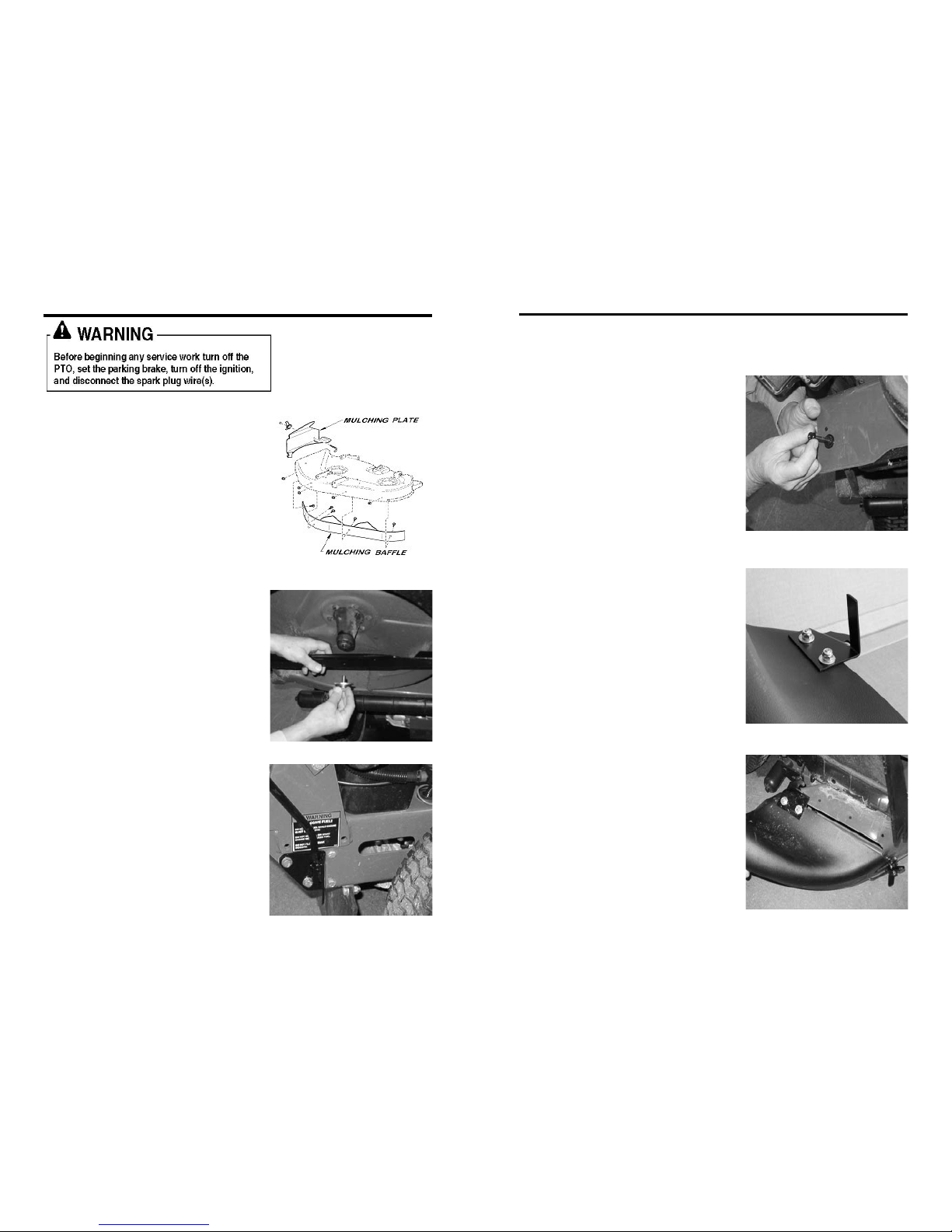

Mulching Kit Removal:

1. Remove Mulching Baffle from

mower by removing the hardware along

the front face of the mower deck.

2. Remove Mulching Plate from dis-

charge opening by removing the

Wingnut.

3. Save Mulching Baffle, Mulching

Plate, and related hardware.

4. For mulching operations, these parts

must be re-installed.

Blade Installation:

1. Remove existing Mulching Blade from

‘discharge side’ of mower deck.

2. Save blade for future mulching opera-

tions.

3. Install supplied Blade with flanges

facing up.

4. Re-install with existing hardware and

tighten to 45-55 ft. lbs. (61-75Nm) of

torque.

Rod Bracket Installation:

1. Remove two rear cover guard bolts.

2. Install Rod Bracket assembly as

shown.

3. Re-install two bolts and tighten

securely.

4. Install Rod Hanger into Rod

Bracket.

Deck Bolt Installation:

1. Install 2" long Carriage Bolt into the

square hole on the front edge of the dis-

charge side of the deck.

2. With the head to the inside of the deck

housing, install a 5/16" flat washer and a

5/16" locknut. Tighten securely.

3. Install Wingnut onto Deck bolt with

'wings' facing outward. Install approxi-

mately half way down the bolt.

4. Install second 5/16" locknut until end

of bolt is flush with outside of locknut.

Chute Adapter Bracket Installation:

1. For easier installation, release bag

latches and remove Grass Bag from

Chute Adapter

2. Place Chute Adapter Bracket as

shown and fasten with (yellow) 5/16" Hex

Head Cap Screw, flat washers and Nylok

Hex Nut.

Chute Adapter Installation:

1. Lift existing discharge deflector up and

hold in place to install Chute Adapter.

2. Place hook of Chute Adapter

Bracket around Deflector Chute support

arm and make sure the lower rear lip of

the deck is inside the recessed area of

Chute Adapter.

3. Slide the front section of the Chute

Adapter under the Wingnut on the front

of the deck opening.

4. Tighten Wingnut to secure Chute

Adapter to deck.
