Simplicity 1695295 Manuel utilisateur

Installation

Instructions

Light Kit

Part No. 1695295

For Axion and 150Z Zero Turn Models

Figure 1. Contents

Kit Contents:

Ref. Part No. Qty. Description

1 N/A 2 NUT, Hex, 5/16-18

2 N/A 2 LOCKWASHER, 5/16

3 N/A 2 CARRIAGE BOLT, 5/16-18 x 1

4 1726801 2 HEADLIGHT ASSEMBLY,

(Includes Ref. Nos. 1, 2, & 3)

5 1716951 1 SWITCH, Headlight

6 2172434 2 CLIP, Wire

7 1726796 1 HARNESS, Wire

INSTALLATION

1. Remove 1/4-20 x 5/8 capscrews (A, Figure 2) and

cover (B).

2. Install light assembly (F) and secure with 5/16 lock-

washer (D) and 5/16-18 nut (C).

3. Reinstall cover (B) and secure with 1/4-20 capscrews

(A).

4. Repeat steps 1 through 3 for other side of unit.

Before beginning any service work turn off the

PTO, set the parking brake, turn off the ignition,

remove the key, and disconnect the spark plug

wire(s).

WARNING

Figure 2. Light Installation

A. Capscrews, 1/4-20 x 5/8

B. Cover

C. Nut, 5/16-18

D. Lockwasher, 5/16

E. Bracket

F. Light Assembly

Installation Instructions Light Kit

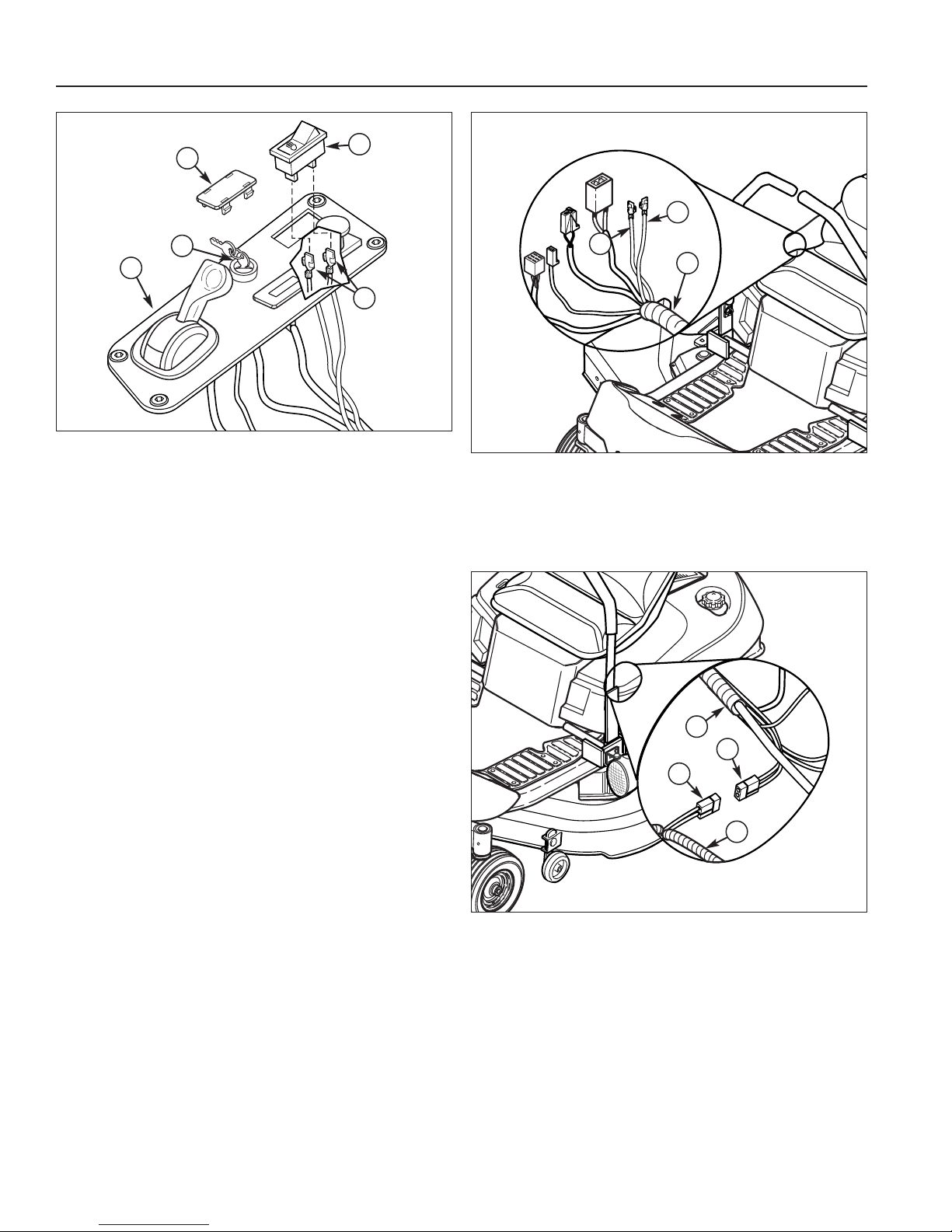

Figure 3. Switch Installation

A. Control Panel

B. Key(s)

C. Cover Plug

D. Switch, Headlight

E. Wires, Red w/Blue and Green w/Black

5. Remove key(s) (B, Figure 3) from control panel (A).

6. Lift seat to gain access to engine compartment.

7. Remove and discard cover plug (C, Figure 3) from

control panel (A).

8. Install switch (D, Figure 3) into hole in control panel

(A) with the icon in the direction as shown. Make

sure the switch is properly seated.

9. Locate a red w/blue wire (A, Figure 4) and green

w/black wire (B) taped to the main wire harness (C).

Remove tape securing the wires to harness.

10.Plug wires (E, Figure 3) into the terminals on switch

(D). Either Wire may be connected to either terminal.

11.Locate accessory connector (B, Figure 5) in the main

wire harness (A) located on the left side of engine

compartment.

12.Connect the light harness connector (C, Figure 5) to

the accessory connector (B). Make sure the connec-

tors are joined completely.

Figure 4. Switch Wire Connections

A. Wire, Red w/Blue

B. Wire, Green w/Black

C. Wire Harness, Main

Figure 5. Main Power Wire Connections

A. Main Wire Harness

B. Connector, Accessory, Main Harness

C. Connector, Light Harness

D. Wire harness, Light Kit

Light Kit Installation Instructions

Figure 6. Light Connection

A. Light

B. Harness Plug

C. Headlight Wire Harness, w/Ribbed Plastic Cover

D. Wire Clip

E. Bracket

Note: The side of the headlight wire harness with the

ribbed plastic cover (C, Figure 6) connects to the left side

light. The side of the headlight wire harness with the

braided cover goes to the right side light.

13.Connect harness plug (B, Figure 6) to the back of the

headlight (A). Make sure the connector is fully seat-

ed into the light.

14.Slide wire clip (D) onto the back side of bracket (E)

as shown. Push down to secure.

15.Slide headlight wire harness (C) into wire clip (D).

Pull slack out of headlight wire harness (C) toward

engine compartment. Route wires so they do not

contact hot or moving components.

16.Repeat step 13, 14 & 15 on the other side of unit.

17.Lower seat to normal operating position.

18.Operate control levers to be sure wires, clips and

lights do not make contact with levers. If so, readjust

components so there is no interference.

19.Reconnect spark plug.

OPERATION

1. Start the unit using normal procedures. After the unit

has warmed up and is operating at full throttle the

lights may be turned on.

2. Turn the lights off before turning off the unit. If lights

are left on with out running the unit they will drain the

battery.

Note: The headlights may dim if the RPM’s of the engine

become to low.

Installation Instructions Light Kit

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

NOTES

Form No. 1734309

Revision:00

TP 200-4583-00-AT-SN

Briggs & Stratton Yard Power Products Group
