Simplicity 2365 Guide de configuration

Rev. 8/2000

TP 400-2365-00-AT-SMA

Attachment

Illustrated

Parts List

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

TP 400-2365-00-AT-SMA

Hydraulic Angling & Lift Group 60” Dozer Blade

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985457

The above parts group applies to the following Mfg. Nos.:

1693274 Hydraulic Angling & Lift Kit

771

5858511

510

512

514

515

510515

513

28 29

30 31

539

538

536

537

536 533

534

532

518

519

2616

535

TP 400-2365-00-AT-SMA

Hydraulic Angling & Lift Group 60” Dozer Blade

1 1701011 3 TIE, Self Locking

2 1960277 1 PIN, Yoke

3 1918452 3 PIN, Cotter

4 1677214 1 ANGLING CYLINDER ASSEMBLY

5 1700394 1 PIN, Flat Head, 5/8 x 1-5/8

6 919171 2 FITTING

7 173359 4 NOSE PIECE ASSEMBLY

8 1719395 2 HOSE ASSEMBLY

9 1719565 2 HOSE ASSEMBLY

10 1719586 1 HOSE SUPPORT

11 1931277 2 NUT, Hex, 5/16-18

12 919171 4 TUBE FITTING, Male

13 1716944 1 LIFT CYLINDER ASSEMBLY

14 1711773 2 PIN, Clevis

15 176012 2 PIN, Saftey

16 1916951 4 NUT, Hex, 1/2-13

17 1916966 4 LOCKWASHER, 1/2

18 1717645 1 SUPPORT ASSEMBLY, Cylinder

19 1717642 1 CLAMP, Plate

20 1920328 2 CAPSCREW, Hex Head,1/2-13 x 1-1/2

21 1960286 2 CAPSCREW, Hex Head,1/2-13 x 3-1/2

22 1718436 4 FITTING, Tube Male

23 173360 4 PLUG, Plastic

24 1718987 1 SUPPORT

25 173358 4 COUPLER ASSEMBLY

26 1923341 4 CAPSCREW, Hex Head, 1/4-20 x 3/4

27 1916964 6 LOCKWASHER, 1/4

28 1916622 6 NUT, Hex 1/4-20

29 166017 4 RETAINING RING

30 1719133 2 FITTING, Hose, 45 Degree

31 1718435 2 FITTING, Tube Male

32 1719132 2 FITTING, Elbow, 90 Degree

33 1717647 1 PLUG, Pressure

34 922523 1 FITTING, Elbow, 90 Degree

35 1719224 2 LEVER ASSEMBLY

36 1960140 4 NUT, PUSH

37 916001 2 PIN

38 1719692 1 LINK, L.H.

39 1719218 1 LINK, R.H.

40 1675789 2 FITTING, Elbow

41 1718413 1 HOSE

42 1719564 1 FITTING,”T”

43 960266 4 CLAMP, Hose

44 1926025 4 SCREW, Phillips Head, 1/4-20 x 1/2

45 1719732 1 INSERT, Plastic

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693274 Hydraulic Angling & Lift Kit

TP 400-2365-00-AT-SMA

Hydraulic Angling & Lift Group 60” Dozer Blade

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985457

The above parts group applies to the following Mfg. Nos.:

1693274 Hydraulic Angling & Lift Kit

Gas Models

Hose

Clamp

Front of

Tractor

Diesel

Models

“T”

Connector

Hose

Clamp

To "E" Port of

Steering Valve

To "IN" Port of

Tractor Lift Valve

Lift

Cylinder

Angling

Cylinder

Hose Support

Hydro

Pump

Attachment

DECAL

OUT

BYD

Attachment

66 59

TP 400-2365-00-AT-SMA

Hydraulic Angling & Lift Group 60” Dozer Blade

46 1719580 1 MOUNTING PLATE

47 1923282 1 CAPSCREW, Hex Head,1/4-20 x 2-1/2

48 1960234 2 SPACER

49 1718419 1 VALVE ASSEMBLY

50 1718988 1 PLATE

51 1673796 3 SPACER

52 1917356 2 LOCKWASHER, 5/16

53 1917372 2 NUT, Hex 5/16

54 1718991 1 VALVE SUPPORT ASSEMBLY

55 1931337 2 CARRIGE BOLT, 5/16-18 x 1-1/2

56 960603 1 CAPSCREW, Hex Head,1/4-20 x 3-1/2

57 1719393 1 POD, Seat Deck

58 1719733 1 DECAL, Hydraulic Levers

59 1719331 1 TUBE, Hydraulic

60 1719216 1 TUBE, Hydraulic

61 1719215 1 TUBE, Hydraulic

62 1719126 1 TUBE, Hydraulic

63 1719127 1 TUBE, Hydraulic

64 1719129 1 TUBE, Hydraulic

65 1719128 1 TUBE, Hydraulic

66 1719330 1 TUBE, Hydraulic

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693274 Hydraulic Angling & Lift Kit

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

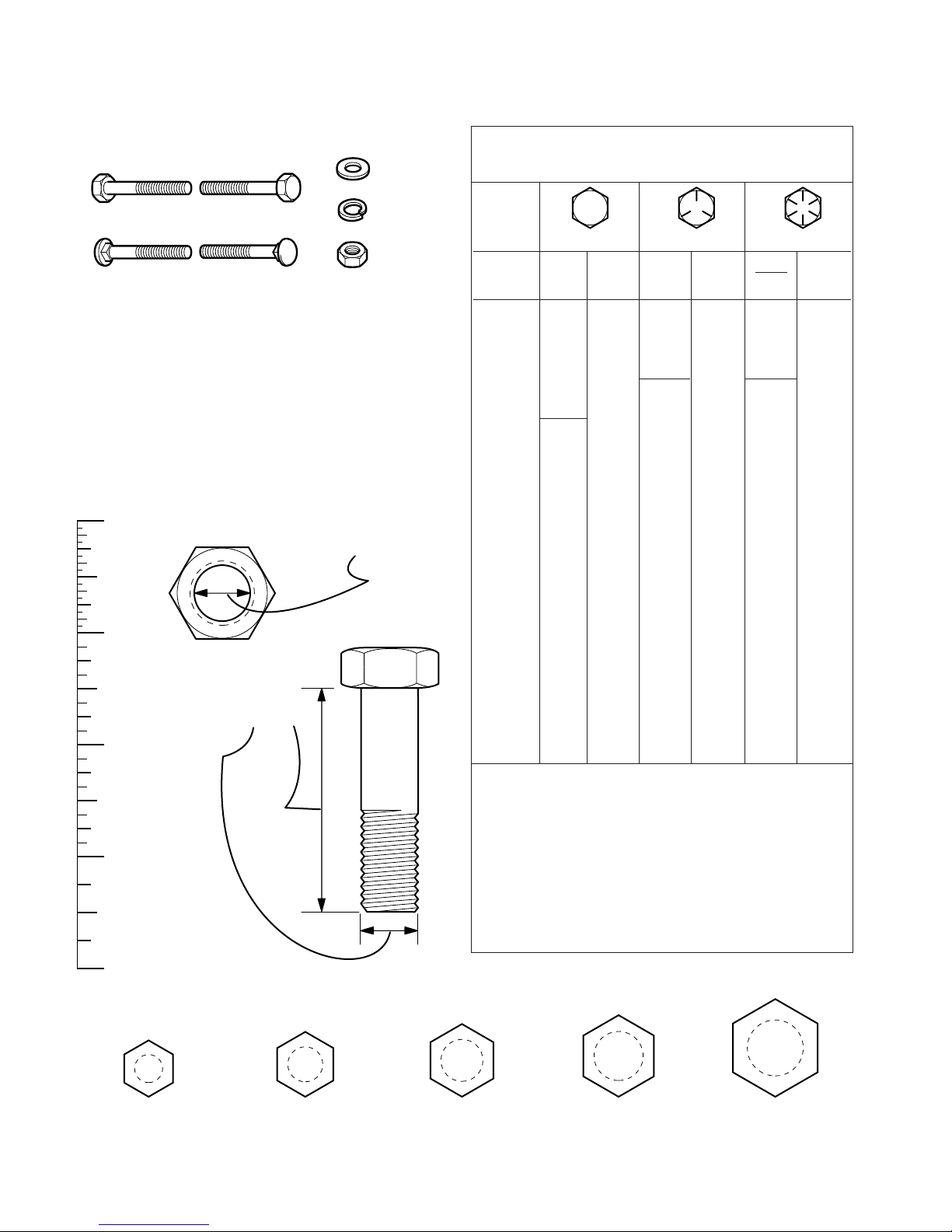

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

01/4 3/4

1/2 11/4 3/4

1/2 21/4 3/4

1/2 31/4 3/4

1/2 4
