Installation

Instructions

Sub-Frame Hitch

Mfg. No. 1695195

For Prestige / 1800 / 2800, Conquest / 1700 / 2700, &

Broadmoor / 1600 / 2600 Series Tractors

This kit is required when installing front mounted

snowthrowers.

Installation Instructions Sub-Frame Hitch

Front Pulley - Two-Stage

Snowthrower Application

Early Manual

Lift Only

(See Instructions)

Hydraulic

Lift

43 32

28 27

26 27 28

Front Hole for Dozer Applications

Rear Hole for Snowthrower Applications

Main Hitch Components (All Applications)

Figure 1. Contents

Sub-Frame Hitch Installation Instructions

Ref Part No. Qty. Description

1 1723292A 1 SHAFT & HOOK ASSY

2 1653768A 1 CLAMP, Support

3 1931335 4 CARRIAGE BOLT, 5/16-18 x 1

4 1919381 4 WASHER, 11/32

5 1917356 3 LOCKWASHER, 5/16

6 1917372 4 NUT, 5/16-18

7 105249 1 PIN, Round Head, 3/8 x 2-3/8

8 1724025 1 LIFT LEVER ASSY.

9 2176012 4 SAFETY CLIP

10 1722946 1 LIFT ROD

11 8031007 2 SET COLLAR

12 171011 1 SPRING, Compression

13 1928721 2 SET SCREW, 5/16-18 x 1/2

14 1723115 1 ROD GUIDE

15 1733812 2 ROD, Latch

16 1733309 1 ROD, Hitch

17 1733779A 1 HITCH ASSY.

18 1722819 1 PIN, Headless, 1/2 x 2

19 1723795 1 BAR, Lift Link

20 1960033 1 HAIR PIN CLIP

21 1722469 1 PLATE, Lock, Hydraulic Lift

22 1667812 2 SPACER

23 1960244 1 SCREW, Whiz, 3/8-16 x 2-3/4

24 1921971 1 CAPSCREW, 3/8-16 x 3/4

25 1924940 8 WASHER PLAIN, 3/8

26 162115 1 BELT GUIDE

27 1916965 7 LOCKWASHER, 3/8

28 1916950 6 NUT HEX FULL, 3/8-16

29 171247 1 PULLEY-FLAT

30 1666287 1 PULLEY ASS'Y

31 1666294 1 SPACER-BRG

32 1923701 2 CAPSCREW, 3/8-16 x 2

33 158227 4 SPACER

34 1920415 1 CAPSCREW, 3/8-16 x 1-1/4

35 1722963 1 PIVOT BRACKET

36 1930651 1 NUT LOCK, 3/8-16

37 1704743 1 TRUNNION

38 1668282 1 SPRING

39 1722972 1 GUIDE ASS'Y -SPRING

40 1960268 1 CARRIAGE BOLT, 3/8-16 x 1-1/4

41 1704741 1 ROD ASS'Y

42 1703371 1 V-BELT, Single-Stage Blower

42 1703372 1 V-BELT, Two-Stage Blower

43 1701600 2 REFLECTOR

44 1922130 1 CAPSCREW, 3/8-16 x 2-1/4

45 1733814A 1 PUSH BAR LATCH

46 1960074 2 CLIP

47 1921210 4 BOLT, .38-16 x 1

48 1928352 4 NUT- FLG, .38-16

49 1724387 1 PULLY-FLAT

50 1677135A 1 BELT GUIDE

Installation Instructions Sub-Frame Hitch

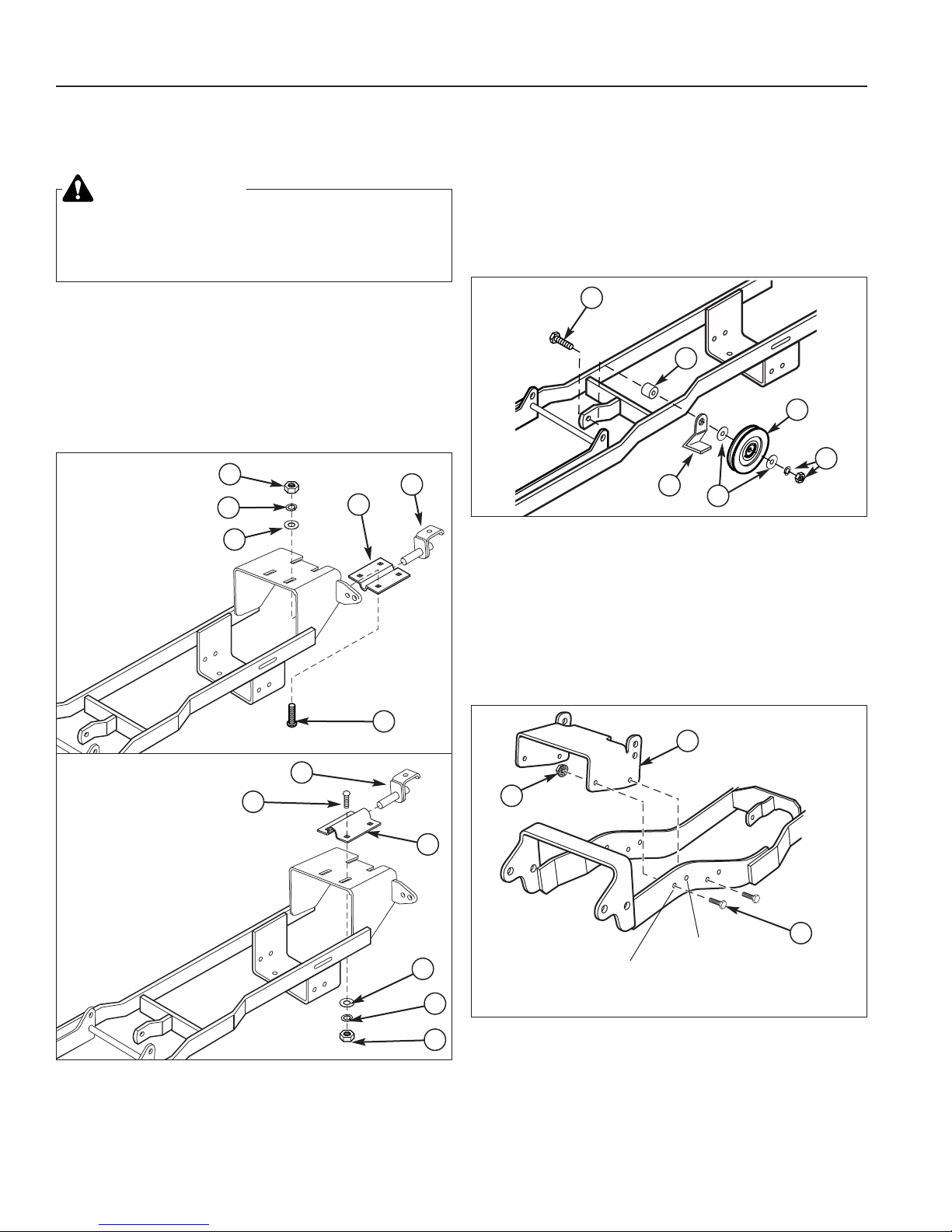

Figure 2. Install Support Clamp

A. 5/16-18 x 1 Carriage Bolt D. 11/32 Washer

B. Hook Assembly E. 5/16 Lockwasher

C. Support Clamp F. 5/16-18 Nut

Figure 3. Front Pulley - Two-Stage Applications

A. Capscrew, 3/8-16 x 2-1/4 D. Washers, 3/8

B. Spacer, 3/8 x 1 x 1/2 E. Lockwasher & Nut

C. Belt Guide F. Pulley

NOTE: Please read through these instructions and the

instructions of any other attachments before beginning

installation.

INITIAL ASSEMBLY

Assemble Hitch

1. Attach the support clamp (C, Figure 2) and hook

assembly (B) to the hitch. Secure with four 5/16-18 x

1 carriage bolts (A), washers (D), lockwashers (E),

and nuts (F). Do not tighten the hardware at this

time.

WARNING

Before beginning any service work turn off the

PTO, set the parking brake, turn off the ignition,

and disconnect the spark plug wire(s).

Conquest / 1700 /

2700 &

Prestige / 1800 /

2800 Series

Broadmoor /

1600 / 2600

Series

Change Pulley & Belt - Two-Stage Blower

Only

1. If using this hitch with a two-stage snowthrower, the

front idler pulley must be switched from the right hand

side of the hitch bracket, to the left, and an additional

3/8 x 1 x 1/2 spacer (B, Figure 3) and 3/8-16 x 2-1/4

capscrew (A) is required. Also install the 1703372

drive belt.

Assemble Push Bar Latch

1. Attach Push Bar Latch (B, Figure 4), to hitch. Secure

with four .31-16 x 1 bolts (A), and four .38-16 flange

nuts (C).

Two Wheel

Drive Models

Four Wheel

Drive Models

Figure 4. Assemble Push Bar Latch

A. Bolt, .38-16 x 1 C. Flange Nut, .38-16

B. Push Bar Latch

Sub-Frame Hitch Installation Instructions

Figure 5. Assemble Lift Rod

A. Lift Rod C. Spring

B. Set Collar D. Rod Guide

Assemble Lift Rod

1. Install the set collars (B, Figure 4), spring (C), and

rod guide (D) on the lift rod (A) as shown. Final

adjustment of the set collars will be made after the

hitch and attachment are installed.

INITIAL INSTALLATION

Manual Lift Models

LIFT LINK - EARLY VS. LATER

The early model lift link (A, Figure 6) was used on early

production Conquest/1700/2700 Series tractors. It must

be replaced with the later model lift link (B) included with

this attachment. The later model link works in all appli-

cations. Discard the early model link (A).

LIFT LINK POSITION

The lift link is installed differently depending on what

attachment is being used. Refer to Figure 7 for link

installation information.

Hydraulic Lift Models

1. Fully lower the hydraulic lift. The lift assembly is

spring loaded so it will need to be held in the down

position to perform of the following procedures.

2. Remove and retain the flat head pin (B, Figure 8) and

hair pin clip (E) securing the lift cylinder (A) to the lift

shaft assembly (F). Remove and retain the flat wash-

ers.

3. Mount the lock plate (D) next to the cams on the lift

shaft assembly (F) as shown.

4. Install the original flat head pin (B) and new flat head

pin (C) and secure with hair pin clips.

BCD

FCD

Figure 7. Connect Lift Link

A. Pin

B. Rear Hole of Lift Bar (Snowthrower Applications)

C. Spacer

D. Hair Pin Clip

E. Upper Hole (Snowthrower Applications)

F. Slot of Lift Link (Mower Applications)

G. Lower Hole (Mower Applications)

Snowthrower

& Dozer

Applications

Mower

Applications

Figure 6. Early/Later Lift Links

A. Early Model Lift Link

B. Later Model Lift Link

Figure 8. Install Lock Plate - Hydraulic Lift Models

A. Lift Cylinder D. Lock Plate

B. Flat Head Pin (Original) E. Hair Pin Clips

C. Flat Head Pin (New) F. Lift Shaft Assy.

Installation Instructions Sub-Frame Hitch

Figure 9. Install Hitch

A. J-Hooks D. Hook

B. Hitch Rod E. Clamp Plate

C. Hitch Rod

Install Hitch

1. Slide the hitch under the tractor.

2. Raise the rear of the hitch and place the hook (C)

over the lift shaft.

3. Connect the front of the hitch to the tractor J-hooks

(A, Figure 9) using the hitch rod (B) and a safety clip

in the top holes of the push bar latch.

4. Secure the front of the hitch to the tractor by attach-

ing the hitch rod (C) and a safety clip in the bottom

holes of the push bar latch.

5. Push the clamp plate (D) backwards until it is snug

against the lift shaft. Tighten the clamp plate hard-

ware (E).

Sub-Frame Hitch Installation Instructions

Install Lift Rod

1. Slide the lift lever (A, Figure 10) onto the end of the

tractor lift shaft (B) under the right side footrest.

2. Use the tabs on the lift lever (A) to capture the tractor

lift arm. Secure in place with a clevis pin (D) and

safety clip (C).

3. Insert the rear of the lift rod (B, Figure 11) into the

bottom of the lift lever (A). Secure with a clip (C).

Install Reflectors

1. Install the two reflectors on the rear of the tractor seat

deck.

Figure 10. Install Lift Lever

A. Lift Lever

B. Lift Shaft

C. Safety Clip

D. Clevis Pin

Figure 11. Install Lift Rod - All Models

A. Lift Lever

B. Lift Rod

C. Clip

Installation Instructions Sub-Frame Hitch

REMOVAL

NOTE: After removing components, reinstall the clevis

pins and clips to prevent loss.

1. Disconnect the lift rod from the attachment and lift

lever extension (C, Figure 12).

2. Remove the clevis pin and clip from the lift lever (C)

and remove the lift lever.

3. Remove the front hitch rod (A) and (B). Remove the

hitch and hook (F).

4. Remove the lock plate (E) OR reposition the lift link

(D) in mowing position.

NORMAL INSTALLATION

1. Insert the hook (F, Figure 12) into the back of the

hitch. Mount the rear of the hitch on the lift cross-

shaft.

2. Secure the front of the hitch to the J-hooks using the

hitch rod (A) and (B) (Figure 9).

3. Install the downward pressure lock plate (E) OR

place the lift link (D) in snowthrower position.

4. Install the lift lever extension (C).

5. Install the lift rod and attachment (Figure 11).

Figure 12. Normal Installation & Removal

A. Hitch Rod

B. Hitch Rod

C. Lift Lever Extension

D. Lift Link (Manual)

E. Pressure Lock Plate

(Hydraulic)

F. Hook

Snowthrower

Position

Sub-Frame Hitch Installation Instructions

FCD

Figure 14. Lift Link - Manual Lift Models

A. Pin

B. Rear Hole of Lift Bar (Snowthrower Applications)

C. Spacer

D. Hair Pin Clip

E. Upper Hole (Snowthrower Applications)

F. Slot of Lift Link (Mower Applications)

G. Lower Hole (Mower Applications)

BCD

Snowthrower

& Dozer

Applications

Mower

Applications

Figure 13. Lift Lock Plate - Hydraulic Lift Models

A. Lift Cylinder

B. Flat Head Pin (Original)

C. Flat Head Pin (New)

D. Lock Plate

E. Hair Pin Clips

F. Lift Shaft Assy.

G. Washers

LIFT VARIATIONS WHEN USING

ATTACHMENTS

When a front-mounted attachment such as a snowthrow-

er or dozer blade is used with the tractor, the lift mecha-

nism must be locked to provide downward force. When

the mower is reinstalled the downward pressure lock

must be released so that the mower can float.

Hydraulic Lift Models

When using a snowthrower or dozer, the downward

pressure lock plate (D, Figure 13) and an additional pin

ment. Note that the washers (G) are not used with the

lock plate.

When mowing, the downward pressure lock plate (D) is

removed and replaced with two washers (G). The addi-

tional pin (C) is also removed.

Fully lower the hydraulic lift. The lift assembly is spring

loaded so it will need to be held in the down position to

perform of the following procedures.

Manual Lift Models

NOTE: These instructions apply to Conquest / 1700 /

2700 Series tractors or Broadmoor / 1600 / 2600 Series

tractors equipped with a lift lever kit.

The lift link is installed differently depending on what

attachment is being used. Refer to Figure 14 for link

installation information.

Snowthrower

& Dozer

Applications

Mower

Applications

Installation Instructions Sub-Frame Hitch

Form No. 1734116

Rev. 10/2006

TP 200-4417-00-AT-SMAN

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

NOTES

Autres manuels pour 1695195

Table des matières

Autres manuels Simplicity Accessoires pour tondeuses à gazon

Simplicity

Simplicity 1694542 Manuel utilisateur

Simplicity

Simplicity 210 Manuel utilisateur

Simplicity

Simplicity 990194 Fiche technique

Simplicity

Simplicity 1694957 Guide de configuration

Simplicity

Simplicity Broardmoor 2600, 1600, LT Series Manuel utilisateur

Simplicity

Simplicity Turbo Vacuum Collection System Manuel utilisateur

Simplicity

Simplicity 312 Manuel de référence technique

Simplicity

Simplicity 368 Manuel utilisateur

Simplicity

Simplicity 1694409 Guide de configuration

Simplicity

Simplicity 1600220 Manuel utilisateur

Simplicity

Simplicity Clean Sweep Twin Catcher Manuel utilisateur

Simplicity

Simplicity 206 Fiche technique

Simplicity

Simplicity 319 Manuel utilisateur

Simplicity

Simplicity 725 Fiche technique

Simplicity

Simplicity 2012636130 Manuel utilisateur

Simplicity

Simplicity TP 100-200 Manuel utilisateur

Simplicity

Simplicity 1690043 Manuel utilisateur

Simplicity

Simplicity 2000 Series Manuel utilisateur

Simplicity

Simplicity 4582 Guide de configuration

Simplicity

Simplicity 1654930 Mode d'emploi

Simplicity

Simplicity 167 Manuel utilisateur

Simplicity

Simplicity 4807 Guide de configuration

Simplicity

Simplicity 1687077 Manuel utilisateur

Simplicity

Simplicity 3912 Guide de configuration

Manuels Accessoires pour tondeuses à gazon populaires d'autres marques

Ariens

Ariens 891008 Manuel utilisateur

Rover

Rover 108 - 109 Manuel utilisateur

Toro

Toro 112-5803 Manuel utilisateur

Snapper

Snapper 1690047 Manuel utilisateur

Scag Power Equipment

Scag Power Equipment GC-F4 Manuel utilisateur

RHINO

RHINO 800 Manuel utilisateur

Exmark

Exmark Quest 126-7506 Manuel utilisateur

Snapper

Snapper 1685167 Manuel utilisateur

Cub Cadet

Cub Cadet 19B70029100 Manuel utilisateur

Stihl

Stihl AMK 043.1 Manuel utilisateur

MTD

MTD 753-0873 Manuel

Toro

Toro 30810 Manuel utilisateur

Bush Hog

Bush Hog RG60 Manuel utilisateur

Land Pride

Land Pride RCF2760 Manuel utilisateur

Toro

Toro Z Master 116-0231 Manuel utilisateur

Exmark

Exmark ULTRAVAC QUICK DUMP SYSTEM Manuel utilisateur

Excel

Excel Two Bag Catcher Manuel utilisateur

Textron

Textron Jacobsen Pro12 DFS Manuel utilisateur
