SilverStone PI01 Manuel utilisateur

Aluminum case for Raspberry Pi

3 Model B/B+

2 Model B

1 Model B+

PI01

To fulfill the needs of Raspberry Pi users, SilverStone

created PI01, an aluminum case compatible with Raspberry Pi

3B+/3B/2B/1B+ version. It’s easy to install and includes two

heatsinks and thermal pads to help conduct heat from CPU to

aluminum casing.

Wall mount capable

Aluminum casing designed for additional heat dissipation

Two heatsinks and thermal pads included

Compatible with Raspberry Pi 3B+/3B/2B/1B+ version

SPECIAL FEATURES

INTRODUCTION

SPECIFICATIONS

SST-PI01B

Black

Aluminum

Raspberry Pi 3B+/3B/2B/1B+ version

55 g

90 mm (W) x 28 mm (H) x 62 mm (D)

Heatsink

Aluminum

Heatsink 1

Heatsink 2 : 9 mm (W) x 15.2 mm (H) x 9 mm (D), 2.6 g

: 14 mm (W) x 15.2 mm (H) x 14 mm (D), 6.5 g

Model No.

Color

Material

Support Raspberry Pi Version

Net weight

Dimension

Material

Net Weight and dimension

Thermal Pad

1.5W/m.k

-40 °C ~ 200 °C

Thermal conductivity

Operating temperature

0.5 / 1.25mm

Blue

Gray

Pad

Pad 1

Pad 2

: 14 mm (W) x 0.5 mm (H) x 14 mm (D), 0.25 g

: 14 mm (W) x 1.25 mm (H) x 14 mm (D), 0.4 g

: 9 mm (W) x 1.25 mm (H) x 9 mm (D), 0.2 g

Thermal pad thickness

Net Weight and dimension

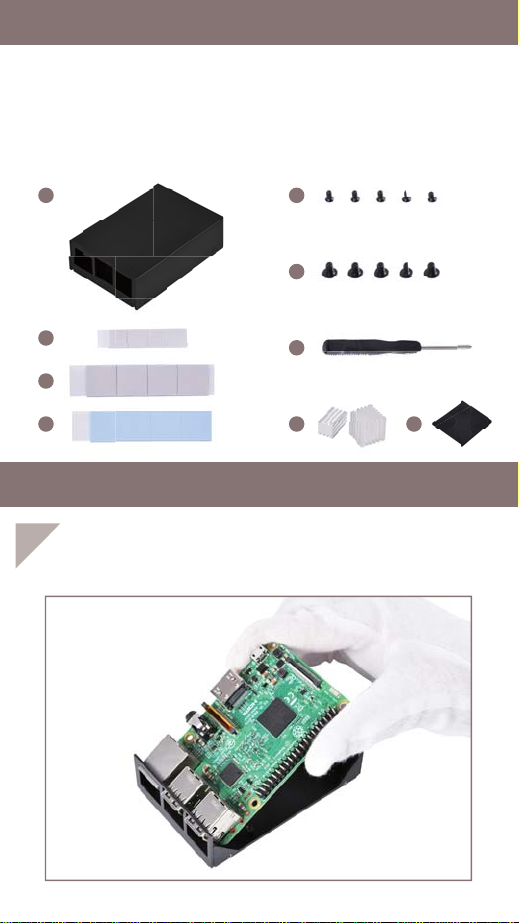

1. PI01 case x 1 pcs

2. PCB screw x 5 pieces

3. Case screw x 5 pieces

4. Screwdriver x 1 pcs

5. Heatsink x 2 pieces

6. Gray thermal pad 1 x 4 pieces

7. Gray thermal pad 2 x 4 pieces

8. Blue thermal pad x 4 pieces

9. Foot pad x 4 pieces

INSTALLATION GUIDE

PACKAGE CONTENT

Place Raspberry Pi PCB on bottom half of PI01 case

8 5 9

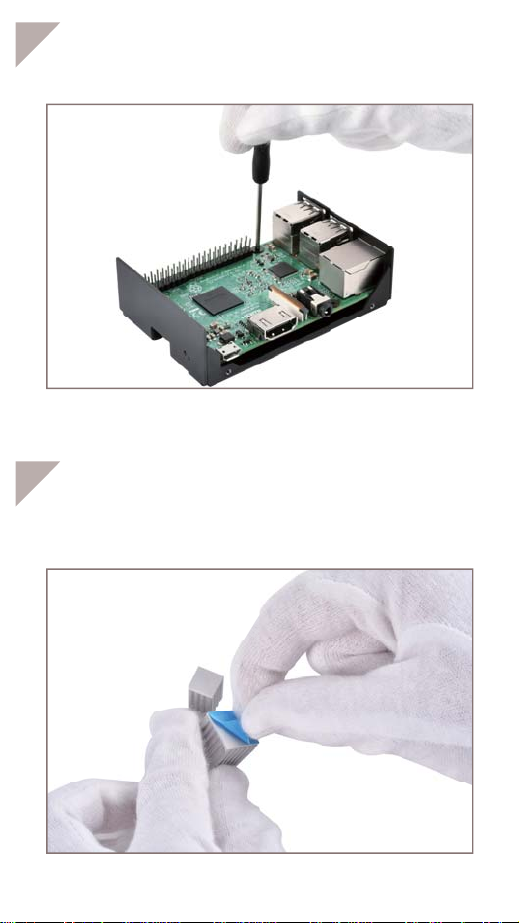

Adhere corresponding thermal pads on top and bottom of

heatsinks

Secure with PCB screws

Place and align aluminum case cover over the bottom half

and secure with screws

Place heatsinks on Raspberry Pi’s CPU and IC

*Note: If using Raspberry Pi 3 B+, please use the blue thermal

pad on CPU heatsink,

Adhere foot pads to complete installation

WARRANTY

WARRANTYTERMS & CONDITIONS

All SilverStone retail products have from the date of

purchase, a minimum of 1 year limited warranty (select products

listed below have 2, 3 or 5 year warranty)

1. Product component defects or damages resulted from defective

production is covered under warranty.

Defects or damages with the following conditions will be fixed

or replaced under SilverStone Technology’s jurisdiction.

a) Usage in accordance with instructions provided in this manual,

with no misuse, overuse, or other inappropriate actions.

b) Damage not caused by natural disaster (thunder, fire, earthquake,

flood, salt, wind, insect, animals, etc…)

c) Product is not disassembled, modified, or fixed. Components

not disassembled or replaced.

d) Warranty mark/stickers are not removed or broken. Loss or

damages resulted from conditions other than ones listed above

are not covered under warranty.

2. Under warranty, SilverStone Technology’s maximum liability is

limited to the current market value for the product (depreciated

value, excluding shipping, handling, and other fees). SilverStone

Technology is not responsible for other damages or loss

associated with the use of product.

3. Under warranty, SilverStone Technology is obligated to repair

or replace its defective products. Under no circumstances will

SilverStone Technology be liable for damages in connection

with the sale, purchase, or use including but not limited to loss

of data, loss of business, loss of profits, loss of use of the product

or incidental or consequential damage whether or not foreseeable

and whether or not based on breach of warranty, contract or

negligence, even if SilverStone Technology has been advised

of the possibility of such damages.

4. Warranty covers only the original purchaser through authorized

SilverStone distributors and resellers and is not transferable to

a second hand purchaser.

5. You must provide sales receipt or invoice with clear indication

of purchase date to determine warranty eligibility.

6. If a problem develops during the warranty period, please

contact your retailer/reseller/SilverStone authorized distributors

or SilverStone http://www.silverstonetek.com. Please note that:

(i) You must provide proof of original purchase of the product

by a dated itemized receipt

(ii) You shall bear the cost of shipping (or otherwise transporting)

the product to SilverStone authorized distributors. SilverStone

authorized distributors will bear the cost of shipping (or

otherwise transporting) the product back to you after

completing the warranty service

(iii) Before you send the product, you must be issued a Return

MerchandiseAuthorization (“RMA”) number from SilverStone.

Updated warranty information will be posted on SilverStone’s

official website. Please visit http://www.silverstonetek.com for

the latest updates.

ADDITIONAL INFO & CONTACTS

For North America ([email protected])

SilverStone Technology in North America may repair or replace

defective product with refurbished product that is not new but has

been functionally tested. Replacement product will be warranted

for remainder of the warranty period or thirty days, whichever is

longer. All products should be sent back to the place of purchase

if it is within 30 days of purchase, after 30 days, customers need

to initiate RMA procedure with SilverStone Technology in USAby

first downloading the “USA RMA form for end-users” form from

the below link and follow its instructions.

http://silverstonetek.com/contactus.php

For Australia only ([email protected])

Our goods come with guarantees that cannot be excluded under

the Australian Consumer Law. You are entitled to a replacement

or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to

have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major

failure. Please refer to above “Warranty terms & conditions” for

further warranty details.

SilverStone Technology Co., Ltd. 12F No. 168 Jiankang Rd.,

Zhonghe Dist., New Taipei City 235 Taiwan R.O.C.

+ 886-2-8228-1238 (standard international call charges apply)

For Europe [email protected]

For China [email protected]

For Japan [email protected]

For all other regions [email protected]
