CP2112 EVALUATION KIT USER’SGUIDE

1. Kit Contents

The CP2112 Evaluation Kit contains the following items:

CP2112 Evaluation Board

USB Cable

DVD

Quick Start Guide

2. Relevant Documentation

Application notes can be found on the Interface Application Notes page for all fixed-function devices:

www.silabs.com/interface-appnotes.

AN721: CP210x/CP211x Device Customization Guide — Customize the VID, PID, serial number, and

other parameters stored in the CP2112 one-time programmable ROM.

AN496: CP2112 HID-to-SMBus API Specification — Provides function descriptions and examples for all

of the PC software functions that control the CP2112.

AN495: CP2112 Interface Specification — Describes the HID report format for CP2112 devices.

3. Software Setup

The Software Development Kit (SDK) for the CP2112 kit is included on the kit DVD. The latest version of this

installer can also be downloaded from the www.silabs.com/cp2112ek website. This package includes:

Device Customization Utility

Documentation — data sheet, application notes, user’s guide, quick start guide, etc.

HidSmbusExample — Example software utilizing the CP2112 API interface described in AN496.

Library — repackaged HID DLL and CP2112 API DLL

The Windows installer should launch automatically after inserting the DVD. For Mac and Linux, browse to the

appropriate directory on the DVD to install the software package. Follow the instructions to install the SDK to the

system. The CP2112 is an HID device, so a driver does not need to be installed on most operating systems.

CP2112-EK

2 Rev. 0.3

4. CP2112 Hardware Interface

1. Connect the CP2112 evaluation board to a PC as shown in Figure 1.

2. Connect one end of the USB cable to a USB Port on the PC.

3. Connect the other end of the USB cable to the USB connector on the CP2112 evaluation board.

4. Connect the SDA, SCL, and Ground pins on the CP2112 to an SMBus device. External pull-up resistors

are not needed if the pull-up resistors on the CP2112 evaluation board are used.

Figure 1. Hardware Setup

CP2112 EK

SMBus/I2C

Device

SCL

CP2112 HID USB

to SMBus/I2C

Bridge

USB

SDA

ground

CP2112-EK

Rev. 0.3 3

5. CP2112 Software Interface

The CP2112 is an HID device that uses the standard HID functions available in the operating system. To facilitate

this process in Windows, Silicon Labs packaged the standard HID functions into the SLABHIDDevice DLL in the

CP2112 software package. The HID report structure for the CP2112 is customized for the device and is not

compatible with other HID report structures, like a mouse or keyboard. AN495, “CP2112 Interface Specification”

describes the custom HID report structure for the CP2112, and AN496, “CP2112 HID-to-SMBus API Specification”

describes the API software functions that can be used to read or write data and control the CP2112 from the PC.

The software application described in “6. CP2112 Windows Application” provides an example of how to use these

functions.

The CP2112 appears as an HID device in Device Manager as shown in Figure 2.

Figure 2. CP2112 in Device Manager

CP2112-EK

4 Rev. 0.3

6. CP2112 Windows Application

The HID SMBus Example application uses the Windows CP2112 HID-to-SMBus DLL to transmit and receive data

with the CP2112. The application also has access to the CP2112’s GPIO pins. Figure 3 shows a screenshot of the

Windows Application. The following steps describe how to start the application and use some of its features.

1. Ensure that the hardware is connected to a Windows PC as shown in Figure 1. If the device is properly

connected, the red SUSPEND LED on the CP2112 evaluation board will turn on.

2. Launch the Hid SMBus Example application, which is found by clicking

StartAll ProgramsSilicon LaboratoriesCP2112 Evaluation KitHidSmbus Example.

3. In this application, you can configure the SMBus settings and GPIO pins, customize the device

descriptors, and read/write data over the SMBus interface.

4. Select the appropriate device in the Connection drop down box and click Connect.

5. The Configuration tab enables setting and getting the SMBus configuration parameters. To set a

parameter, modify the value that is in the corresponding text box or check/uncheck a box and click Set

SMBus Config. To verify that the settings took effect, click Get SMBus Config. These configuration

parameters reset to their default values when the CP2112 is reset.

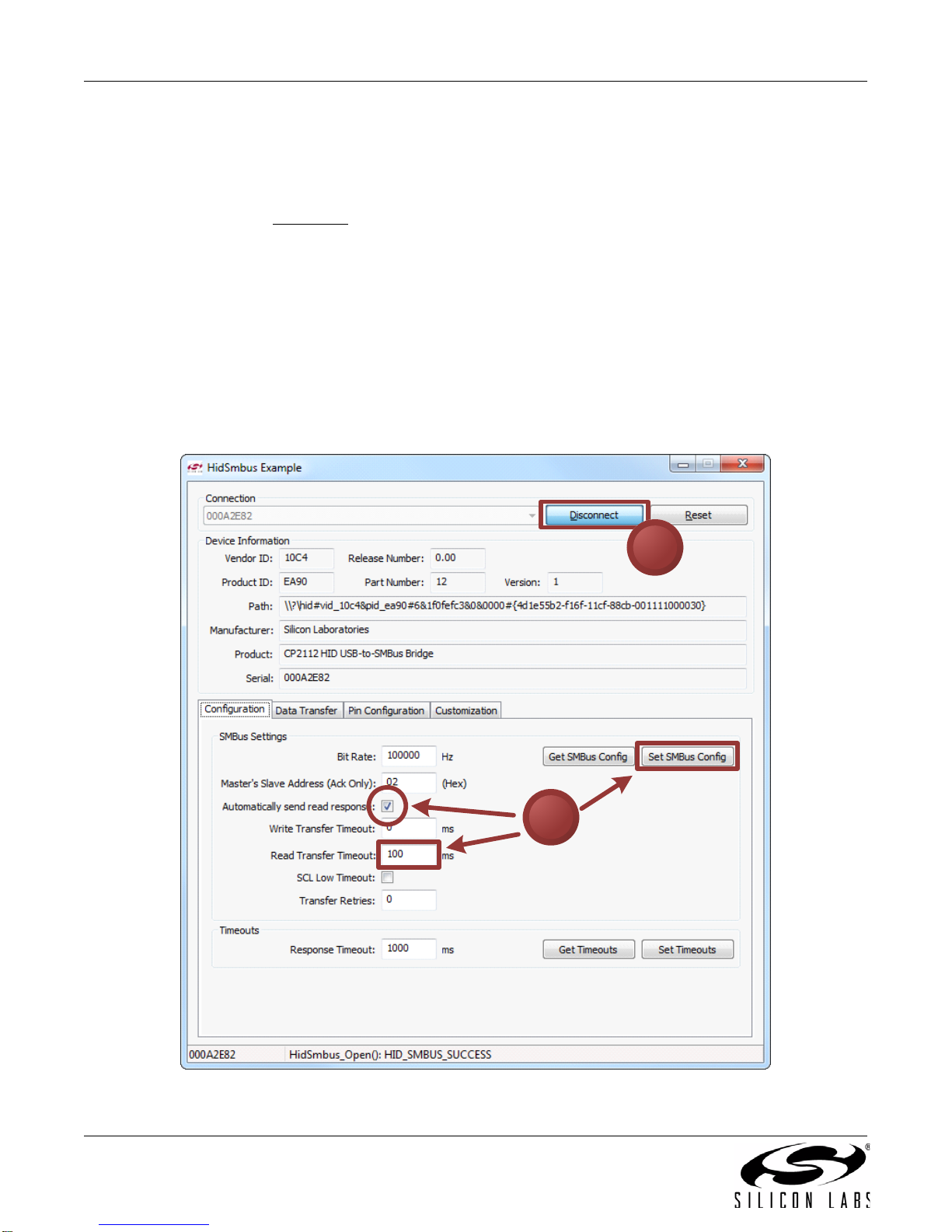

Figure 3. Configuring the SMBus Interface using the Example Application

CP2112-EK

Rev. 0.3 5

6. To read data from an SMBus device (non-addressed mode):

a. Click the Data Transfer tab.

a. Enter the slave address and the number of bytes to read in the Read Request box.

b. Click the Read Request button.

c. To see the number of bytes that were read back, click Get Read/Write Transfer Status and verify the number of

bytes read at the bottom of the application.

d. Next, click Force Read Response and then Get Read Response until the application reads back the total number

of bytes. The bytes will be shown in the Received Data field. The status of the CP2112 will be shown at the bottom

of the application.

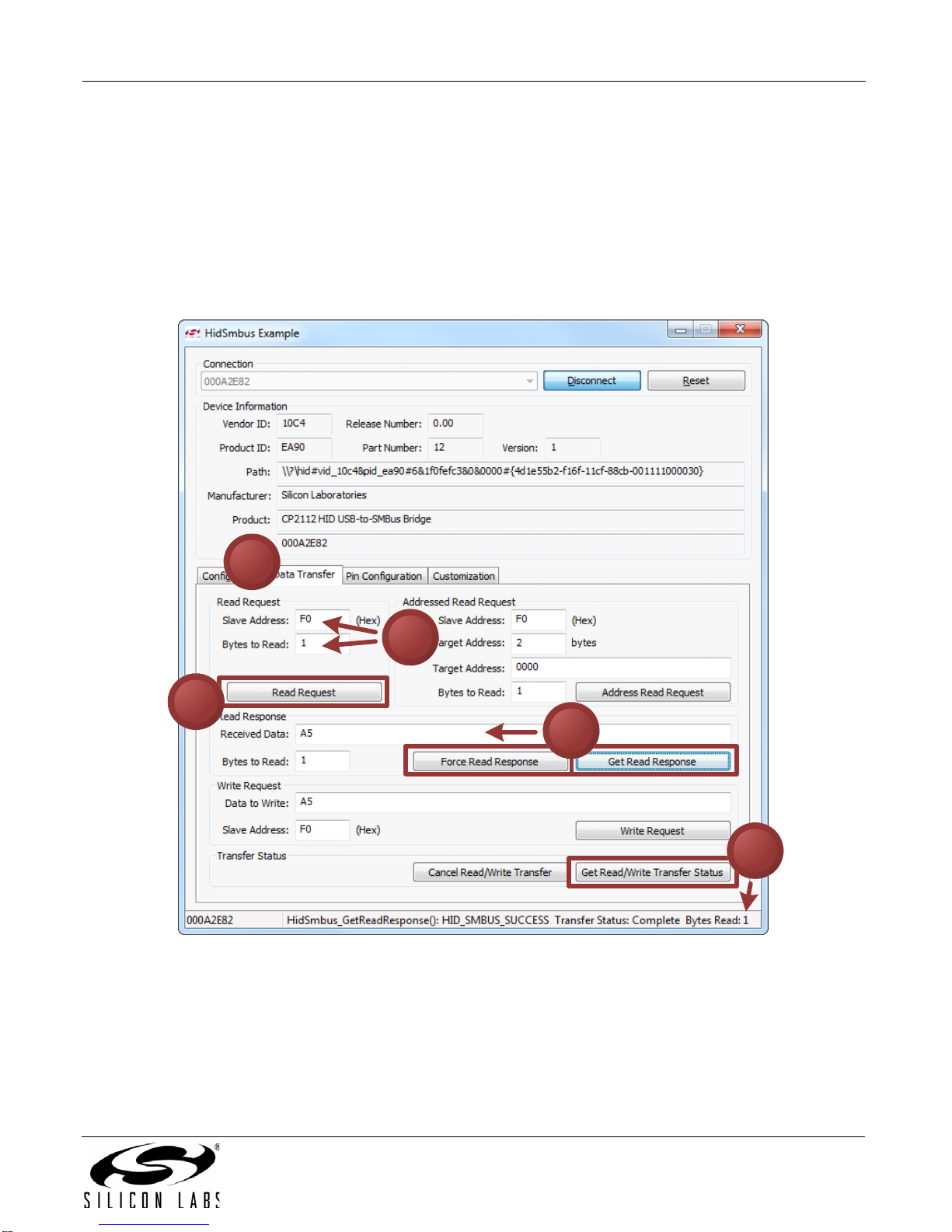

Figure 4. Performing a Non-Addressed Read using the Example Application

6c 6e

CP2112-EK

6 Rev. 0.3

7. To read data from an EEPROM or similar device (addressed mode):

a. Click the Data Transfer tab.

e. Enter the slave address, the number of address bytes in the target address, the target address of the SMBus device

being read (in hex), and the number of bytes to read in the Addressed Read Request box.

f. Click the Address Read Request button.

g. To see the number of bytes that were read back, click Get Read/Write Transfer Status and verify the number of

bytes read at the bottom of the application.

h. Click Force Read Response and then Get Read Response until the application reads back the total number of

bytes. The bytes will be shown in the Received Data field. The status bar of the application displays the current

status of the CP2112.

Figure 5. Performing an Addressed Read using the Example Application

CP2112-EK

Rev. 0.3 7

8. To write data over the SMBus interface:

a. Click the Data Transfer tab.

i. Enter the Slave address and data (in hex) in the Write Request box.

j. Click the Write Request button.

k. Click Get Read/Write Transfer Status and verify that the transfer completed using the status bar at the bottom of

the application.

Figure 6. Performing a Write using the Example Application

8b 8c

CP2112-EK

8 Rev. 0.3

9. The Pin Configuration tab enables configuration of the GPIO and special functions (TX Toggle, RX

Toggle, and Clock Output).

a. Click the Pin Configuration tab.

l. GPIO pins toggle between Input/Ouput and Open-Drain/Push-Pull by clicking the corresponding GPIO boxes in the

GPIO Configuration area. Check the boxes for TX Toggle, RX Toggle, and Clock Output to enable the special

functionality on these pins. Click the Set GPIO Config button to update the device settings.

m. The Latch Values section enables writing or reading the GPIO latches. Clicking the box next the GPIO pins listed

will scroll through 1, 0, and X for a don’t care. Click the Write Latch button to change the state of the GPIO latch.

Figure 7. Configuring the CP2112 Pins using the Example Application

9b 9c

CP2112-EK

Rev. 0.3 9

10. The Customization tab allows for programming the One-Time-Programmable (OTP) parameters of the

device. These parameters can only be programmed once and cannot be changed back to their default

values after being programmed. This tab has the same functionality as the CP2112SetIDs application

provided with the CP2112 software package. In order for these parameters to be sucessfully programmed,

a 4.7 µF capacitor must be connected between the VPP pin and ground. This capacitor is populated by

default on the CP2112 Evaluation Kit board has this capacitor. See "8. Schematic" on page 12 for more

information.

a. The USB Customization section sets the USB parameters. Click Get to retrieve the current settings.

Change the settings by modifying the text boxes and checking the box next to the parameter being

modified. Click the Set button to program the device with the modified settings. The parameter will not

be changed without checking the corresponding box. Perform a Get after changing any parameters to

ensure that the settings updated correctly.

n. The String Descriptors section enables modification of the serial strings in the CP2112. Type a string into the

corresponding text box and click the Set button to modify the strings. Perform a Get after changing any parameters

to ensure that the settings updated correctly.

o. The Lock Byte section displays which fields have been programmed and can lock fields to prevent future

modification. Any field that has been programmed will not be checked. To prevent a field from being programmed,

uncheck the corresponding box and click the Set button. Perform a Get after changing any parameters to ensure that

the settings updated correctly.

Figure 8. Customizing a CP2112 Device using the Example Application

10a

10b

10c

CP2112-EK

10 Rev. 0.3

7. Target Board

The CP2112 Evaluation Kit includes an evaluation board with a CP2112 device pre-installed for evaluation and

preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping

using the evaluation board. Refer to Figure 9 for the locations of the various I/O connectors. Refer to Figure 10,

“CP2112 Evaluation Board Schematic” for information regarding the SMBus pull-up resistors that are located on

the target board.

P1 USB connector for USB interface

H1 Access Connector for SMBus interface (SDA, SCL, GND, Pull-Up Voltage)

J1, J2, J3, J4 GPIO access connectors

J6 Power connector

J7 SMBus pull-up voltage connector

J8 Red SUSPEND LED connector

DS0–DS7 Green GPIO LEDs

DS8 Red SUSPEND LED

TB1 SMBus interface terminal block

Figure 9. CP2112 Evaluation Board with Default Shorting Blocks Installed

7.1. LED Headers (J1, J2, J3, J4)

Connectors J1, J2, J3, and J4 are provided to allow access to the GPIO pins on the CP2112. Place shorting blocks

on J1, J2, J3, and J4 to connect the GPIO pins to the eight green LEDs, DS0–DS7. These LEDs can be used to

indicate active communications through the CP2112. Table 1 lists the LED corresponding to each header position.

Table 1. J2 and J3 LED Locations

LED Pins

DS0 J1[3:4]

DS1 J1[1:2]

DS2 J2[3:4]

DS3 J2[1:2]

DS4 J3[3:4]

DS5 J3[1:2]

DS6 J4[3:4]

DS7 J4[1:2]

GND

SDA

SCL

EXT_PU

H1 GND

EXT_PU

DS7

DS6

DS5

DS4

DS3

DS2

DS1

DS0

CP2112

SILICON LABS

www.silabs.com

CP2112-EK J7 J6

SMBUS PU_V

EXT_PU

VIO

VDD

+3V

NET A

TB1 DS8

SUSPEND
