Siemens DataNET Hub (DNH) Manuel utilisateur

December 2001 User’s Manual

2000585-001

Siemens Applied Automation

Siemens Applied AutomationSiemens Applied Automation

Siemens Applied Automation

Advance DataNET

Hub (DNH)

2000 by Siemens Applied Automation

Bartlesville, Oklahoma, 74003, U.S.A.

This publication is for information only. The contents are subject to change without notice and should not

be construed as a commitment, representation, warranty, or guarantee of any method, product, or device

by Siemens Applied Automation.

Reproduction or translation of any part of this publication beyond that permitted by Sections 107 and 109

of the United States Copyright Act without the written consent of the copyright owner is unlawful.

Inquiries regarding this manual should be addressed to:

Siemens Applied Automation

Technical Communications

500 West Highway 60

Bartlesville, Oklahoma, 74003, U.S.A.

2000585-001 Table of Contents •i

Table of Contents

Preface iii

Technical Support iv

Safety Practices and Precautions v

Introduction 1

Overview 1

DataNET Hub Operations 4

DataNET Hub Specifications 6

Installation 15

Overview 15

Unpacking and Inspection 16

Wall or Rack Mounting Installation 17

Site Wiring Requirements 19

CE Installations 23

Wiring Connections 25

AC Power (Mains) Connections 26

DataNET Copper Connections 29

DataNET Hub Signal Equalizer Board 34

Signal Equalizer Board with Generic Cable 37

DataNET Fiber Optic Connections 42

Ethernet Connections 45

Data Communications Setup 47

Configuring Your PC 49

Establishing a Connection 54

Setting Network Address 57

Assigning an IP Address 59

Firmware Updates 60

MAC Address Configuration 61

System Status LEDs 62

Troubleshooting 65

Chapter 1:

Chapter 2:

Chapter 3:

ii •

••

•Table of Contents 2000585-001

Table of Contents, Continued

Command Summary 69

Command Descriptions 69

Parts Catalog 85

Introduction 85

Available Parts 86

Chapter 4:

Chapter 5:

2000585-001 Preface •

••

•iii

Preface

This manual is intended to introduce users to the Advance DataNET Hub

(DNH). It includes complete instructions for safe and proper installation

of the DNH by installation personnel.

The manual provides the following information:

Topic Page

Introduction 1

Installation 15

Data Communications Setup 47

Command Summary 69

Parts Catalog 85

Audience & Purpose

Chapter Contents

iv •

••

•Preface 2000585-001

Technical Support

At Siemens Applied Automation we take pride in the on going support we

provide our customers. When you purchase a product, you receive a de-

tailed manual, which should answer your questions; however, our techni-

cal support service provides a special “hot” line as an added source of

information.

If you require assistance call:

Inside Oklahoma: (918) 662-7430

Outside Oklahoma: (800) 448-8224

Internationally: 001-918-662-7430

Before you call one of our technical support lines. Please have the fol-

lowing information available to help our representative answer your

questions:

1. Unit Serial Number and Date of Installation

2. Description of problem

3. LEDs status on Communication Boards

Getting Help

Before You Call

2000585-001 Safety Practices and Precautions •

••

•v

Safety Practices and Precautions

This product has been designed and tested in accordance with IEC Pub-

lication 1010-1, Safety Requirements for Electronic Measuring Appara-

tus, and has been supplied in a safe condition. This manual contains in-

formation and warnings, which have to be followed by the user to ensure

safe operation and to retain the product in a safe condition.

WARNING statements identify conditions or practices that could result in

personal injury or loss of life.

CAUTION statements identify conditions or practices that could result in

damage to the equipment or other property.

DANGER indicates a personal injury hazard immediately accessible as

one reads the markings.

CAUTION indicates a personal injury hazard not immediately accessible

as one reads the markings, or a hazard to property, including the equip-

ment itself.

This symbol indicates where applicable cautionary or other

information is to be found.

DANGER - High voltage

Protective ground (earth) terminal

ATTENTION - Refer to Manual

A grounding conductor should be connected to the grounding terminal

before any other connections are made.

Safety First

Terms in This Manual

Terms as Marked on

Equipment

Symbols in This

Manual

Symbols Marked on

Equipment

Grounding the

Product

vi •

••

•Safety Practices and Precautions 2000585-001

Safety Practices and Precautions, Continued

Before switching on the power, check that the operating voltage listed on

the equipment nameplate agrees with the available line voltage.

Any interruption of the grounding conductor inside or outside the equip-

ment or loose connection of the grounding conductor can result in a dan-

gerous unit. Intentional interruption of the grounding conductor is not

permitted.

If it is determined that the equipment cannot be operated safely, it should

be taken out of operation and secured against unintentional usage.

To avoid fire hazard, use only a fuse of the correct type, voltage rating

and current rating as specified in the parts list for your product. Use of

repaired fuses or short-circuiting of the fuse switch is not permitted.

DO NOT open the equipment to perform any adjustments, measure-

ments, maintenance, parts replacement or repairs until all power sup-

plies have been disconnected.

Only a properly trained technician should work on any equipment with

power still applied.

When opening covers or removing parts, exercise extreme care since

"live parts or connections can be exposed".

Capacitors in the equipment can retain their charge even after the unit

has been disconnected from all power supplies.

Correct Operating

Voltage

DANGER Arising

from Loss of Ground

Safe Equipment

Use the Proper Fuse

Safety Guidelines

2000585-001 Introduction •

••

•1

Chapter 1

Introduction

Overview

The Advance DataNET Hub (DNH) functions as a communication router

on an Advance Communication System (ACS) network. The DNH is a

fully redundant unit with dual electronics and with dual power supplies.

The electronics are certified for use in NEC Division 2 and IEC (Cenelec)

Zone 2 hazardous locations.

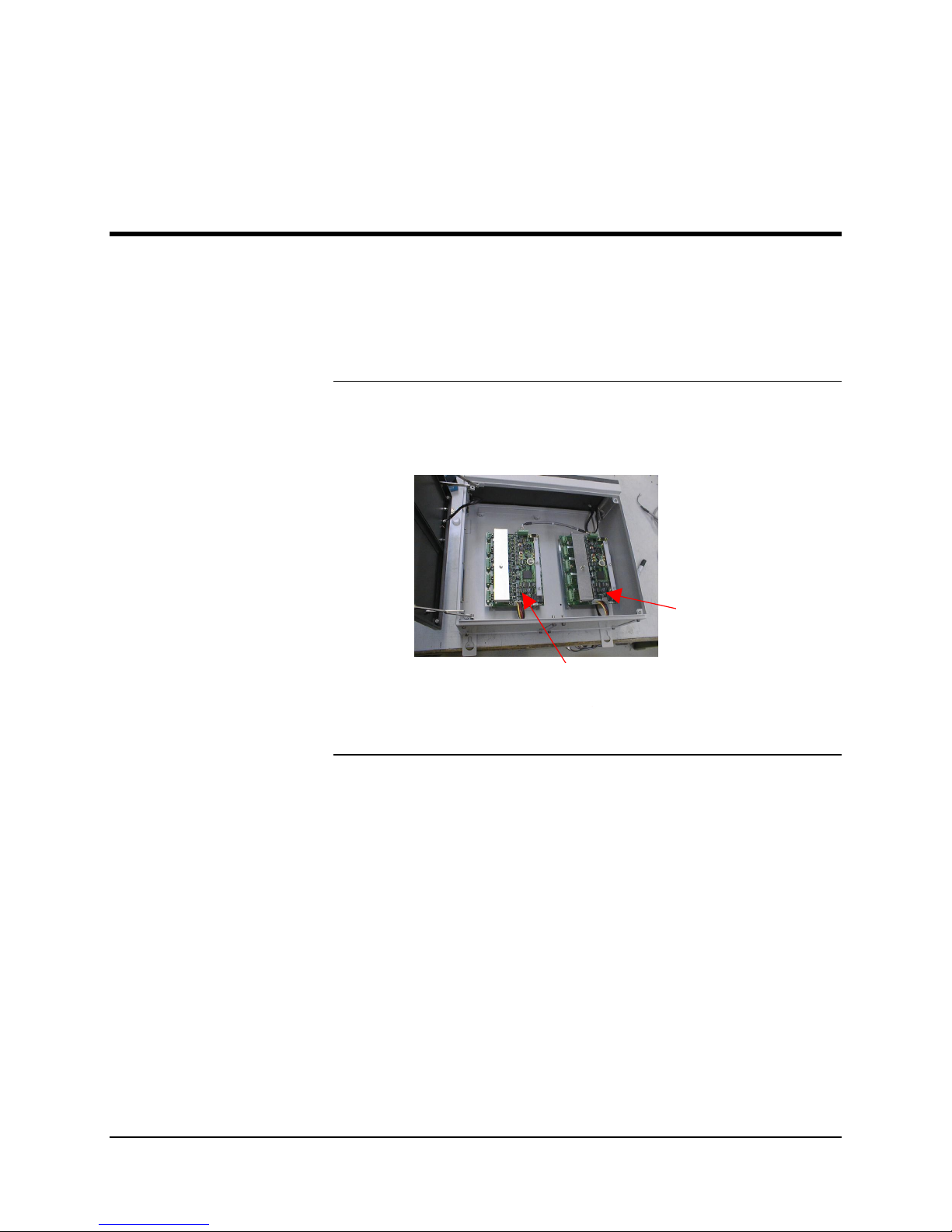

The dual hub modules (designated DataNET ‘A’ Hub or DataNET ‘B’

Hub) are connected via a serial cross-link cable The wiring of the serial

crosslink cable determines which is the ‘A’ Hub.

HUB‘B’

HUB ‘A’

The DNH brings flexibility to the ACS with its eight DataNET downlink

ports, one Ethernet 10BaseT port for interconnecting of DataNET or

Ethernet segments and one uplink port. With its uplink port, the DNH can

be used to connect DNHs together to expand the ACS network, or the

DNH can be used as an interface to an Advance Network Gateway unit.

The DataNET ports can accept copper and/or fiber optic cables. In Data

Hiway installations the DNH can use the existing Data Hiway cables.

Description

Dual Hub Modules

I/O Ports

2 •

••

•Introduction 2000585-001

Overview, Continued

The Advance DataNET Hub (DNH) is available in three package configu-

rations:

• 19-inch Rack Unit (Figure 1-5)

• Wall Mount Unit (Figure 1-6)

• Zone 1 Wall Mount Unit (Figure 1-7)

The Advance Communication System (ACS) is a high-speed communi-

cations system that uses TCP/IP protocols and addressing to intercon-

nect chromatographs and other process analyzers in a common network.

Figure 1-1 shows the DNH, Advance Network Access Unit (NAU) and

Advance Network Gateway (ANG) connected to the ACS. The NAU con-

nects to the ACS and provides a method to access information coming

from Advance process analyzers including Advance Maxum and

Advance Optichrom GC’s. The ANG is used to connect Siemens Applied

Automation’s equipment residing on an Advance Data Hiway to the ACS.

dva nce Maxu

pplied Aut oma tio

dvance Maxu

pplied Aut oma tio

AAAA

PCI

IOU(s)

APC 7.0

WorkstationNAU

Advance Network

Acess Unit

ANG

Advance Network

Gateway

DNH

Advance DataNET

Hub

Package

Configurations

Advance Communi-

cations System

Figure 1-1. Advance

Communication System

(ACS)
