SIMATIC ET 200S distributed I/O Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
_
_____________
_
_____________
_
_____________
_
_____________
Preface
Properties
1
Parameters
2
Diagnostics
3
Configuring
4
SIMATIC
ET 200S distributed I/O
Power module PM-E
DC24..48V/AC24..230V
(6ES7138-4CB11-0AB0)
Manual
04/2007
A5E01120024-01
Safety Guidelines
Safety Guidelines
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
CAUTION
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
NOTICE
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The device/system may only be set up and used in conjunction with this documentation. Commissioning and
operation of a device/system may only be performed by qualified personnel. Within the context of the safety notes
in this documentation qualified persons are defined as persons who are authorized to commission, ground and
label devices, systems and circuits in accordance with established safety practices and standards.
Prescribed Usage
Note the following:
WARNING
This device may only be used for the applications described in the catalog or the technical description and only
in connection with devices or components from other manufacturers which have been approved or
recommended by Siemens. Correct, reliable operation of the product requires proper transport, storage,
positioning and assembly as well as careful operation and maintenance.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Automation and Drives
Postfach 48 48
90327 NÜRNBERG
GERMANY
Ordernumber: A5E01120024-01
Ⓟ 12/2007
Copyright © Siemens AG 2007.
Technical data subject to change
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Manual, 04/2007, A5E01120024-01 3
Preface
Preface
Purpose of the manual
This manual supplements the
ET 200S Distributed I/O System
Operating Instructions.
General functions for the ET 200S are described in the
ET 200S Distributed I/O System
Operating Instructions.
The information in this document along with the operating instructions enables you to
commission the ET 200S.
Basic knowledge requirements
To understand these operating instructions you should have general knowledge of
automation engineering.
Scope of the manual
This manual applies to this ET 200S module. It describes the components that are valid at
the time of publication.
Recycling and disposal
Thanks to the fact that it is low in contaminants, this ET 200S module is recyclable.
For environmentally compliant recycling and disposal of your electronic waste, please
contact a company certified for the disposal of electronic waste.
Additional support
If you have any questions relating to the products described in these operating instructions,
and do not find the answers in this document, please contact your local Siemens
representative.
http://www.siemens.com/automation/partner
The portal to our technical documentation for the various SIMATIC products and systems is
available at:
http://www.siemens.com/automation/simatic/portal
The online catalog and ordering system are available at:
http://www.siemens.com/automation/mall
Preface
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
4 Manual, 04/2007, A5E01120024-01
Training center
We offer courses to help you get started with the ET 200S and the SIMATIC S7 automation
system. Please contact your regional training center or the central training center in
D -90327, Nuremberg, Germany.
Phone: +49 (911) 895-3200.
http://www.siemens.com/sitrain
Technical Support
You can reach technical support for all A&D projects
● using the support request web form:
http://www.siemens.com/automation/support-request
● Phone: + 49 180 5050 222
● Fax: + 49 180 5050 223
For more information about our technical support, refer to our Web site at
http://www.siemens.de/automation/service
Service & Support on the Internet
In addition to our documentation services, you can also make use of our comprehensive
online knowledge base on the Internet.
http://www.siemens.com/automation/service&support
There you will find:
● Our Newsletter, which constantly provides you with the latest information about your
products.
● The right documentation for you using our Service & Support search engine.
● The bulletin board, a worldwide knowledge exchange for users and experts.
● Your local contact for Automation & Drives in our contact database.
● Information about on-site services, repairs, spare parts. Lots more can be found on our
"Services" pages.
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Manual, 04/2007, A5E01120024-01 5
Table of contents
Preface ...................................................................................................................................................... 3
1 Properties .................................................................................................................................................. 7
1.1 Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0) ......................................7
2 Parameters.............................................................................................................................................. 11
3 Diagnostics.............................................................................................................................................. 13
3.1 Diagnostics using LED display.....................................................................................................13
3.2 Error types....................................................................................................................................14
4 Configuring .............................................................................................................................................. 15
4.1 Configuring the address space ....................................................................................................15
Index........................................................................................................................................................ 17
Table of contents
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
6 Manual, 04/2007, A5E01120024-01
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Manual, 04/2007, A5E01120024-01 7
Properties 1
1.1 Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Properties
The power module PM-E DC24V..48V/AC24..230V
● Monitors the supply voltage for all the electronic modules in the voltage group. The
supply voltage is fed in by means of the TM-P terminal module.
● Can be used universally and can be assigned parameters for DC and AC load voltage for
use with any electronic module.
● Is required at least once for the ET 200S (to the right of the interface module).
Exception: Design of the ET 200S with an IM151-1 COMPACT
● Control interface (PIQ) and feedback interface (PII) in the process image for option
handling.
● The current status of the power module is stored in the status byte in the process input
image (PII). This is updated irrespective of whether the "No Load Voltage" diagnosis has
been enabled.
● Is additionally equipped with a replaceable fuse (5 mm x 20 mm).

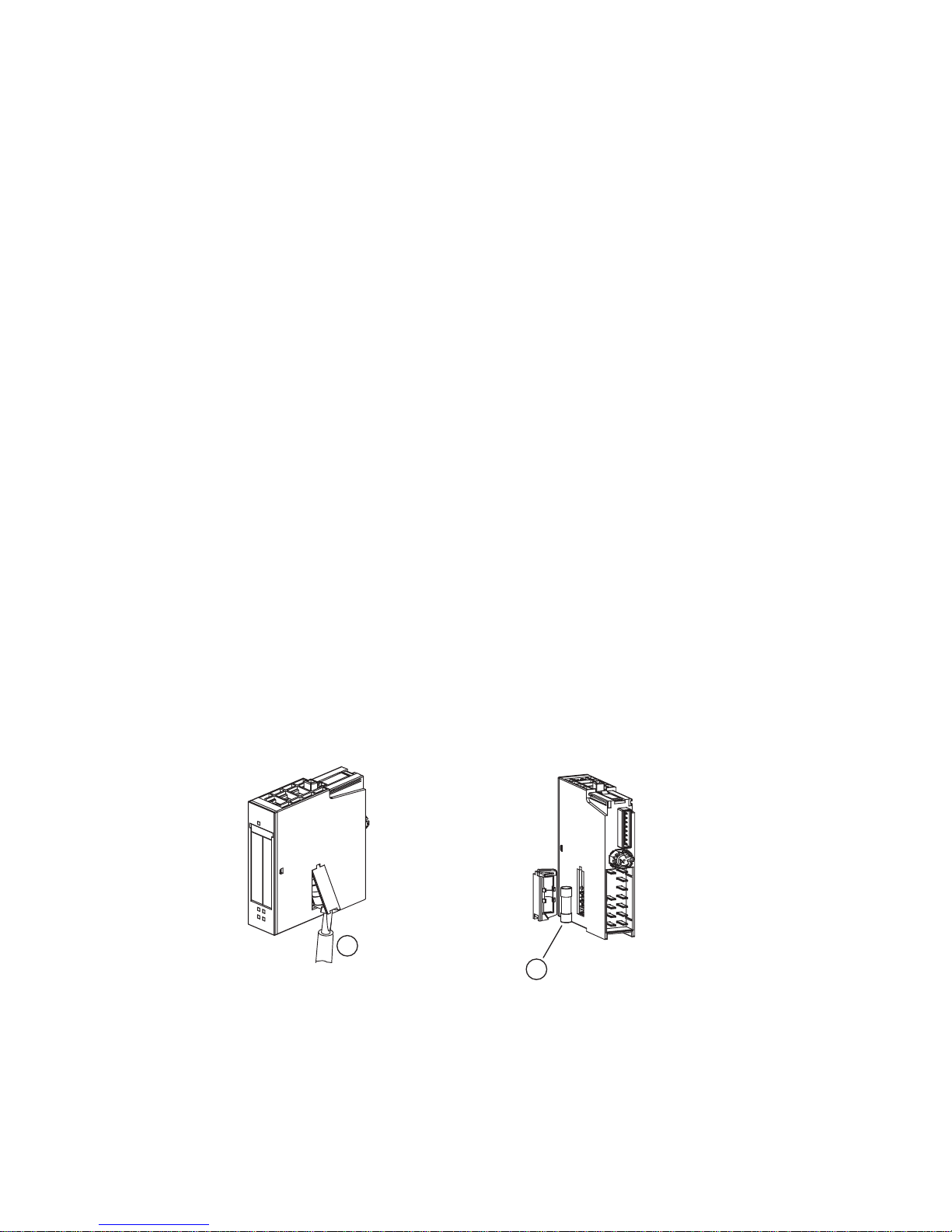

Replacing the fuse:
1
2
① Screwdriver with 3 mm blade
② Fuse
Properties
1.1 Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
8 Manual, 04/2007, A5E01120024-01
Maximum configuration per voltage group
The number of modules that can be connected depends on the total current of all modules in
a voltage group. This total must not exceed the maximum current carrying capacity.
Address space of inputs/outputs
Address space of inputs/outputs by selecting the following as an option:
Options Address space of the inputs Address space of the outputs
Status byte (S) 1 byte --
Option handling (O) 8 bytes 8 bytes
Status byte and option handling (SO) 9-byte inputs 9 bytes (9th byte not relevant)
General terminal assignment
Note
Terminals A4 and A8 are only available at specified terminal modules.
Terminal assignment PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Terminal Assignment Terminal Assignment Notes
2 L+/L1 6 L+/L1
3 M/ N 7 M/ N
A4 AUX1 A8 AUX1
•L+/L1: Rated load voltage 24 VDC to 48 VDC
•M: Chassis ground
•N: Neutral conductor
•AUX1: Protective-conductor terminal or potential bus (freely usable
up to 230 VAC)
Properties
1.1 Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Manual, 04/2007, A5E01120024-01 9

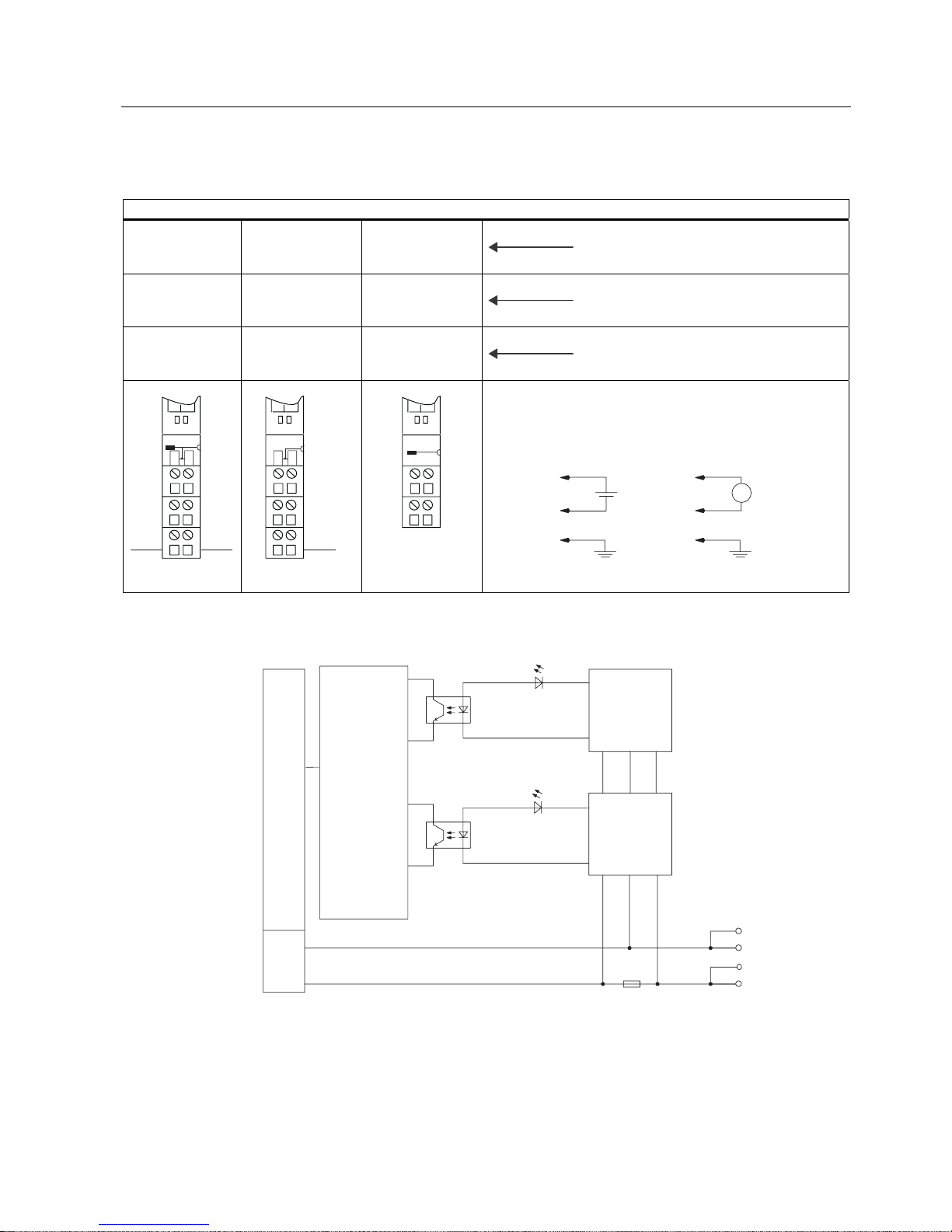

Usable terminal modules
Terminal modules that can be used for PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
TM-P15C23-A1
(6ES7193-
4CC30-0AA0)
TM-P15C23-A0
(6ES7193-4CD30-
0AA0)
TM-P15C22-01
(6ES7193-4CE10-
0AA0)
Spring terminal
TM-P15S23-A1
(6ES7193-
4CC20-0AA0)
TM-P15S23-A0
(6ES7193-4CD20-
0AA0)
TM-P15S22-01
(6ES7193-4CE00-
0AA0)
Screw-type terminal
TM-P15N23-A1
(6ES7193-
4CC70-0AA0)
TM-P15N23-A0
(6ES7193-4CD70-
0AA0)
TM-P15N22-01
(6ES7193-4CE60-
0AA0)
Fast Connect
$8;
$$
$$
$8;
$8;
$8;
$$
$$
$8;
a$&
9'&
b9'&WRb9'&/ b9'&WRb9'&/
01
3($8;
01
3($8;
:LULQJH[DPSOHV
Block diagram
01
3
3
)6*
3:5
9'&/
%DFNSODQHEXV
(76
EDFNSODQH
EXV
FLUFXLW
)XVH
PRQLWRULQJ
/RDG
YROWDJH
PRQLWRULQJ
)XVHV
Figure 1-1 Block diagram of the PM-E DC24..48V/AC24..230V
Properties
1.1 Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Power module PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
10 Manual, 04/2007, A5E01120024-01
Technical data PM-E DC24..48V/AC24..230V (6ES7138-4CB11-0AB0)
Dimensions and weight
Dimension B (mm) 15
Weight 34 g
Voltages, currents, potentials
Rated load voltage 24 VDC to 56.7 VDC
24 V to 48 V / 120 V / 230 V AC
•Overvoltage protection Yes
Protection with automatic circuit breakers Yes, tripping characteristic B, C
Max. current-carrying capacity 10 A
•For 24 to 56.7 VDC Up to 30°C: Max. 10 A
Up to 40°C: Max. 9 A
Up to 60°C: Max. 7 A
•For 24 to 48/120/230 VAC Up to 30°C: Max. 8 A
Up to 40°C: Max. 7 A
Up to 60°C: Max. 5 A
•Short-circuit protection Yes, IEC 127-2/1, 250 V, 10 A,
fast fuse (5 x 20 mm), replaceable1
Electrical isolation
•Between rated load voltage and backplane
bus Yes
•Between the power modules Yes
Insulation test voltage 1500 VAC
Current consumption from backplane bus Max. 9.5 mA
•From load voltage L1/L+ (no load) Max. 9 mA
Power dissipation of the module Max. 5 W
Parameter length 3 bytes
Status, interrupts, diagnostics
Diagnostic function Yes
•Group error Red "SF" LED
•Load voltage monitoring Green "PWR" LED
•Fuse Green LED "FSG"
•Diagnostic information can be displayed Yes
1 The fuses (order number: 6ES7193-4KA10-0AA0) for this module are only intended to serve as
supplementary fuses. External overcurrent protection (suitable for branch circuits in accordance with
the electrical engineering regulations that apply to your country) is required for the supply lines of the
load circuit.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Siemens Matériel informatique
Siemens
Siemens CP 1612 A2 Manuel utilisateur
Siemens
Siemens SIMATIC S7-1200 CP 1243-8 IRC Manuel utilisateur
Siemens
Siemens SIMATIC NET CP 5603 Manuel utilisateur
Siemens
Siemens Simatic S7-300 Manuel d'instructions
Siemens
Siemens Simatic M7-400 Manuel utilisateur
Siemens
Siemens SIMATIC NET CP 243-1 Manuel utilisateur
Siemens
Siemens LMV50 series Manuel utilisateur
Siemens
Siemens SIMATIC NET CP 5613 A2 Manuel utilisateur
Siemens
Siemens Gigaset USB adapter 54 Manuel utilisateur
Siemens
Siemens SIMATIC CP 340 Manuel utilisateur
Siemens
Siemens SIMATIC NET CP 5614 A2 Manuel utilisateur
Siemens
Siemens Fujitsu D1159 Manuel utilisateur
Siemens
Siemens Simatic S7-1500 Manuel utilisateur
Siemens
Siemens Simatic S7-300 CP 341 Manuel utilisateur
Siemens
Siemens CPU 31 Series Manuel d'instructions
Siemens
Siemens SINUMERIK 808D Manuel utilisateur
Siemens
Siemens System 600 APOGEE Manuel utilisateur
Siemens
Siemens SED2 Series Manuel utilisateur
Siemens
Siemens SMP16-CPU06 Series Manuel utilisateur
Siemens
Siemens SIMATIC S7-300 CPU Data: CPU 315-T-2 DP Manuel utilisateur
Manuels Matériel informatique populaires d'autres marques
EMC2
EMC2 VNX Series Manuel du propriétaire
Panasonic
Panasonic DV0PM20105 Manuel utilisateur
Mitsubishi Electric
Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur
Gigabyte
Gigabyte B660M DS3H AX DDR4 Manuel utilisateur
Raidon
Raidon iT2300 Manuel utilisateur
National Instruments
National Instruments PXI-8186 Manuel utilisateur
