Siemens Industry, Inc.

Building Technologies Division

P/N 315-099319-4

Installation Instructions

Model CC-5

System Cardcage for NCCNT WAN

INTRODUCTION The Model CC-5 Cardcage from Siemens Industry, Inc. (see Figure 1) has five card

slots and occupies two positions on the studs in the backbox or on the optional

CAB-MP Mounting Plate. The CC-5 is used for mounting all system circuit card

assemblies. It has two removable terminal block connectors at the top and one

removable terminal block connector at the bottom of each card slot. All field-wiring

connections are made directly to the top of the cardcage while internal power is

connected to the bottom of the cardcage. The two removable terminal block connec-

tors at the top of each slot are arranged in two rows. The lower row is labeled 1

through 8 and the upper row is labeled 9 through 16. These removable terminal

block connectors are used for connecting power limited external equipment. The

removable terminal block connector located at the bottom of each slot is labeled 17

through 24 and is used for connecting internal power.

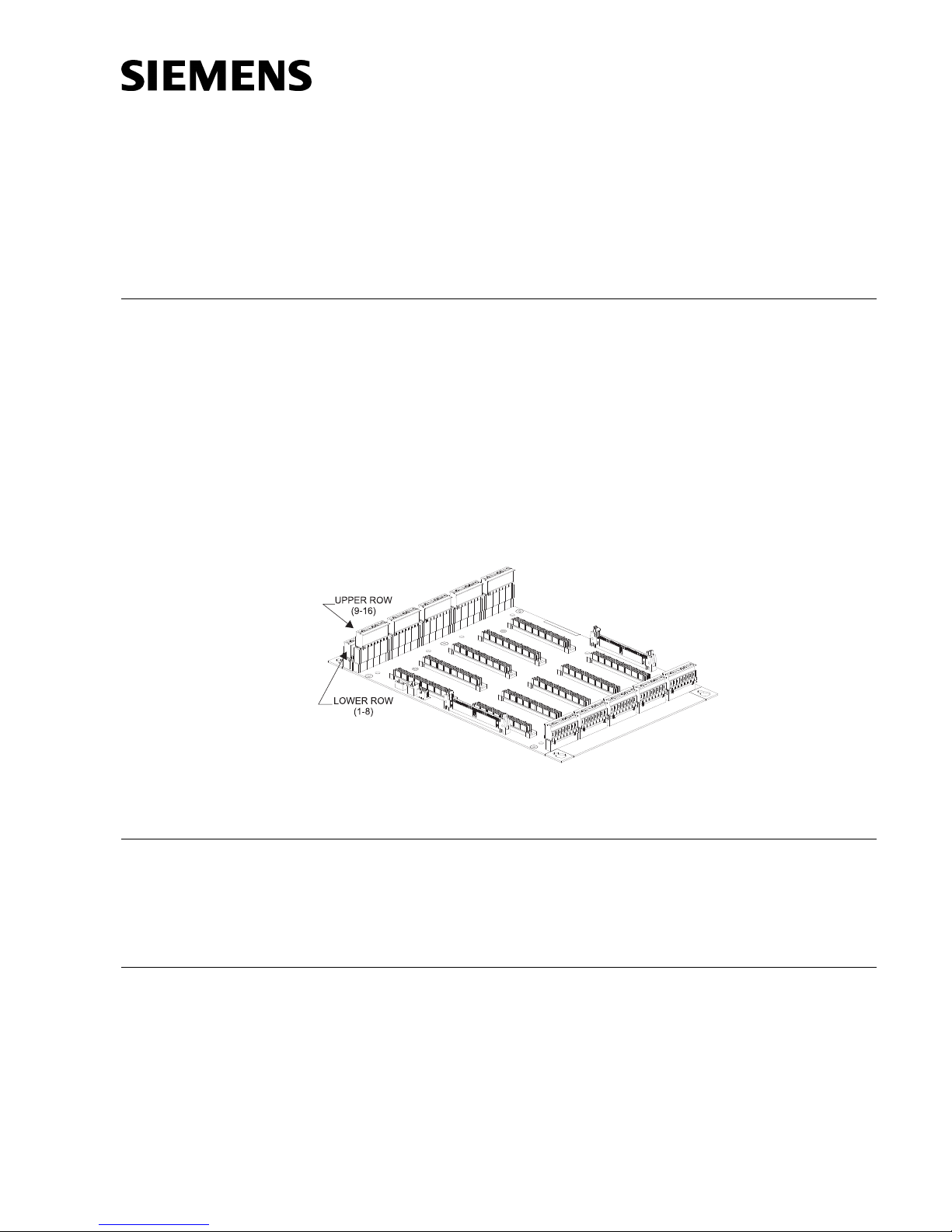

Figure 1

CC-5 Card Cage

OPERATION The CC-5 provides a central point for mounting circuit card assemblies. If a card

requires power, it is applied through the removable terminal block at the bottom of

the cardcage. All external devices for the card are connected to the card through the

two removable terminal blocks at the top of the cardcage.The circuit card assemblies

are connected to the HNET bus through the connectors on the cardcage.

PRE-INSTALLATION The CC-5 is shipped with the card guides removed.The card guides are keyed to

assist in installation.They can be installed either before or after the cardcage is

installed in the enclosure. For ease of installation, the card guides have been de-

signed to be installed after the field wiring has been completed.

Note:

Board shown without

card guides installed.

Siemens Industry, Inc.

Building Technologies Division

P/N 315-099319-42

Card Guide Installation (Figure 2)

The upper and lower card guides are keyed differently and are not interchangeable.

Ensure that the card guide keys fit easily into the holes in the motherboard to

prevent damage.

1. The upper card guide has a label on each slot that can be used to identify

the module installed in the slot. If desired, complete the label before

inserting the upper card guide.

2. Insert the upper card guide and secure with the captive screws.

3. Insert the lower card guide and secure with the captive screws.

GUIDE

GUIDE PIN HOLE

CAPTIVE SCREW RETAINERS

CAPTIVE SCREWS

LABELS

LOWER CARD GUIDE

UPPER CARD GUIDE

Figure 2

Card Guide Installation

INSTALLATION

Remove all system power before installation, first battery then AC. (To power up,

connect the AC first, then the battery.)

The CC-5 mounts at the back of the enclosure on the studs in the backbox or on the

optional Mounting Plate (CAB-MP).The Mounting Plate may be located either “IN” or

“OUT” of the enclosure to perform this installation procedure. If the Mounting Plate is

located “IN” the enclosure you will have to gain access to it by opening the enclosure

Inner and Outer doors. If the Mounting Plate is located outside of the enclosure,

place it in front of you so that the word “TOP” is at the top and away from you.

Siemens Industry, Inc.

Building Technologies Division

P/N 315-099319-43

Each row of studs in the backbox or each Mounting Plate can hold a maximum of

two CC-5 cardcages. There are three possible locations for mounting the CC-5.

1. Flush left in the backbox or on the Mounting Plate in positions 1-2.

2. In the center of the row in the backbox or on the Mounting Plate in posi-

tions 2-3.

3. Flush right in the backbox or on the Mounting Plate in positions 3-4.

When only one cardcage is to be installed, it is normally installed on the left side of

a row or on the Mounting Plate.

There is a top and bottom to the Mounting Plate.The top is where the word “TOP” is

stamped on the Mounting Plate. When the cardcage is mounted correctly on the

Mounting Plate it will be flush on the top, bottom, and left with the Mounting Plate

and the two screw holes in the center of the cardcage motherboard will be over

threaded posts.

1. Install four 10-32 screws in the threaded posts at the top left of Position 1,

top right of Position 2, bottom left of Position 1, and the bottom right of

Position 2 on the Mounting Plate. Screw each of the 10-32 screws into the

threaded posts 5-6 turns. (Refer to Figure 3.)

2. Place the cardcage over the four screws on the Mounting Plate and slide it

down or towards you to rest on the four screws. (Refer to Figure 4.) When

the cardcage is in the correct position it will be flush with the top, bottom,

and left side of the Mounting Plate.

3. Install the two 10-32 screws in the center of the cardcage motherboard near

the left and right edge.

4. Tighten the six screws.

TOP

CC-5 TOP THREADED POSTS

CC-5 BOTTOM THREADED POSTS

POSITION 1 POSITION 3 POSITION 4

POSITION 2

POSITION 1 POSITION 3 POSITION 4

POSITION 2

CAB-MP

Figure 3

Location Of The CC-5 On The Optional CAB-MP

Siemens Industry, Inc.

Building Technologies Division

P/N 315-099319-44

TOP

SLIDE DOWN CARDCAGE UNTIL

FLUSH ON TOP, LEFT, AND BOTTOM

CAB-MP

CC-5 CARDCAGE

INSTALL TWO 10-32 SCREWS WHEN

ALIGNED WITH THREADED STUDS

WIRING At the top and bottom of the CC-5 and adjacent to each card slot are removable

terminal blocks.The wiring to the two terminal block connectors at the top of the CC-

5 is power limited.The wiring to the terminal block connector at the bottom of the

CC-5 is non-power limited.

To Connect External Wiring

To The Card Slots: (Figure 5)

1. Insert the wire to be connected in the desired opening in the side of the

removable terminal block.

2. Tighten the appropriate locking screw.

Figure 4

Mounting The CC-5 On The Optional CAB-MP

Figure 5

Removable Terminal Block On The CC-5

Siemens Industry, Inc.

Building Technologies Division

P/N 315-099319-45

To Connect The

Data Bus: The Data bus connectors on the cardcage motherboard are P1 and P2. (Refer to

Figure 6.)They are 60 pin, keyed, male connectors with connector extractors.

1. Open the connector ejectors out of the vertical position and away from the

connector body.

2. Insert the female cable connector into the male connector (P1 or P2) on the

cardcage motherboard. Gently press the cable connector into the

motherboard connector. As the cable connector is pressed in, the connector

ejectors will begin to move to the vertical position. When the cable connec-

tor is fully seated the connector ejectors will be vertical.

CONNECTOR EJECTORS

IN VERTICAL POSITION

SPECIFICATIONS Physical Specifications: 10.58”W x 14.25”H

Electrical Ratings: The PSC-12 supplies the power to the two 60-pin Data

bus connectors (P1 and P2) in the CC-5.The total

rating for all CC-5s in any given enclosure is as follows:

24 VDC, 2 Amps max

6.2 VDC, 2 Amps max

See PSC-12 Installation Instructions, P/N 315-099321, and the PSX-12 Installation

Instructions, P/N 315-048553, for complete power supply loading calculations.

Figure 6

Location Of Connectors On The CC-5

Siemens Industry, Inc.

Building Technologies Division

P/N 315-099319-46

This page was left intentionally blank.

Siemens Industry, Inc.

Building Technologies Division

P/N 315-099319-47

This page was left intentionally blank.

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Building Technologies, Ltd.

Fire Safety & Security Products

2 Kenview Boulevard

Brampton, Ontario

L6T 5E4 Canada

P/N 315-099319-4
