SE530
Sound Isolating Earphones
Shure Sound Isolating™
Earphones with Triple
TruAcoustic MicroSpeakers
deliver unparalleled acoustic
accuracy. A tweeter and dual
woofers create an expansive
sound stage complete with full-
bodied bass. In addition to an
ultra-premium industrial design,
the Shure SE530 includes
a carrying case, modular
cables, interchangeable
Sound IsolatingTM sleeves,
and adapters—providing a
comfortable,
personalized t
and maximum
portability.
©2009 Shure Incorporated
27EU3242 (Rev. 2)
Printed in U.S.A.
1
N 108

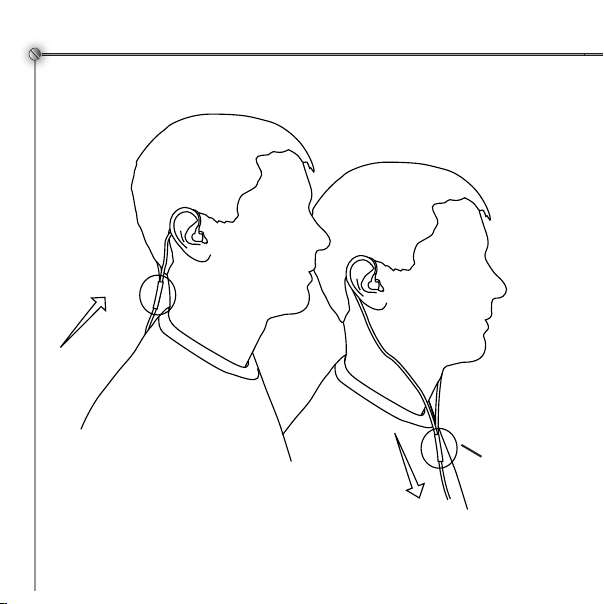

WEARING THE EARPHONES
Two suggested methods for wearing the earphones are illustrated below.
Tighten the cable and take up slack by raising the cable sleeve.
Over the ear
in back
Over the ear
in front Cable
sleeve
english

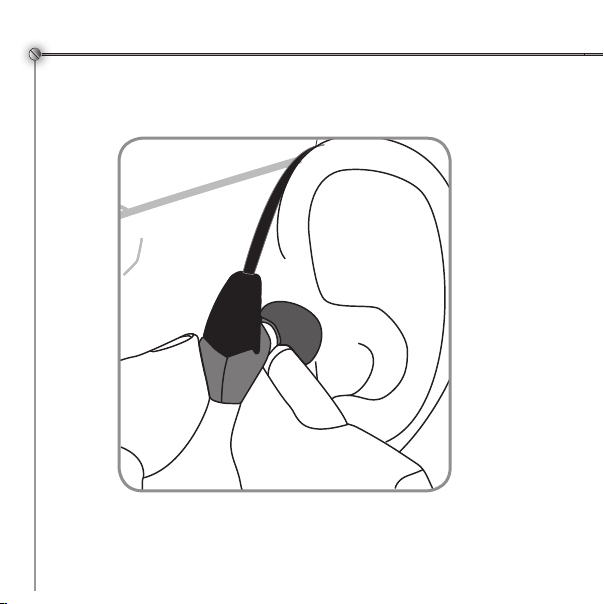

INSERTING THE EARPHONES
If the earphone seems to be lacking in low frequency response (bass),
check the tightness of the seal between the earphone and your ear, or try
one of the other sleeve options.
Warning: Do not push the earphone sleeve beyond the ear canal opening.
To change earphone sleeve, twist and pull sleeve to remove it from the nozzle. Push
new sleeve onto nozzle until you feel it slide completely over barb. If any part of the
nozzle is exposed, sleeve is not properly installed. Replace sleeves if they do not grip
the nozzle tightly
Nozzle Barb Sleeve Sleeve Over Barb
REMOVING THE EARPHONES
Note: Do not pull on cable to remove earphone.
Grasp the body of earphone and gently twist to remove.
english
CHOOSING AN EARPHONE SLEEVE
Soft Flex Sleeves
In small, medium, and large sizes. Made from pliable rubber.
Triple-Flange Sleeves
If desired, the sleeve stem may be shortened. Use a sharp scissors to
carefully trim the stem to the desired length.
Note: Carefully slide sleeve over earphone nozzle barb for a secure grip.
Soft Foam Sleeves
When using the foam sleeves, compress the sleeve between your
ngers before inserting it into the ear canal. Hold the earphone in
place for about ten seconds while the foam expands and creates a
tight seal.
Your earphones come with a selection of sleeves. Make sure the sleeve
you choose is easy to insert into your ear, ts comfortably, and is easy to
remove from your ear.
CLEANING THE EARPHONE NOZZLE
Nozzle
Wire
Loop
When cleaning, do not force any object through the earphone nozzle!
This will damage the earphone sound lter.
If you notice a change in sound quality, remove the sleeve and check the
nozzle of your earphone. If nozzle is blocked, clear obstruction by using
wire loop end of cleaning tool.
Warning: The cleaning tool is only to be used to clean the
earphones. Any other use, such as using the tool to clean ears,
could result in injury.
Cleaning
Tool
english
FURNISHED ACCESSORIES
• Volume control
• Premium Carrying Case
• Fit Kit: contains soft foam, soft ex and triple ange sleeves plus
cleaning tool
• Stereo Extension Cable - 3 ft. (91cm)
• Extension Cable - 9” (23cm)
• Stereo Adapter Plug - 1/4 in. (6.5mm) to 1/8 in. (3.5mm)
• Airline Adapter
ACCESSORIES
For information about earphone accessories (listed below) and other
Shure products visit: www.shure.com
• Replacement Sleeves • Extension Cable
• Carrying Case • Push To Hear (PTH Module)
• Adapters • Volume Control
Note: The carrying case is designed to hold only the SE530 earphones.
TECHNICAL SPECIFICATIONS
Transducer type Triple balanced-armature drivers
Sensitivity (at 1kHz) 119 dB SPL/mW
Impedance (at 1kHz) 36 W
DC Resistance 18 W
Frequency Range 18 Hz - 19 kHz
Input connector 3.5 mm (1/8 in.) gold-plated stereo plug
Net weight 30 g (1 oz.)
Operational temperature -18° C to 57° C (0° F to 135° F)
Storage temperature -29° C to 74° C (-20° F to 165° F)
english
MAINTENANCE
Careful maintenance ensures a tight seal between the sleeve and nozzle,
improving sound quality and product safety.
Keep the earphones and sleeves as clean and dry as possible.
To clean sleeves, remove them from earphones, gently rinse in
warm water and air dry. Foam sleeves require a longer drying
time. Inspect for damage and replace if necessary.
Ear sleeves must be completely dry before reusing.
Wipe the earphones and sleeves with mild antiseptic to avoid
infections. Do not use alcohol-based disinfectants.
Do not expose earphones to extreme temperatures.
Replace the sleeves if they do not t properly.
WARNING: This product contains a chemical known to the State of California to
cause cancer and birth defects or other reproductive harm.
CERTIFICATION
Meets applicable tests and performance criteria in European Standard EN 55103
(1996) Parts 1 and 2, for residential (E1) and light industrial (E2) environments.
Eligible to bear CE marking.
Conforms to European EMC Directive 89/336/EEC.

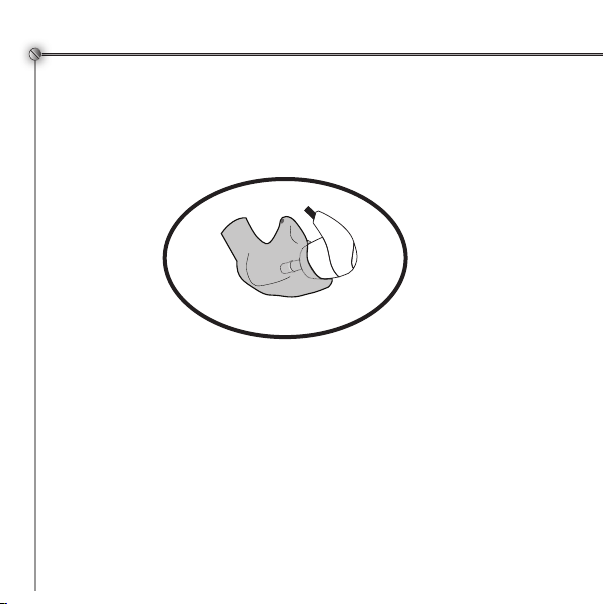

CUSTOM EARPHONE SLEEVES
Those who use earphones regularly for extended periods of time
often nd custom-t molded sleeves offer the best comfort and
sound isolation.
Ask a Hearing Health Care Professional about creating custom
molded sleeves for your earphones. For more information, contact:
Sensaphonics Hearing Conservation Toll Free: (877) 848-1714
660 N. Milwaukee Avenue In Chicago: (312) 432-1714
Chicago, IL 60622
e-mail: [email protected]
www.sensaphonics.com
