Shogun DJ G-100

ORDERCODE 32001

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Shogun DJ G-100 brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Shogun DJ G-100™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Backside…………………………………………………...…...….……………….…………………...….….

Set Up and Operation.....................................................................……..……………………………….…

One Shogun G-100 Stand-alone mode.................................……………..………………………………

One Shogun G-100 Sound-Active.………..........…..................……………………………………………

One Shogun G-100 Auto Mode.…………...….........................…………………………………………….

Multiple Shoguns G-100 Master-Slave...........….........………………………………………......…………

Multiple Shoguns G-100 DMX Control................….……………………………………......………….…..

DMX Dipswitch setting.........................………………………………………………………………………

DMX Quick Reference Chart………………………………………………………………………………….

DMX Channels.........................……………………………………………………………………………….

Maintenance...................................................................................………..………….…….………………

Replacing the Fuse........................................................................…………………….…………………

Troubleshooting............................................................................………………….………………….…..

No Light.…………………………………...........................................………………….…………………..

No Response to DMX ....................................................................………………….…………………..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never unscrew the housing!

•Never aim the laser beam at people or animals!

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never look directly into the light source.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

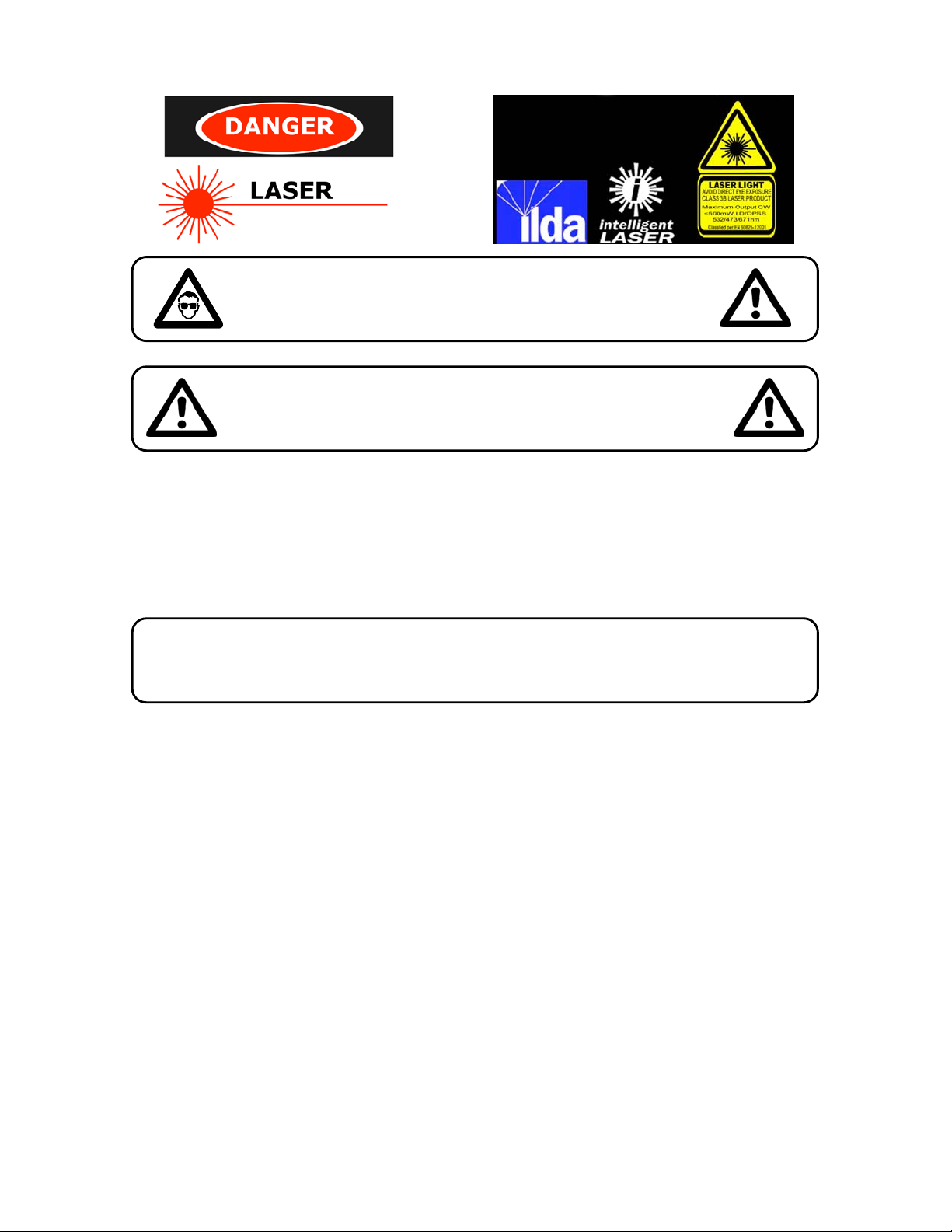

CAUTION ! EYEDAMAGES !!!

NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!!

NEVER PROJECT A SINGLE LASER POINT !!!

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always check the regulations when using a class IIIB laser product.

•Always check and position the laser before anybody enters the room, when the laser is facing an

area with people.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used, before cleaning! Only handle the

power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use fuses of same type and rating only.

•The user is responsible for correct positioning and operating of the laser. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this laser.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•The laser will only work between 15-35ºC.

•After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,

otherwise the laser could be damaged and the warranty becomes void.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

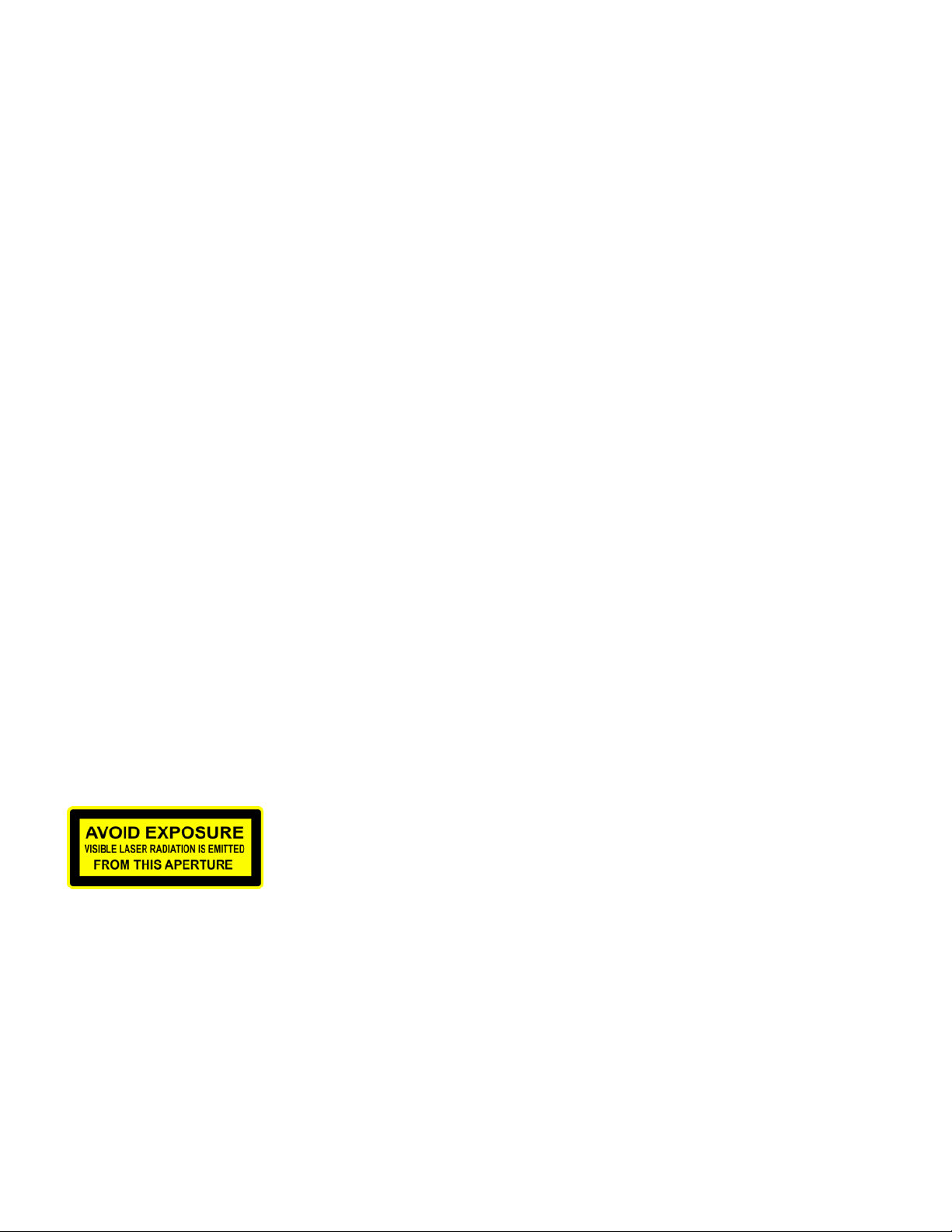

CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser

light. Never intentionally expose your eyes or others to direct laser radiation.

Compliance Statement

Your Shogun Laser has been designed to comply with FDA and IEC Standards for it classification.

The Shogun is a Class IIIB laser product.

Laser Safety and Compliance Information

The Shogun is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and Drug

Administrations (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser notices.

Product Classification and Manufacturing Label Identification

Laser Classification: Class IIIB

Laser medium: wavelength 532 nm / Green

Output: 100mW

Cooling: TE Cooling

CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or

binoculars within a distance of 100mm may pose an eye hazard.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

There are no user serviceable parts inside. Tampering or

removing warranty seals will void your products limited

warranty.

This laser product is a Class IIIB laser and has an

Interlocked housing.

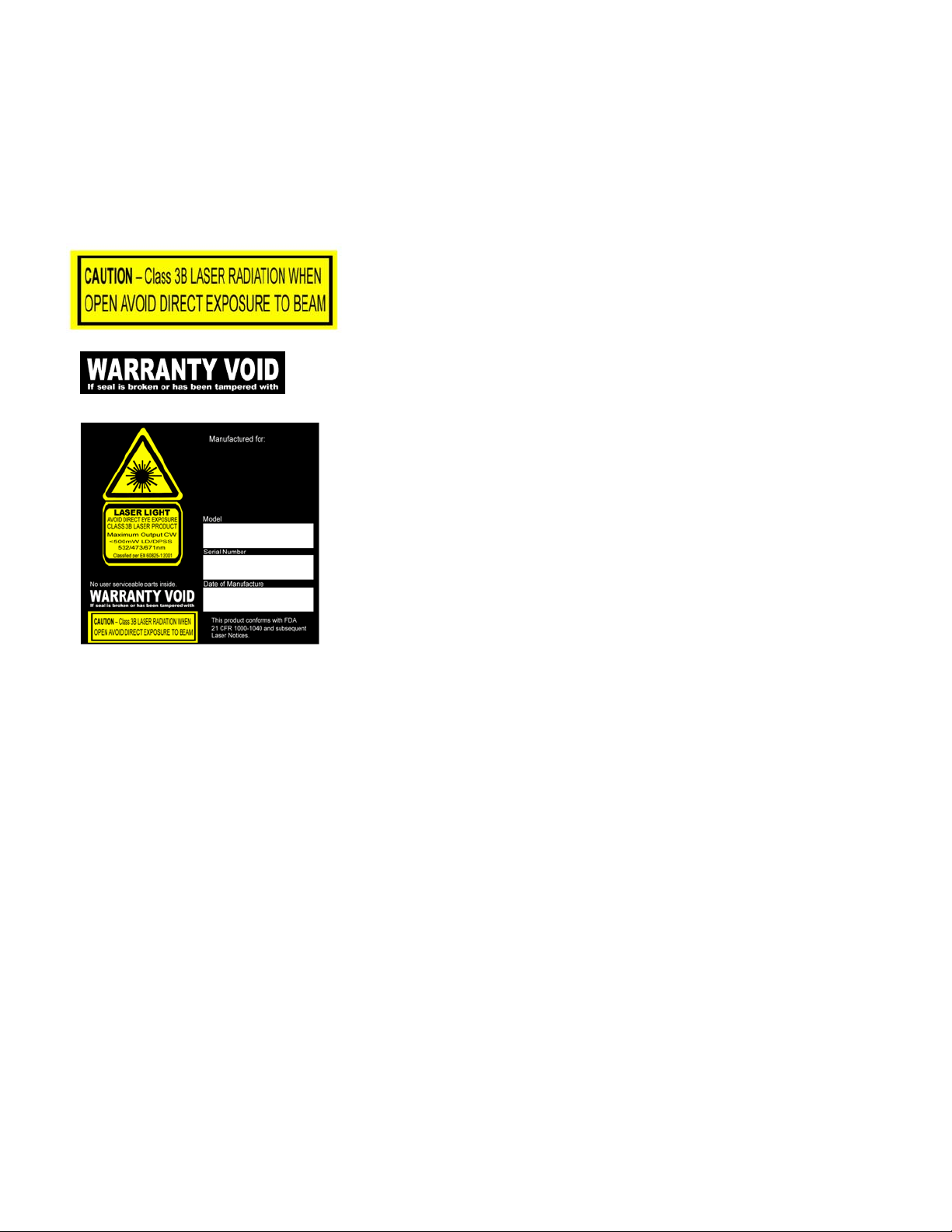

Combo label with the Product Model Number, Serial

Number, Date of Manufacturing, Laser Light Warning

Label, Warranty Void Label and Interlocked Housing

Label

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used.

•Use a clamp to mount the laser, with the mounting-bracket, to the trussing system.

•The laser must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the laser, always make sure, that the area below the installation

place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

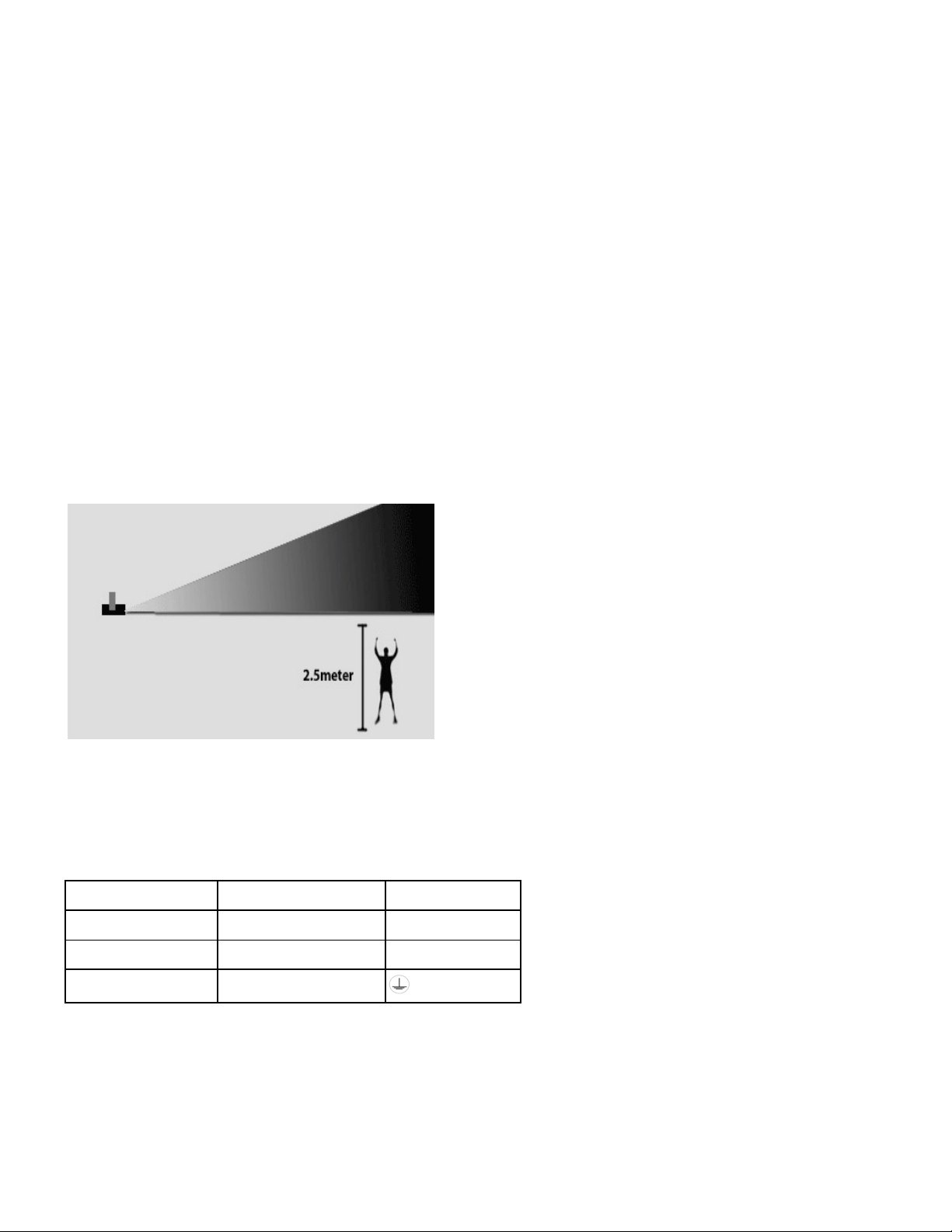

Proper Usage Safety and Compliance Information

According to FDA Regulations you should

operate this product as stated on the left.

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Shogun DJ G-100 is a laser effect with a high output and great effects.

• 100 mW green laser

• DMX-control via standard DMX-controller

• 200 pre-programmed effects

• 7 DMX-control channels required

• Sound-controlled via built-in microphone

• Fuse 2A / 250V

Overview

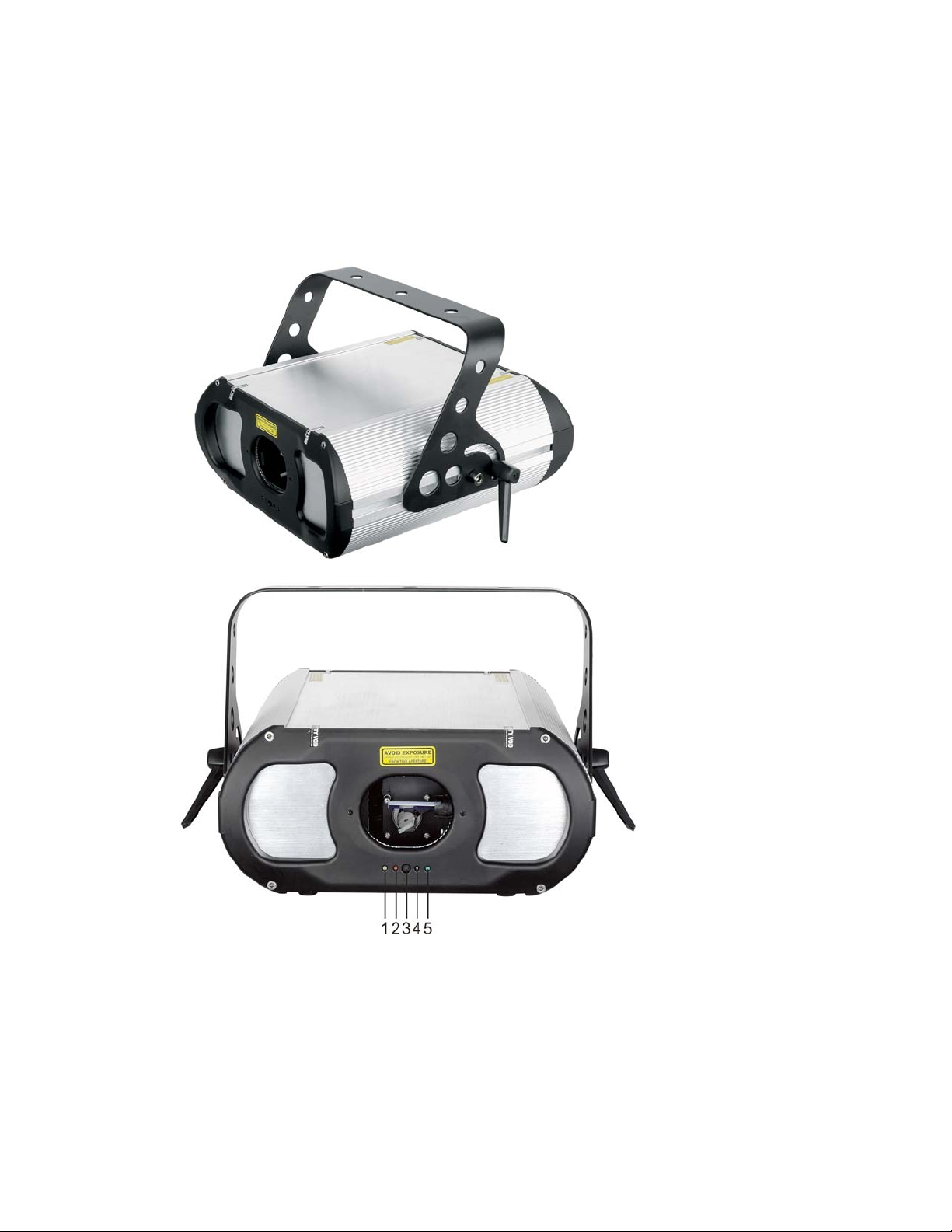

Fig. 1

Frontside

Fig. 2

1) Power LED

2) Laser indicator LED

3) Microphone

4) Sound Active LED

5) DMX indicator LED

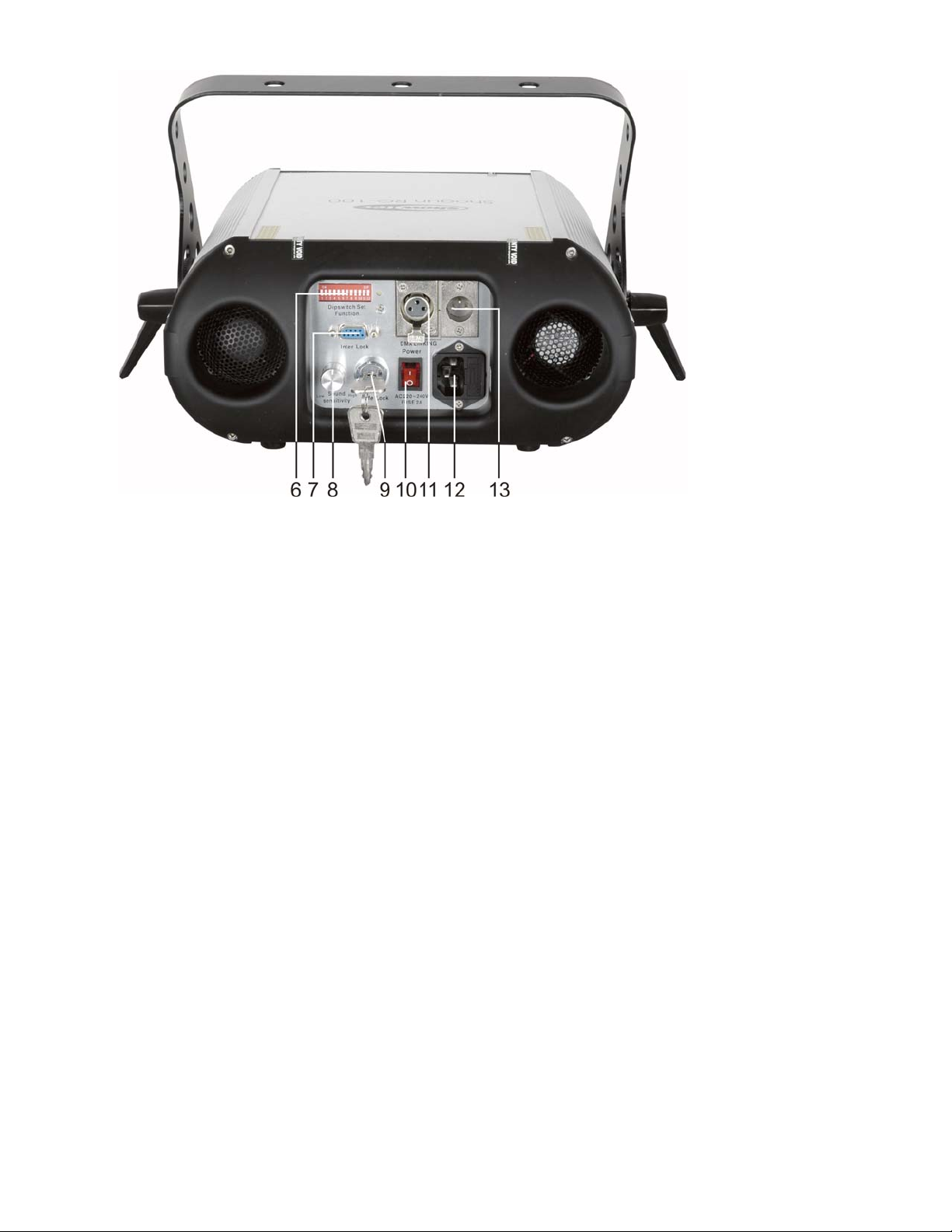

Backside

Fig. 3

6) Dip Switches 10) Power ON/OFF

7) Remote Interlock Connector 11) DMX signal connector (OUT)

8) Sound Sensitivity control 12) IEC Power Connector / Fuse 2A / 250V

9) Key System 13) DMX signal connector (IN)

Remote Interlock Connector: Use a DB9 connector to connect to the Remote Interlock, which stops the

beam being emitted once the connection loop has been opened.

Key System: When the key is locked, the unit stops emitting the laserbeam but keeps the power on, and

the steppers keep working. Only when the key is turned, after 15 seconds, the projector

starts emitting the laserbeam. 5 seconds before emitting, there is a rattling sound.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Remove the protection cover from the front of the laser. When the laser is not in use, please replace the

cover to protect the laser.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

The laser will only work between 15-35ºC.

After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,

otherwise the laser could be damaged and the warranty becomes void.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

One Shogun DJ G-100 (Stand-alone)

There are 4 possibilities: Stand Alone

Sound-active mode (Master)

Auto Mode (Master)

DMX

1. Fasten the Shogun onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Plug the cord into a proper electric power supply socket.

FUNCTION DMX DIPSWITCH CHART

123456789101112

Sound Active --- --- --- --- --- --- --- --- --- --- --- ---

Auto Mode --- --- --- --- --- --- --- --- --- --- --- ON

Master Sound --- --- --- --- --- --- --- --- --- --- ON ---

Master Auto --- --- --- --- --- --- --- --- --- --- ON ON

Slave --- --- --- --- --- --- --- --- --- ON --- ---

DMX Mode Set DMX ADDRESS ON --- ON

Test Mode --- --- --- --- --- --- --- --- --- ON ON ---

Sound-Active

Turn on the music. If Dip switches are all set to 0, then the fixture will react to the beat of the music.

See page 10 for Dipswitch settings. After every new dipswitch setting you have to disconnect the power,

and then turn the power on to activate the new dipswitch setting. You can use the Audio sensitivity knob on

the back of the Shogun, to adjust the sensitivity reaction to the music.

Auto Mode

If Dip switches are set to 1000000000, then the fixture will play all pre-programmed patterns.

Multiple Shoguns DJ G-100 (Master-Slave)

1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the

Shogun ). Leave at least 1 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the Shoguns and other devices.

The pins:

1. Earth

2. Signal -

3. Signal +

3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

4. Set DMX dip switches as follows (See Dip Switch setting page 10).

Shogun DJ G-100 DMX Dip Switches "ON"

Unit 1 (Master) Either Sound Active (All dipswitches OFF)

or Auto Mode Dipswitch #12 ON

Unit 2 (Slave) Dipswitch #10 ON

Unit 3 (Slave) Dipswitch #10 ON

Unit 4 (Slave) Dipswitch #10 ON

5. Supply electric power: Plug the end of the mains power cord into proper electric power supply sockets.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec Phantom 575 Basic EB V2 Manuel utilisateur

Show Tec

Show Tec Spectral PC 1200Z IP V1 Manuel utilisateur

Show Tec

Show Tec 43570 Manuel utilisateur

Show Tec

Show Tec Star Sky Pro II Manuel utilisateur

Show Tec

Show Tec LED Pinspot DMX V3 Manuel utilisateur

Show Tec

Show Tec Club Color Wash 575 MKII Manuel utilisateur

Show Tec

Show Tec Shogun Club RGB-120 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 20 WW Manuel utilisateur

Show Tec

Show Tec Spectral M800 Q4 Tour Manuel utilisateur

Show Tec

Show Tec Galactic RBP-180 Manuel utilisateur

Show Tec

Show Tec 51337 Manuel utilisateur

Show Tec

Show Tec Parcan 56 Long Manuel utilisateur

Show Tec

Show Tec Spectral PC 400Z IP V1 Manuel utilisateur

Show Tec

Show Tec 51327 Manuel utilisateur

Show Tec

Show Tec LED Par 56 Short DMX Manuel utilisateur

Show Tec

Show Tec LED Wash Ultra Bright RGB Manuel utilisateur

Show Tec

Show Tec compact par 7 q4 Manuel utilisateur

Show Tec

Show Tec Expression 33000 Zoom RGBWA V3 Manuel utilisateur

Show Tec

Show Tec Star LED Manuel utilisateur

Show Tec

Show Tec LED Music Tube Controller Manuel utilisateur

Show Tec

Show Tec 42421 Manuel utilisateur

Show Tec

Show Tec Explorer 250 Pro Manuel utilisateur

Show Tec

Show Tec Expression 33000 ZoomRGBWA V2 Manuel utilisateur

Show Tec

Show Tec SpaceTracer 2000 CMY Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
