Show Tec SpaceTracer 2000 CMY Manuel utilisateur

SpaceTracer 2000 CMY

ORDERCODE 40961

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec SpaceTracer 2000 CMY brings excitement to any venue. Whether you want simple plug-&-

play action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec SpaceTracer 2000 CMY™Product Guide

Warning.................................................................................…...……………..…………………………….………..…..

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations.………………………………………………………………………………………………

Rigging.………………………………………………………………………………………………………………………

Description...............................................................................…...………………………………………….………..….

Features and Overview ………………………………...….……………….………….……….……….………………

Installation...............................................................................…...…………………………………………………...….

Installing the Lamp ........................................................………………………………………………………….......

Lamp Adjustment.….......................................................………………………………………..…….………………

Locking the Head and Base.............................................………………………………………..…….……………

Set Up and Operation.....................................................................……..………………………………………………

One SpaceTracer........................................................................………………………………………..…………..

Multiple SpaceTracers........................................................................…………………………….………………...

DMX Protocol………...................................................…………………………………………………………………

Control Panel….............……....................................…………………………………………………………………..

Control Mode........................................…………………………………………………………………………………

DMX addressing...................................………………………………………………….…………………………..….

Control panel functions...................................…………………………………………………………………………

Menu Functions Explained.............................…………………………………………………………………………

Addressing…………………………………………………………………………………………………………………..

Maintenance...................................................................................………..………….…….…………………………..

Changing the Lamp........................................................................…………………….…………………………..

Replacing the Fuse........................................................................…………………….…………………………….

Troubleshooting............................................................................………………….………………….………………...

No Light..………………………………………..........................................………………….……………………….....

No Response to DMX ....................................................................………………….……………………………….

Product Specifications.................................................................……………….…….………………………………...

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never run the device without lamp!

Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

Never look directly into the light source.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp

ON again.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always replace the lamp, when it is damaged or deformed due to the heat.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Sky Spot must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use lamps and fuses of same type and rating only.

Allow time to cool down, before replacing lamp.

The user is responsible for correct positioning and operating of the Sky Spot. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 2 meters.

The maximum ambient temperature ta= 40°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

The projector must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

The SpaceTracer can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec SpaceTracer 2000 CMY is an immensely powerful SpaceTracer.

• Power consumption: 2300 Watt

•Master-slave

• DMX-512

• DMX connector: 3 pole XLR male, female

• Channels: 14

• CMY colour changer frame

• Automatic mechanic dimmer

• Electronic shutter

• Automatic Frost filter

• Electronic beam adjustment 30%- 100%

• Pan/ Tilt auto correction

• Beam angle: 0,8 - 60°

• Lamp Timer

• Lamp and Flightcase included

• IP-33

• Lamp Xenon 2000W Xenon included (ordercode 82640)

• Move the SpaceTracer, horizontally 360º (Pan) and vertically (Tilt) 220º.

Note: If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp

ON again.

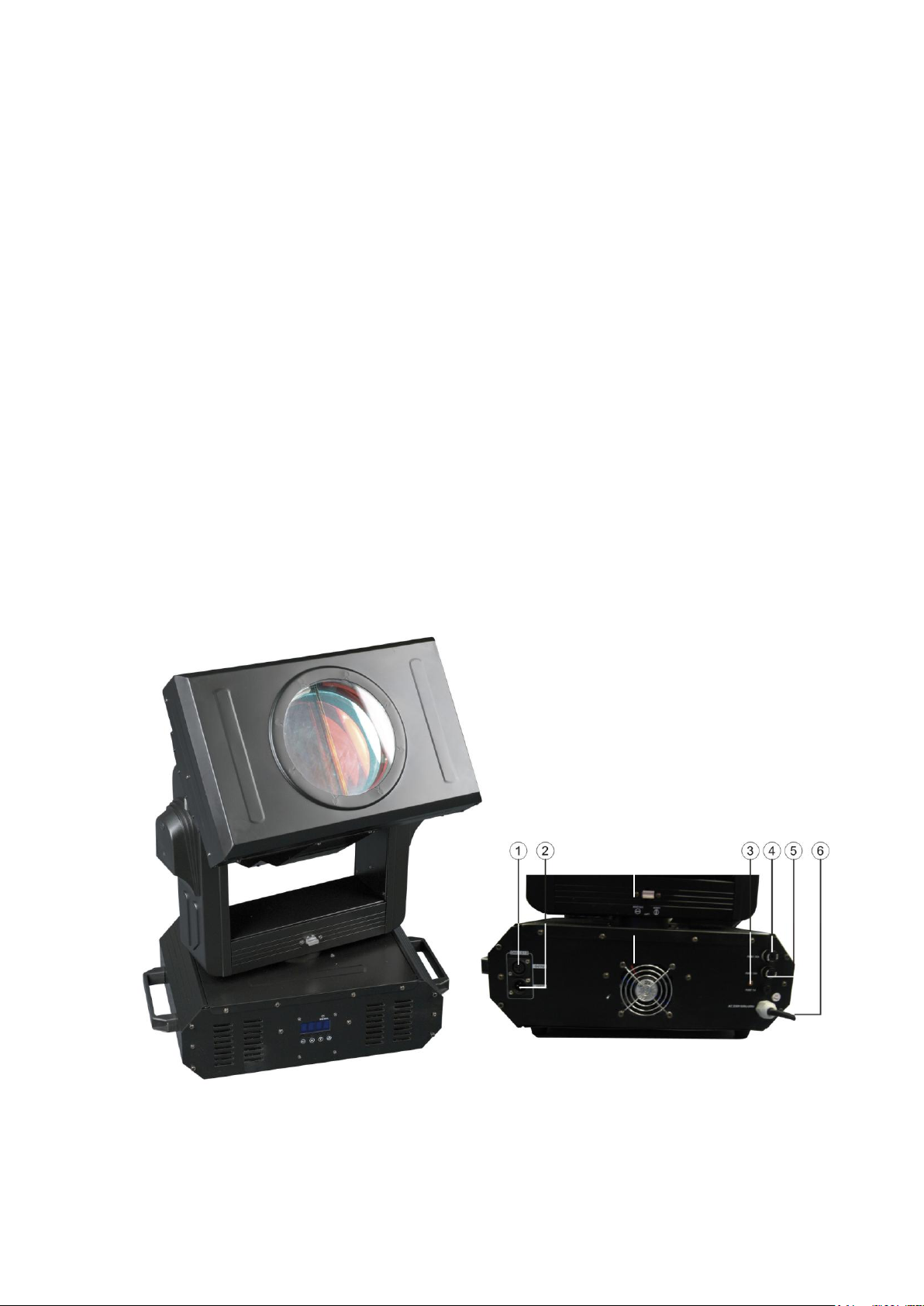

Overview

Fig. 1

1) Fuse

2) Powerswitch ON / OFF

Installation

Installing the Lamp

The Showtec SpaceTracer 2000 CMY uses the XOB 2000W Xenon (ordercode 82640) bulb as

manufactured by all popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

XBO lamps are at high internal pressure when cold (up to 35 bar or approximately 525 psi) and at

operating temperature (up to 80 bar or approximately 1200 psi at bulb wall temperatures of 600°C to

800°C).

Therefore, XBO lamps may unexpectedly rupture resulting in the discharge of hot fragments of quartz

and/or glass and metal. In the event of such a rupture, there is a risk of personal injury, burns and fire.

Only handle lamps with their protective covers in place.

OSRAM XBO: These lamps use standard quartz glass and will also emit UV radiation that produces ozone.

These lamps, like the W/4 types, must always be externally ventilated. With these types of lamps, health

risks must always be minimized by suitably extracting the air from the lamp housing and externally venting

it.

Procedure :

• Always read the safety instructions that are included with the lamp.

• Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean,

lint-free towel and rubbing alcohol.).

• Always read all the safety warnings at the beginning of this manual, before replacing the lamp !!!

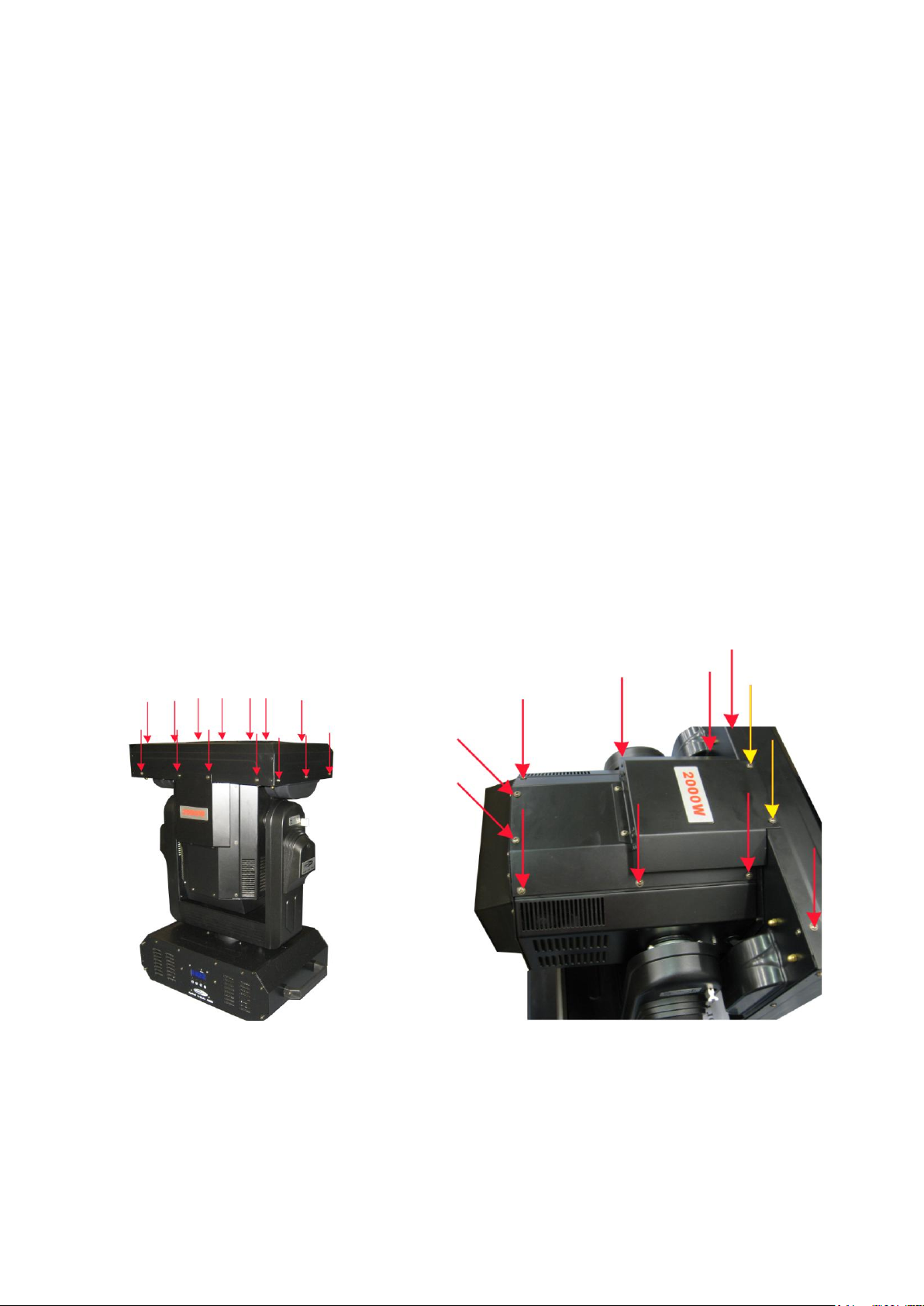

1. Remove the 14 screws. 2. Remove the 10 screws. The screws pointed out

with the yellow arrows have already been

removed in step1.

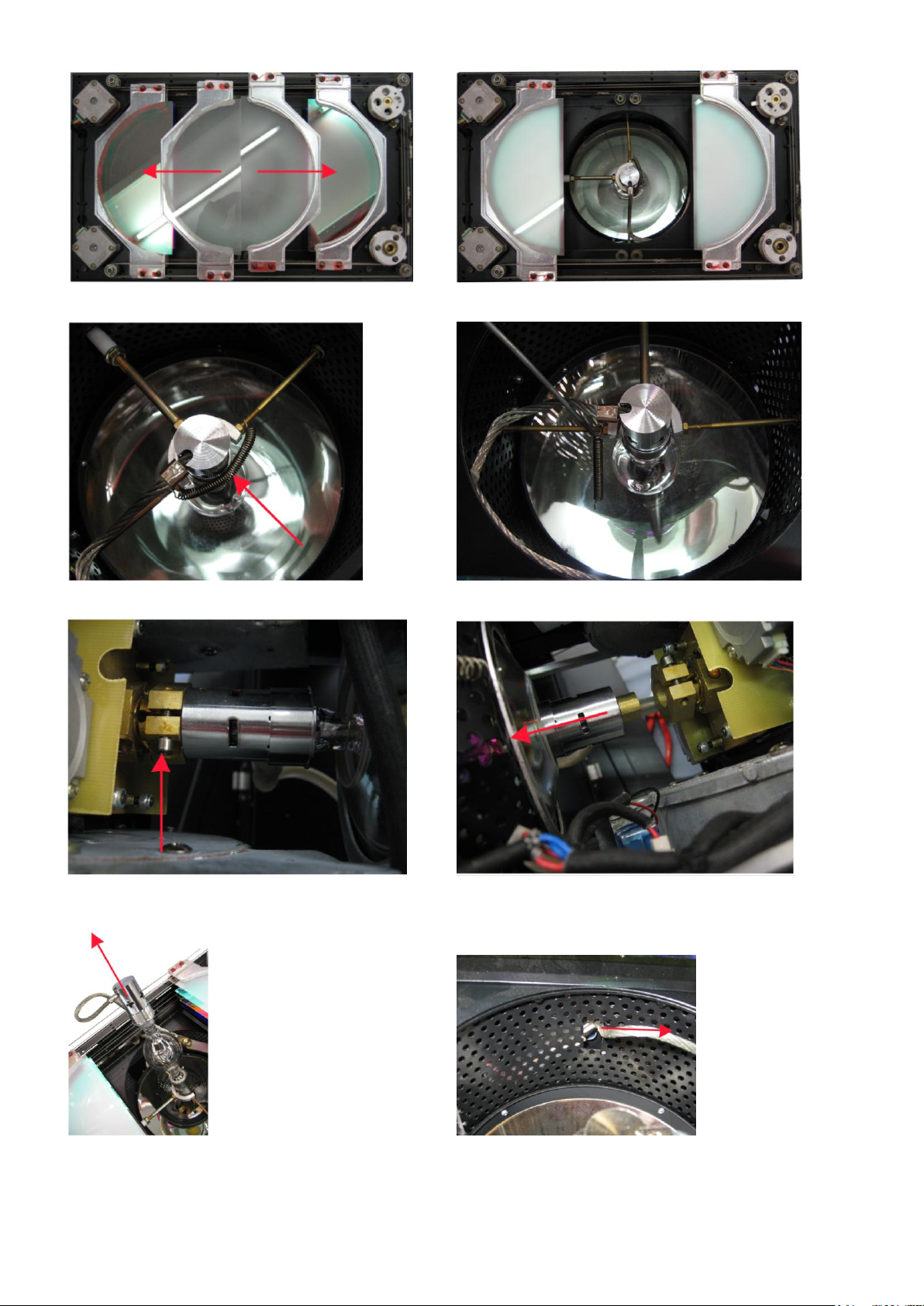

3. Open up all glass frost lenses. 4. Open up all color filters.

5. Remove the small spring. 6. Now go to the bottom of the head.

7. Remove the small socket screw bolt on the 8. Pull the lamp out of the socket.

bottom of the lamp.

9. The screw on the backside of the lamp can 10. Pull the cable out of the small hole and unscrew

the now be removed and you can take out the screw. You can now take out the entire lamp.

the lamp partially.

The broken lamp must be placed in a safe spot, so it cannot fall or break, because of

danger of explosion. The lamp is chemical waste and may not be thrown away. Bring this

lamp to a designated collect point for chemical waste.

When installing the new lamp, pay attention to the polarity of the lamp. The lamp has a positive and a

negative side. This is written on the lamp: -or +.

- Side + Side

Bottom of the lamp base is - side Top of the lamp base is + side

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec Compact Blinder 2 Manuel utilisateur

Show Tec

Show Tec Spectral M800 Q4 Tour Manuel utilisateur

Show Tec

Show Tec Pixelstrip 40 V1 Manuel utilisateur

Show Tec

Show Tec NET-4/3 IP V1 Manuel utilisateur

Show Tec

Show Tec Galactic RGB-6-751 V1 Manuel utilisateur

Show Tec

Show Tec Genesis Barrel EHJ-250 Manuel utilisateur

Show Tec

Show Tec Galactic TXT V3 Manuel utilisateur

Show Tec

Show Tec 51337 Manuel utilisateur

Show Tec

Show Tec Compact Par 7 Tri Manuel utilisateur

Show Tec

Show Tec LED Pixel Track V2 Manuel utilisateur

Show Tec

Show Tec Explorer 250 Wash Manuel utilisateur

Show Tec

Show Tec Dynamica Manuel utilisateur

Show Tec

Show Tec Pocket LaserBeam Manuel utilisateur

Show Tec

Show Tec Galactic RGB850 Manuel utilisateur

Show Tec

Show Tec ImageSpot 300 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 20 WW Manuel utilisateur

Show Tec

Show Tec Galactic GVC-190 Manuel utilisateur

Show Tec

Show Tec Aircone Q6 WDMX Manuel utilisateur

Show Tec

Show Tec Revolution 250 Manuel utilisateur

Show Tec

Show Tec Expression 33000 Zoom RGBWA V3 Manuel utilisateur

Show Tec

Show Tec Event Bar 2 CCT Manuel utilisateur

Show Tec

Show Tec 30426 Manuel utilisateur

Show Tec

Show Tec Bat 3 Digital Manuel utilisateur

Show Tec

Show Tec Galactic GBC-120 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
