Show Tec PowerBlinder 8 Manuel utilisateur

LED PowerBlinder 8

ORDERCODE 41324

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED PowerBlinder brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED PowerBlinder™Product Guide

Warning.................................................................................…...……………..…………………………….………..…

Safety-instructions………………………………………………………………………………………………………..

Operating Determinations.…………………………………………………………………………………………….

Return Procedure……………………………………………………………………………......................................

Claims…………………………………………………………………………….........................................................

Description..…..............................................................................……….……………………………….…...............

Features…….……………………………………………………………………………………….……....…...............

Overview………………………………………………………………………………………………………................

Backside…………………………………………………...…...….……………….…………………...……………...….

Installation...............................................................................…...……………………………………..….................

Set Up and Operation.....................................................................……..…………………………….…..................

Stand-alone …….…………………………………………………….………………………….…….…………………

DMX Mode……………....…………..…………………………………………………………….……...………………

Mode 1 - 16 Channels..…………………………………………………………….……...……………………..

Mode 2 - 10 Channels..…………………………………………………………….……...……………………..

Mode 3 - 7 Channels..…………………………………………………………….……...……………………….

Mode 4 Built-in Programs..…………………………………………………………….……...…………………..

Mode 5 Sound-active..…………………………………………………………….……...……………………...

Maintenance.................................................................................………..………….…….……………....................

Changing the Fuse........................................................................…………………….………….………………..

Troubleshooting............................................................................………………….………………….…...................

Product Specifications.................................................................……………….…….…………………...................

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Never look directly into the light source.

Never use the device during thunderstorms, unplug the device immediately.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Make sure that no side forces can impact on the truss system.

The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

If the external cable is damaged, it has to be replaced by a qualified technician.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

The user is responsible for correct positioning and operating of the LED PowerBlinder. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation

of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0,5 meters.

The maximum ambient temperature ta= 45°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety

issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the LED PowerBlinder is lowered from the ceiling or high joists, professional trussing systems have

to be used.

Use a clamp to mount the LED PowerBlinder, with the mounting-bracket, to the trussing system.

The LED PowerBlinder must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the LED PowerBlinder, always make sure, that the area below

the installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The LED PowerBlinder is a LED system from Showtec.

• Ultra bright LED

• 96X 1W High Power LED's (32x Red, 32x green and 32x Blue)

• Reflected beam angle 25°

• LED Lifetime 100.000 hours

• Colour mixing system RGB

• Protocol DMX512, 16, 10 or 7 channels

•3 Stand alone modes, controlled by audio or manual speed

• DMX Connection XLR 3-pins

• Aluminium with black finish

• Internal microphone

• Including 100cm power cable including power plug

• Transmit cooling

• Unlimited colors

• Low power consumption

• No Ultra Violet

• Adjustable hanging brackets included

• Maximum ambient temperature +50 degrees

NOTE: Knowledge of DMX is required to fully utilize this unit.

Overview

Fig. 1

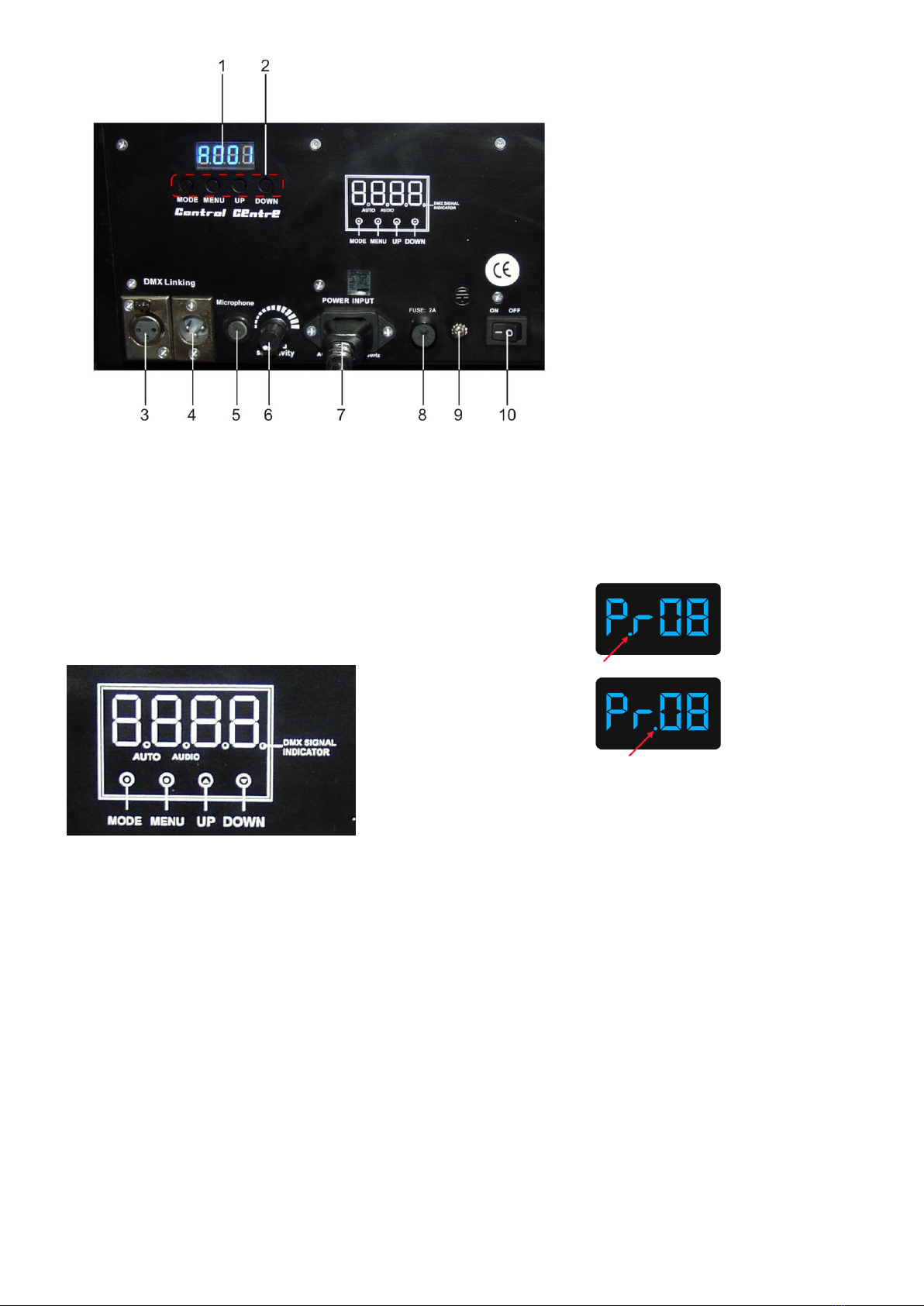

Backside

Fig. 2

1) LCD Display

2) Functions: Mode, Menu, Up, Down

3) 3-pin DMX signal connector (OUT)

4) 3-pin DMX signal connector (IN)

5) Microphone

6) Audio Sensitivity

7) ) IEC Connector

8) Fuse 2A

9) Earth

10) ON / OFF

When the display shows ,

the Powerblinder is in auto Mode.

When the display shows ,

the Powerblinder is sound-active.

Note: The position of the point shows which mode is active.

Before the r (Auto); after r (Audio)

Installation

Remove all packing materials from the LED PowerBlinder. Check that all foam and plastic padding is

removed. Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Note : Link all cables before connecting electric power.

FUNCTIONS:

There are 2 options for using the LED PowerBlinder: Stand-alone

DMX Mode

Stand-alone

In Stand-alone mode, you can use the menu button on the back of the device to scroll through the

options.

Strobe Programs

Open

Strobe 1-20 Hz

Strobe effect 1 (Rainbow + Slow Fade-in Strobe)

Strobe effect 2 (Rainbow + Mid-speed Fade-in Strobe)

Strobe effect 3 (Rainbow + Fast Fade-in Strobe)

Strobe effect 4 (Rainbow + Slow Fade-out Strobe)

Strobe effect 5 (Rainbow + Mid-speed Fade-out Strobe)

Strobe effect 6 (Rainbow + Fast Fade-out Strobe)

Strobe effect 7 (Slow random Strobe)

Strobe effect 8 (Mid-speed random Strobe)

Strobe effect 9 (Fast random Strobe)

No Strobe

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec Performer Profile 600 LED MKII V1 Manuel utilisateur

Show Tec

Show Tec 42422 Manuel utilisateur

Show Tec

Show Tec phantom 75 LED Manuel utilisateur

Show Tec

Show Tec LED Powerbar 12 Manuel utilisateur

Show Tec

Show Tec Pixelstrip 40 V1 Manuel utilisateur

Show Tec

Show Tec 50426 Manuel utilisateur

Show Tec

Show Tec Expression 33000 Zoom RGBWA V3 Manuel utilisateur

Show Tec

Show Tec LED Flamelight Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 LED Manuel utilisateur

Show Tec

Show Tec LED Par 56 Short Eco Manuel utilisateur

Show Tec

Show Tec Galactic RGB850 Manuel utilisateur

Show Tec

Show Tec Atmos 1000 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15CW Manuel utilisateur

Show Tec

Show Tec Galactic GBC-120 Manuel utilisateur

Show Tec

Show Tec LED Music Tube Controller Manuel utilisateur

Show Tec

Show Tec 30426 Manuel utilisateur

Show Tec

Show Tec Spectral PC 400Z IP V1 Manuel utilisateur

Show Tec

Show Tec DDP-1220 Manuel utilisateur

Show Tec

Show Tec PAR 30 Warm-On-Dim Manuel utilisateur

Show Tec

Show Tec Spectral M800 MKII Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15WW Manuel utilisateur

Show Tec

Show Tec Compact Power Lightset V@ Manuel utilisateur

Show Tec

Show Tec Star Force Manuel utilisateur

Show Tec

Show Tec Firestorm Miniscan Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
