Show Tec LED Powerbar 12 Manuel utilisateur

LED Powerbar 12

ORDERCODE 41330

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Powerbar 12 brings excitement to any venue. Whether you want simple plug-&-play action

or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Powerbar 12™Product Guide

Warning..…...................................................................................………………………………………………………..

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations…….…………………………………………………………………………………………

Rigging…………………………….…………………………………………………………………………………………

Description..…................................................................................……….……………………………………………..

Features and Overview …………..……………………...….……………….………….……….……….…………….

Backside……………………………….…………………...…...….……………….…………………...…………………

Installation...............................................................................…...………………………………………….………..….

Set Up and Operation.....................................................................……..………………………………………………

Connection……….……..…………..…………………………………………………………….……..................……

DMX Operation…………..…………..…………………………………………………………….……..................……

DMX Addressing……..…………..………………………………………………………………………………………...

Light Output……..…………..…………………………………………………………….………………….……………

Set Up Example….…..……………………………………………………………….…….…..……………………….….…

Maintenance...................................................................................………..………….…….…………………………..

Troubleshooting............................................................................………………….………………….………………...

Product Specifications.................................................................……………….…….………………………………...

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there

be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the LED Powerbar 12 is lowered from the ceiling or high joists, professional trussing systems have to

be used.

Use a clamp to mount the LED Powerbar 12, with the mounting-bracket, to the trussing system.

The LED Powerbar 12 must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

When rigging, derigging or servicing the LED Powerbar 12, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

The LED Powerbar 12 can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property !

Description of the device

Features

The LED Powerbar is a LED system from Showtec.

• 2 Modes: Stand-alone, DMX-controlled

• 3 Channels (R, G, B)

• IP-Rating: IP-65

•Color range: 16,000,000 colors.

•Light source: High Power LED

•12 High power LEDs (4 Red, 4 Green, 4 Blue)

•Beam angle: 25°

•Light spacing: 20M

•Digital interface: Standard DMX compatible

•Controlling system: DMX512

•Shell material: aluminum alloy

•Connecting mode: standard signal cord and power cord

•Connector: 3-pin signal connector

NOTE: Knowledge of DMX is required to fully utilize this unit.

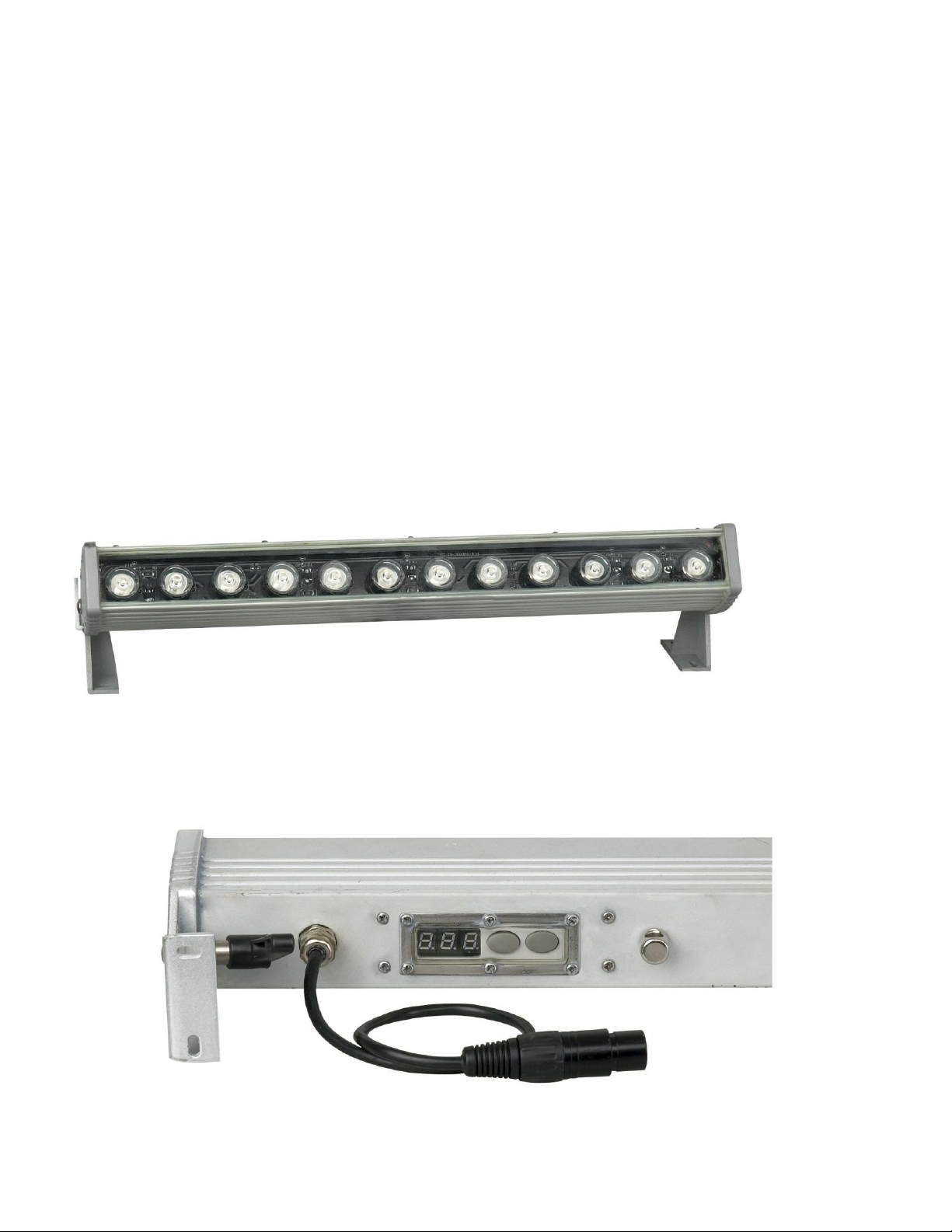

Overview

Fig. 1

Backside

Fig. 2

Installation

Remove all packing materials from the LED Powerbar 12. Check that all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Powercable 3-pin waterproof cable special 3-pin to XLR cable

Connection

Connect the input connector of the first fixture to the output connector of the DMX console; connect the

output connector of first fixture to the input connector of the second fixture; etc., as shown in following

diagram.

1) Put the output connector of the first fixture into a Φ20 thermal shrinking sleeve with glue inside. The end of

the sleeve should be 5mm from the joint of the cable and the connector.

2) Put the input connector of the second fixture into the Φ20 thermal shrinking sleeve so as to connect it with

the output connector of the first fixture.

3) Blow and shrink the sleeve ends with a hair drier so that the sleeve and the signal cable are tightly

contacted for waterproof purpose.

The signal output connector of the last fixture (maximum 30 fixtures) of each series must be sealed with aΦ20

thermal shrinking sleeve and blow and shrink it with a hair drier for waterproof purpose.

大功率单行旋转投光灯电气连接图

Fig. 3

DMX Operation

Press the Up/Down button to change the DMX address setting rnenu:

The DMX Channel functions when using the entire device as one:

Channel 1: Red (0-255)

Channel 2: Green (0-255)

Channel 3: Blue (0-255)

The LED Powerbar’s built-in controller will automatically detect the presence of a DMX signal.

In order to receive a DMX signal, the built-in controller must be attached to a DMX controller by a 3-pin DMX

cable and the DMX controller must be turned on.

To mix RGB color use channels 1, 2, 3.

Note: When there is no DMX signal, the LED Powerbar will switch to Stand-alone Mode after a few

seconds.

DMX Addressing

Unit address

DMX address

Etc.

Light Output

Light Output Measurement (for 28º beam angle)

SET UP Example

Fig. 4
