Showtec MiniMax™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Backside…………………………………………………...…...….……………….…………………...….….

Installation...............................................................................…...…………………………………….…..

Installing the Lamp ........................................................………………………………………..…………

Set Up and Operation.....................................................................……..……………………………….…

One MiniMax......................................................................………………………………………..………

Multiple MiniMax’s........................................................................………………………………….……..

DMX-Protocol…...................................................…………………………………………………………….

Control Panel….............……....................................……………………………………………………….

Control Mode........................................………………………………………………………………………

DMX addressing...................................………………………………………………………………………

Control panel functions...................................………………………………………………………………

Explanation Menu Codes................................………………………………………………………………

Stand – alone mode...................................………………………………………………………………….

Master/Slave mode...................................…………………………………………………………………..

Channel settings………………………………………………………………………………………………..

Gobo-wheel.............................................................................................................................................

Maintenance...................................................................................………..………….…….………………

Changing the Lamp........................................................................…………………….…………………

Replacing the Fuse........................................................................…………………….…………………

Troubleshooting............................................................................………………….………………….…..

No Light, No Movement - All Products............................................………………….…………………..

No Response to DMX ....................................................................………………….…………………..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never run the device without lamp!

•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

•Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always

hold the fixture at the transport handles.

•Never look directly into the light source.

•Never leave any cables lying around.

•Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always replace the lamp, when it is damaged or deformed due to the heat.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

•To ensure the longest and most efficient use of the lamp always wait 15 minutes before re-applying

power after a shutdown. Failure to do so could result in premature aging of the lamp and failure to

the electronics that drive it.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Movinghead must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use lamps and fuses of same type and rating only.

•Allow time to cool down, before replacing lamp.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 1.3 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

The MiniMax can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Mounting a clamp to the underside of the MiniMax moving head

1. Bolt a clamp to the included bracket with a grade 8.8 (minimum) M12 bolt and locknut, or as

recommended by the clamp manufacturer, through the 13 mm hole in the bracket.

2. Align the bracket with the keyholes in the base. Insert both locking pins into the holes and turn both levers

a full 1/4 turn clockwise to lock. The fasteners are locked only when turned fully clockwise.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

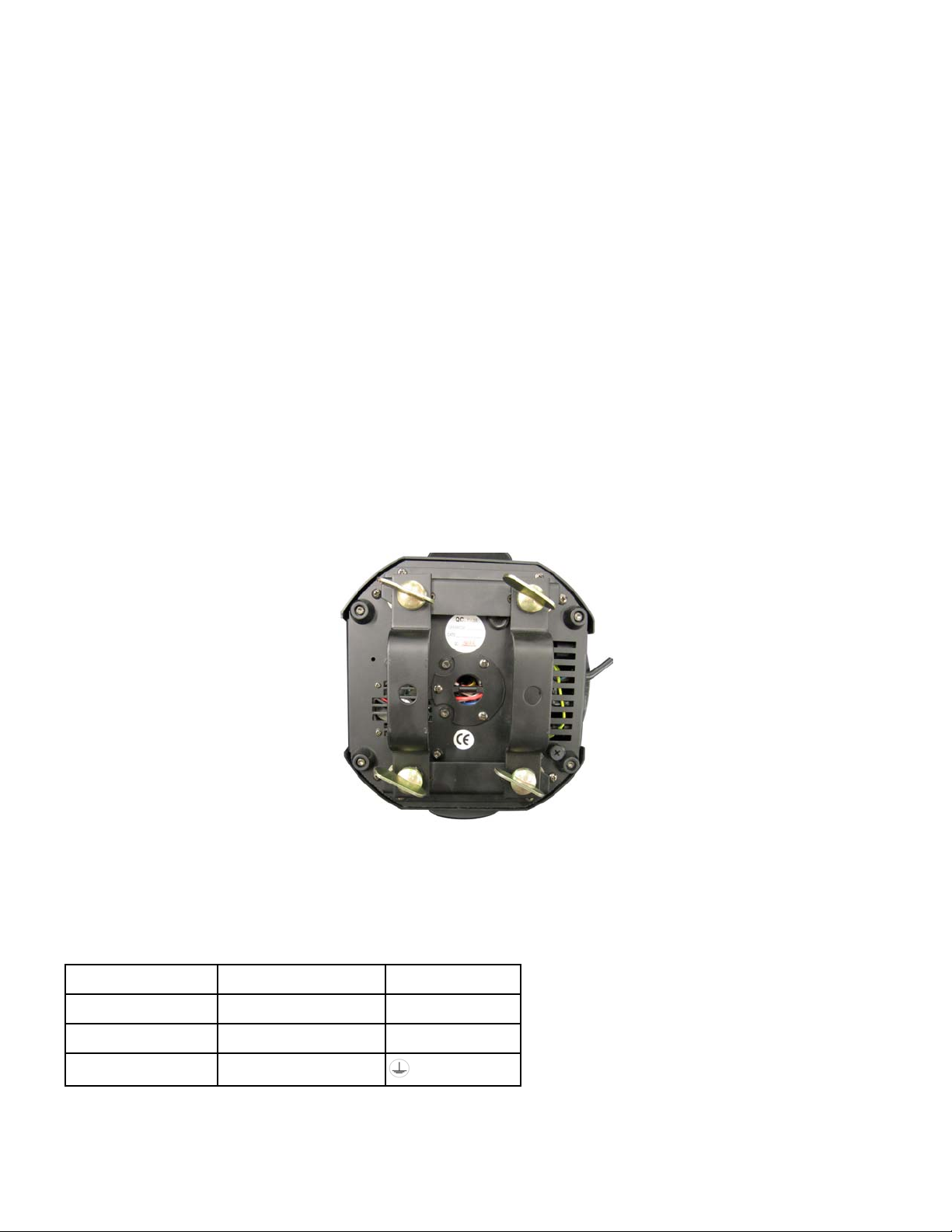

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec MiniMax is a mini moving-head with high output and great effects.

• 1 Color-wheel with 8 colored gobos, and open

• 1 Rotating Gobo-wheel with 7 metal gobos plus open

• DMX-control via standard DMX-controller

• 6/7 DMX-control channels required

• High-speed mechanical shutter

• 17° hard-focused beam

• DMX Stand-Alone, and Master/Slave control Options

• Sound-controlled via built-in microphone

• Manual focus

• Pan 0º -- 510º

• Tilt 0º -- 260º

• Pan/Tilt speed & reset control channel

• LED display menu with invert

• Pan/Tilt Invert option

• Micro-stepping motors

• Thermal switch

• Lamp ELC 250

• Fuse T3,15A / 250V

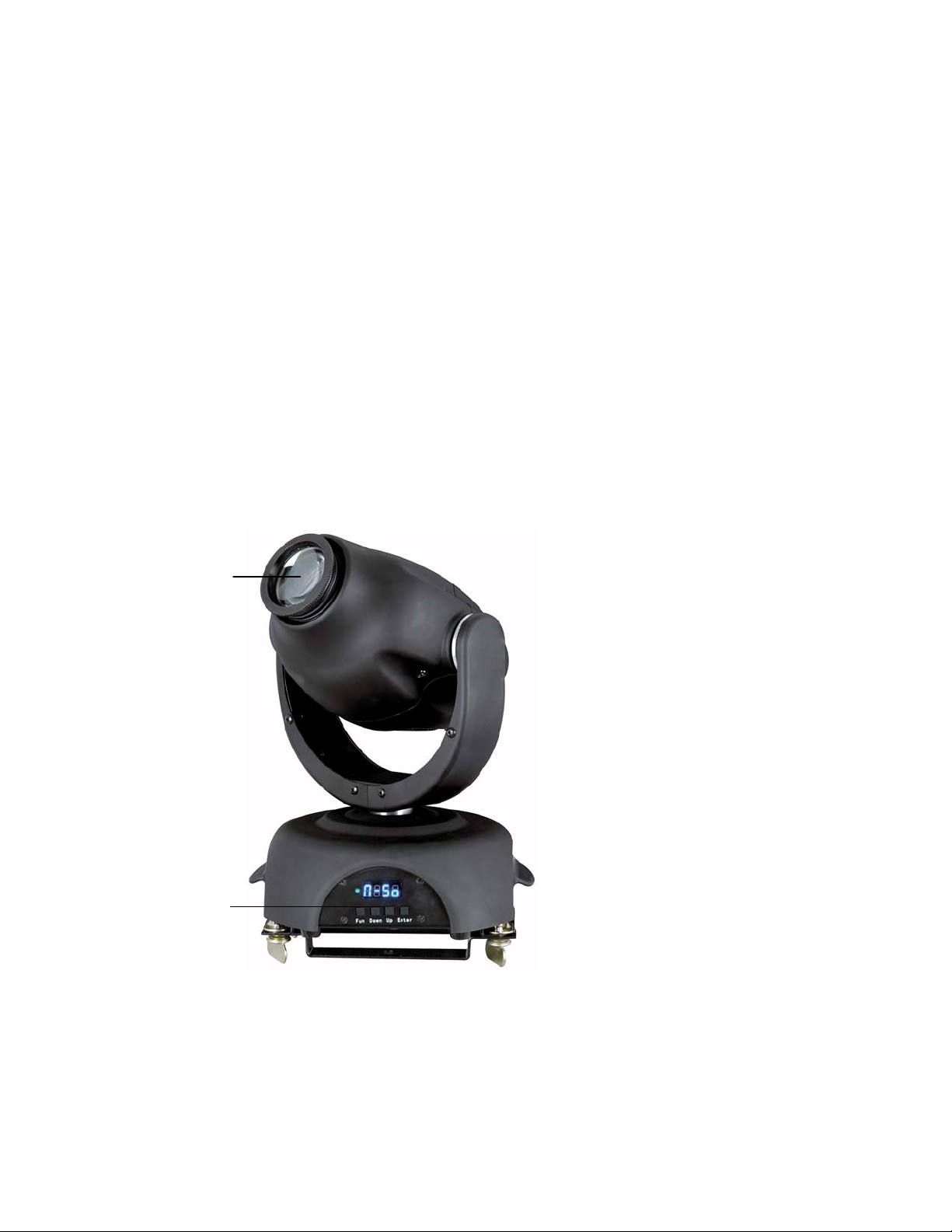

Overview 1

Fig. 1

1) Lens

2) LED Display + Menu buttons

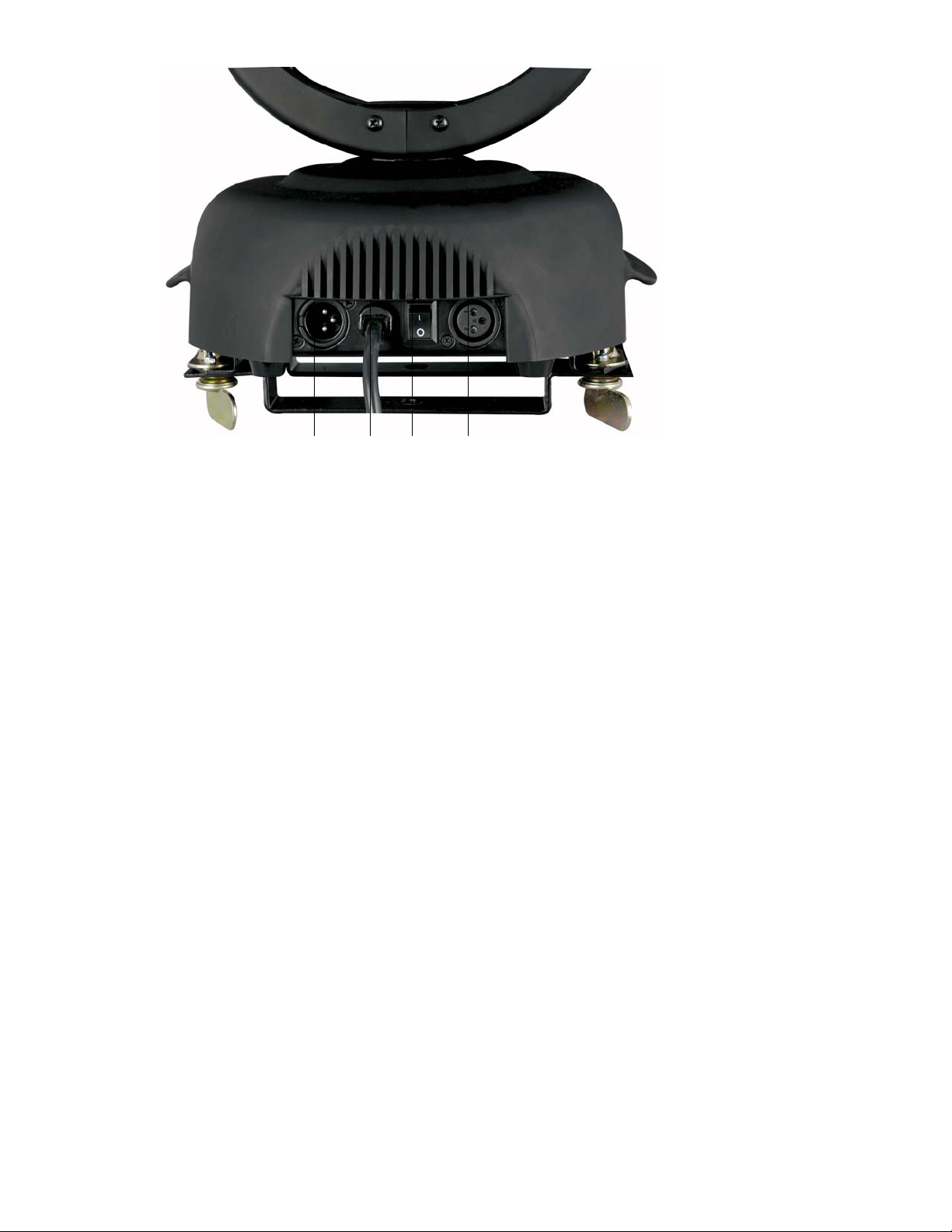

Backside

3 4 5 6 Fig. 2

3) DMX signal connector (OUT)

4) Power cable

5) ON / OFF

6) DMX signal connector (IN)

Installation

Installing the Lamp

The Showtec MiniMax uses the ELC 250 (ordercode 82401 / 80809G / 80809O / 80809P / 80814 / 80821)

reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure :

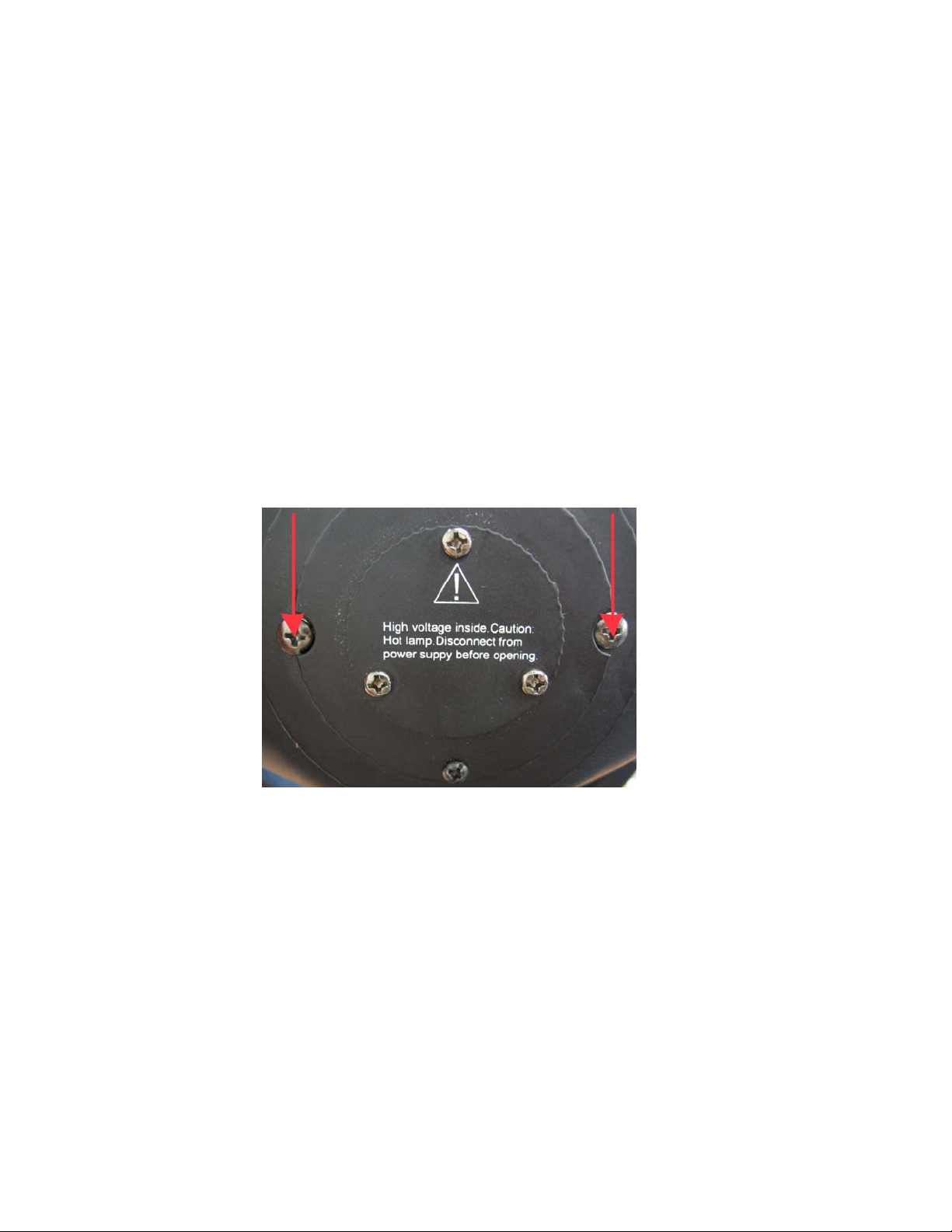

1. Loosen the 2 screws on the back of the housing.

2. Gently remove the small metal housing.

3. Read lamp instructions. Do not touch the lamp bulb glass.

Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free

towel and rubbing alcohol.).

4. Insert the lamp pins into the small holes in the lamp socket.

5. Put the lamp cover back and fasten the screws snugly. Then put the metal housing back and fasten the

screws snugly

Fig. 3

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

One MiniMax

1. Fasten the moving head onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the

MiniMax ). Leave at least 1 meter on all sides for air circulation.

2. Plug one end of the electric mains power cord into the IEC socket on the unit.

Then plug the other end of the cord into a proper electric power supply socket.

3. Turn on the music. Go to MODE and set M-SO (Audio), then the fixture will react to the beat of the music.

Multiple MiniMax’s

1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the

MiniMax ). Leave at least 1 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the MiniMax’s and other devices.

The pins:

1. Earth

2. Signal -

3. Signal +

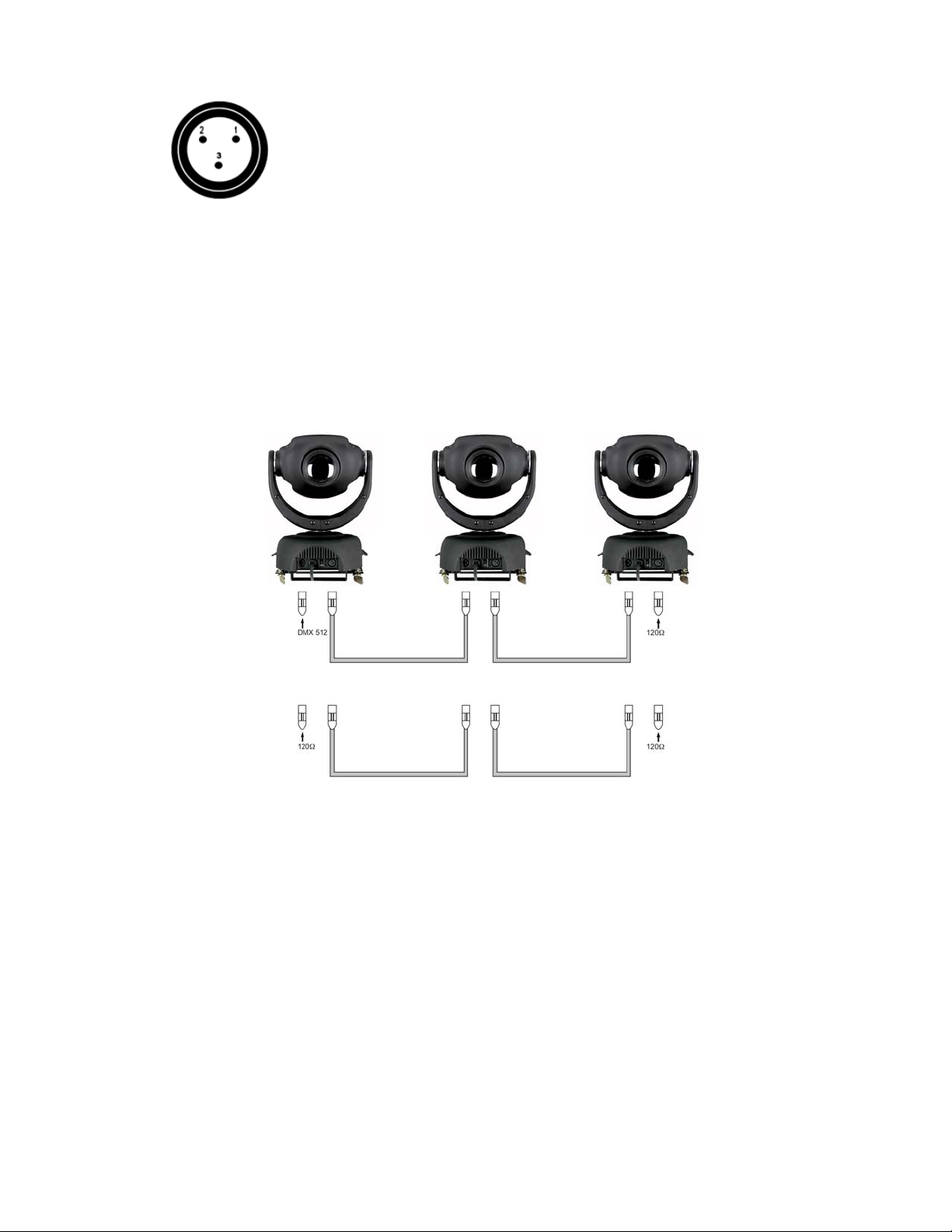

3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other

end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not

supply power before the whole system is set up and connected properly.

5) On the first device, go to MODE and set M-SO (Sound-controlled Master). Remember only one fixture

can be the master.

6) On the slave devices you must select M-SL (Sound-controlled Slave). The DMX light on the slave devices

will start blinking. The slave devices must have address 001.

Multiple MiniMax’s Set Up

DMX-Set up

Master/Slave Set up

Fig. 4

Note : Link all cables before connecting electric power

Table des matières

Autres manuels Show Tec Luminaire

Show Tec

Show Tec led spere direct control 30 Manuel utilisateur

Show Tec

Show Tec IW-720 Manuel utilisateur

Show Tec

Show Tec Infinity iB-5R Manuel utilisateur

Show Tec

Show Tec Infinity iB-2R Manuel utilisateur

Show Tec

Show Tec Spectral 300 Q4 Manuel utilisateur

Show Tec

Show Tec Phantom 3R Hybrid V1 Manuel utilisateur

Show Tec

Show Tec Indigo 150 LED Manuel utilisateur

Show Tec

Show Tec Colorburst V1 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 1 LED Manuel utilisateur

Show Tec

Show Tec Par 56 70W COB White Manuel utilisateur

Show Tec

Show Tec Chaotic LED Manuel utilisateur

Show Tec

Show Tec indiniti iw-715 Manuel utilisateur

Show Tec

Show Tec Magic Icecycle Manuel utilisateur

Show Tec

Show Tec Polar Wash 740 Manuel utilisateur

Show Tec

Show Tec Indigo 4600 Manuel utilisateur

Show Tec

Show Tec 40312 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 50 WW Manuel utilisateur

Show Tec

Show Tec Indigo 6500 Manuel utilisateur

Show Tec

Show Tec Polar 300 Hybrid V3 Manuel utilisateur

Show Tec

Show Tec Kanjo Spot 10 V1 Manuel utilisateur

Show Tec

Show Tec ACT PC 60 RGBW Manuel utilisateur

Show Tec

Show Tec Kanjo Spot 10 V2 Manuel utilisateur

Show Tec

Show Tec Phantom 50 LED Spot Manuel utilisateur

Show Tec

Show Tec 60421 Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Lightolier

Lightolier LP200 Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuel utilisateur

Lightolier

Lightolier Lytespan 83ED17S Manuel utilisateur

Lightolier

Lightolier Calculite CS8226 Manuel utilisateur
