Show Tec 40312 Manuel utilisateur

LED Aircone DMX V1

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Ordercode: 40312

MANUAL

ENGLISH

Ordercode: 40312

LED Aircone DMX

Table of contents

Warning ............................................................................................................................................................................... 2

Safety Instructions ......................................................................................................................................................... 2

Operating Determinations .......................................................................................................................................... 4

Rigging ............................................................................................................................................................................ 4

Connection with the mains......................................................................................................................................... 4

Return Procedure .......................................................................................................................................................... 5

Claims .............................................................................................................................................................................. 5

Description of the device ................................................................................................................................................. 6

Features .......................................................................................................................................................................... 6

Frontside.......................................................................................................................................................................... 6

Installation ........................................................................................................................................................................... 7

Set Up and Operation ....................................................................................................................................................... 7

Control Modes ............................................................................................................................................................... 7

One LED Aircone (Sound-controlled) .................................................................................................................... 7

One LED Aircone (AUTO Mix Color Control) ......................................................................................................... 8

One LED Aircone (Manual Control) ....................................................................................................................... 8

Multiple LED Aircones (DMX Control) ..................................................................................................................... 8

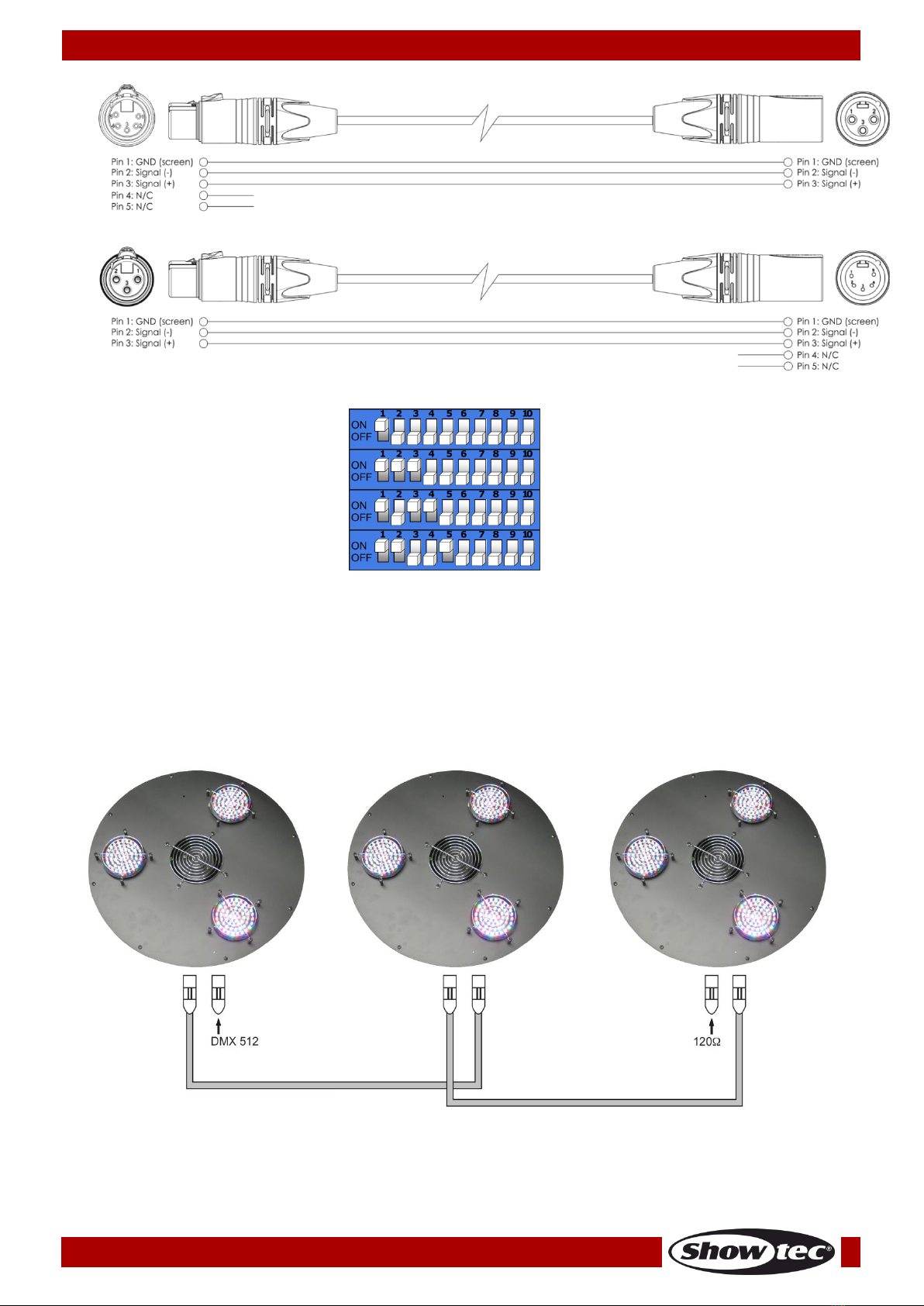

Fixture Linking ...............................................................................................................................................................10

Data Cabling ...............................................................................................................................................................10

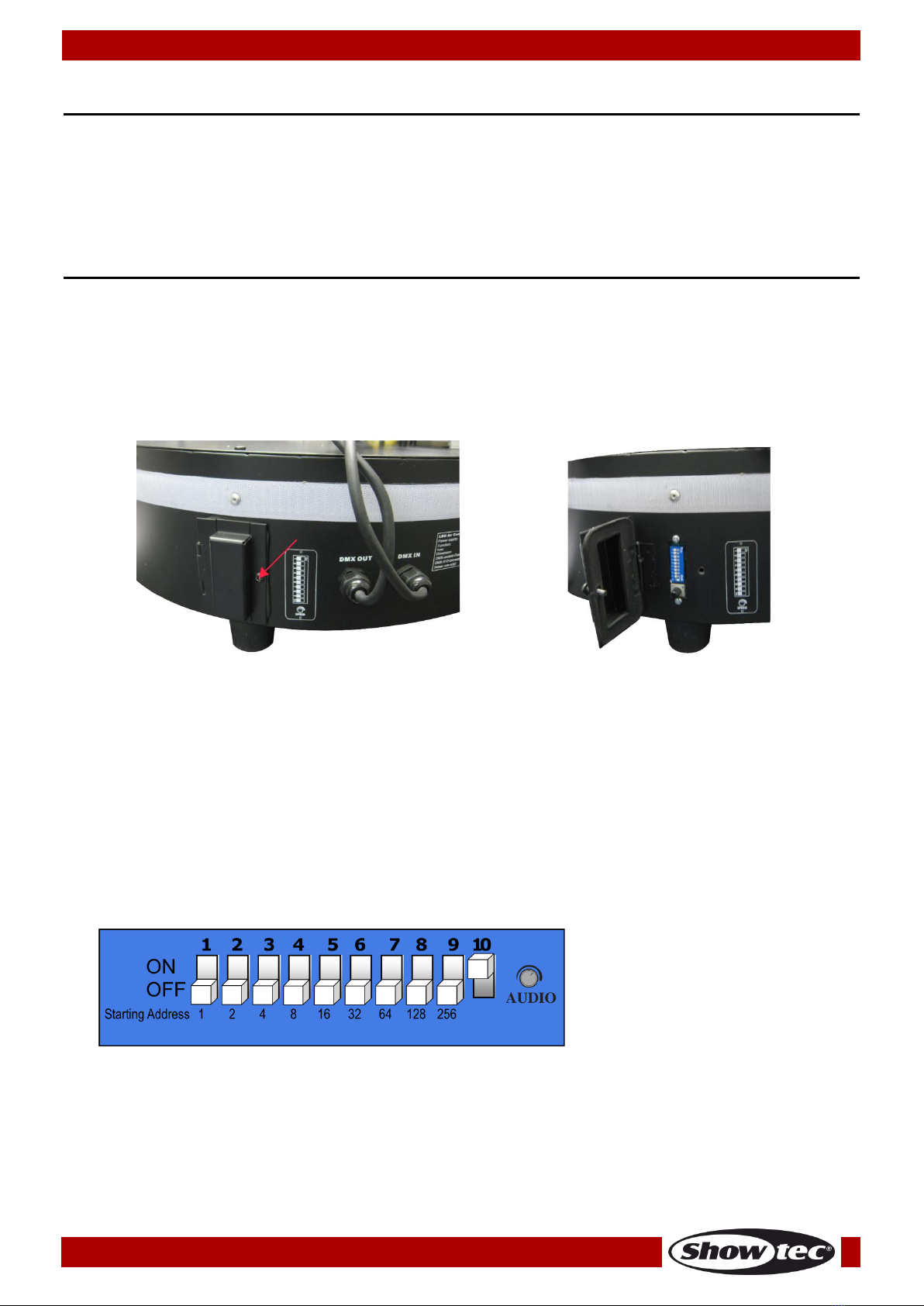

DIP switch setting for DMX Mode .............................................................................................................................11

DMX Address Quick Reference Chart .................................................................................................................12

DMX Channels .................................................................................................................................................................13

6 channels .................................................................................................................................................................13

Maintenance ....................................................................................................................................................................14

Replacing the Fuse .....................................................................................................................................................14

Troubleshooting ...............................................................................................................................................................15

No Light .........................................................................................................................................................................15

No Response to DMX..................................................................................................................................................15

Product Specifications ....................................................................................................................................................17

Dimensions ........................................................................................................................................................................18

Ordercode: 40312

LED Aircone DMX

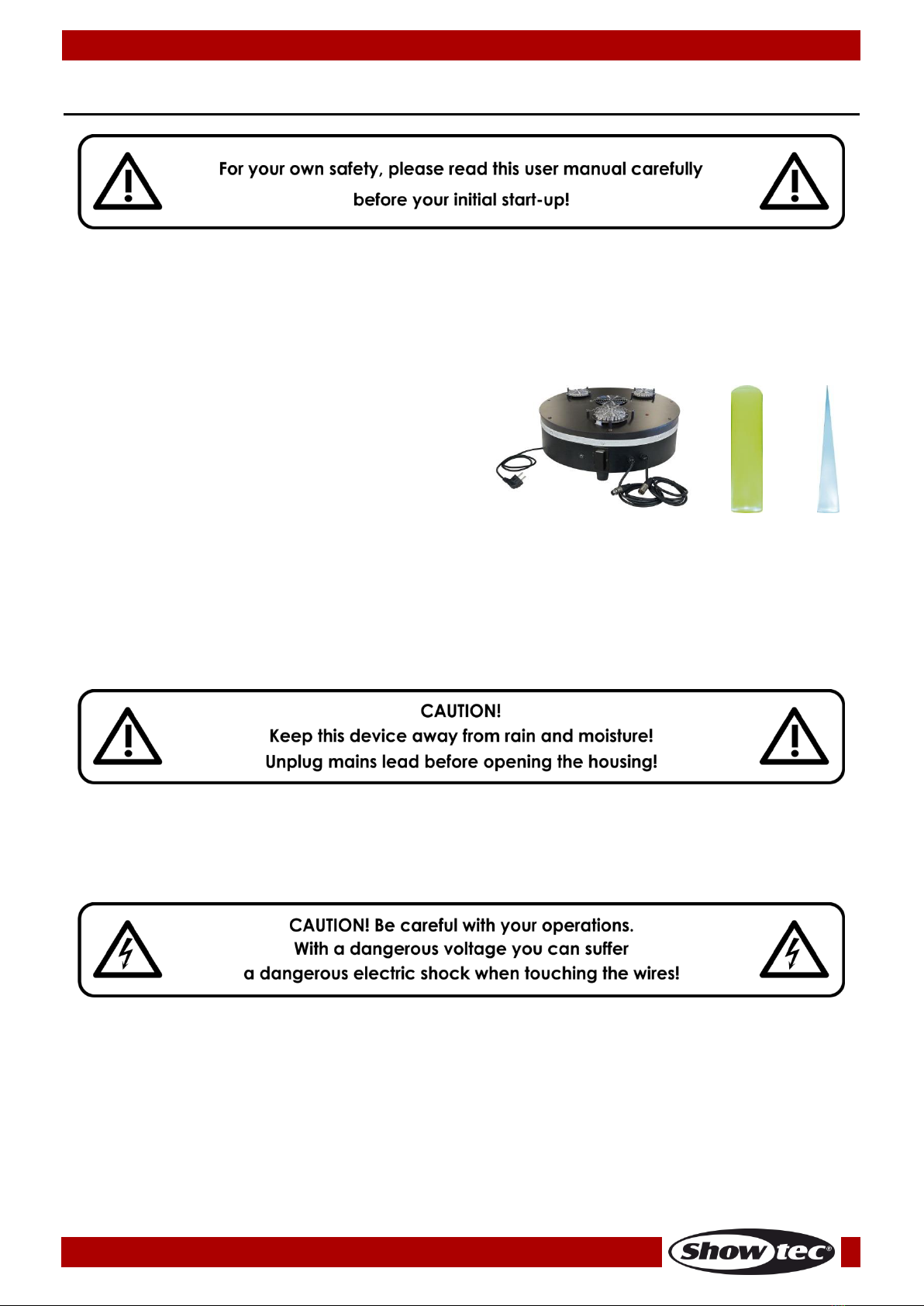

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec LED Aircone DMX with 1m powercable

●User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing

for lower operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 40312

LED Aircone DMX

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never place any material over the lens.

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the device’s life.

•Do not touch the device’s housing bare-handed during its operation. Allow the fixture to cool for at

least 5 minutes before handling.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Device must be installed out of the reach of children. Never leave the unit running

unattended.

•Never attempt to bypass the thermostatic switch or fuses.

•For replacement use fuses of same type and rating only.

•The user is responsible for correct positioning and operating of the LED Aircone DMX. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation of

this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

•

Ordercode: 40312

LED Aircone DMX

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The minimum distance between light-output and the illuminated surface must be more than 1 meter.

●The maximum ambient temperature ta = 40°C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

●If the LED Aircone is lowered from the ceiling or high joists, professional trussing systems have to be

used.

●Use a clamp to mount the LED Aircone, with the mounting-bracket, to the trussing system.

●The LED Aircone must never be fixed swinging freely in the room.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

●When rigging, derigging or servicing the LED Aircone, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Ordercode: 40312

LED Aircone DMX

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name.

02) Your address.

03) Your phone number.

04) A brief description of the symptoms.

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 40312

LED Aircone DMX

Description of the device

Features

The Showtec LED Aircone DMX is a laser effect with high output and great effects.

•Never change lamps again!

•Power Input: AC 240V, 50Hz

•Power Consumption: 150 Watt

•183 LEDs (63 Red, 57 Green, 63 Blue)

•Control Modes: DMX-512, Built-in Programs, Manual, Sound

•3-pin DMX In and 3-pin DMX Out

•Dipswitches for all settings

•Compact strong metal housing

•Sound-controlled via built-in microphone

•6 DMX Channels

•Fuse: T1AL/250V

•Dimensions: Ø475 x 165 mm (DxH)

•Weight: 10,1 Kg

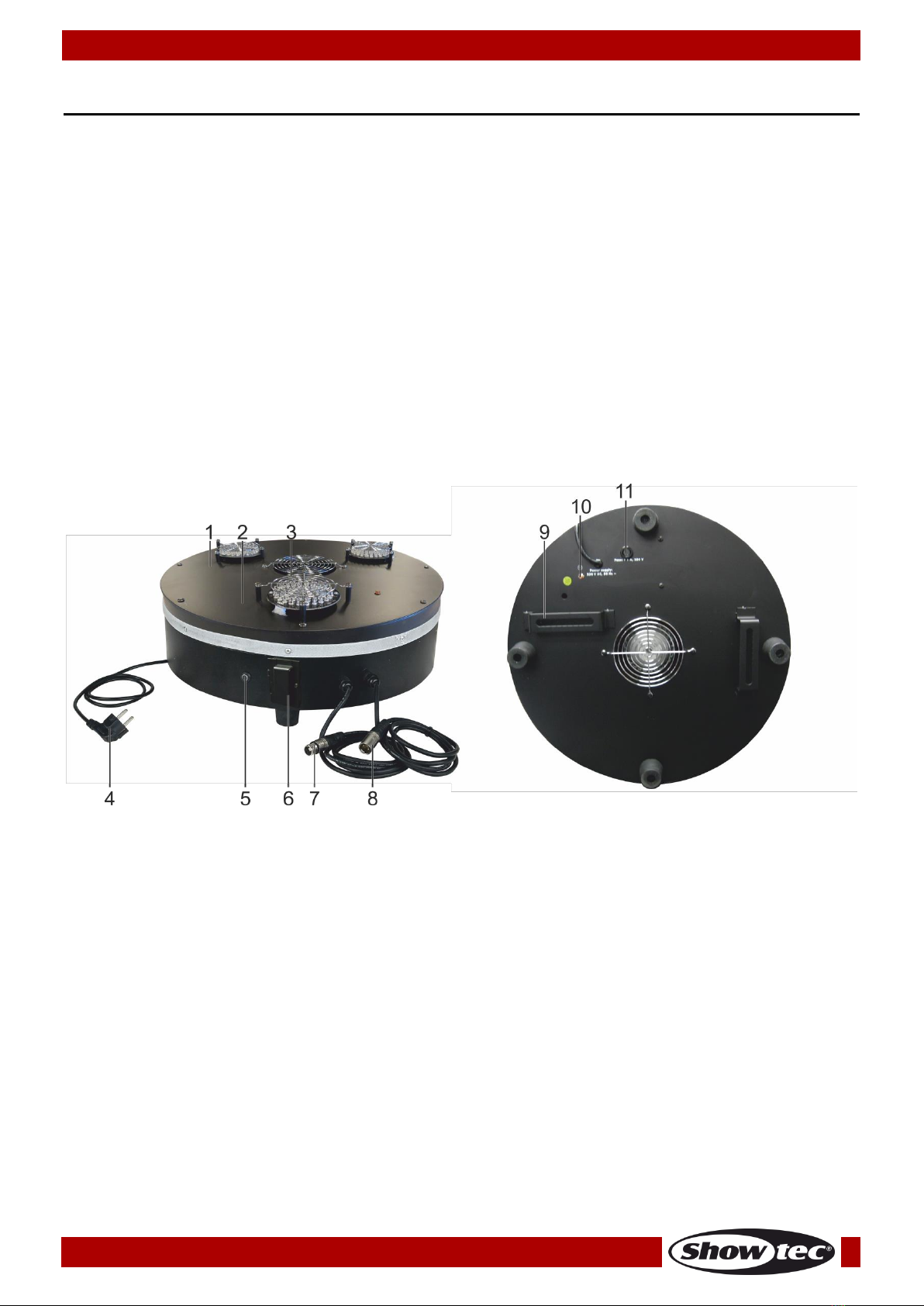

Frontside

Fig. 01

01) LED module

02) Ground/Earth Connection

03) Fan

04) Power cable 1m

05) Microphone

06) Protection cover for dispwitches

07) 3-pin DMX Out (cable 1,4m)

08) 3-pin DMX In (cable 1,4m)

09) Mounting bracket

10) Ground/Earth Connection

11) Fuse T1AL/250V

Ordercode: 40312

LED Aircone DMX

Installation

Remove all packing materials from the LED Aircone DMX. Check if all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply. The device can be music-controlled by its built-in

microphone.

To use the Dipswitches, you first have to unscrew the protection cover.

Fig. 02

Control Modes

There are 4 modes:

Sound-controlled

Auto Mix Color

Manual Mode

DMX

One LED Aircone (Sound-controlled)

12) When dipswitch #10 is turned on, the Aircone will automatically change its color to the beat of the

music.

13) With the Audio Sensitivity control you can adjust its music-sensitivity.

Ordercode: 40312

LED Aircone DMX

One LED Aircone (AUTO Mix Color Control)

01) When dipswitch #9 and #10 are turned on, the LED Aircone is in AUTO Mix Color Mode.

Dipswitches #1 - #7 control the changing speed.

One LED Aircone (Manual Control)

01) When the dipswitches #8, #9 and #10 are turned on, the LED Aircone is in Manual Mode

Dip Switches #1 and #2 control the brightness of the Red LEDs.

Dip Switches #3 and #4 control the brightness of the Green LEDs.

Dip Switches #5 and #6 control the brightness of the Blue LEDs.

Brightness grades, Example RED :

Dipswitch Setting:

= 0%

Dipswitch Setting:

= 25%

Dipswitch Setting:

= 50%

Dipswitch Setting:

= 100%

Multiple LED Aircones (DMX Control)

01) When all dipswitches are turned off, the LED Aircone is in DMX Mode.

02) Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the

Showtec LED Aircone bracket) or set the LED Aircone down on any flat surface. Leave at least 0,5

meter on all sides for air circulation.

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) Use a 3-pin XLR cable to connect the LED Aircones.

The pins:

01) Earth

02) Signal (-)

03) Signal (+)

Ordercode: 40312

LED Aircone DMX

LED Aircone

Address Value:

DMX Dip Switches "ON"

Unit 1

Unit 2

Unit 3

Unit 4

05) Link the units as shown in Fig. 03, connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can

use the same functions on the master device as described on page 7+8 (Built-in or Sound-

controlled). This means on the master device you can set your desired operation Mode and all slave

devices will react the same as the master device.

06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the

other end of the mains power cord into proper electric power supply sockets, starting with the first

unit. Do not supply power before the whole system is set up and connected properly.

Multiple LED Aircones DMX Set Up

Fig. 03

Note: Link all cables before connecting electric power

Table des matières

Autres manuels Show Tec Luminaire

Show Tec

Show Tec Polar 300 Hybrid V3 Manuel utilisateur

Show Tec

Show Tec 40072 Manuel utilisateur

Show Tec

Show Tec Polar Wash 740 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 50 WW Manuel utilisateur

Show Tec

Show Tec Phantom 50 LED Spot Manuel utilisateur

Show Tec

Show Tec MiniMax 250 Manuel utilisateur

Show Tec

Show Tec Kanjo Spot 10 V2 Manuel utilisateur

Show Tec

Show Tec Indigo 150 LED Manuel utilisateur

Show Tec

Show Tec Par 56 70W COB White Manuel utilisateur

Show Tec

Show Tec Magic Icecycle Manuel utilisateur

Show Tec

Show Tec Stage Blinder 1 LED Manuel utilisateur

Show Tec

Show Tec LED Par 64 Short DMX Manuel utilisateur

Show Tec

Show Tec Indigo 6500 Manuel utilisateur

Show Tec

Show Tec Phantom 3R Hybrid V1 Manuel utilisateur

Show Tec

Show Tec Infinity iW-1915 RGBW Wash Manuel utilisateur

Show Tec

Show Tec Chaotic LED Manuel utilisateur

Show Tec

Show Tec Infinity iB-2R Manuel utilisateur

Show Tec

Show Tec Spectral 300 Q4 Manuel utilisateur

Show Tec

Show Tec EventSpot 1600 Q4 Manuel utilisateur

Show Tec

Show Tec Sunstrip LED V1 Manuel utilisateur

Show Tec

Show Tec tracker q4 Manuel utilisateur

Show Tec

Show Tec indiniti iw-715 Manuel utilisateur

Show Tec

Show Tec Indigo 4600 Manuel utilisateur

Show Tec

Show Tec ACT PC 60 RGBW Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Lightolier

Lightolier LP200 Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuel utilisateur

Lightolier

Lightolier Lytespan 83ED17S Manuel utilisateur

Lightolier

Lightolier Calculite CS8226 Manuel utilisateur
