Show Tec Polarscan Manuel utilisateur

Polarscan

ORDERCODE 40151

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Polarscan brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Polarscan™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Backside…………………………………………………...…...….……………….…………………...….….

Installation...............................................................................…...…………………………………….…..

Installing the Lamp ........................................................………………………………………..…………

Set Up and Operation.....................................................................……..……………………………….…

One City Painter .........................................................................…………………………………………

Multiple City Painters…........................................................................…………………………………..

DMX-Protocol…...................................................……………………………………………………………..

Control Mode........................................………………………………………………………………………

DMX Addressing...................................………………………………………………………………………

DMX Channels...................................…………………………………………………………………..……

Maintenance...................................................................................………..………….…….………………

Changing the Lamp........................................................................…………………….…………………

Replacing the Fuse........................................................................…………………….…………………

Troubleshooting............................................................................………………….………………….…..

No Light, No Movement - All Products............................................………………….…………………..

No Response to DMX ....................................................................………………….…………………...

Product Specifications.................................................................……………….…….…………………...

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never run the device without lamp!

•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

•Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always

hold the fixture at the transport handles.

•Never look directly into the light source.

•Never leave any cables lying around.

•Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp ON

again.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

•Do not shake the device. Avoid brute force when installing or operating the device.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always replace the lamp, when it is damaged or deformed due to the heat.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Polarscan must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use lamps and fuses of same type and rating only.

•Allow time to cool down, before replacing lamp.

•The user is responsible for correct positioning and operating of the Polarscan. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.

The maximum ambient temperature ta= 45°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Cable Pin International

BROWN FASE L

BLUE NEUTRAL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Polarscan is a scanner with high output and great effects.

• DMX-control via standard DMX-controller

• 6 DMX-control channels required

• 1 Gobo-wheel with 9 gobos plus open

• 1 Color-wheel with 15 colors (12 fixed, 3 split colors) plus open

• Stand-alone control or Master –Slave control

• Strobe-effect with adjustable speed (1 - 8 flashes/sec.)

• Lamp MSD 250W

• Fuse T5A / 250V

Note: If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp ON

again.

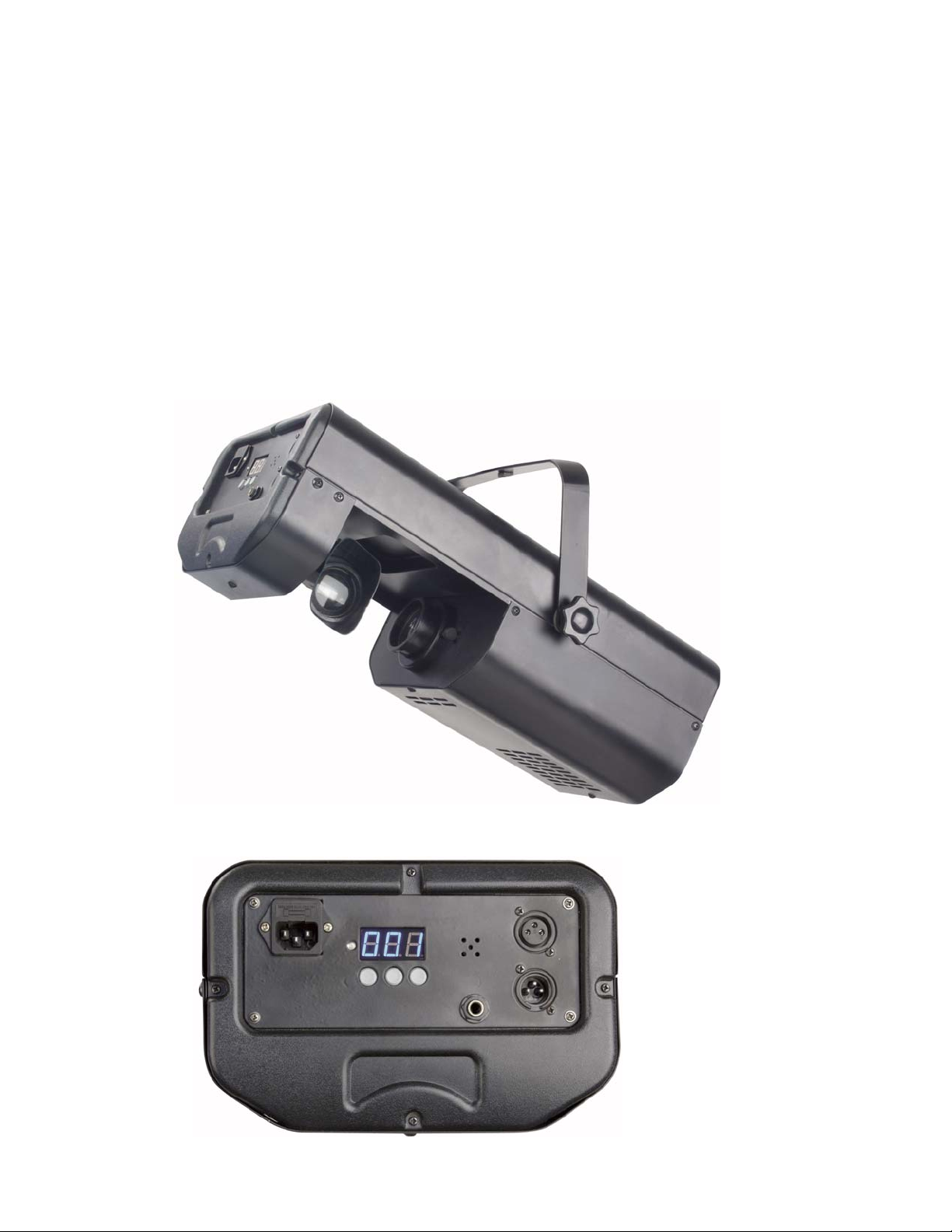

Overview

Fig. 1

Backside

1 2 3 4

5 6 7 8

Fig. 2

1) IEC Connector / Fuse

2) LCD Display

3) Built-in Mic

4) DMX signal connector (OUT)

5) Function

6) Down

7) Up

8) DMX signal connector (IN)

9) Audio

Installation

Installing the Lamp

The Showtec Polarscan uses the MSD 250 (ordercode 80920P / 80920O / 80933O / 82603 / 80935)

reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure :

1. Loosen the 2 golden screws on the front.

2. Remove the cover and gently pull out the lamp socket. Read lamp instructions. Do not touch the lamp

bulb glass. Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a

clean, lint-free towel and rubbing alcohol.)

3. Hold the lamp socket with one hand. Insert the lamp pins into the small holes in the lamp socket.

4. Push the lamp and the socket in to the lamp holder.

5. Put the cover back and fasten all the screws snugly.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

One Polarscan

1. Leave at least 1 meter on all sides for air circulation.

2. Plug one end of the electric mains power cord into the IEC socket on the unit.

Then plug the other end of the cord into a proper electric power supply socket.

Multiple Polarscans

1. Leave at least 1 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the Polarscans and other devices.

The pins:

1. Earth

2. Signal -

3. Signal +

3. Link the units as shown in (figure 3), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other

end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not

supply power before the whole system is set up and connected properly.

Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure

proper transmission on the DMX data link.

Multiple Polarscans Set Up

DMX-Set up

Master/Slave Set up

Fig. 3

Note : Link all cables before connecting electric power

DMX Protocol

The Polarscan can be operated with a controller in control mode or without the controller in stand-alone

mode.

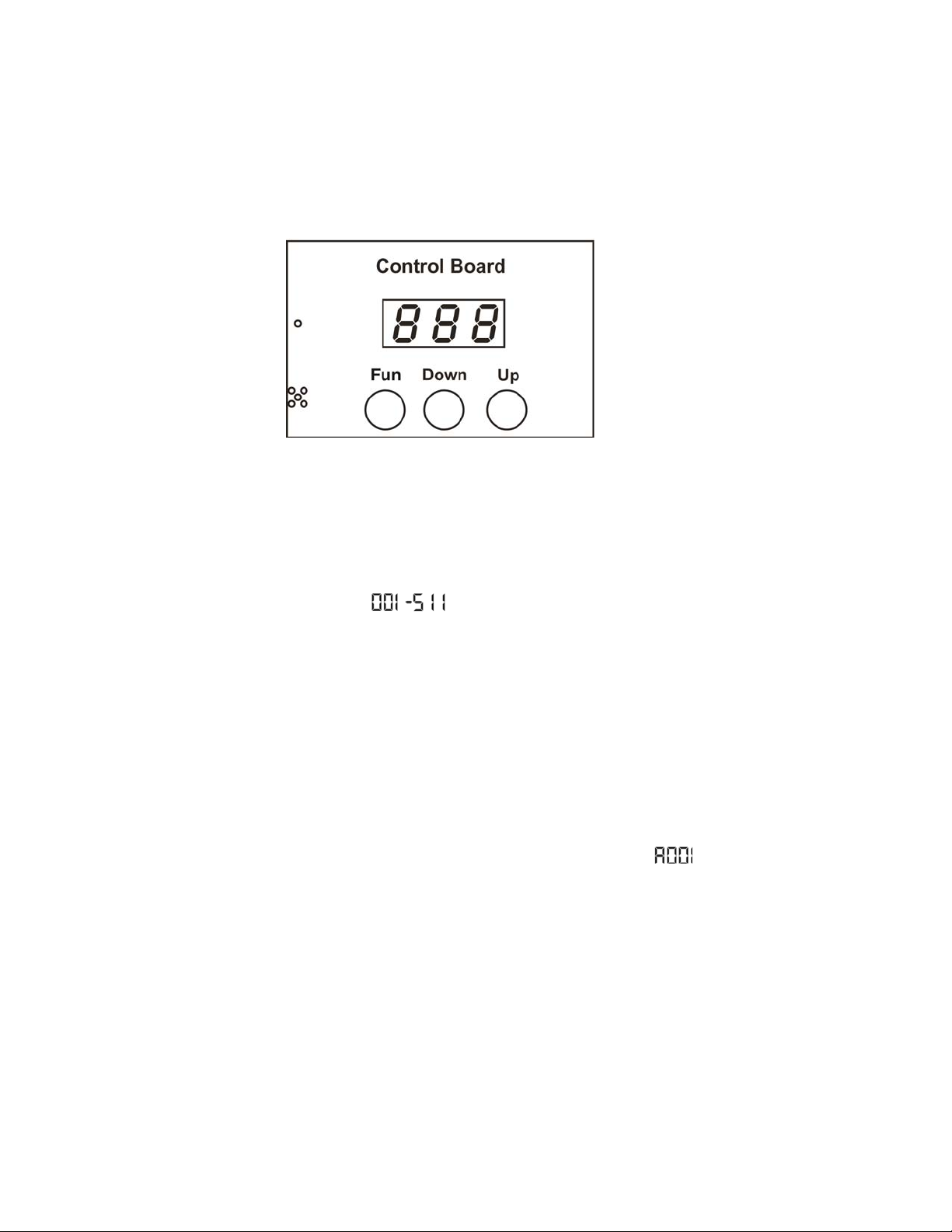

Control Panel

When the indicator light is on, means the Polarscan is working

Fig. 4

A. Fun [Function] Button

B. Down Button

C. Up Button

Control Mode

The fixtures are individually addressed on a data-link and connected to the controller.

The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,

the controller will display the saved DMX address the next time.)

DMX Addressing

The control panel on the front side of the base allows you to assign the DMX fixture address, which is the

first channel from which the Polarscan will respond to the controller.

Please note when you use the controller, the unit has 6channels.

When using multiple Polarscans, make sure you set the DMX addresses right.

Therefore, the DMX address of the first Polarscan should be 1(001); the DMX address of the second

Polarscan should be 1+6=7 (007); the DMX address of the third Polarscan should be 7+6=13(013), etc.

Please, be sure that you don’t have any overlapping channels in order to control each Polarscan correctly.

If two or more Polarscans are addressed similarly, they will work similarly.

For address settings, please refer to the instructions under ”Addressing’ (menu )

Controlling:

After having addressed all Polarscan fixtures, you may now start operating these via your lighting controller.

Note: After switching on, the Polarscan will automatically detect whether DMX 512 data is received or not. If

there is no data received at the DMX-input, the “LED “ on the control panel will not flash.

The problem may be:

- The XLR cable from the controller is not connected with the input of the Polarscan.

- The controller is switched off or defective, the cable or connector is detective, or the signal wires are

swapped in the input connector.

Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure

proper transmission on the DMX data link.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Juno Manuel utilisateur

Show Tec

Show Tec Mirrorball 15 cm Manuel utilisateur

Show Tec

Show Tec LED PAR 64 AIRCRAFT Manuel utilisateur

Show Tec

Show Tec Cameleon Bar 12-3 Manuel utilisateur

Show Tec

Show Tec STAGE BLINDER 8 DMX V1 Manuel utilisateur

Show Tec

Show Tec Lightset PRO 9/10 RGBM Manuel utilisateur

Show Tec

Show Tec Polar 1920 Wash Manuel utilisateur

Show Tec

Show Tec ColorCue 1 AIR Manuel utilisateur

Show Tec

Show Tec StageBeam 300/500W Fresnel V2 Manuel utilisateur

Show Tec

Show Tec FX Blaster XL V1 Manuel utilisateur

Show Tec

Show Tec LED Pixelboard 500/256 Manuel utilisateur

Show Tec

Show Tec Luna Par 60 Q4 Manuel utilisateur

Show Tec

Show Tec Jumbo Strobe MKIII DMX Manuel utilisateur

Show Tec

Show Tec EventMOVE 4/4 Manuel utilisateur

Show Tec

Show Tec helix 1800 Q4 RGBW Manuel utilisateur

Show Tec

Show Tec 437 49 Manuel utilisateur

Show Tec

Show Tec Single DP-1 Manuel utilisateur

Show Tec

Show Tec STAGEBEAM MKII 2000W FRESNEL V1 Manuel utilisateur

Show Tec

Show Tec SF-250 Manuel utilisateur

Show Tec

Show Tec EVENTLITE 6/3 Manuel utilisateur

Show Tec

Show Tec Floodlight 1 kW Symmetric Manuel utilisateur

Show Tec

Show Tec FX Shot Manuel utilisateur

Show Tec

Show Tec Star Sky Pro Manuel utilisateur

Show Tec

Show Tec Candela Pix 100 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
