Show Tec FX Blaster XL V1 Manuel utilisateur

FX Blaster XL V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 61031

MANUAL

ENGLISH



 1

Ordercode: 61031
FX Blaster XL
Table of contents

Warning ...............................................................................................................................................................................2
Unpacking Instructions.................................................................................................................................................2
Safety Instructions .........................................................................................................................................................3
CO2Use...........................................................................................................................................................................5
Indoor Use.......................................................................................................................................................................5
Noise Level .....................................................................................................................................................................5
Operating Determinations ..........................................................................................................................................5
Rigging ............................................................................................................................................................................6
Return Procedure..........................................................................................................................................................7
Claims..............................................................................................................................................................................7

Description of the device.................................................................................................................................................8

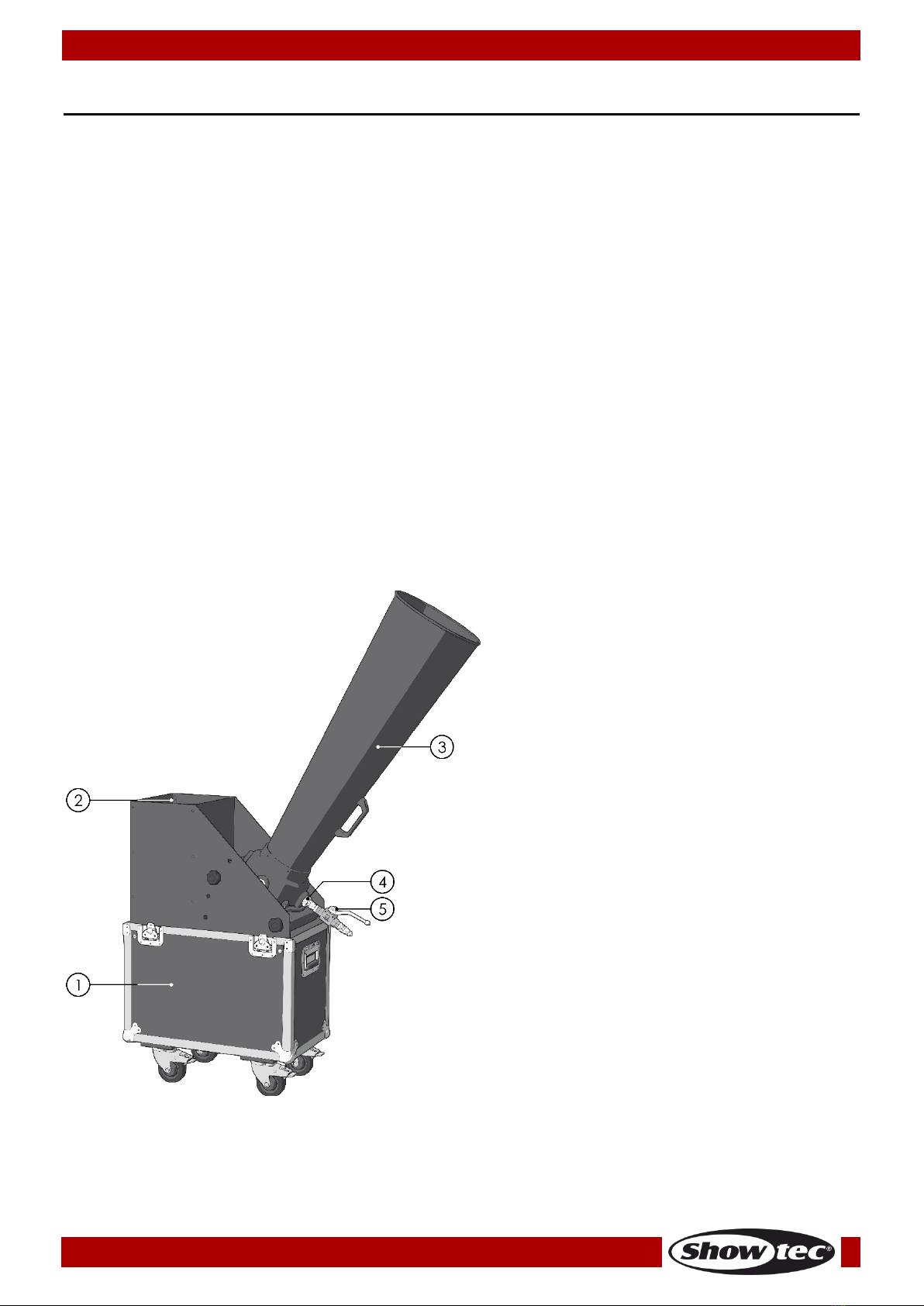

Overview ........................................................................................................................................................................8
Optional accessories....................................................................................................................................................9

Installation.........................................................................................................................................................................10
CO2bottle installation................................................................................................................................................11

Set Up and Operation .....................................................................................................................................................12
Fill with confetti and blast..........................................................................................................................................19
Replace a CO2cylinder ............................................................................................................................................21
Disassembling + Storing the FX Blaster XL ...............................................................................................................24

Declaration of Conformity .............................................................................................................................................28

Maintenance....................................................................................................................................................................29

Troubleshooting ...............................................................................................................................................................29
The FX Blaster XL is leaking.........................................................................................................................................29
Only a small smoke plume is visible when the CO2gas exits the FX Blaster XL...............................................29
No white smoke plume visible when the CO2gas exits the FX Blaster XL........................................................29
Troubleshooting does not provide the solution ....................................................................................................29

Product Specification .....................................................................................................................................................30

Dimensions........................................................................................................................................................................31

Notes ..................................................................................................................................................................................32




Ordercode: 61031

FX Blaster XL

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec FX Blaster XL in flight case

●Woofer

●2x woofer pin

●2x woofer safety split pin

●CO₂bottle-to-hose connector

●3/8 manual CO₂valve

●CO₂high pressure hose 3/8 Male –Female (3 m)

●Adjustable wrench

●User manual

Ordercode: 61031

FX Blaster XL

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be authorized

●follow the instructions of this manual

●We also insist that all new users (operators, installers, maintenance workers and cleaners) receive a

training course during which they become thoroughly familiarized with this user manual.

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

●Never remove warning or informative labels from the unit and, on regular basis, make sure that they

remain clearly visible and legible.

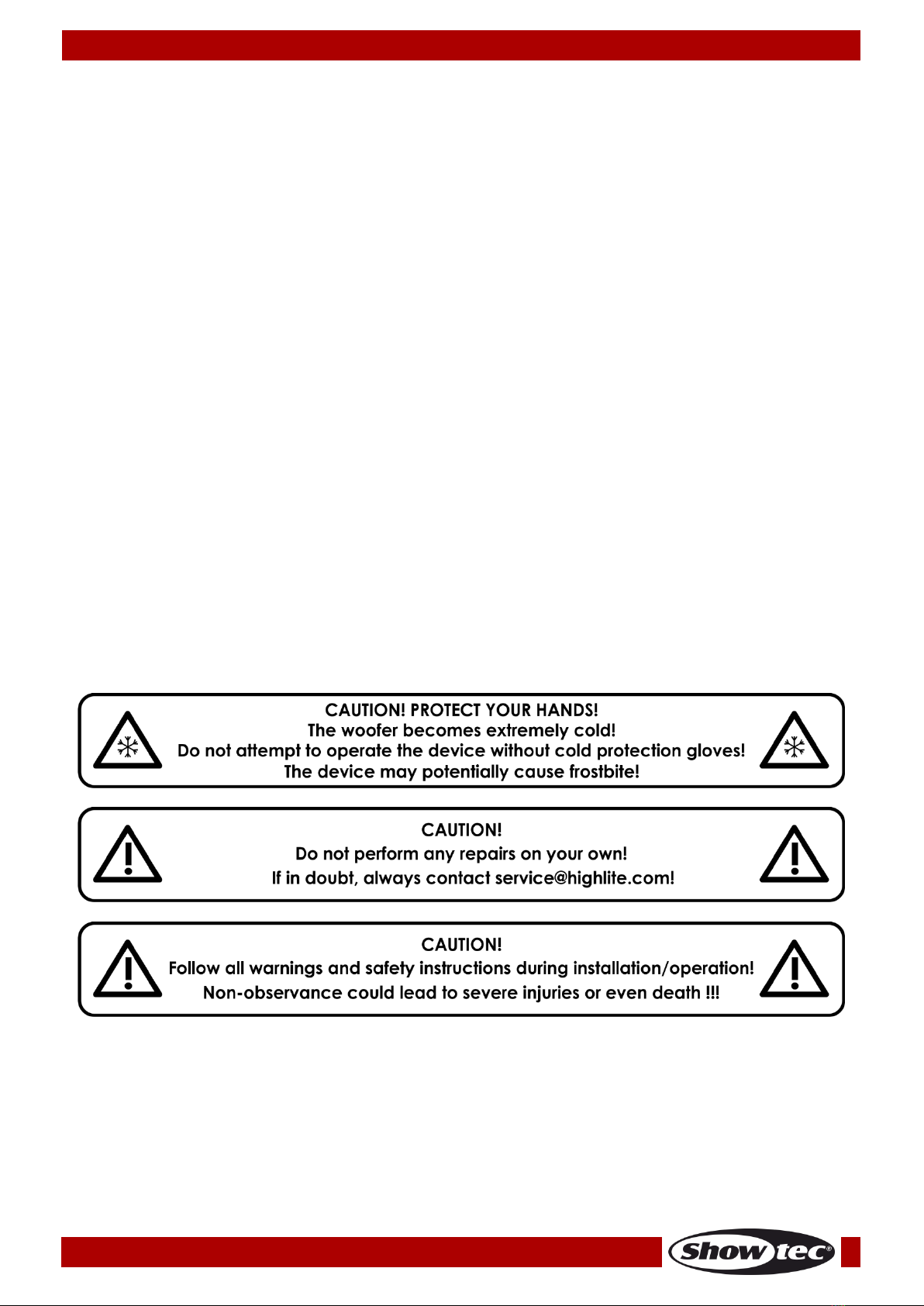

●Never place any material over the woofer.

●Never use the device during thunderstorms, unplug the device immediately.

●Never look directly into the cannon tube.

●Never leave any cables lying around.

●Never replace parts by yourself.

●Do not open the device and do not modify the device.

●Do not insert objects into air vents.

●Do not expose the device to any source of vibration.

●Do not insert objects into the woofer.

●Do not switch the device on and off in short intervals, as this would reduce the device’s life.

●Do not touch the device’s housing bare-handed during its operation.

●Do not remove or disable the safety devices.

●Do not shake the device. Avoid brute force when installing or operating the device.

●Use the device ONLY if there ARE NOT ANY people, animals or other objects in the direction of the

output within the output range. The shooting direction is the direction in which the output pipe on

the FX Blaster XL is pointed. The output distance depends on the air humidity! The higher the

humidity, the longer the output distance.

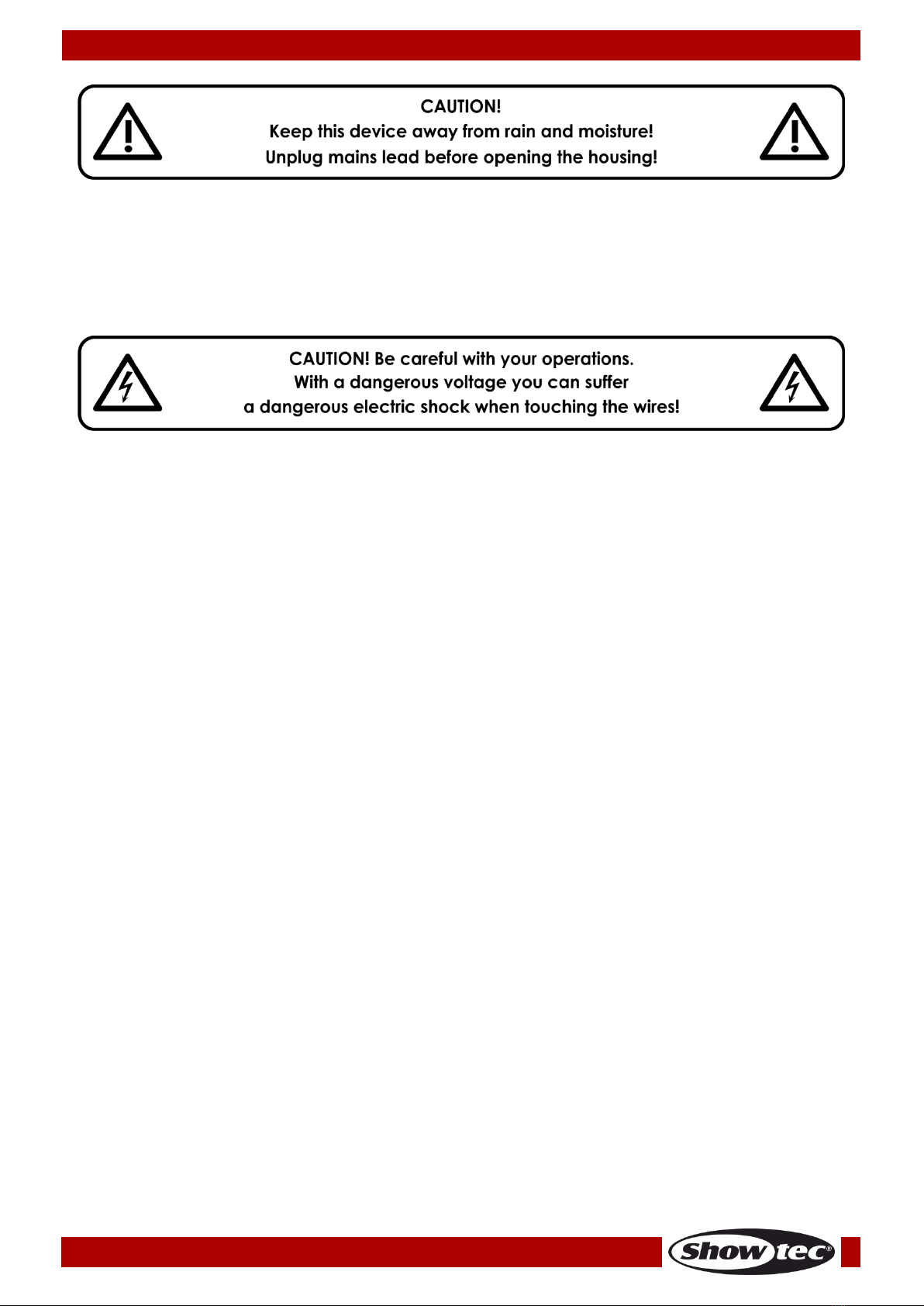

●Only use the device indoors, avoid contact with water or other liquids.

●Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

●Only use the FX Blaster XL according to the instructions in this manual.

●Only operate the device after having familiarized with its functions.

●Avoid flames and do not put close to flammable liquids or gases.

Ordercode: 61031

FX Blaster XL

●Always keep case closed while operating.

●Always allow free air space of at least 50 cm around the unit for ventilation.

●Always disconnect device from the CO2cylinder and the hose, when device is not used or before

cleaning! Only handle the CO2hose with care. Never pull out the CO2hose by tugging.

●Make sure that the device is not exposed to extreme heat, moisture or dust.

●Make sure that all the required safety devices are in good condition and function properly.

●Make sure that the CO2hose is never crimped or damaged. Check the device and the CO2hose

from time to time.

●If text and/or icons are missing, damaged or illegible on the FX Blaster XL, they should be replaced.

●If the woofer is obviously damaged, it needs to be replaced, so that its functions are not impaired.

●If the device is dropped or struck, disconnect CO2 hose and cylinder immediately. Have a qualified

engineer inspect for safety before operating.

●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

●If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. Device must be installed out of the reach of children and unauthorized persons.

Never leave the unit running unattended.

●Provide sufficient lighting of the surroundings.

●The user is responsible for correct positioning and operating of the FX Blaster XL. The manufacturer will

not accept liability for unsafe situations, accidents, damages caused by:

- The misuse or incorrect installation of this device.

- Ignoring warnings or instructions as shown in this manual.

- Using the FX Blaster XL for purposes or conditions other than specified in this manual.

- Changes to the FX Blaster XL. This includes the use of other than original spare parts.

- Inadequate maintenance.

- The unauthorized removal of safety symbols, safety covers and / or guards.

- The improper use of the FX Blaster XL.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Ordercode: 61031

FX Blaster XL

CO2Use

The FX Blaster XL uses liquid or gaseous CO₂as input. The application of CO₂involves serious risks.

Make sure that you are well informed on these risks before installation and/or operation.

Always use approved CO₂cylinders, hoses and connections.

Always consult your CO₂supplier for regulations and instructions on safe installation and use.

Showtec is not liable for unsafe situations, accidents and damages that are the result of incorrect working

with CO₂gas and CO₂cylinders.

Inadequate installation and/or operation of a CO₂powered machine and CO₂cylinders can lead

to death or serious injury. Always follow the instructions from this manual, from your CO₂supplier and from

local authorities.

Indoor Use

The FX Blaster XL is designed for outdoor use and use in well-ventilated indoor spaces. When used indoors,

make sure you take the necessary preparations. These preparations could include, but are not limited to:

●Consulting your CO₂supplier.

●Calculating the reduction of oxygen for the indoor space.

●Checking the location for spots where CO₂could accumulate and taking preventive actions.

●Installing CO₂monitoring devices that will warn for hazardous CO₂levels.

Do not use the FX Blaster XL in poorly ventilated confined spaces. Exposure to high levels of CO₂gas

can cause symptoms like headache, nausea, loss of consciousness or even death.

Noise Level

The environmental noise level as measured at the ear is 97 dB(A). This level of noise is only reached during

the short instances that the CO₂output is active. Therefore hearing protection is not necessary.

However we recommend you to wear ear protection at all times. Daily operating the FX Blaster with its

CO₂output noise can damage your ears in the long run.

Do not operate the FX Blaster XL close to yourself or to others for a long period of time. If you

experience any hearing loss or ringing in the ears, you should immediately stop using the unit.

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The maximum ambient temperature ta = 30 °C must never be exceeded.

●Do not expose this device to relative humidity degree higher than 75 %.

●Do not expose this device to any source of vibration.

●Operate the device in a reasonably stable temperature between -20 ºC and 30 ºC.

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●If any unauthorized alterations or repairs are performed on the device, the warranty becomes void.

●Any operation different to the ones described in this manual may lead to dangers like frostbite,

burns, shock, crash etc.

Ordercode: 61031

FX Blaster XL

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

●If the FX Blaster XL is lowered from the ceiling or high joists, professional trussing systems have to be

used.

●Use a clamp to mount the FX Blaster XL, with the mounting-bracket, to the trussing system.

●The FX Blaster XL must never be fixed swinging freely in the room.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

●When rigging, derigging or servicing the FX Blaster XL, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

We presume that you, your employees and others who come into contact with the FX

Blaster XL are familiar with how the machine must be dealt with. This includes the correct

use, maintenance and repair of the FX Blaster XL as described in this user manual. The

employees should be familiar with the use of machines through training and/or

experience.

Improper installation can cause serious damage to people and property !

Showtec excludes liability for unsafe situations, accidents and damage that are the result of:

●Disregard for the warnings or regulations as set out on the FX Blaster XL or in this manual.

●Use for other purposes or under other circumstances than those set out in this documentation.

●Alterations to the FX Blaster XL. This also includes the use of replacement parts other than the original

ones.

●Insufficient maintenance.

●Unauthorised removal of safety caps and/or safeguards.

●Incompetent operation of the machine.

Showtec is not liable for any consequential loss in the event of an FX Blaster XL breakdown.

This user manual has been drawn up with the utmost care. Showtec cannot be held responsible for any

mistakes made in this publication or for any consequences thereof.

Improper installation can cause serious damage to people and property!

Ordercode: 61031

FX Blaster XL

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 61031

FX Blaster XL

Description of the device

For big concerts, stadiums and festivals you need special FX equipment that performs in a big way. The

Showtec FX Blaster is the designated tool for the job. With an awesome combined output of 25 m with

CO₂and confetti, a capacity of 15 kg of confetti per minute or even 20 kg per 90 seconds, the FX Blaster

is a magnificent eye-catcher that cannot be overlooked. Easy to handle, can be placed anywhere

because no additional power is required to control it. With 4 different output angles you can direct the

massive output where the action is.

Features

●Power: Liquid or gaseous CO2gas

●Propellant connector: 0,5 L/sec.

●Control: Manual

●Consumption: Confetti

●Max. distance: 25 m

●Capacity: 10–15 kg of confetti p/min.

●Standard in flight case, 4 swivel wheels with brakes

●Confetti and cryogenic effect

●4 different output angles (0°, 16°, 32°, 48°)

●Set includes: 3/8 manual valve for FX Blaster

CO₂high pressure hose 3/8 Male –Female (3m)

CO₂bottle-to-hose connector (CO₂Bottle to 3/8 Q-Lock adapter)

●Dimensions: 660 x 380 x 1350 mm (LxWxH)

●Weight: 56 kg

Overview

Fig. 01

01) Flight case

02) Hopper

03) Woofer

04) CO2input

05) Manual CO2valve

Ordercode: 61031

FX Blaster XL

Optional accessories

61013 - CO23/8 Q-Lock Hose 2,5 m

61014 - CO23/8 Q-Lock Hose 5 m

61015 - CO23/8 Q-Lock Hose 10 m

61016 - CO23/8 Q-Lock Hose 15 m

61020 - CO₂Bottle to 3/8 Q-Lock adapter

61021 –CO₂90° 3/8 Q-Lock connector

61023 –CO₂3/8 Q-Lock 2-way combiner

The FX Blaster XL can be set in 4 different angles between 42° and 90°.

The output height and output distance depend on the type of confetti and the set angle.

The maximum load per blast also depends on the type of confetti.

Wind and other weather circumstances will influence the output height and output distance of the

confetti. The given values are estimated.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec ColorCue 1 AIR Manuel utilisateur

Show Tec

Show Tec COMPACT POWER LIGHTSET RGB-UV V1 Manuel utilisateur

Show Tec

Show Tec Performer 2000 RGBAL Manuel utilisateur

Show Tec

Show Tec LP-416 Manuel utilisateur

Show Tec

Show Tec LED Wall Wash Manuel utilisateur

Show Tec

Show Tec 50405 Manuel utilisateur

Show Tec

Show Tec Helix S5000 Q4 Manuel utilisateur

Show Tec

Show Tec Net-8/5 Manuel utilisateur

Show Tec

Show Tec Phantom 25MKII Spot LED Manuel utilisateur

Show Tec

Show Tec Parcan 16 GU10D socket V1 Manuel utilisateur

Show Tec

Show Tec Quick DMX Rack 1024 Manuel utilisateur

Show Tec

Show Tec Astro 360 RGBW V1 Manuel utilisateur

Show Tec

Show Tec helix 1800 Q4 RGBW Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Tungsten V1 Manuel utilisateur

Show Tec

Show Tec Performer Pendant Q6 V3 Manuel utilisateur

Show Tec

Show Tec Parcan 64 Short Incl. Parsafe Manuel utilisateur

Show Tec

Show Tec 42668 Manuel utilisateur

Show Tec

Show Tec X-Terminator Manuel utilisateur

Show Tec

Show Tec LED Commander Pro Manuel utilisateur

Show Tec

Show Tec PIXEL BAR 12 MKII Manuel utilisateur

Show Tec

Show Tec Solar FL-280 V1 Manuel utilisateur

Show Tec

Show Tec Spectral PC 1800Z IP65 Manuel utilisateur

Show Tec

Show Tec Compact Lightset MKII Manuel utilisateur

Show Tec

Show Tec Helix M1000 Q4 Mobile Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
