Show Tec STAGE BLINDER 8 DMX V1 Manuel utilisateur

Stage Blinder 8 DMX V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 30774

MANUAL

ENGLISH

Ordercode: 30774

Stage Blinder 8 DMX

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Frontside..........................................................................................................................................................................6

Backside .........................................................................................................................................................................7

Installation...........................................................................................................................................................................7

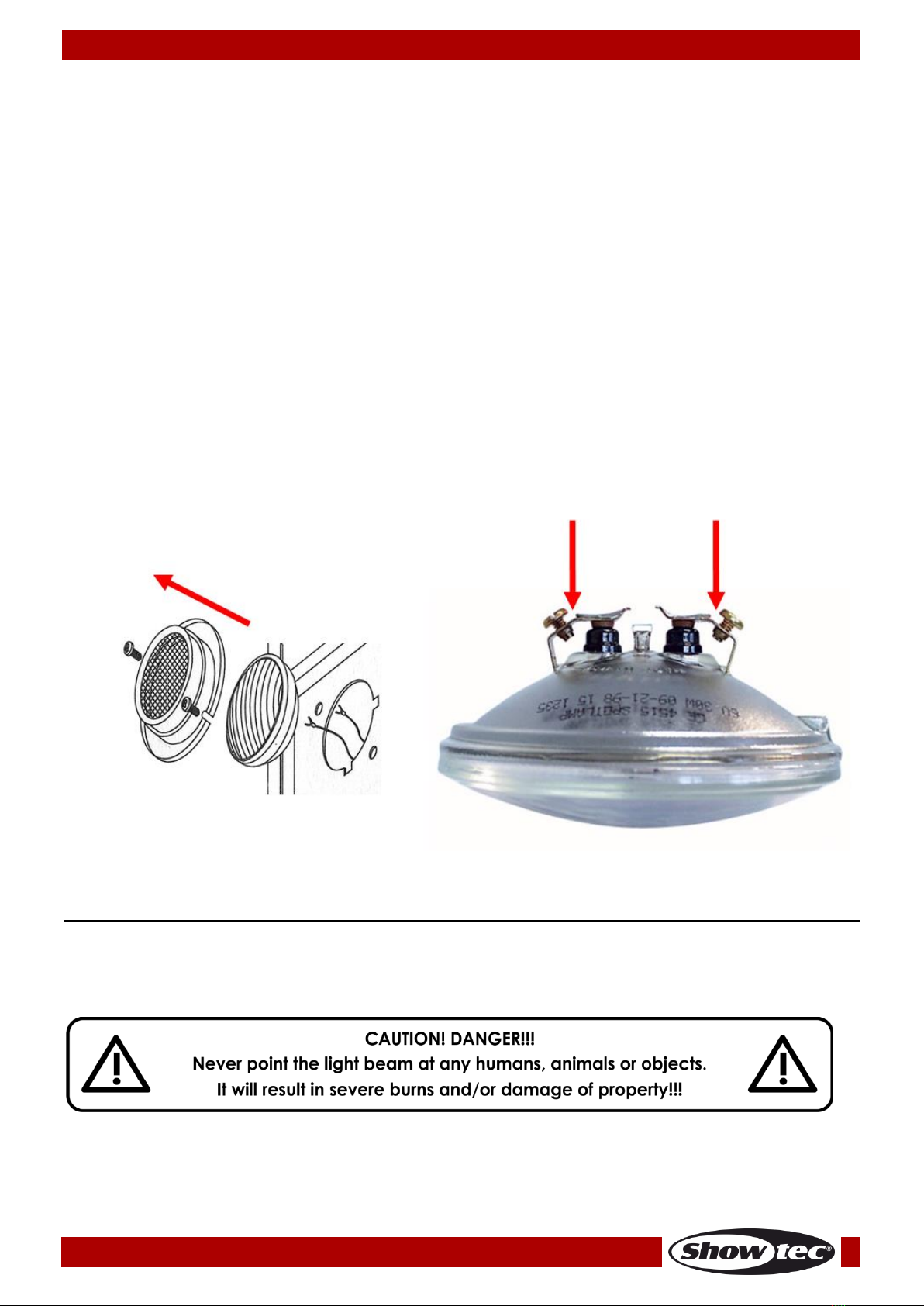

Installing the Lamp........................................................................................................................................................8

Set Up and Operation .......................................................................................................................................................8

Control Modes...............................................................................................................................................................9

One Stage Blinder (Auto Mode) .............................................................................................................................9

One Stage Blinder (Manual Mode)........................................................................................................................9

Multiple Stage Blinders (DMX control) .................................................................................................................10

DIP Switch Setting for DMX Mode............................................................................................................................11

DMX Address Quick Reference Chart ....................................................................................................................12

Fixture Linking...............................................................................................................................................................13

Data Cabling...............................................................................................................................................................13

DMX Channels .............................................................................................................................................................13

2 channels .................................................................................................................................................................13

Maintenance....................................................................................................................................................................14

Changing the Lamp...................................................................................................................................................14

Replacing the Fuse.....................................................................................................................................................14

Troubleshooting ...............................................................................................................................................................15

No Light.........................................................................................................................................................................15

No Response to DMX..................................................................................................................................................15

Product Specifications....................................................................................................................................................17

Dimensions........................................................................................................................................................................18

Ordercode: 30774

Stage Blinder 8 DMX

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Showtec Stage Blinder 8 DMX with a fixed power cable,

without a plug (1 m)

User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

be qualified

follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 30774

Stage Blinder 8 DMX

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never run the device without lamp!

Never leave any cables lying around.

Never look directly into the light source.

Never use the device during thunderstorms, unplug the device immediately.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Only use device indoors, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always replace the lamp, when it is damaged or deformed due to the heat.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

If one of the lamps is obviously damaged, it has to be replaced. So that its functions are not

impaired, due to cracks or deep scratches.

If the external cable is damaged, it has to be replaced by a qualified technician.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

The user is responsible for correct positioning and operating of the Stage Blinder 8 DMX. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation of

this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

For replacement use lamps and fuses of same type and rating only.

Allow time to cool down, before replacing lamp.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

Ordercode: 30774

Stage Blinder 8 DMX

Operating Determinations

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light output and the illuminated surface must be bigger than 2

meters.

The maximum ambient temperature ta = 40°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself!

Always have the inspections carried out by an authorized dealer!

Procedure:

If the Stage Blinder is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Use a clamp to mount the Stage Blinder, with the mounting bracket, to the trussing system.

The Stage Blinder must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

When rigging, derigging or servicing the Stage Blinder, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 30774

Stage Blinder 8 DMX

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 30774

Stage Blinder 8 DMX

Description of the device

Features

The Stage Blinder 8 DMX is a LED system from Showtec.

Input voltage: 240V AC, 50Hz

Power consumption: 2 x 2600W

Light source: 8 x Par 36 120V/650W (DWE)

Control protocol: DMX-512

Control modes: Auto, Manual, DMX

Dimmer: 0-100%

Housing: Aluminum

Color: Black

Connections: fixed cable without plug & 3-pin XLR IN/OUT

IP rating: IP-20

Fuse: T10AL/250V

Dimensions: 485 x 84 x 810 mm (LxWxH)

Weight: 10,9 kg

Optional accessories:

70351B –50 mm Half Coupler

70359B –50 mm Quick Coupler

80117 –Par 36 G53 Screw MFL GE

82163 –Par 36 DWE Showtec

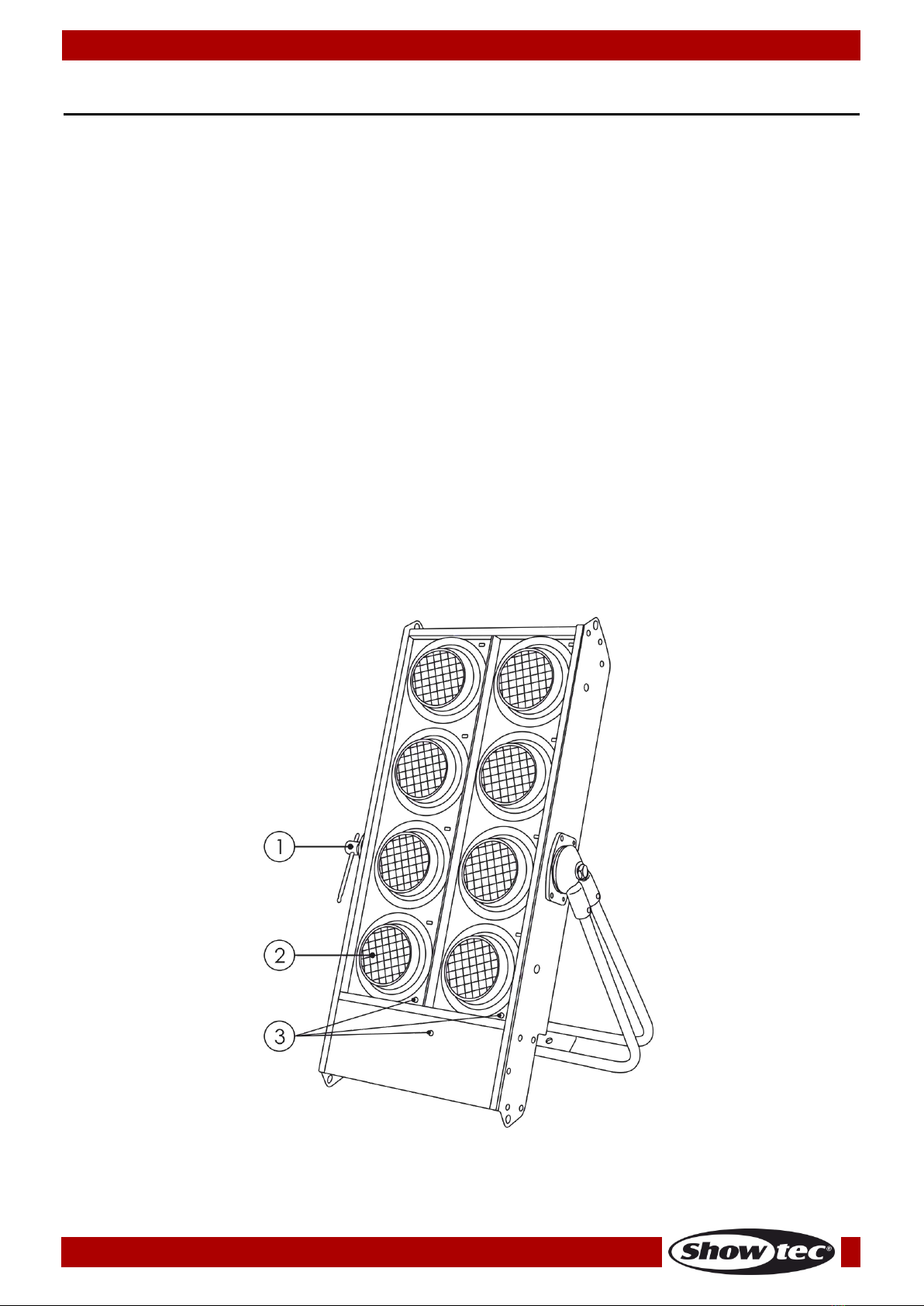

Frontside

Fig. 01

01) Mounting bracket with adjustment screw

02) Par 36 120V/650W (DWE)

03) Ground/earth connection

Ordercode: 30774

Stage Blinder 8 DMX

Backside

Fig. 02

04) Power cable 240V AC, IN (G1-G2)

05) Power cable 240V AC, IN (G3-G4)

06) DIP switches (G1-G2)

07) DIP switches (G3-G4)

08) 3-pin DMX signal connector OUT

09) 3-pin DMX signal connector IN

10) 4 x Fuse T10AL/250V

The Stage Blinder’s light output is divided into 4 sections: G1, G2, G3

and G4.

By flipping the DIP switches on the left control panel (06) you can

control sections G1 and G2.

By flipping the DIP switches on the right control panel (07) you can

control sections G3 and G4.

Fig. 03

Installation

Remove all packing materials from the Showtec Stage Blinder 8 DMX. Check if all foam and plastic

padding is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Ordercode: 30774

Stage Blinder 8 DMX

Installing the Lamp

The Stage Blinder 8 DMX uses the Par 36 G53 Screw MFL GE 120V/650W (DWE) bulb (ordercode 80117) or

the Showtec Par 36 120V/650W (DWE) bulb (ordercode 82163), as manufactured by all popular

manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with higher wattage! Lamps with higher wattage generate temperatures the device

was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure

01) Loosen the 2 screws on the front of the lamp housing.

02) Gently remove the metal lamp housing.

03) Read lamp instructions. Do not touch the lamp bulb glass. Gently remove the lamp from its socket.

04) Unscrew the 2 wires on the back of the lamp and remove the lamp. Oil on hands shortens the lamp

life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free towel and rubbing alcohol.).

05) Take the new lamp out of the box.

06) Take the 2 cables and tighten the screws on the back of the lamp. Place the lamp in the socket.

07) Put the metal lamp housing back and fasten the 2 screws snugly.

Fig. 04

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

Ordercode: 30774

Stage Blinder 8 DMX

Control Modes

There are 3 modes:

•Auto mode

•Manual mode

•DMX-512

One Stage Blinder (Auto Mode)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) When the Stage Blinder is not connected with a DMX cable, it functions as a stand-alone device.

05) Flip the DIP switch # 10 on both DIP switch panels (06, 07) to ON position and DIP switch # 9 to OFF

position, to activate Auto mode on both spots.

Auto Mode: DIP switch #9 to OFF / DIP switch # 10 to ON.

06) Flip the DIP switches # 1-8 to set the fade speed:

DIP switch # 1 ON = fastest fade speed

DIP switch # 8 ON = slowest fade speed

One Stage Blinder (Manual Mode)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) When the Stage Blinder is not connected with a DMX cable, it functions as a stand-alone device.

05) Flip the DIP switches # 9-10 on both DIP switch panels (06, 07) to ON position, to activate Manual

mode on both spots.

Manual Mode: DIP switches #9-10 to ON.

06) Flip the DIP switches # 5-8 to set the dimmer intensity, from dark to brightest:

DIP switch # 5 ON = darkest

DIP switch # 8 ON = brightest

07) If the DIP switches # 5-8 are all set to OFF position, the lamps will be OFF.

08) The DIP switches # 1-4 are not functional in Manual Mode.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Single WDP-1 Manuel utilisateur

Show Tec

Show Tec Spectral ZP-5 Manuel utilisateur

Show Tec

Show Tec Eventlite 177IR Manuel utilisateur

Show Tec

Show Tec 33036 Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 18-4 Q4 Manuel utilisateur

Show Tec

Show Tec 40292 Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe Manuel utilisateur

Show Tec

Show Tec 44050 Manuel utilisateur

Show Tec

Show Tec Cyclone 4 Manuel utilisateur

Show Tec

Show Tec Phantom 100 Spot Manuel utilisateur

Show Tec

Show Tec Sunstrip Active MKII 110V V1 Manuel utilisateur

Show Tec

Show Tec Galactic G30 30mW Manuel utilisateur

Show Tec

Show Tec Performer Fresnel Mini DMX Manuel utilisateur

Show Tec

Show Tec Single MKII Manuel utilisateur

Show Tec

Show Tec Shogun DJ RG-100 Manuel utilisateur

Show Tec

Show Tec STAGEBEAM MKII 2000W FRESNEL V1 Manuel utilisateur

Show Tec

Show Tec PowerBOX 4 Manuel utilisateur

Show Tec

Show Tec Media Panel 100 CCT Manuel utilisateur

Show Tec

Show Tec Pixel Panel 1024 Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 12 Q6 Manuel utilisateur

Show Tec

Show Tec Parcan 56 Short V1 Manuel utilisateur

Show Tec

Show Tec Star Dream 6x3m 128 LED RGB Manuel utilisateur

Show Tec

Show Tec Hydrogen DMX MKII Manuel utilisateur

Show Tec

Show Tec Rainbow Moon Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
