Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Versatrack brings excitement to any venue. Whether you want simple plug-&-play action

or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Versatrack™Product Guide

Warning..…...................................................................................………………………………………………………..

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations…….…………………………………………………………………………………………

Rigging…………………………….…………………………………………………………………………………………

Description..…................................................................................……….……………………………………………..

Features and Overview …………..……………………...….……………….………….……….……….…………….

Backside……………………………….…………………...…...….……………….…………………...…………………

Installation...............................................................................…...………………………………………….………..….

Set Up and Operation.....................................................................……..………………………………………………

Fixing……...........................................……..……………………………….………………………………………….….

Batten Bracket (accessory for Versatrack 42211)………………………………..…….…….………………..

Blinder Frame (accessory for Versatrack 42212)………………………………….…………..….……………

Hinge Kit (accessory for Versatrack 42213)…………………….……………….…….…….………………….

U-Shape Acrylic Cover (accessory for Versatrack 42214).……………….…………….….…….…………

Menu Functions………………………………………………………………...............................………………..……

Functions…………………………………………………………………………………………………………………….

Stand-alone ……………………….………………………………………..……………….…….…………………

Master/Slave…………………………………………………………….……………………………………………

DMX Operation ….………………………………………………………………….…….…….…………………..

DMX Signal-OFF Setting………………………………………………………….…….…….……………………..

Setting the DMX Control Channel..……..………..……………………………………………..……………….

Func ON…..………..…………………………………………..……………………………………………..………

Func OFF…..………..……………………………………………..……….…………………………………..………

Maintenance...................................................................................………..………….…….…………………………..

Changing the Fuse........................................................................…………………….………………………..…...

Troubleshooting............................................................................………………….………………….………………...

Product Specifications.................................................................……………….…….………………………………...

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there

be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance

of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

The user is responsible for correct positioning and operating of the LED Versatrack. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.

Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

The projector must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

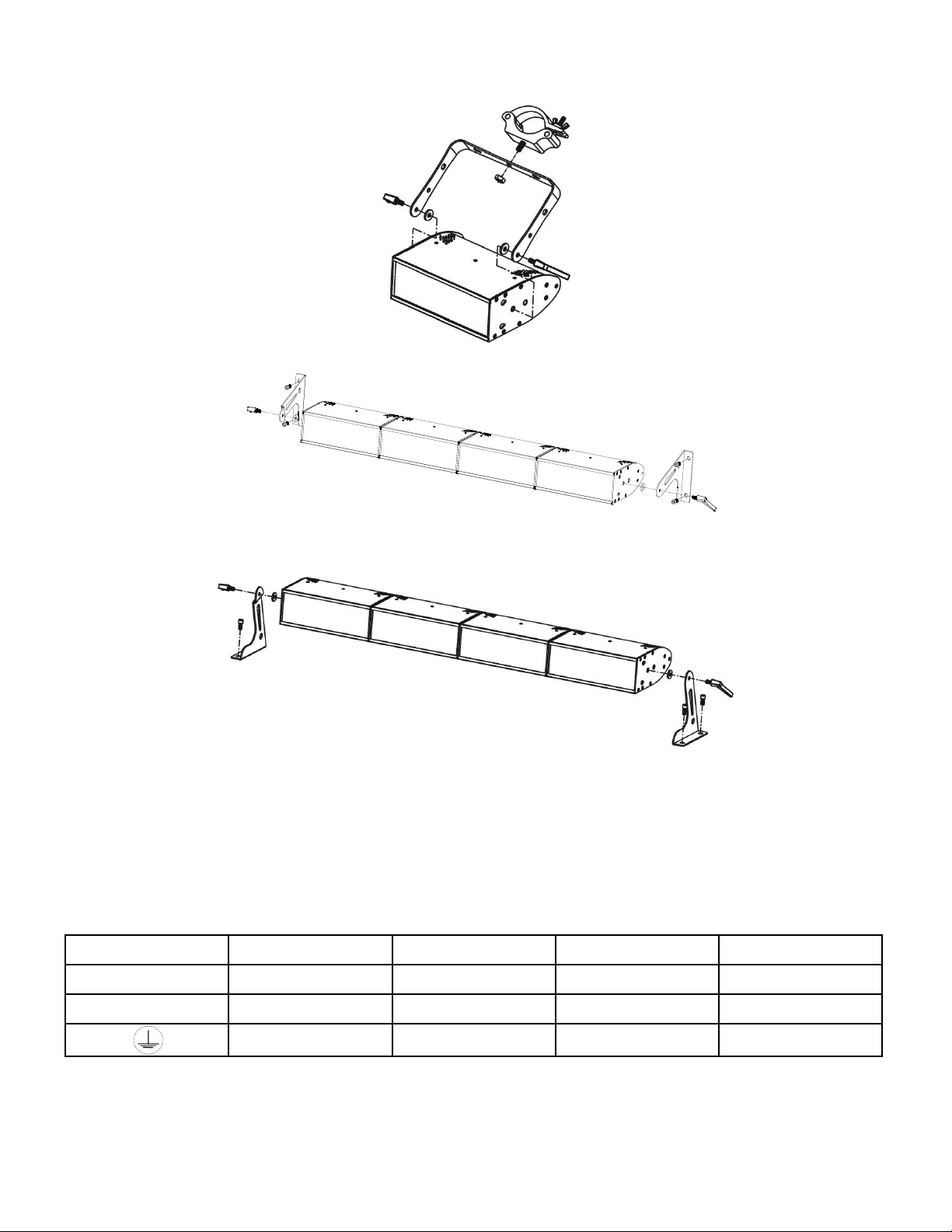

Truss Mount

Fixture should be hung on truss structure using a mounting clamp. Always secure the fixture with a secondary

safety attachment.

Wall Mount

Before attaching the device, make sure the installation surface can hold a minimum point load of 10 times

the device’s weight.

Floor Mount

Refer to below diagram for floor mounting instruction.

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property !

Description of the device

Features

The LED Versatrack is a LED system from Showtec.

• Standard 5, 8, 11, 20 channels and Full Function 8, 11, 14, 23 channels DMX control.

• Stand – alone operation:

• Master/Slave.

• Manual color mixing

• Auto-chases with adjustable speed and fade.

• 10 auto chases.

• Special functions:

• DMX off setting.

• Unlimited colors

• Low power consumption

• Low heat design, great for long time operation.

• Lifetime: 100.000 hours

• Available Accessories: 42211 Batten bracket for Versatrack

42212 Blinder bracket for Versatrack

42213 Hinge Kit for Versatrack

42214 Acrylic cover for Versatrack

NOTE: Knowledge of DMX is required to fully utilize this unit.

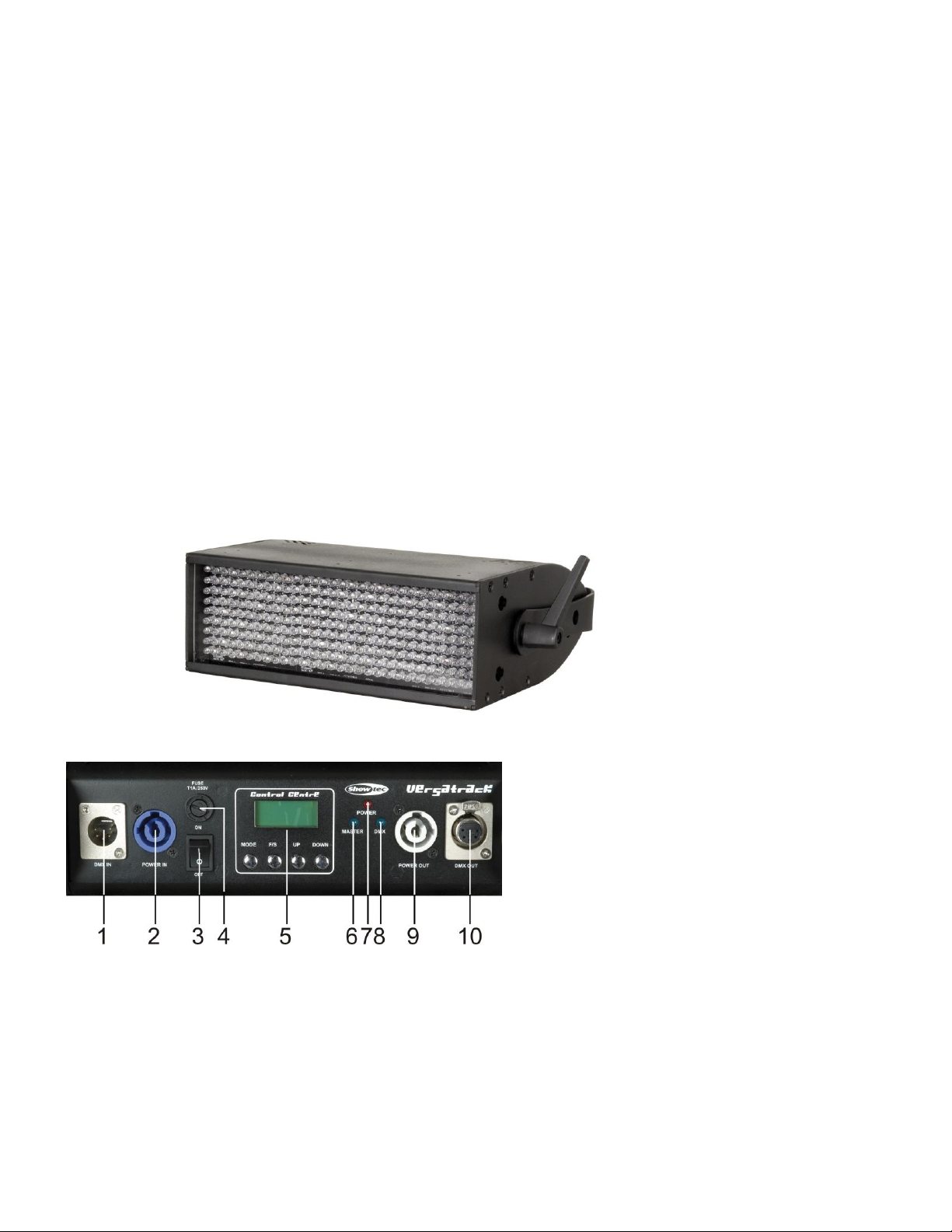

Overview

Fig. 1

Backside

Fig. 2

1) DMX signal connector (IN) 5-pin 6) LCD Display + Menu buttons

2) Power IN 7) Master LED

3) DMX signal connector (OUT) 5-pin 8) Power LED

4) Fuse T1A 250V 9) DMX LED

5) ON / OFF 10) Power OUT

Installation

Remove all packing materials from the LED Versatrack. Check that all foam and plastic padding is removed.

Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Note : Link all cables before connecting electric power.

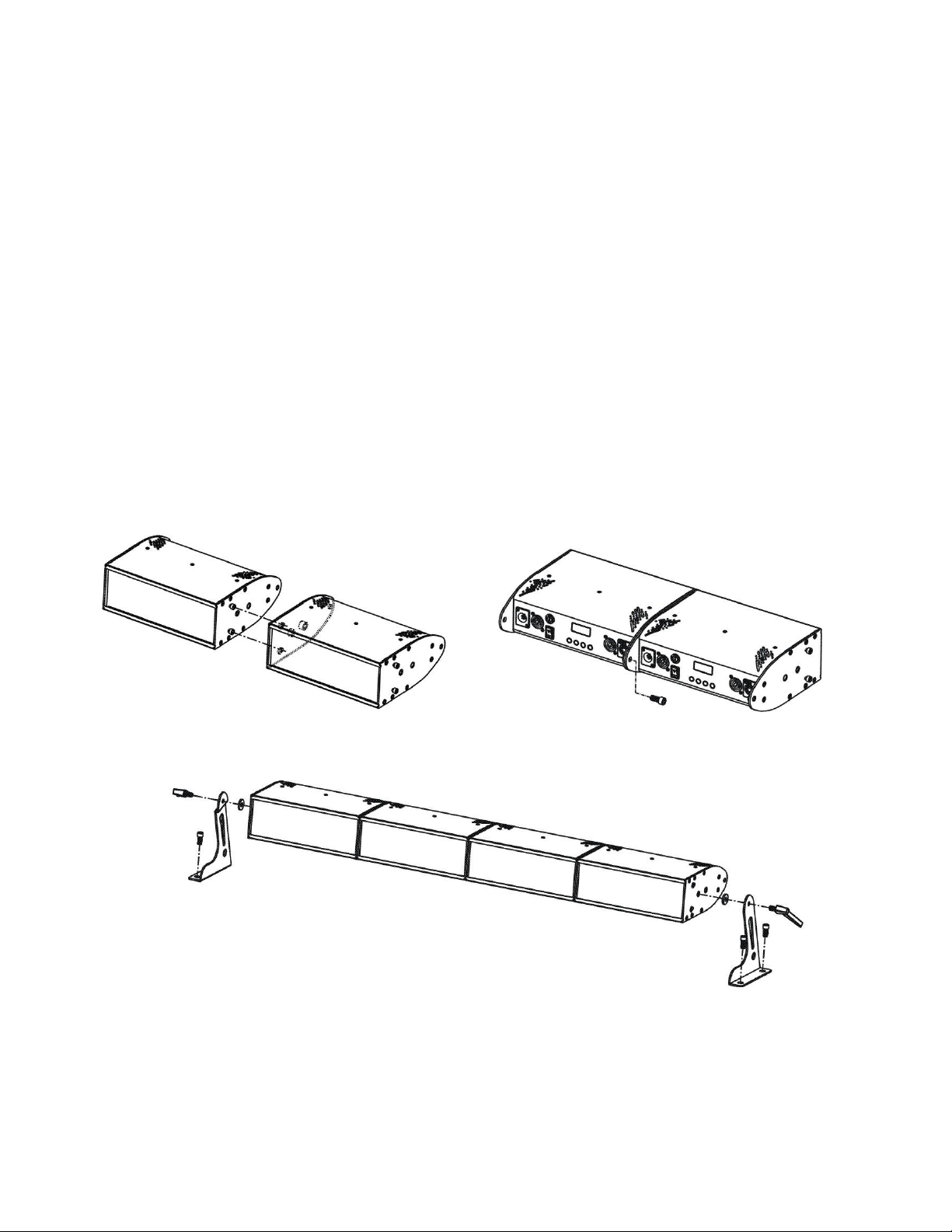

You have 3 possibilities to set up your LED Versatrack: Separate

Connected on top of eachother

Connected Side by Side

Fixing

Batten Bracket (accessory for Versatrack 42211)

First attach fixtures together refer to instruction below, the structure design can combine maximum of 5

fixtures together.

Then put on the batten stand on the end sides of fixtures.

Blinder Frame (accessory for Versatrack 42212)

Refer to diagram below to install blinder frame. First install the side plate with light fixture then carefully install

the hanging bracket.

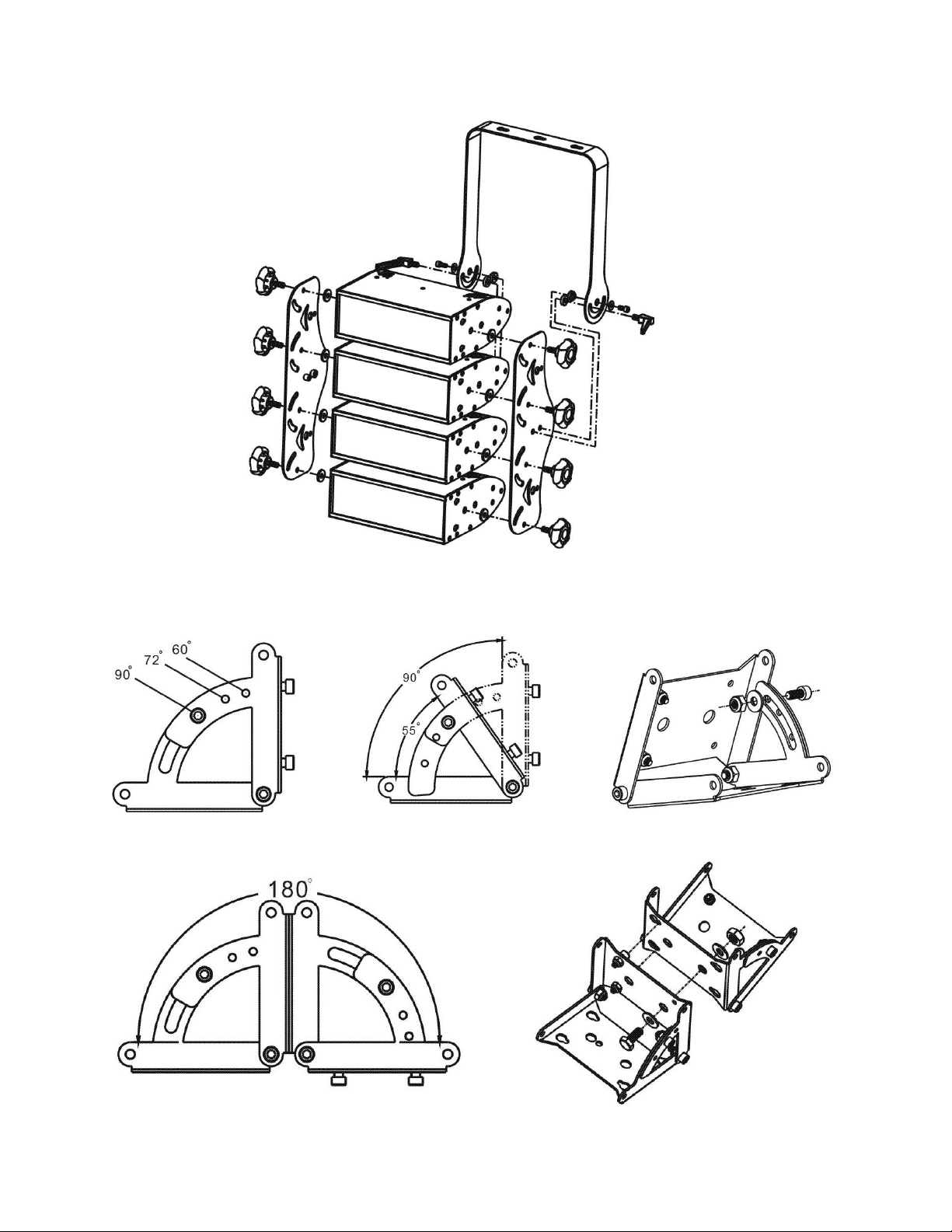

Hinge Kit (accessory for Versatrack 42213)

The hinge kit has 3 standard angles (60°, 72°, and 90°). It can also be adjusted manually from minimum 55°

up to maximum 90°. Follow diagram below to adjust angle.

For extended use simply attach two hinge kits together to gain larger angle from 110° to 180°. Refer to below

instruction to attach two hinge kits together.

To make multilateral shaping first attach hinge kit to the fixture follow the diagram below.

Link all the fixtures together using the hinge kit until it is finished. The hinge kit can also use as internal angle,

simply remove the locking screw and install on the other side.

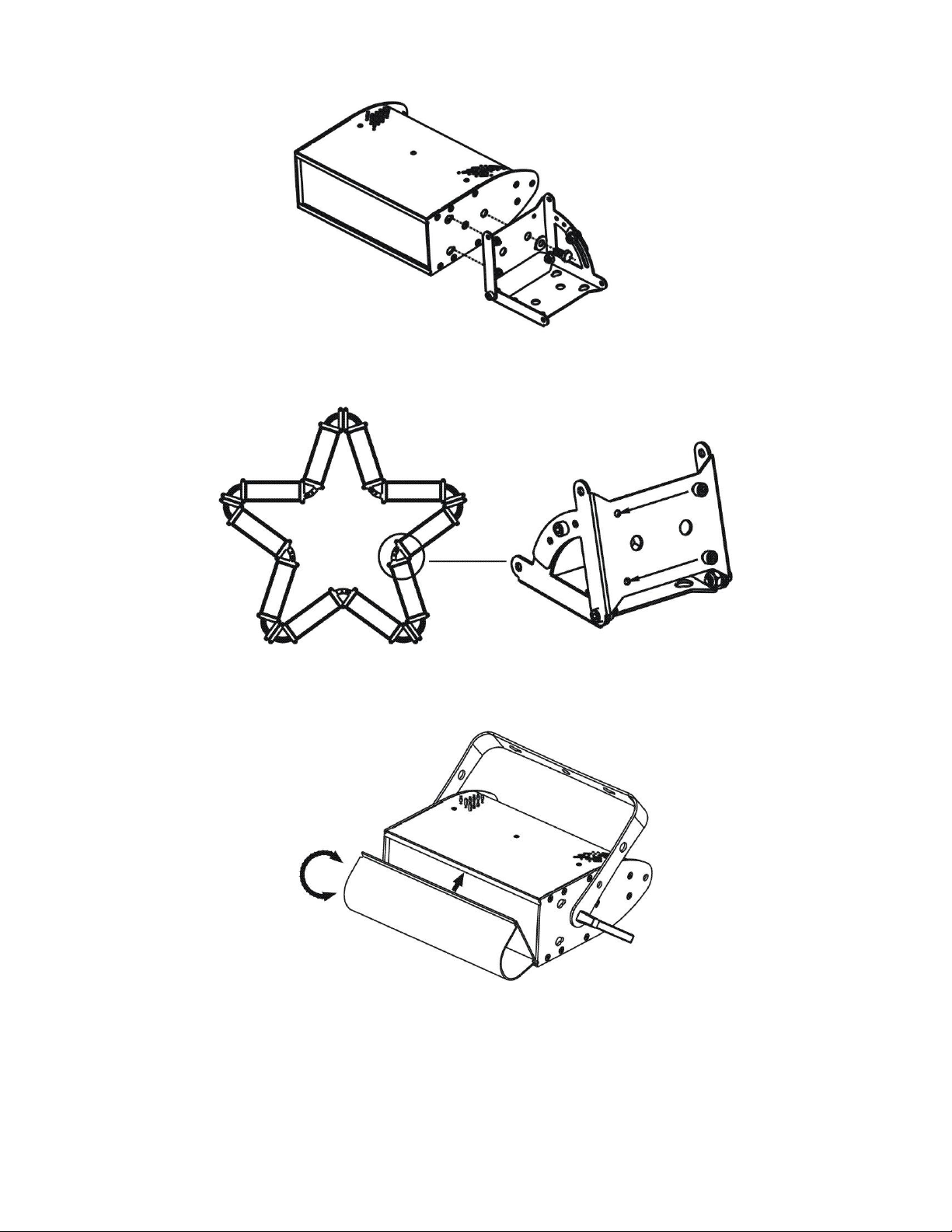

U-Shape Acrylic Cover (accessory for Versatrack 42214)

To make a light tube simply attached the U shape acrylic to the front of fixture.
