Show Tec Flexstrip Set UV V1 Manuel utilisateur

Flexstrip Set UV V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 42776

MANUAL

ENGLISH

Ordercode: 42776

Flexstrip Set UV

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Connection with the mains.........................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Overview ........................................................................................................................................................................6

Installation...........................................................................................................................................................................7

Connecting Flexstrip Set UV ........................................................................................................................................7

Set Up and Operation .......................................................................................................................................................8

Remote control .............................................................................................................................................................8

Maintenance....................................................................................................................................................................10

Troubleshooting ...............................................................................................................................................................10

No Light.........................................................................................................................................................................10

Product Specifications....................................................................................................................................................11

Notes ..................................................................................................................................................................................12

Ordercode: 42776

Flexstrip Set UV

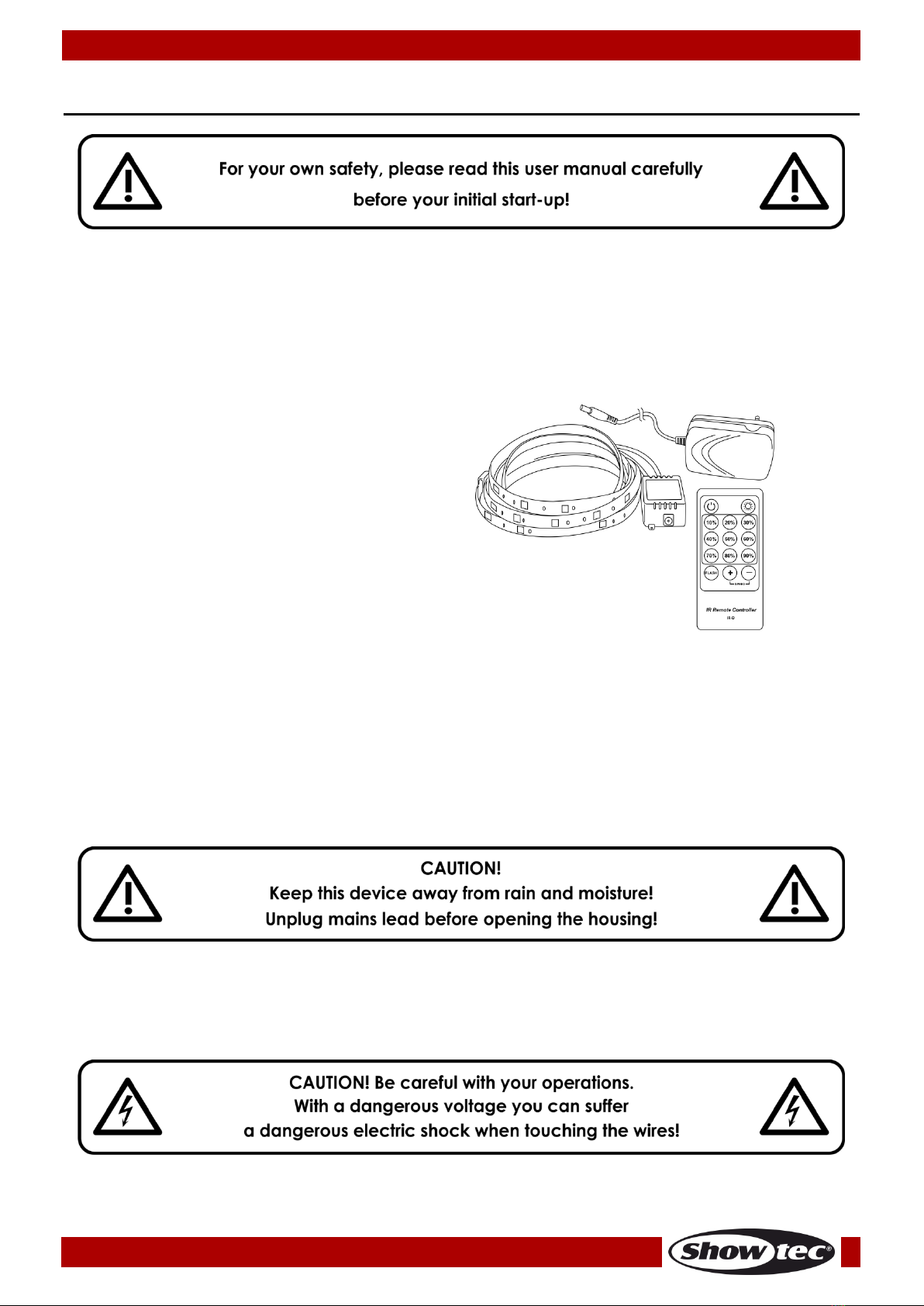

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear to be damaged from shipping or the carton

itself shows signs of mishandling. Save the carton and all packing materials. In the event that the fixture

must be returned to the factory, it is important that the fixture be returned in the original factory box and

packing.

Your shipment includes:

●Showtec Flexstrip IP20 UV 500cm

●Powersupply

●UV controller

●Remote control

●User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower

operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

Ordercode: 42776

Flexstrip Set UV

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never place any material over the LEDs.

•Never look directly into the light source.

•Never leave any cables lying around.

•Never use the Flexstrip in sealed or hot places.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this will reduce the device’s life.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use the device indoors, avoid contact with water or other liquids.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

•Always mount the Flexstrip on aluminum or metal surface, for best heat dissipation.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

•If the LEDs are obviously damaged, it has to be replaced.

•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•The user is responsible for correct positioning and operating of the Flexstrip. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

Ordercode: 42776

Flexstrip Set UV

Operating Determinations

●This device is not designed for permanent operation. Regular operation breaks will ensure that the

device will serve you for a long time without defects.

●The minimum distance between light-output and the illuminated surface must be bigger than 0,5

meter.

●The maximum ambient temperature ta = 40°C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

●If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Ordercode: 42776

Flexstrip Set UV

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause of the

return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name.

02) Your address.

03) Your phone number.

04) A brief description of the symptoms.

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period, complaints will not be handled anymore.

Complaints will only be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 42776

Flexstrip Set UV

Description of the device

Features

The Showtec Flexstrip Set UV is a 5m UV LED-strip which is easy to install. It can be controlled by the

included IR remote control.

●Plug and Play

●Infra Red Remote controller

●Built-in 10 level Dimmer

●3M Tape

●LED: 3528 UV, 60 LEDs per meter.

●Power consumption: 24W

●Power supply: 12V, 2A

●PCB color: White, 10 mm wide

●Beam angle: 120 degrees

●IP rating: IP20

●Dimensions: 5000 x 10 mm (LxW)

●Weight: 0,32 kg (complete set)

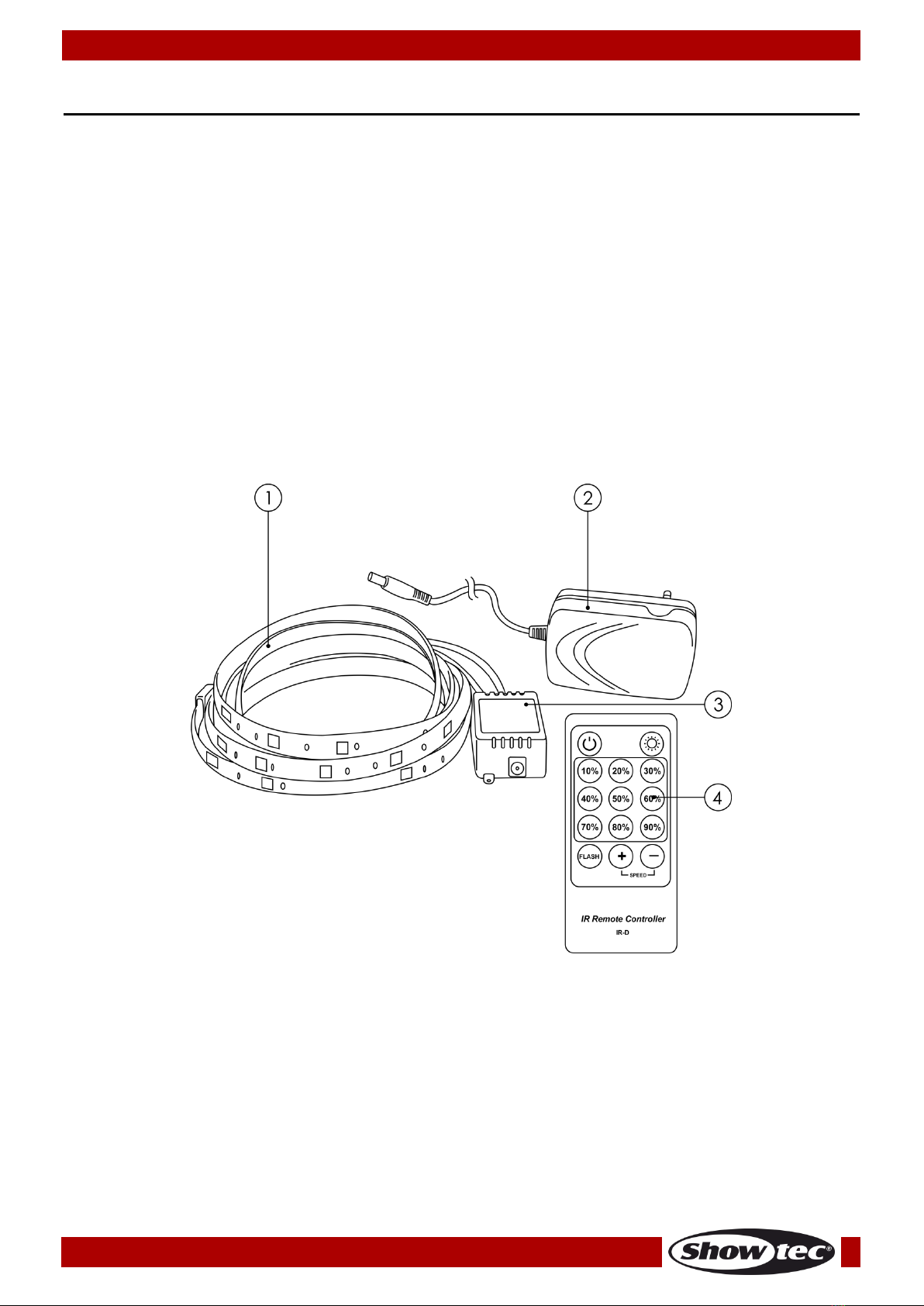

Overview

Fig. 01

01) Flexstrip 3528 UV LEDs

02) DC 12V 2A power adapter

03) UV Controller

04) IR remote control

Ordercode: 42776

Flexstrip Set UV

Installation

Remove all packing materials from the Flexstrip Set UV. Check that all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Connecting Flexstrip Set UV

First you have to mount the Flexstrip on an aluminium or metal surface for best heat dissipation. Use the

3M tape on the underside to attach the Flexstrip on the surface. After mounting the Flexstrip follow the

next steps to connect the Flexstrip in order to operate the Flexstrip with the IR remote control.

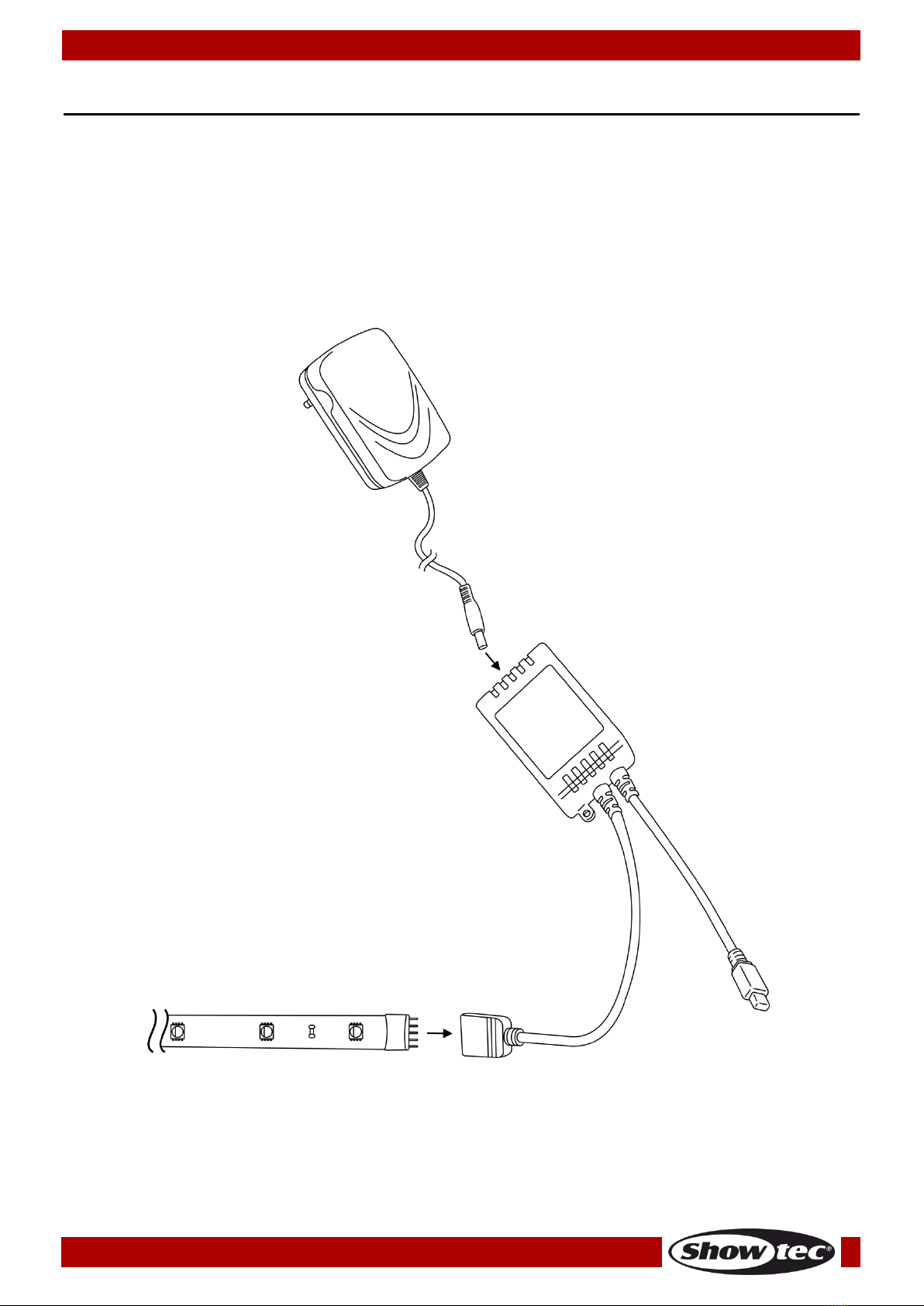

Fig. 02

01) Connect the UV controller to the LED strip.

02) Connect the power adapter to the UV controller.

03) Plug the power adapter into a proper electric power supply socket. Do not supply power before the

whole system is set up and connected properly.

Ordercode: 42776

Flexstrip Set UV

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Remote control

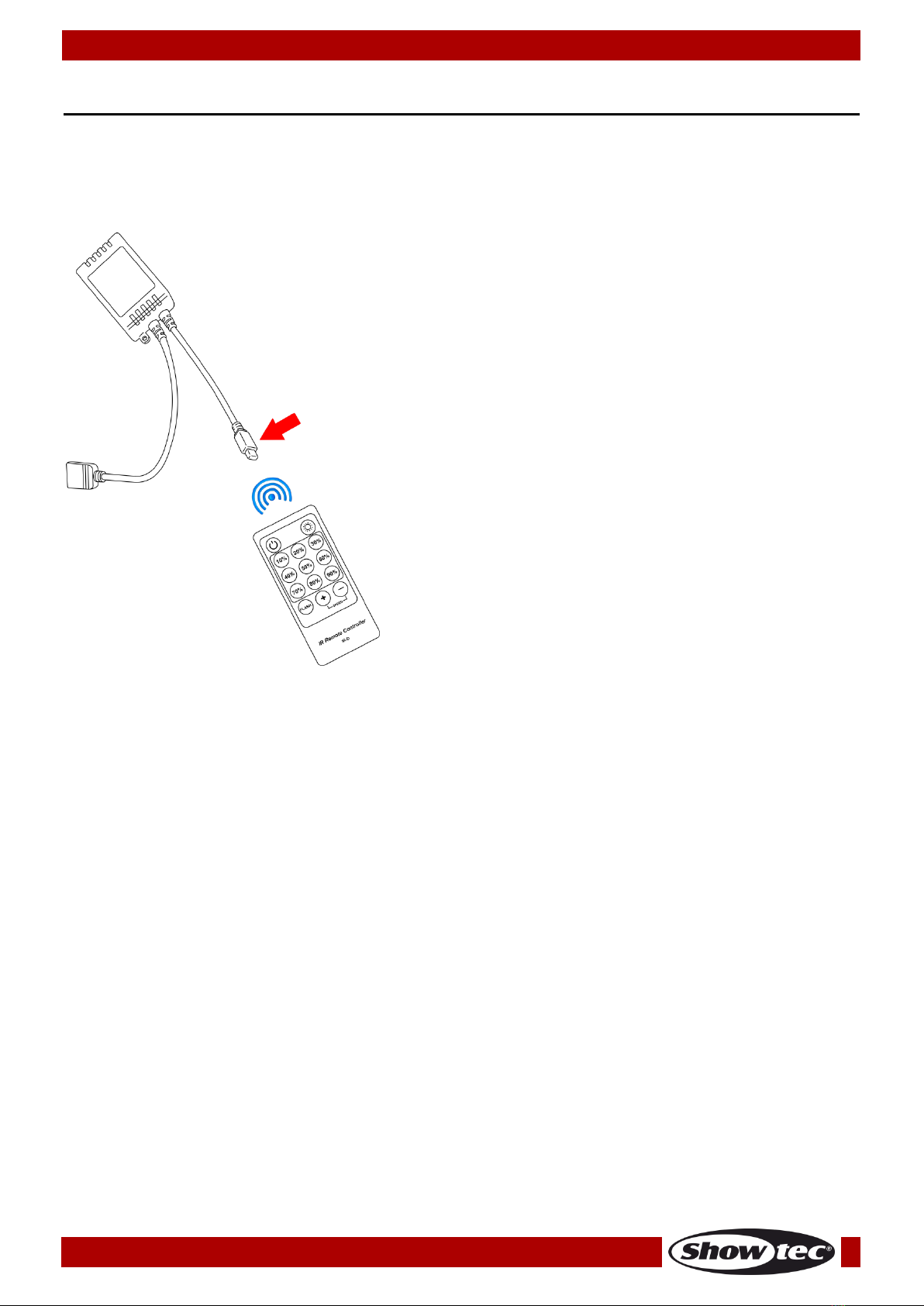

The remote control will sent a signal to the IR-sensor cable from the UV controller, see figure 03.

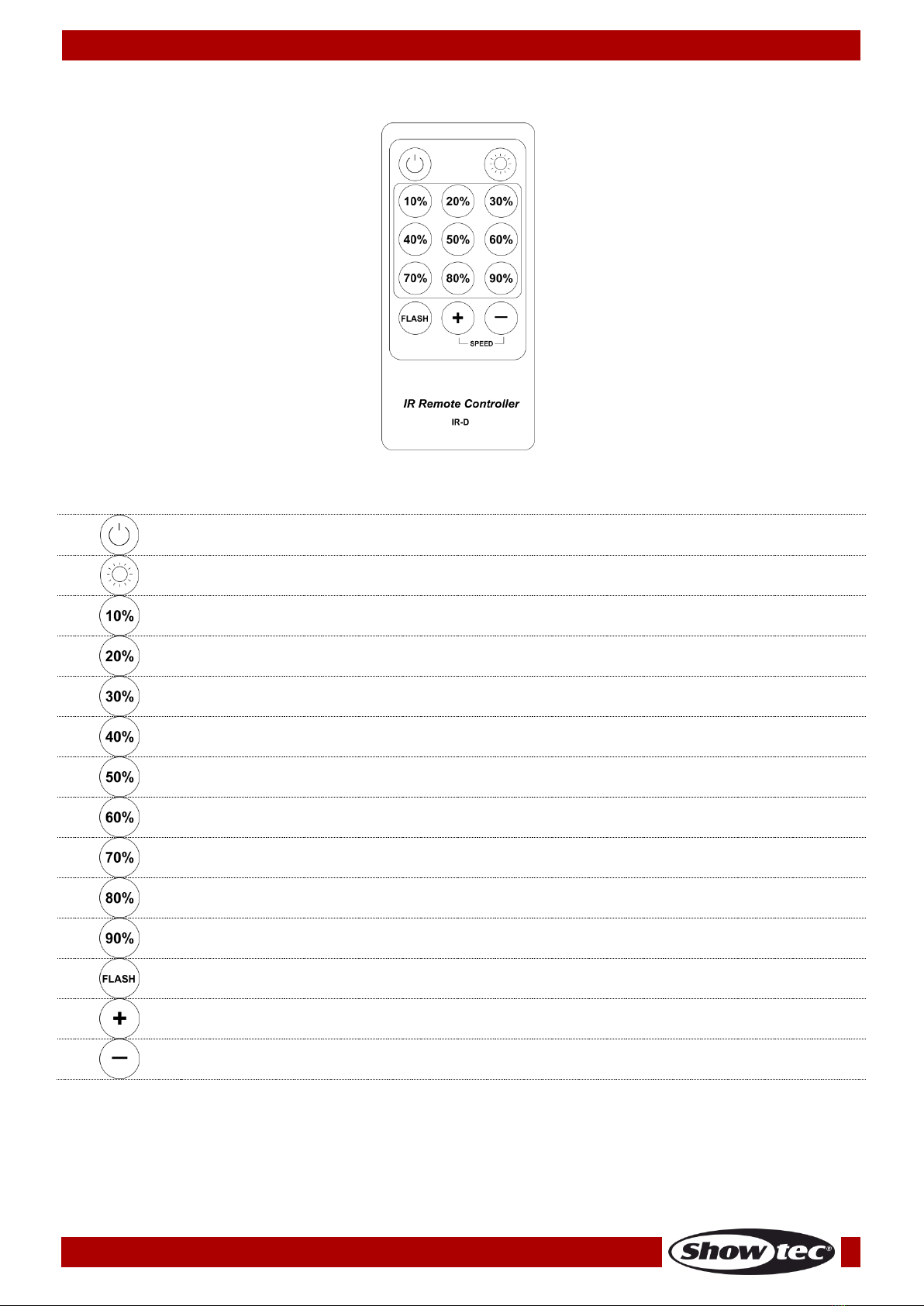

Fig. 03

Ordercode: 42776

Flexstrip Set UV

Button

Function

Description

Power

Switch the Flexstrip on/off

Full output

Activate the full output of the LEDs

10%

Activate 10% output of the LEDs

20%

Activate 20% output of the LEDs

30%

Activate 30% output of the LEDs

40%

Activate 40% output of the LEDs

50%

Activate 50% output of the LEDs

60%

Activate 60% output of the LEDs

70%

Activate 70% output of the LEDs

80%

Activate 80% output of the LEDs

90%

Activate 90% output of the LEDs

Flash

Activate the strobe mode

Increase

Increase the speed of the strobe mode

Decrease

Decrease the speed of the strobe mode

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec 43161 Manuel utilisateur

Show Tec

Show Tec Dance Cube 40401 Manuel utilisateur

Show Tec

Show Tec Explorer 575 Wash MKII Manuel utilisateur

Show Tec

Show Tec Candela Pix 100 Manuel utilisateur

Show Tec

Show Tec SPECTRAL M3000 ZOOM Q4 MK II Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15 Q4 V4 Manuel utilisateur

Show Tec

Show Tec Luna Par 60 Q4 Manuel utilisateur

Show Tec

Show Tec STAGEBEAM MKII 2000W FRESNEL V1 Manuel utilisateur

Show Tec

Show Tec Starzone Gobo Quake DMX Manuel utilisateur

Show Tec

Show Tec DB-1-8/RDM V1 Manuel utilisateur

Show Tec

Show Tec EVENTSPOT 60 Q7 Manuel utilisateur

Show Tec

Show Tec EventLITE 4/10 Q4 Set 6x Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 Blaze Manuel utilisateur

Show Tec

Show Tec PIXEL BAR 12 MKII Manuel utilisateur

Show Tec

Show Tec Star Dream 6x4m 128 LED RGB Manuel utilisateur

Show Tec

Show Tec LED Versatrack Manuel utilisateur

Show Tec

Show Tec LED Powerline 64 Manuel utilisateur

Show Tec

Show Tec FX Drop Manuel utilisateur

Show Tec

Show Tec Trackpod 90 Manuel utilisateur

Show Tec

Show Tec ACT Flood 80 RGBW Manuel utilisateur

Show Tec

Show Tec 30907 Orion Chase set Manuel utilisateur

Show Tec

Show Tec INDOOR DMX LED BAR 8 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15 Q6 Tour V1 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
