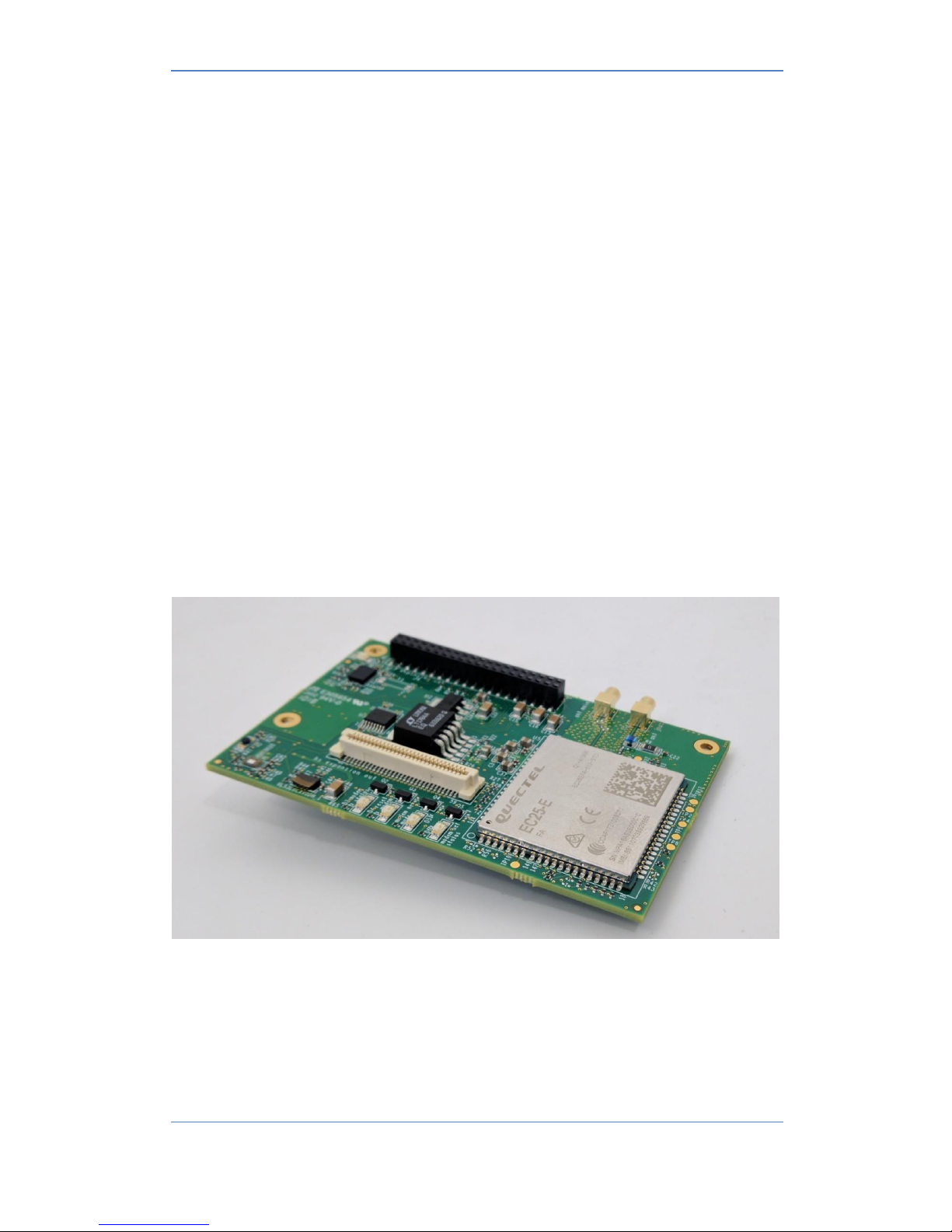

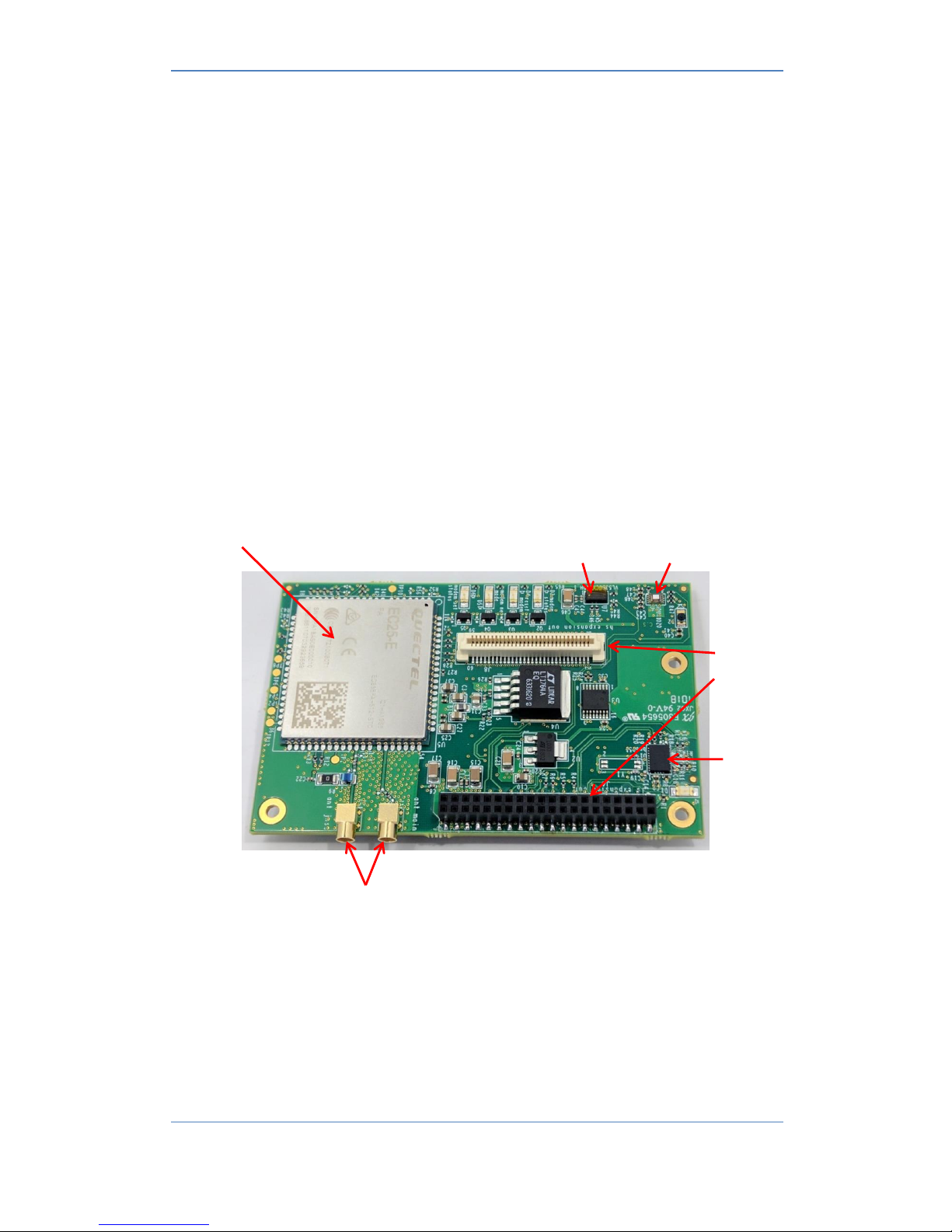

Shiratech Solutions LTE and Sensor Mezzanine for 96Boards –User Manual
5
Quectel EC25 LTE Modem
Quectel EC25 is a series of LTE category 4 module optimizedspeciallyfor M2M and IoT
applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers150Mbit/s downlink and
50Mbit/s uplink data rates. Designed in the compactand unified form factor, EC25 is
compatible with Quectel MTS/HSPA+UC20 module andmulti-modeLTEEC20/EC21 module,
whichallows for flexible migrationamong themin design andmanufacturing.
EC25 contains 6 variants:EC25-V, EC25-J, EC25-A, EC25-AU, EC25-AUT and EC25-E. This
makesitbackward-compatiblewith existingEDGEand GSM/GPRS networks, ensuringthatit
can be connected even in remote areasdevoidof 4G or 3G coverage.
EC25 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou,
Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides
quicker,more accurate and more dependablepositioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities
(USB driversfor Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall)
extend the applicabilityof the module to awide range of M2M and IoT applications suchas
industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.
The Quectel EC25 CAT-4LTE Modemmodule is poweredby 3.8V.

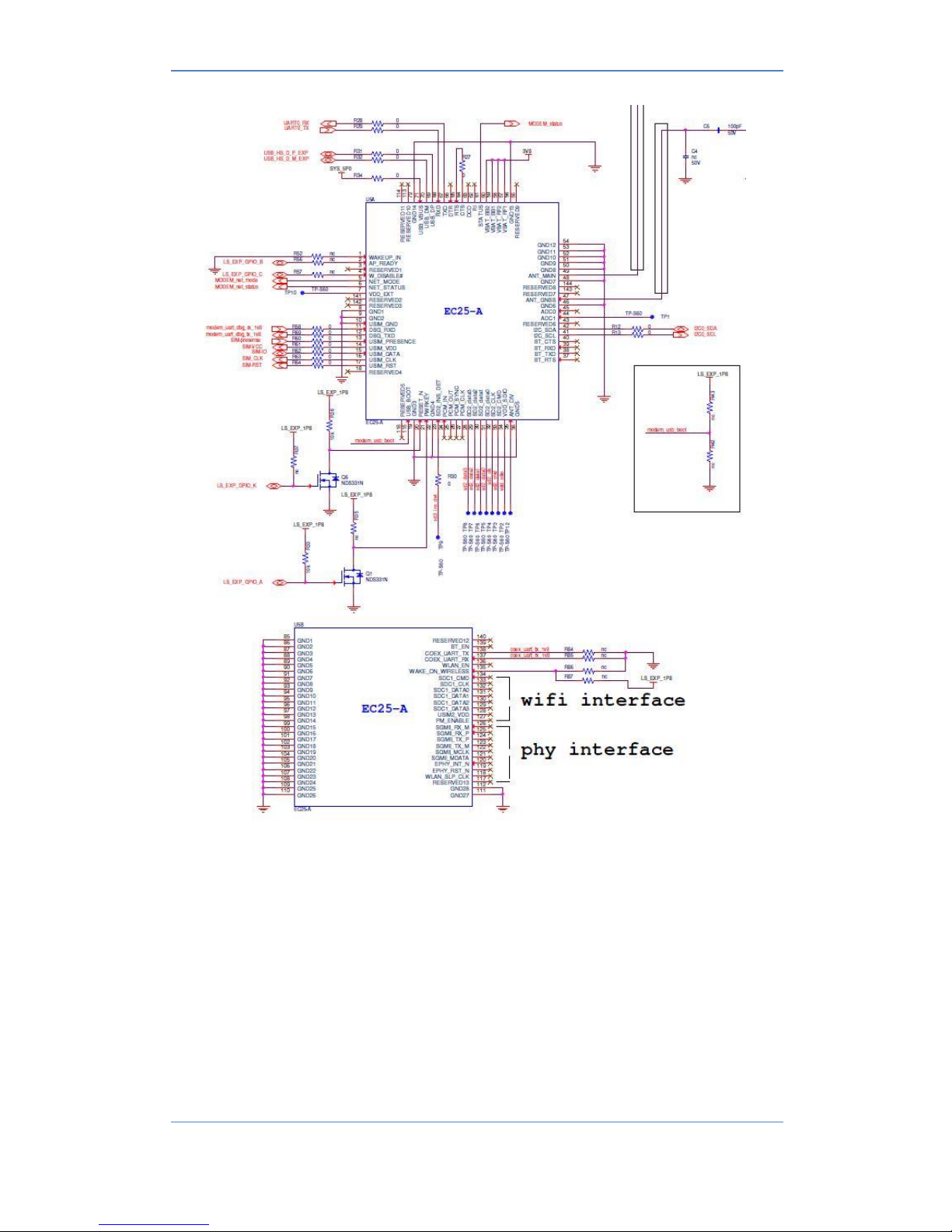

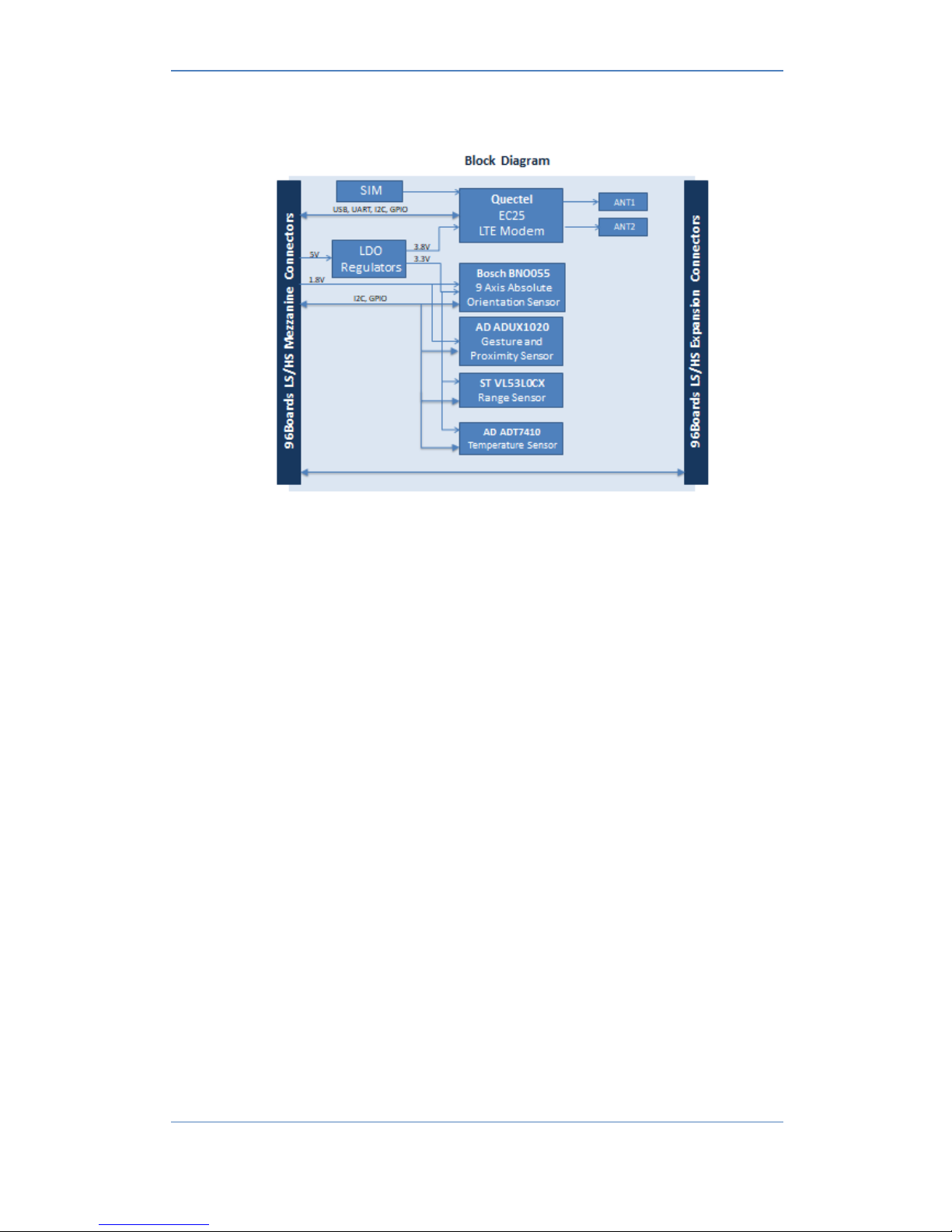

It is connected to 96Boards carrier board USB0 (HS connector), UART0, I2C0, GPIO A,B,C,K
(LS Connector) and(u)SIMconnector.

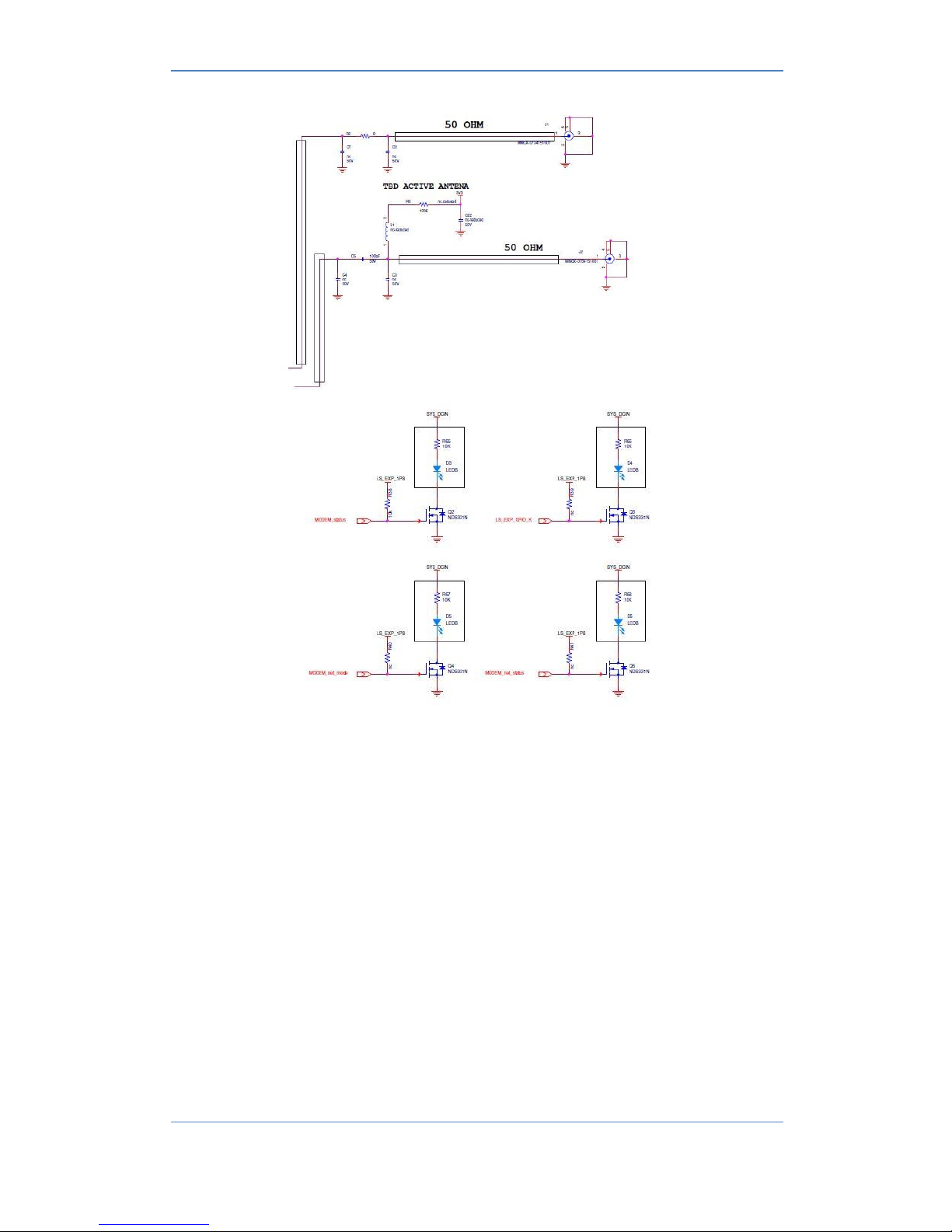

RF lines connected to twoRFantennajacks: Mainand GNSS.
Four LEDs are usedto indicate modemstatus.
