MODEL

XV-Z30000

PROJECTOR

SETUP MANUAL

Connecting Pin Assignments ............................................................ 2

RS-232C Speciﬁcations and Commands ......................................... 4

Setting up the Projector Network Environment

................................. 8

1. Connecting the Projector to a Computer .............................................. 9

2. Setting an IP Address for the Computer ............................................. 10

3. Setting the Projector Using Internet Explorer...................................... 12

Resetting the Lamp Timer of the Projector via LAN ..................... 13

Troubleshooting................................................................................ 15

-2

Connecting Pin Assignments

COMPUTER/COMPONENT input Terminal: mini D-sub 15 pin female connector

COMPUTER Input COMPONENT Input

Pin No. Signal Pin No. Signal

10.

11.

12.

13.

14.

15.

Video input (red)

Video input (green/sync on green)

Video input (blue)

Not connected

Earth (red)

Earth (green/sync on green)

Earth (blue)

Not connected

GND

Not connected

Bi-directional data

Horizontal sync signal: TTL level

Vertical sync signal: TTL level

Data clock

10.

11.

12.

13.

14.

15.

PR (CR)

PB (CB)

Not connected

Earth (PR)

Earth (Y)

Earth (PB)

Not connected

HDMI Terminal

Pin No. Name Pin No. Name

10.

T.M.D.S. Da ta 2+

T.M.D.S. Data 2 Shield

T.M.D.S. Data 2–

T.M.D.S. Da ta 1+

T.M.D.S. Data 1 Shield

T.M.D.S. Da ta 1–

T.M.D.S. Da ta 0+

T.M.D.S. Data 0 Shield

T.M.D.S. Da ta 0 –

T.M.D.S. Cl ock+

11.

12.

13.

14.

15.

16.

17.

18.

19.

T.M.D.S. Clock Shield

T.M.D.S. Cl ock–

CEC

Utility

SCL

SDA

DDC/CEC ground

+5V power

Hot plug detection

RS-232C Terminal: D-sub 9 pin male connector of the DIN-D-sub RS-232C adaptor

Pin No. Signal Name I/O Reference

Receive Data

Send Data

Signal Ground

Request to Send

Clear to Send

Input

Output

Not connected

Connected to internal circuit

Not connected

Connected to internal circuit

Not connected

Connected to CS in internal circuit

Connected to RS in internal circuit

Not connected

218

19 1

218

19 1

-3

RS-232C Cable recommended connection: D-sub 9 pin female connector

Pin No. Signal Pin No. Signal

Projector

Pin No.

Computer

Pin No.

LAN Terminal: LAN (RJ-45)

Pin No. Signal Pin No. Signal

TX+

TX–

RX+

RX–

Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the

controlling device (e.g. computer).

•

Note

Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the

controlling device (e.g. computer).

•

Note

8... 18 ... 1

Connecting Pin Assignments

-4

RS-232C Speciﬁcations and Commands

Computer control

A computer can be used to control the projector by connecting an RS-232C serial control cable (cross

type, commercially available) to the projector. (See page 26 of the projector's operation manual for

connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table.

Signal format: Conforms to RS-232C standard. Parity bit: None

Baud rate*: 9,600 bps Stop bit: 1 bit

Data length: 8 bits Flow control: None

*Set the projector's baud rate to the same rate as used by the computer.

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code.

After the projector processes the command from the computer, it sends a response code to the

computer.

Command format

C1 C2 C3 C4 P1 P2 P3 P4 Return code (0DH)

Command 4-digit Parameter 4-digit

Response code format

Normal response

Problem response (communication error or incorrect command)

OK Return code (0DH) E R R Return code (0DH)

Info

When controlling the projector using RS-232C commands from a computer, wait for at least 30 seconds

after the power has been turned on, and then transmit the commands.

After sending an input selection or picture adjustment command and then receiving an “OK” response

code, the projector may take some time to process the command. If a second command is sent while the

projector is still processing the ﬁrst command, you may receive an “ERR” response code. If this happens,

try resending the second command.

When more than one code is being sent, send each command only after the response code for the

previous command from the projector is veriﬁed.

“POWR????”, “TABN _ _ _ 1”, “TLPS _ _ _ 1”, “TPOW _ _ _ 1”, “TLPN _ _ _ 1”, “TLTT _ _ _ 1”,

“TLTM _ _ _ 1”, “TLTL _ _ _ 1”, “TNAM _ _ _ 1”, “MNRD _ _ _ 1”, “PJN0 _ _ _ 1”

− When the projector receives the special commands shown above:

* The on-screen display will not disappear.

* The “Auto Power Off” or “No Operation Off” timer will not be reset.

− The special commands are available for applications that require continuous polling.

•

If an underbar (_) appears in the parameter column, enter a space.

If an asterisk (*) appears in the parameter column, enter a value in the range indicated in brackets under

Control Contents.

•

Note

-5

Commands

Example: When turning on the projector, make the following setting.

Computer Projector

POWR___1

Control Contents Command Parameter

Return

Power ON Standby mode

(or 30-second startup time)

Power On P O W R _ _ _ 1 OK or ERR OK

Off P O W R _ _ _ 0 OK OK or ERR

Status P O W R ????

Projector Condition T A B N _ _ _ 1 0: Normal

1: Temp High

8: Lamp Life 5% or less

16: Lamp Burn-out

32: Lamp Ignition Failure

0: Normal

1: Temp High

2: Fan Error

4: Lamp Cover Open

8: Lamp Life 5% or less

16: Lamp Burn-out

32: Lamp Ignition Failure

64: Temp Abnormally High

Lamp Status T L P S _ _ _ 1 0: Off, 1: On, 2: Retry

3: Waiting, 4: Lamp Error

0: Off, 4: Lamp Error

Power Status T P O W _ _ _ 1 1: On, 2: Cooling 0: Standby

Quantity T L P N _ _ _ 1 1

Usage Time (Hour) T L T T _ _ _ 1 0-9999 (Integer)

Usage Time (Minuite) T L T M _ _ _ 1 0, 15, 30, 45

Life (Percentage) T L T L _ _ _ 1 0%-100% (Integer)

Name Model Name Check T N A M _ _ _ 1 XVZ30000

Model Name Check M N R D _ _ _ 1 XV-Z30000

Projector Name Setting1 (First 4 characters) *1 P J N 1 * * * * OK or ERR

Projector Name Setting2 (Middle 4 characters) *1 P J N 2 * * * * OK or ERR

Projector Name Setting3 (Last 4 characters) *1 P J N 3 * * * * OK or ERR

Projector Name Check P J N 0 _ _ _ 1 Projector Name

Input Change COMPUTER I R G B _ _ _ 1 OK or ERR ERR

COMPONENT I R G B _ _ _ 2 OK or ERR ERR

HDMI1 I R G B _ _ _ 3 OK or ERR ERR

HDMI2 I R G B _ _ _ 4 OK or ERR ERR

Input RGB Check I R G B ? ? ? ? 1: COMPUTER, 2: COMPONENT,

3: HDMI1, 4: HDMI2, ERR

ERR

Input Mode Check I M O D ? ? ? ? 1: RGB ERR

Input Check I C H K ? ? ? ? 1: COMPUTER

2: COMPONENT

3: HDMI1

4: HDMI2

ERR

Resize COMPUTER Normal R A S R _ _ _ 1 OK or ERR ERR

16:9 R A S R _ _ _ 2 OK or ERR ERR

Native R A S R _ _ _ 3 OK or ERR ERR

Cinema Zoom R A S R _ _ _ 5 OK or ERR ERR

Zoom14:9 R A S R _ _ _ 7 OK or ERR ERR

Smart Zoom R A S R _ _ _ 6 OK or ERR ERR

COMPONENT Normal R B S R _ _ _ 1 OK or ERR ERR

16:9 R B S R _ _ _ 2 OK or ERR ERR

Native R B S R _ _ _ 3 OK or ERR ERR

Cinema Zoom R B S R _ _ _ 5 OK or ERR ERR

Zoom14:9 R B S R _ _ _ 7 OK or ERR ERR

Smart Zoom R B S R _ _ _ 6 OK or ERR ERR

HDMI1 Normal R C S R _ _ _ 1 OK or ERR ERR

16:9 R C S R _ _ _ 2 OK or ERR ERR

Native R C S R _ _ _ 3 OK or ERR ERR

Cinema Zoom R C S R _ _ _ 5 OK or ERR ERR

Zoom14:9 R C S R _ _ _ 7 OK or ERR ERR

Smart Zoom R C S R _ _ _ 6 OK or ERR ERR

HDMI2 Normal R D S R _ _ _ 1 OK or ERR ERR

16:9 R D S R _ _ _ 2 OK or ERR ERR

Native R D S R _ _ _ 3 OK or ERR ERR

Cinema Zoom R D S R _ _ _ 5 OK or ERR ERR

Zoom14:9 R D S R _ _ _ 7 OK or ERR ERR

Smart Zoom R D S R _ _ _ 6 OK or ERR ERR

ALL Reset A L R E _ _ _ 1 OK or ERR ERR

RS-232C Speciﬁcations and Commands

-6

Control Contents Command Parameter

Return

Power ON Standby mode

(or 30-second startup time)

COMPUTER INPUT Picture Mode Standard R A P S _ _ _ 1 OK or ERR ERR

Movie1 R A P S _ _ _ 2 OK or ERR ERR

Movie2 R A P S _ _ _ 3 OK or ERR ERR

Monochrome R A P S _ _ _ 4 OK or ERR ERR

Anime R A P S _ _ _ 5 OK or ERR ERR

Sports R A P S _ _ _ 6 OK or ERR ERR

Stage R A P S _ _ _ 7 OK or ERR ERR

Dynamic R A P S _ _ _ 8 OK or ERR ERR

User1 R A P S _ _ _ 9 OK or ERR ERR

User2 R A P S _ _ 1 0 OK or ERR ERR

Game R A P S _ _ 1 1 OK or ERR ERR

Contrast -30 - +30 R A P I _ * * * OK or ERR ERR

Bright -30 - +30 R A B R _ * * * OK or ERR ERR

Color -30 - +30 R A C O _ * * * OK or ERR ERR

Tint -30 - +30 R A T I _ * * * OK or ERR ERR

Sharp -30 - +30 R A S H _ * * * OK or ERR ERR

Red Gain -30 - +30 R A R D _ * * * OK or ERR ERR

Green Gain -30 - +30 R A G N _ * * * OK or ERR ERR

Blue Gain -30 - +30 R A B E _ * * * OK or ERR ERR

CLR Temp -2 - +2 R A C T _ _ * * OK or ERR ERR

Picture Reset R A R E _ _ _ 1 OK or ERR ERR

COMPONENT INPUT Picture Mode Standard R B P S _ _ _ 1 OK or ERR ERR

Movie1 R B P S _ _ _ 2 OK or ERR ERR

Movie2 R B P S _ _ _ 3 OK or ERR ERR

Monochrome R B P S _ _ _ 4 OK or ERR ERR

Anime R B P S _ _ _ 5 OK or ERR ERR

Sports R B P S _ _ _ 6 OK or ERR ERR

Stage R B P S _ _ _ 7 OK or ERR ERR

Dynamic R B P S _ _ _ 8 OK or ERR ERR

User1 R B P S _ _ _ 9 OK or ERR ERR

User2 R B P S _ _ 1 0 OK or ERR ERR

Game R B P S _ _ 1 1 OK or ERR ERR

Contrast -30 - +30 R BP I _ * * * OK or ERR ERR

Bright -30 - +30 R BB R _ * * * OK or ERR ERR

Color -30 - +30 R BC O _ * * * OK or ERR ERR

Tint -30 - +30 R BT I _ * * * OK or ERR ERR

Sharp -30 - +30 R BS H _ * * * OK or ERR ERR

Red Gain -30 - +30 R BRD_ * * *

OK or ERR ERR

Green Gain -30 - +30 R B G N _ * * * OK or ERR ERR

Blue Gain -30 - +30 R BBE_* * *

OK or ERR ERR

CLR Temp -2 - +2 R BCT__* *

OK or ERR ERR

Picture Reset R B R E _ _ _ 1 OK or ERR ERR

HDMI1 Picture Mode Standard R C P S _ _ _ 1 OK or ERR ERR

Movie1 R C P S _ _ _ 2 OK or ERR ERR

Movie2 R C P S _ _ _ 3 OK or ERR ERR

Monochrome R C P S _ _ _ 4 OK or ERR ERR

Anime R C P S _ _ _ 5 OK or ERR ERR

Sports R C P S _ _ _ 6 OK or ERR ERR

Stage R C P S _ _ _ 7 OK or ERR ERR

Dynamic R C P S _ _ _ 8 OK or ERR ERR

User1 R C P S _ _ _ 9 OK or ERR ERR

User2 R C P S _ _ 1 0 OK or ERR ERR

Game R C P S _ _ 1 1 OK or ERR ERR

Contrast -30 - +30 R C P I _ * * * OK or ERR ERR

Bright -30 - +30 R C B R _ * * * OK or ERR ERR

Color -30 - +30 R C C O _ * * * OK or ERR ERR

Tint -30 - +30 R C T I _ * * * OK or ERR ERR

Sharp -30 - +30 R C S H _ * * * OK or ERR ERR

Red Gain -30 - +30 R C R D _ * * * OK or ERR ERR

Green Gain -30 - +30 R C G N _ * * * OK or ERR ERR

Blue Gain -30 - +30 R C B E _ * * * OK or ERR ERR

CLR Temp -2 - +2 R C C T _ _ * * OK or ERR ERR

Picture Reset R C R E _ _ _ 1 OK or ERR ERR

RS-232C Speciﬁcations and Commands

-7

Control Contents Command Parameter

Return

Power ON Standby mode

(or 30-second startup time)

HDMI2 Picture Mode Standard R D P S _ _ _ 1 OK or ERR ERR

Movie1 R D P S _ _ _ 2 OK or ERR ERR

Movie2 R D P S _ _ _ 3 OK or ERR ERR

Monochrome R D P S _ _ _ 4 OK or ERR ERR

Anime R D P S _ _ _ 5 OK or ERR ERR

Sports R D P S _ _ _ 6 OK or ERR ERR

Stage R D P S _ _ _ 7 OK or ERR ERR

Dynamic R D P S _ _ _ 8 OK or ERR ERR

User1 R D P S _ _ _ 9 OK or ERR ERR

User2 R D P S _ _ 1 0 OK or ERR ERR

Game R D P S _ _ 1 1 OK or ERR ERR

Contrast -30 - +30 R D P I _ * * * OK or ERR ERR

Bright -30 - +30 R D B R _ * * * OK or ERR ERR

Color -30 - +30 R D C O _ * * * OK or ERR ERR

Tint -30 - +30 R D T I _ * * * OK or ERR ERR

Sharp -30 - +30 R D S H _ * * * OK or ERR ERR

Red Gain -30 - +30 R D R D _ * * * OK or ERR ERR

Green Gain -30 - +30 R D G N _ * * * OK or ERR ERR

Blue Gain -30 - +30 R D B E _ * * * OK or ERR ERR

CLR Temp -2 - +2 R D C T _ _ * * OK or ERR ERR

Picture Reset R D R E _ _ _ 1 OK or ERR ERR

RGB Frequency Check Horizontal T F R Q _ _ _ 1 kHz (***.* or ERR) ERR

Vertical T F R Q _ _ _ 2 Hz (***.* or ERR) ERR

3D On 3 D E N _ _ _ 1 OK or ERR ERR

Off 3 D E N _ _ _ 0 OK or ERR ERR

Format Auto 3 D F M _ _ _ 0 OK or ERR ERR

Side By Side 3 D F M _ _ _ 1 OK or ERR ERR

Top And Bottom 3 D F M _ _ _ 2 OK or ERR ERR

Invert 3 D I V _ _ _ 1 OK or ERR ERR

ANAMORPHIC Off A N A M _ _ _ 0 OK or ERR ERR

2.35:1 A N A M _ _ _ 1 OK or ERR ERR

16:9 A N A M _ _ _ 2 OK or ERR ERR

LENS Focus -255 - 255 L N F O * * * * OK or ERR ERR

Zoom -255 - +255 L N Z O * * * * OK or ERR ERR

Vertical Lens Shift *3 -800 - +800 L N S H * * * * OK or ERR ERR

-800 - +800 L N U D * * * * OK or ERR ERR

Horizontal Lens Shift *3 -800 - +800 L N L R * * * * OK or ERR ERR

Lens Shift Center *3 L N P D _ _ _ 1 OK or ERR ERR

MEMORY Save 1-2 L N S V * * * * OK or ERR ERR

Load *3 1-2 L N L O * * * * OK or ERR ERR

Clear 1-2 L N C R * * * * OK or ERR ERR

Lock Off L N M L _ _ _ 0 OK or ERR ERR

On L N M L _ _ _ 1 OK or ERR ERR

Reset Network Setting L N R E _ _ _ 1 OK or ERR OK or ERR

Restart Network L R E S _ _ _ 1 OK or ERR OK or ERR

Lamp Timer Reset *2 L P R E 0 0 0 1 ERR OK, ERR

*1 For setting the projector name, send the commands in the order of PJN1, PJN2 and PJN3.

*2 The Lamp Timer Reset command can only be sent in standby mode.

*3 If the lens cover is not correctly attached, you may receive an “ERR” response code.

RS-232C Speciﬁcations and Commands

-8

Setting up the Projector Network Environment

This section describes the basic procedure for using the projector via the network.

If the network is already constructed, the projector's network settings may need to be

changed. Please consult your network administrator for assistance with these settings.

You can make network settings both on the projector and on the computer. The following

procedure is for making settings on the computer.

Network settings on the computer

Connect a LAN cable (Category 5, cross-over type) between the computer and projector.

LAN cable

(commercially available)

1. Connecting the projector to a computer

Page 9

Adjust the IP settings of the computer to enable one-to-one communications with the projector.

Temporarily change

the computer's IP

address.

2. Setting an IP address for the computer

Pages 10, 11

Adjust the projector network settings to conform to your network.

Use Internet Explorer

(version 6.0 or later)

to make various

projector settings.

3. Setting the Projector Using Internet Explorer

Page 12

Microsoft®, Windows®, Windows®XP, Windows Vista®and Windows®7 are registered trademarks of

Microsoft Corporation in the United States and/or other countries.

All other company or product names are trademarks or registered trademarks of their respective

companies.

•

-9

1. Connecting the Projector

to a Computer

Establishing a one-to-one connection from

the projector to a computer. Using a

commercially available LAN cable (UTP

cable, Category 5, cross-over type) you can

conﬁgure the projector via the computer.

Disconnect the computer's LAN

cable from the existing network.

2Connect a commercially available

LAN cable (UTP cable, Category 5,

cross-over type) to the projector's

LAN terminal and connect the

other end of the cable to the

computer's LAN terminal.

3Plug the power cord into the AC

socket of the projector.

4Turn on the computer.

Info

Conﬁrm that the LINK LED on the rear of the

projector illuminates. If the LINK LED does not

illuminate, check the following:

The LAN cable is properly connected.

The power switches of both the projector and

the computer are on.

•

A LAN cable being

connected to the network

A LAN cable being

connected to the network

LAN cable

(cross-over type, commercially available)

LAN cable

(cross-over type, commercially available)

ONON

Setting up the Projector Network Environment

This completes the connection. Now proceed to “2. Setting an IP Address for the Computer”.

-10

2. Setting an IP Address for

the Computer

The following describes how to make

settings in Windows Vista®.

1Log on the network using the

administrator's account for the

computer.

2Click “start”, and click “Control

Panel”.

3Click “View network status and

tasks” of “Network and Internet”,

and click “View status” in the new

window.

This manual uses examples to explain the

operations in Category View. If you are using

Classic View, double-click “Network and

Sharing Center”.

4Click “Properties”.

When the user account control display is

displayed, click “Continue”.

•

XXXXXXXXX

Setting up the Projector Network Environment

Autres manuels pour XV-Z30000 Operation

Table des matières

Autres manuels Sharp Projecteur

Sharp

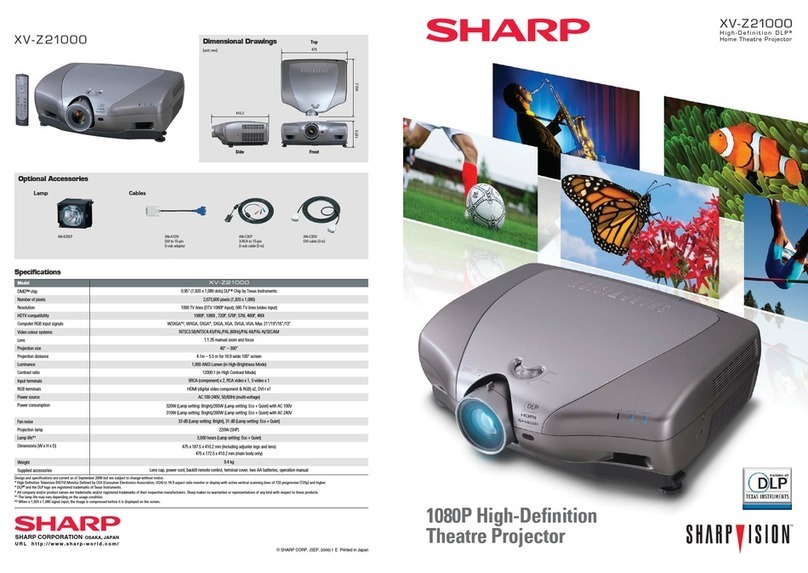

Sharp XV-Z21000 Manuel utilisateur

Sharp

Sharp PG-F255W - Notevision WXGA DLP Projector Manuel utilisateur

Sharp

Sharp XG-E3000U Manuel utilisateur

Sharp

Sharp PG-F312X - Notevision XGA DLP Projector Manuel utilisateur

Sharp

Sharp XR40X - XGA DLP Projector Manuel utilisateur

Sharp

Sharp DT 510 - DLP Projector - HD Manuel utilisateur

Sharp

Sharp Conference Series XG-PH80X-N Guide de l'utilisateur

Sharp

Sharp PG-A10X - Notevision XGA LCD Projector Manuel utilisateur

Sharp

Sharp XG-NV4SU Manuel utilisateur

Sharp

Sharp XG-NV6XE Manuel utilisateur

Sharp

Sharp Notevision XG-C435X Guide de l'utilisateur

Sharp

Sharp XR-32X - Notevision XGA DLP Projector Manuel utilisateur

Sharp

Sharp SharpVision XG-3850E Manuel utilisateur

Sharp

Sharp XV-100ZM Manuel utilisateur

Sharp

Sharp Notevision PG-M17X Manuel utilisateur

Sharp

Sharp XG-P610X-N Manuel utilisateur

Sharp

Sharp Notevision XR-50S Manuel utilisateur

Sharp

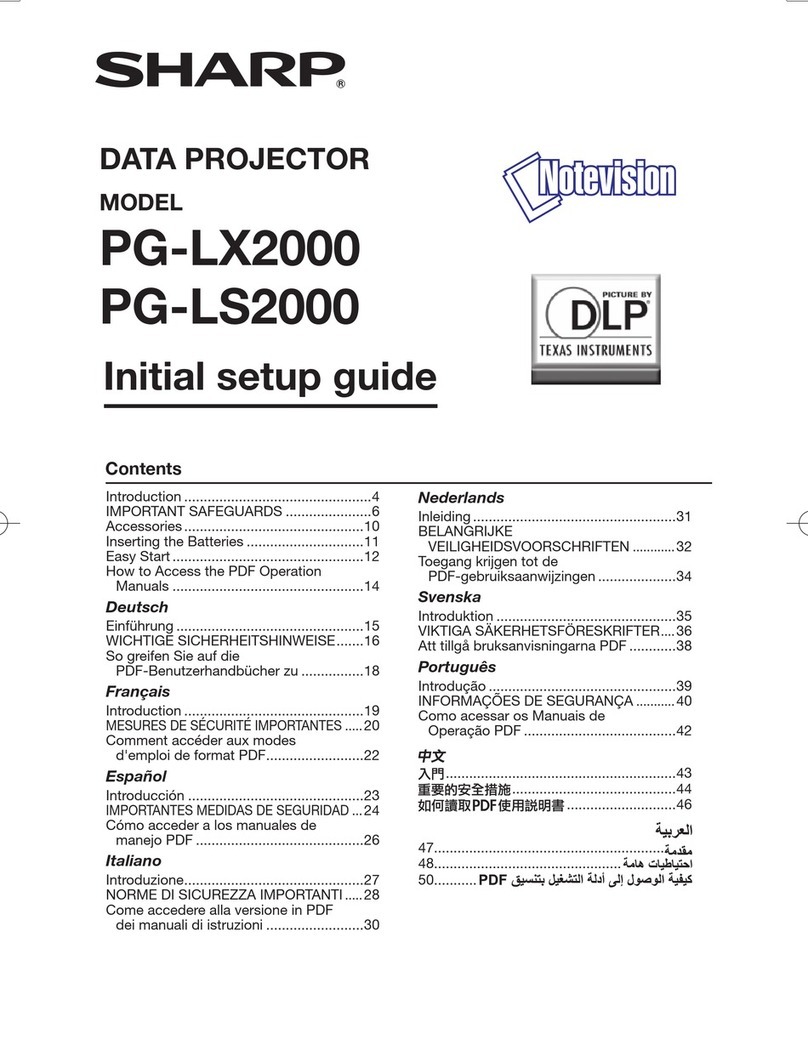

Sharp NoteVision PG-LX2000 Manuel

Sharp

Sharp Notevision PG-C20XA Manuel utilisateur

Sharp

Sharp XG-C465X - Notevision XGA LCD Projector Manuel utilisateur

Sharp

Sharp Notevision PG-C45S Manuel utilisateur

Sharp

Sharp XV-Z2000 Manuel utilisateur

Sharp

Sharp XV-ZW99U Manuel utilisateur

Sharp

Sharp XG-SV200X Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
