MODEL

PG-D50X3D

PG-D45X3D

DATA PROJECTOR

SETUP MANUAL

Connecting Pin Assignments .............................. 2

RS-232C Speciﬁcations and Commands ........... 4

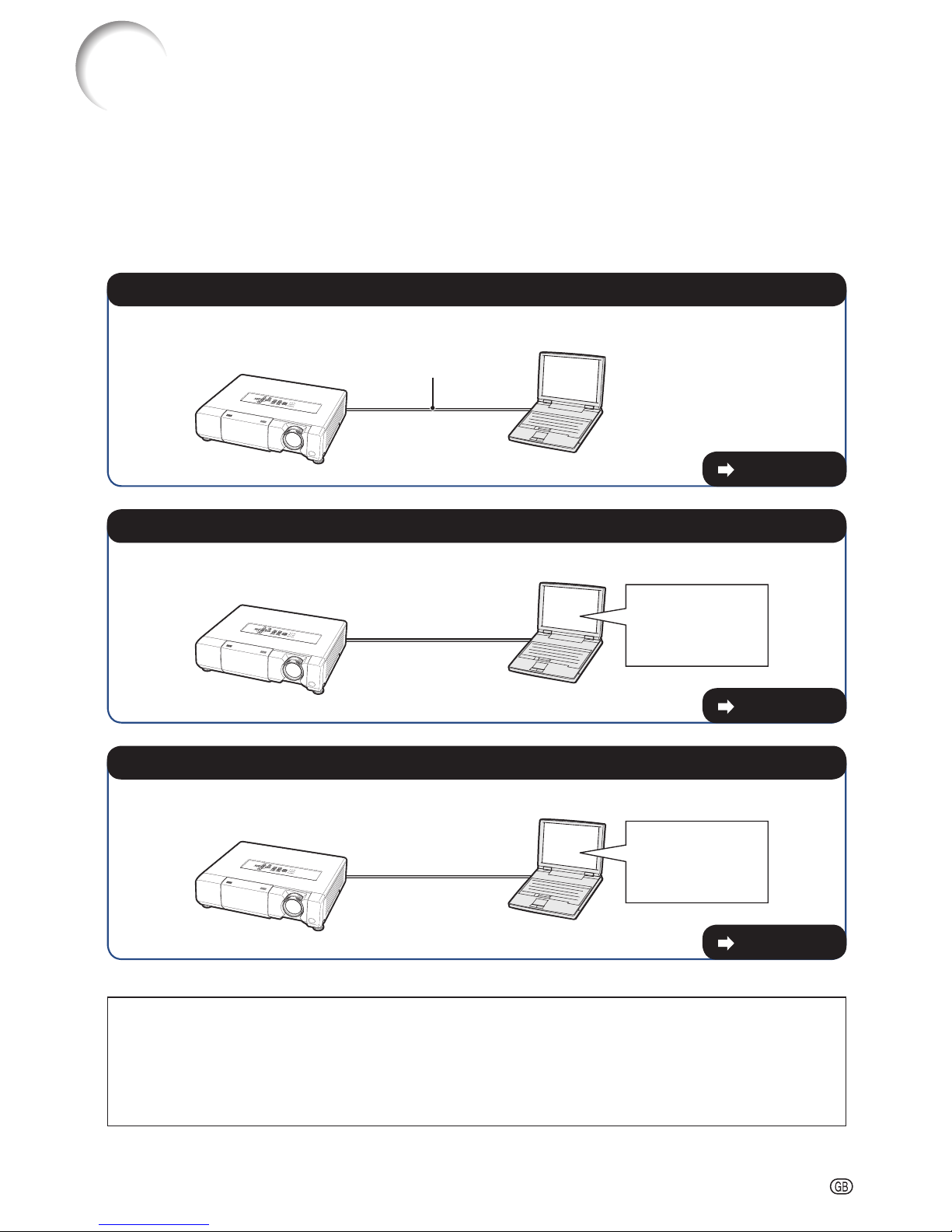

Setting up the Projector Network Environment

... 9

1. Connecting the Projector to a Computer ...........10

2. Setting an IP Address for the Computer ............11

3. Setting up a Network Connection for the

Projector.......................................................13

Controlling the Projector via LAN ..................... 15

Controlling the Projector Using Internet Explorer

(Version 5.0 or later)......................................15

Conﬁrming the Projector Status (Status)................16

Controlling the Projector (Control)..........................16

Setting and Adjusting the Projector

(Settings & Adjustments) ..............................17

Setting the Security (Network – Security)...............17

Making General Settings for the Network

(Network – General).....................................18

Setting for Sending E-mail when an Error Occurs

(Mail – Originator Settings) ..........................18

Setting Error Items and Destination Addresses

to which E-mail is to be Sent when an

Error Occurs (Mail – Recipient Settings) ......19

Setting Error Items and the URL that are to be

Displayed when an Error Occurs

(Service & Support – Access URL)...............19

Setting up the Projector Using RS-232C or

Telnet .......................................................... 20

When Connecting Using RS-232C.........................20

When Connecting Using Telnet ..............................21

SETUP MENU (Main Menu)....................................22

ADVANCED SETUP MENU ....................................22

View Setting Detail List ([V]View All Setting) ...........23

Set Items ................................................................23

Save Settings and Quit ([S]Save & Quit).................24

Quit without Saving Settings ([Q]Quit Unchanged)

...24

IP Address Setting ([1]IP Address) .........................25

Subnet Mask Setting ([2]Subnet Mask) ..................25

Default Gateway Setting ([3]Default Gateway) .......25

User Name Setting ([4]User Name) ........................25

Password Setting ([5]Password).............................26

RS-232C Baud Rate Setting

([6]RS-232C Baud Rate)...............................26

Projector Name Setting ([7]Projector Name) ..........26

DHCP Client Setting ([8]DHCP Client)....................26

Disconnecting All Connections

([D]Disconnect All) ........................................27

Entering ADVANCED SETUP MENU

([A]Advanced Setup).....................................27

Setting Auto Logout Time

(ADVANCED[1]Auto Logout Time)................27

Data Port Setting (ADVANCED[2]Data Port)...........27

Carrying out Network Ping Test

(ADVANCED[5]Network Ping Test) ...............28

Setting of Accept IP Address (ADVANCED

[6]Accept IP Addr(1) – [8]Accept IP Addr(3))

..28

Accepting All IP Addresses

(ADVANCED[9]Accept All IP Addr) ...............28

Setting of Search Port

(ADVANCED[0]Search Port)..........................29

Return to Default Settings

(ADVANCED[!]Restore Default Setting) ........29

Return to Main Menu

(ADVANCED[Q]Return to Main Menu)..........29

Resetting the Lamp Timer of the Projector

via LAN ....................................................... 30

Troubleshooting.................................................. 32

-2

Connecting Pin Assignments

COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals: mini

D-sub 15 pin female connector

COMPUTER Input/Output COMPUTER Input/Output

Pin No. Signal Pin No. Signal

10.

11.

12.

13.

14.

15.

Video input (red)

Video input (green/sync on green)

Video input (blue)

Not connected

Earth (red)

Earth (green/sync on green)

Earth (blue)

Not connected

GND

Not connected

Bi-directional data

Horizontal sync signal: TTL level

Vertical sync signal: TTL level

Data clock

10.

11.

12.

13.

14.

15.

PR (CR)

PB (CB)

Not connected

Earth (PR)

Earth (Y)

Earth (PB)

Not connected

DVI-I Terminal: 29 pin connector

DVI Digital Input•

Pin No. Signal Pin No. Signal

10.

11.

12.

13.

14.

15.

T.M.D.S data 2–

T.M.D.S data 2+

T.M.D.S data 2 shield

Not connected

DDC clock

DDC data

Not connected

T.M.D.S data 1–

T.M.D.S data 1+

T.M.D.S data 1 shield

Not connected

+5V power

Ground

16.

17.

18.

19.

20.

21.

22.

23.

24.

C1.

C2.

C3.

C4.

C5.

Hot plug detection

T.M.D.S data 0 –

T.M.D.S data 0+

T.M.D.S data 0 shield

Not connected

T.M.D.S clock shield

T.M.D.S clock+

T.M.D.S clock–

Not connected

Ground

DVI Analog RGB Input• DVI Analog Component Input•

Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal

10.

11.

12.

13.

14.

15.

Not connected

DDC clock

DDC data

Vertical sync

Not connected

+5V power

Ground

16.

17.

18.

19.

20.

21.

22.

23.

24.

C1.

C2.

C3.

C4.

C5.

Hot plug detection

Not connected

Analog input Red

Analog input Green

(Sync On Green)

Analog input Blue

Horizontal sync

(Composite Sync)

Ground

10.

11.

12.

13.

14.

15.

Not connected

Ground

16.

17.

18.

19.

20.

21.

22.

23.

24.

C1.

C2.

C3.

C4.

C5.

Not connected

Analog input Pr/Cr

Analog input Y

Analog input Pb/Cb

Not connected

Ground

1823

-3

RS-232C Terminal: D-sub 9 pin male connector

Pin No. Signal Name I/O Reference

Receive Data

Send Data

Signal Ground

Request to Send

Clear to Send

Input

Output

Not connected

Connected to internal circuit

Not connected

Connected to internal circuit

Not connected

Connected to CS in internal circuit

Connected to RS in internal circuit

Not connected

RS-232C Cable recommended connection: D-sub 9 pin female connector

Pin No. Signal Pin No. Signal

Projector

Pin No.

Computer

Pin No.

USB Terminal: Type B USB connector LAN Terminal: LAN (RJ-45)

Pin No. Signal Name Pin No. Signal Pin No. Signal

VCC

USB–

USB+

USB power

USB data–

USB data+

Signal Ground

TX+

TX–

RX+

RX–

Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the

controlling device (e.g. computer).

•

Note

Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the

controlling device (e.g. computer).

•

Note

8... 18 ... 1

Connecting Pin Assignments

-4

RS-232C Speciﬁcations and Commands

Computer control

A computer can be used to control the projector by connecting an RS-232C serial control cable (cross

type, commercially available) to the projector. (See page 24 of the projector's operation manual for

connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table.

Signal format: Conforms to RS-232C standard. Parity bit: None

Baud rate*: 9,600 bps / 38,400 bps / 115,200 bps Stop bit: 1 bit

Data length: 8 bits Flow control: None

*Set the projector's baud rate to the same rate as used by the computer.

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code.

After the projector processes the command from the computer, it sends a response code to the

computer.

Command format

C1 C2 C3 C4 P1 P2 P3 P4 Return code (0DH)

Command 4-digit Parameter 4-digit

Response code format

Normal response

Problem response (communication error or incorrect command)

OK Return code (0DH) E R R Return code (0DH)

Info

When controlling the projector using RS-232C commands from a computer, wait for at least 30 seconds

after the power has been turned on, and then transmit the commands.

After sending an input selection or picture adjustment command and then receiving an “OK” response

code, the projector may take some time to process the command. If a second command is sent while the

projector is still processing the ﬁrst command, you may receive an “ERR” response code. If this happens,

try resending the second command.

When more than one code is being sent, send each command only after the response code for the

previous command from the projector is veriﬁed.

“POWR????”, “TABN _ _ _ 1”, “TLPS _ _ _ 1”, “TPOW _ _ _ 1”, “TLPN _ _ _ 1”, “TLTT _ _ _ 1”,

“TLTM _ _ _ 1”, “TLTL _ _ _ 1”, “TNAM _ _ _ 1”, “MNRD _ _ _ 1”, “PJN0 _ _ _ 1”

− When the projector receives the special commands shown above:

* The on-screen display will not disappear.

* The “Auto Power Off” timer will not be reset.

− The special commands are available for applications that require continuous polling.

•

If an underbar (_) appears in the parameter column, enter a space.

If an asterisk (*) appears in the parameter column, enter a value in the range indicated in brackets under

Control Contents.

•

Note

PJLinkTM Compliant:

This product conforms with the PJLink standard Class 1 and all Class 1 commands are implemented.

This product conﬁrms with the PJLink standard speciﬁcation version 1.00.

For additional information, visit “http://pjlink.jbmia.or.jp/english/”.

-5

Commands

Example: When turning on the projector, make the following setting.

Compuer Projector

POWR___1

→

←

CONTROL CONTENTS COMMAND PARAMETER

RETURN

Power ON Standby mode

(or 30-second startup time)

Power On P O W R ___1 OK or ERR OK

Off P O W R ___0 OK OK or ERR

Status POWR????1 0

Projector Condition T A B N ___10:Normal

1: Temp High

8: Lamp Life 5% or less

16: Lamp Burn-out

32: Lamp Ignition Failure

0: Normal

1: Temp High

2: Fan Error

4: Cover Open

8: Lamp Life 5% or less

16: Lamp Burn-out

32: Lamp Ignition Failure

64:

Temp Abnormally High

Lamp Status T L P S ___1 0: Off, 1: On, 2: Retry

3: Waiting, 4: Lamp Error

0: Off, 4: Lamp Error

Power Status T P O W ___1 1: On, 2: Cooling 0: Standby

Quantity T L P N ___11

Usage Time(Hour) T L T T ___1 0 – 9999(Integer)

Usage Time(Minute) T L T M ___1 0, 15, 30, 45

Life(Percentage) TLTL___1 0% – 100%(Integer)

Name Model Name Check T N A M ___1PGD50X3D/PGD45X3D

Model Name Check M N R D ___1PG-D50X3D/PG-D45X3D

Projector Name Setting 1

(First 4 characters) *1

PJN1****OKorERR

Projector Name Setting 2

(Middle 4 characters) *1

PJN2****OKorERR

Projector Name Setting 3

(Last 4 characters) *1

PJN3****OKorERR

Projector Name Check P J N 0 ___1ProjectorName

Input Change Computer I R G B ___1 OK or ERR ERR

DVI I R G B ___2 OK or ERR ERR

DVI-D-Computer select *2 I B D S ___1 OK or ERR ERR

DVI-D-Video select *2 I B D S ___2 OK or ERR ERR

DVI-Analog select *2 I B D S ___3 OK or ERR ERR

S-Video I V E D ___1 OK or ERR ERR

Video I V E D ___2 OK or ERR ERR

Input RGB Check I R G B ? ? ? ? 1: Computer, 2: DVI or ERR ERR

Input Video Check I V E D ? ? ? ? 1: S-Video, 2: Video or ERR ERR

Input Mode Check I M O D ? ? ? ? 1: RGB, 2: Video ERR

InputCheck ICHK????1:Computer

2: DVI

3: S-Video

4: Video

ERR

Volume Volume(0 – 60) V O L A __**OKorERR ERR

Volume up/down(-10 – +10) V O U D _***OKorERR ERR

Keystone -80 – +80 K E Y S * * * * OK or ERR ERR

AV Mute On I M B K ___1 OK or ERR ERR

Off I M B K ___0 OK or ERR ERR

Freeze On F R E Z ___1 OK or ERR ERR

Off F R E Z ___0 OK or ERR ERR

Auto Sync Start A D J S ___1 OK or ERR ERR

Resize Computer Normal R A S R ___1 OK or ERR ERR

Stretch R A S R ___2 OK or ERR ERR

Dot By Dot R A S R ___3 OK or ERR ERR

Full R A S R ___5 OK or ERR ERR

Border R A S R ___6 OK or ERR ERR

Area Zoom R A S R __10OKorERR ERR

V-Stretch R A S R __11OKorERR ERR

DVI Normal R B S R ___1 OK or ERR ERR

Stretch R B S R ___2 OK or ERR ERR

Dot By Dot R B S R ___3 OK or ERR ERR

Full R B S R ___5 OK or ERR ERR

Border R B S R ___6 OK or ERR ERR

Area Zoom R B S R __10OKorERR ERR

V-Stretch R B S R __11OKorERR ERR

S-Video Normal R A S V ___1 OK or ERR ERR

Stretch R A S V ___2 OK or ERR ERR

Border R A S V ___3 OK or ERR ERR

Area Zoom R A S V __10OKorERR ERR

V-Stretch R A S V __11OKorERR ERR

RS-232C Speciﬁcations and Commands

-6

CONTROL CONTENTS COMMAND PARAMETER

RETURN

Power ON Standby mode

(or 30-second startup time)

Resize Video Normal R B S V ___1 OK or ERR ERR

Stretch R B S V ___2 OK or ERR ERR

Border R B S V ___3 OK or ERR ERR

Area Zoom R B S V __10OKorERR ERR

V-Stretch R B S V __11OKorERR ERR

ALL Reset ALRE___1 OK or ERR ERR

Computer INPUT Picture Mode Standard R A P S __10OKorERR ERR

Presentation RAPS__11OKorERR ERR

Movie RAPS__12OKorERR ERR

Game RAPS__13OKorERR ERR

sRGB RAPS__14OKorERR ERR

Contrast -30 – +30 R A P I _* * * OK or ERR ERR

Bright -30 – +30 R A B R _* * * OK or ERR ERR

Red -30 – +30 R A R D _* * * OK or ERR ERR

Blue -30 – +30 R A B E _* * * OK or ERR ERR

Color -30 – +30 R A C O _* * * OK or ERR ERR

Tint -30 – +30 R A T I _* * * OK or ERR ERR

Sharp -30 – +30 R A S H _* * * OK or ERR ERR

CLR Temp -1 – +1 R A C T __**OKorERR ERR

BrilliantColor™

0 – +2 R A W E ___* OK or ERR ERR

Progressive 2D Progressive R A I P ___0 OK or ERR ERR

3D Progressive R A I P ___1 OK or ERR ERR

Film Mode RA I P___2OK or ERR ERR

DNR Off R A N R ___0 OK or ERR ERR

Level 1 R A N R ___1 OK or ERR ERR

Level 2 R A N R ___2 OK or ERR ERR

Picture Reset R A R E ___1 OK or ERR ERR

Signal Type Auto I A S I ___0 OK or ERR ERR

RGB I A S I ___1 OK or ERR ERR

Component I A S I ___2 OK or ERR ERR

Audio Input Audio 1 R A A I ___1 OK or ERR ERR

Audio 2 R A A I ___2 OK or ERR ERR

DVI INPUT Picture Mode Standard R B P S __10OKorERR ERR

Presentation R B P S __11OKorERR ERR

Movie R B P S __12OKorERR ERR

Game R B P S __13OKorERR ERR

sRGB R B P S __14OKorERR ERR

Contrast -30 – +30 R B P I _* * * OK or ERR ERR

Bright -30–+30 RBBR_* * * OK or ERR ERR

Red -30 – +30 R B R D _* * * OK or ERR ERR

Blue -30 – +30 R B B E _* * * OK or ERR ERR

Color -30 – +30 R B C O _* * * OK or ERR ERR

Tint -30 – +30 R B T I _* * * OK or ERR ERR

Sharp -30 – +30 R B S H _* * * OK or ERR ERR

CLR Temp -1 – +1 R B C T __**OKorERR ERR

BrilliantColor™

0 – +2 R B W E ___* OK or ERR ERR

Progressive 2D Progressive R B I P ___0 OK or ERR ERR

3D Progressive R B I P ___1 OK or ERR ERR

Film Mode R B I P ___2 OK or ERR ERR

DNR Off R B N R ___0 OK or ERR ERR

Level 1 R B N R ___1 OK or ERR ERR

Level 2 R B N R ___2 OK or ERR ERR

PictureReset RBRE ___1 OK or ERR ERR

Signal Type Auto I B S I ___0 OK or ERR ERR

RGB I B S I ___1 OK or ERR ERR

Component I B S I ___2 OK or ERR ERR

Audio Input Audio 1 R B A I ___1 OK or ERR ERR

Audio 2 R B A I ___2 OK or ERR ERR

Dynamic

Range

Auto H M B D ___0 OK or ERR ERR

Standard H M B D ___1 OK or ERR ERR

Enhanced H M B D ___2 OK or ERR ERR

S-Video INPUT Picture Mode Standard V A P S __10OKorERR ERR

Presentation VAPS__11OKorERR ERR

Movie VAPS__12OKorERR ERR

Game VAPS__13OKorERR ERR

Contrast -30 – +30 V A P I _* * * OK or ERR ERR

Bright -30 – +30 V A B R _* * * OK or ERR ERR

Red -30 – +30 V A R D _* * * OK or ERR ERR

Blue -30 – +30 V A B E _* * * OK or ERR ERR

RS-232C Speciﬁcations and Commands

-7

CONTROL CONTENTS COMMAND PARAMETER

RETURN

Power ON Standby mode

(or 30-second startup time)

S-Video INPUT Color -30 – +30 V A C O _***OKorERR ERR

Tint -30 – +30 V A T I _***OKorERR ERR

Sharp -30 – +30 V A S H _***OKorERR ERR

CLR Temp -1 – +1 V A C T __**OKorERR ERR

BrilliantColor™

0 – +2 V A W E ___* OK or ERR ERR

Progressive 2D Progressive V A I P ___0 OK or ERR ERR

3D Progressive V A I P ___1 OK or ERR ERR

Film Mode V A I P ___2 OK or ERR ERR

DNR Off V A N R ___0 OK or ERR ERR

Level 1 V A N R ___1 OK or ERR ERR

Level 2 V A N R ___2 OK or ERR ERR

Picture Reset V A R E ___1 OK or ERR ERR

Audio Input Audio 1 V A A I ___1 OK or ERR ERR

Audio 2 V A A I ___2 OK or ERR ERR

Video INPUT Picture Mode Standard V B P S __10OKorERR ERR

Presentation V B P S __11OKorERR ERR

Movie V B P S __12OKorERR ERR

Game V B P S __13OKorERR ERR

Contrast -30 – +30 V B P I _***OKorERR ERR

Bright -30 – +30 V B B R _***OKorERR ERR

Red -30 – +30 V B R D _***OKorERR ERR

Blue -30 – +30 V B B E _***OKorERR ERR

Color -30 – +30 V B C O _***OKorERR ERR

Tint -30 – +30 V B T I _***OKorERR ERR

Sharp -30 – +30 V B S H _***OKorERR ERR

CLR Temp -1 – +1 V B C T __**OKorERR ERR

BrilliantColor™

0 – +2 V B W E ___* OK or ERR ERR

Progressive 2D Progressive V B I P ___0 OK or ERR ERR

3D Progressive V B I P ___1 OK or ERR ERR

Film Mode V B I P ___2 OK or ERR ERR

DNR Off V B N R ___0 OK or ERR ERR

Level 1 V B N R ___1 OK or ERR ERR

Level 2 V B N R ___2 OK or ERR ERR

Picture Reset V B R E ___1 OK or ERR ERR

Audio Input Audio 1 V B A I ___1 OK or ERR ERR

Audio 2 V B A I ___2 OK or ERR ERR

C.M.S. Setting On C M C S __11OKorERR ERR

Off C M C S __00OKorERR ERR

C.M.S. Hue Red C M H R _***OKorERR ERR

Yellow C M H Y _***OKorERR ERR

Green C M H G _***OKorERR ERR

Cyan C M H C _***OKorERR ERR

Blue C M H B _***OKorERR ERR

Magenta C M H M _***OKorERR ERR

Reset C M R E ___2 OK or ERR ERR

Saturation Red C M S R _***OKorERR ERR

Yellow C M S Y _***OKorERR ERR

Green C M S G _***OKorERR ERR

Cyan C M S C _***OKorERR ERR

Blue C M S B _***OKorERR ERR

Magenta C M S M _***OKorERR ERR

Reset C M R E ___3 OK or ERR ERR

Value Red C M V R _***OKorERR ERR

Yellow C M V Y _***OKorERR ERR

Green C M V G _***OKorERR ERR

Cyan C M V C _***OKorERR ERR

Blue C M V B _***OKorERR ERR

Magenta CMVM_***OKorERR ERR

Reset C M R E ___4 OK or ERR ERR

C.M.S. All Reset C M R E ___1 OK or ERR ERR

Clock -150 – +150 I N C L * * * * OK or ERR ERR

Phase -30 – +30 I N P H _***OKorERR ERR

H-position -150 – +150 I A H P * * * * OK or ERR ERR

V-position -60 – +60 I A V P _***OKorERR ERR

Fine Sync Adjustment Reset I A R E ___1 OK or ERR ERR

Image Shift -96 – +96 L N D S _***OKorERR ERR

Overscan On O V S N ___1 OK or ERR ERR

Off O V S N ___0 OK or ERR ERR

OSD Display On I M D I ___1 OK or ERR ERR

Off I M D I ___0 OK or ERR ERR

RS-232C Speciﬁcations and Commands

-8

CONTROL CONTENTS COMMAND PARAMETER

RETURN

Power ON Standby mode

(or 30-second startup time)

Video System Auto M E S Y ___1 OK or ERR ERR

PAL M E S Y ___2 OK or ERR ERR

SECAM M E S Y ___3 OK or ERR ERR

NTSC4.43 M E S Y ___4 OK or ERR ERR

NTSC3.58 M E S Y ___5 OK or ERR ERR

PAL-M M E S Y ___6 OK or ERR ERR

PAL-N M E S Y ___7 OK or ERR ERR

PAL-60 M E S Y ___8 OK or ERR ERR

Background Logo I M B G ___1 OK or ERR ERR

Blue I M B G ___3 OK or ERR ERR

None I M B G ___4 OK or ERR ERR

Eco+Quiet On T H M D ___1 OK or ERR ERR

Off T H M D ___0 OK or ERR ERR

Auto Sync On A A D J ___1 OK or ERR ERR

Off A A D J ___0 OK or ERR ERR

Auto Power Off On A P O W ___1 OK or ERR ERR

Off A P O W ___0 OK or ERR ERR

Auto Restart On A R E S ___1 OK or ERR ERR

Off A R E S ___0 OK or ERR ERR

STANDBY Mode Standard M O U T ___1 OK or ERR ERR

Eco M O U T ___0 OK or ERR ERR

PRJ Mode Reverse On I M R E ___1 OK or ERR ERR

Off I M R E ___0 OK or ERR ERR

Invert On I M I N ___1 OK or ERR ERR

Off I M I N ___0 OK or ERR ERR

Language English M E L A ___1 OK or ERR ERR

Deutsch M E L A ___2 OK or ERR ERR

Español M E L A ___3 OK or ERR ERR

Nederlands M E L A ___4 OK or ERR ERR

Français M E L A ___5 OK or ERR ERR

Italiano M E L A ___6 OK or ERR ERR

Svenska M E L A ___7 OK or ERR ERR

ME L A ___8 OK or ERR ERR

Português M E L A ___9 OK or ERR ERR

ME L A __10OKorERR ERR

ME L A __11OKorERR ERR

ME L A __12OKorERR ERR

ME L A __13OKorERR ERR

polski M E L A __14OKorERR ERR

Türkçe M E L A __15OKorERR ERR

ME L A __16OKorERR ERR

Magyar M E L A __17OKorERR ERR

System Sound On S S N D ___1 OK or ERR ERR

Off S S N D ___0 OK or ERR ERR

Audio Out FAO A O U T ___1 OK or ERR ERR

VAO A O U T ___2 OK or ERR ERR

InternalSpeaker On ASPK___1 OK or ERR ERR

Off ASPK___0 OK or ERR ERR

RGB Frequency Check Horizontal T F R Q ___1 kHz(***.* or ERR) ERR

Vertical T F R Q ___2 Hz(***.* or ERR) ERR

Fan Mode Normal H L M D ___0 OK or ERR ERR

High H L M D ___1 OK or ERR ERR

Balance -30 − +30 A A B L _***OKorERR ERR

Treble -30 − +30 A A T E _***OKorERR ERR

Bass -30 − +30 A A B A _***OKorERR ERR

Audio Adjustment Reset A A R E ___1 OK or ERR ERR

DLP®LinkTM Off 3 D E N _ _ _ 0 OK or ERR ERR

On 3 D E N _ _ _ 1 OK or ERR ERR

DLP®LinkTM Invert 3 D I V _ _ _ 1 OK or ERR ERR

Video Setup 0 IRE V I S U _ _ _ 0 OK or ERR ERR

7.5 IRE V I S U _ _ _ 1 OK or ERR ERR

Closed Caption

(For Americas only)

Off C L C A _ _ _ 0 OK or ERR ERR

CC1 C L C A _ _ _ 1 OK or ERR ERR

CC2 C L C A _ _ _ 2 OK or ERR ERR

Lamp Timer Reset *3 L P R E 0 0 0 1 ERR OK or ERR

*1 For setting the projector name, send the commands in the order of PJN1, PJN2 and PJN3.

*2 This command should be sent only after the “IRGB _ _ _ 2” command is sent and an “OK” response code is

received.

*3 The Lamp Timer Reset command is available only in standby mode.

RS-232C Speciﬁcations and Commands

-9

Setting up the Projector Network Environment

This section describes the basic procedure for using the projector via the network.

If the network is already constructed, the projector's network settings may need to be

changed. Please consult your network administrator for assistance with these settings.

You can make network settings both on the projector and on the computer. The following

procedure is for making settings on the computer.

Network settings on the computer

Connect a LAN cable (Category 5, cross-over type) between the computer and projector.

LAN cable

(commercially available)

1. Connecting the projector to a computer

Page 10

Adjust the IP settings of the computer to enable one-to-one communications with the projector.

Temporarily change

the computer's IP

address.

2. Setting an IP address for the computer

Pages 11, 12

Adjust the projector network settings to conform to your network.

Use Internet Explorer

(version 5.0 or later)

to make various

projector settings.

3. Setting up a network connection for the projector

Pages 13, 14

Microsoft®, Windows®and Windows Vista®are registered trademarks of Microsoft Corporation in the

United States and/or other countries.

PJLink is a registered trademark or an application trademark in Japan, the United States, Canada, E.U.,

China and/or other countries/regions.

All other company or product names are trademarks or registered trademarks of their respective

companies.

•

-10

1. Connecting the Projector

to a Computer

Establishing a one-to-one connection from

the projector to a computer. Using a

commercially available LAN cable (UTP

cable, Category 5, cross-over type) you can

conﬁgure the projector via the computer.

Disconnect the computer's LAN

cable from the existing network.

2Connect a commercially available

LAN cable (UTP cable, Category 5,

cross-over type) to the projector's

LAN terminal and connect the

other end of the cable to the

computer's LAN terminal.

3Plug the power cord into the AC

socket of the projector.

4Turn on the computer.

Info

Conﬁrm that the LINK LED on the rear of the

projector illuminates. If the LINK LED does not

illuminate, check the following:

The LAN cable is properly connected.

The power switches of both the projector and

the computer are on.

•

A LAN cable being

connected to the network

A LAN cable being

connected to the network

LAN cable

(cross-over type, commercially available)

LAN cable

(cross-over type, commercially available)

ONON

This completes the connection. Now proceed to “2. Setting an IP Address for the Computer”.

Setting up the Projector Network Environment

Autres manuels pour Notevision PG-D45X3D

Ce manuel convient aux modèles suivants

Table des matières
