Important safety information

• Please read this instruction manual carefully and completely

before using the product.

• Make this instruction manual easily accessible to all users at all

times.

• Always include this instruction manual when passing the product

on to third parties.

Before operation

• Only connect the product to microphone inputs or power supply

units which provide 48 V phantom power as per IEC 61938

(48 ± 4 V, at least 3.5 mA per channel).

• Never open the housing of the product. If products are opened by

customers in breach of this instruction, the warranty becomes null

and void.

• Only use attachments, accessories or spare parts specified by

Sennheiser.

During operation

• Liquids entering the product can short-circuit the electronics or

damage the mechanics. Keep all liquids away from the product.

• Solvents or cleansing agents can damage the surface of the

product. Only use a soft, slightly damp cloth to clean the product.

• Do not expose the product to extreme temperatures.

After operation

• Handle the product with care and store it in a clean, dust-free

environment.

Intended use

Intended use includes:

• having read this instruction manual, especially the chapter

“Important safety information”,

• using the product within the operating conditions and limitations

described in this instruction manual.

“Improper use” means using the product other than as described in

this instruction manual, or under operating conditions which differ

from those described herein.

e865_511658_1216_SP9.indb 1 22.02.2017 16:23:00

The e 865/e 865 S

Sensitive to every nuance – and tough on the road

No matter whether it‘s quiet or loud, far away or right up close: the

e 865 makes every sound worth its weight in gold. The benefits of

entry into the condenser class can be heard immediately. The highly

sensitive membrane picks up the finest vocal nuances and conveys

even extreme dynamics into the signal chain with ease.

Even when the lips are some distance from the capsule, the e 865

delivers consistent sound quality. It combines the professional

qualities of the condenser capsule with the rugged design of the

800 series. On the one hand, this is studio sound, even for demanding

live gigs and, on the other, a special class for presenters and speakers

that allows precise reproduction, even of plosive sounds.

The S-version of the e 865 comes with a noiseless on/off switch.

Features

• Super-cardioid condenser microphone for speech and vocals

• Natural reproduction with emphasized presence

• Consistent sound quality (varying distances, moving off axis)

• Distortion-free reproduction even at very high sound pressure levels

• Optional silent on/off switch

• Excellent feedback rejection

• Low sensitivity to handling noise

• Rugged metal housing

Package contents

1 e 865/e 865 S microphone

1 MZQ 800 microphone clamp

1 pouch

1 instruction manual

Product overview A*

1 Sound inlet basket

2 XLR-3 connector

3 On/off switch (e 865 S only)

4 Screw (e 865 S only)

Diagrams can be found on the cover pages.

e865_511658_1216_SP9.indb 2 22.02.2017 16:23:00

ENFRITPTNLRUZH ES DE

Using the microphone

Switching the e 865 S on/off

XUse the on/off switch to switch the the e 865 S on or off.

XIf necessary, use the screw 4to lock the on/off switch 3 in the

“on” position.

Positioning the microphone C

Pos. Resulting sound Commentary

C.1 • High proximity effect

(large bass boost)

• Powerful, direct sound

Very little crosstalk

from other sound

sources

C.2 • Less proximity effect

(less bass boost)

• Some room ambience,

natural, balanced sound

More crosstalk from

other sound sources

C.3 • Very little proximity effect

(minimal bass boost)

• More room ambience,

indirect sound

Higher crosstalk from

other sound sources

If sibilance occurs:

XPosition the microphone slightly to the side and not directly in front

of the mouth.

Positioning the monitor loudspeakers B

XTo prevent feedback and crosstalk, postion your monitor loudspeak-

ers in the angle area of the highest cancellation of the microphone

(approx. 135°).

Cleaning and maintaining the e 865/e 865 S

Caution Liquids can damage the electronics of the product!

Liquids entering the housing of the product can cause

a short-circuit and damage the electronics.

Keep all liquids away from the product.

Do not use any solvents or cleansing agents

XUnscrew the sound inlet basket 1.

XRemove the foam insert from the sound inlet basket 1.

XUse a slightly damp cloth to clean the sound inlet basket 1 from

the inside and ouside.

XReinsert the foam insert into the sound inlet basket 1and replace

the sound inlet basket on the microphone and screw it tight.

e865_511658_1216_SP9.indb 3 22.02.2017 16:23:00

Specifications

Transducer principle pre-polarized condenser

microphone

Frequency response 40 … 20,000 Hz

Pick-up pattern super-cardioid

Sensitivity (free field, no load at 1 kHz) 3 mV/Pa

Nominal impedance (at 1 kHz) 200 W (balanced)

100 W (unbalanced)

Min. terminating impedance 1 kΩ

Max. sound pressure level at 1 kHz 150 dB/SPL

Phantom powering 12–52 V / 3 mA

Connector XLR-3

Temperature range 0 °C to +40 °C

Dimensions Ø 47 x L 193 mm

Weight 311 g

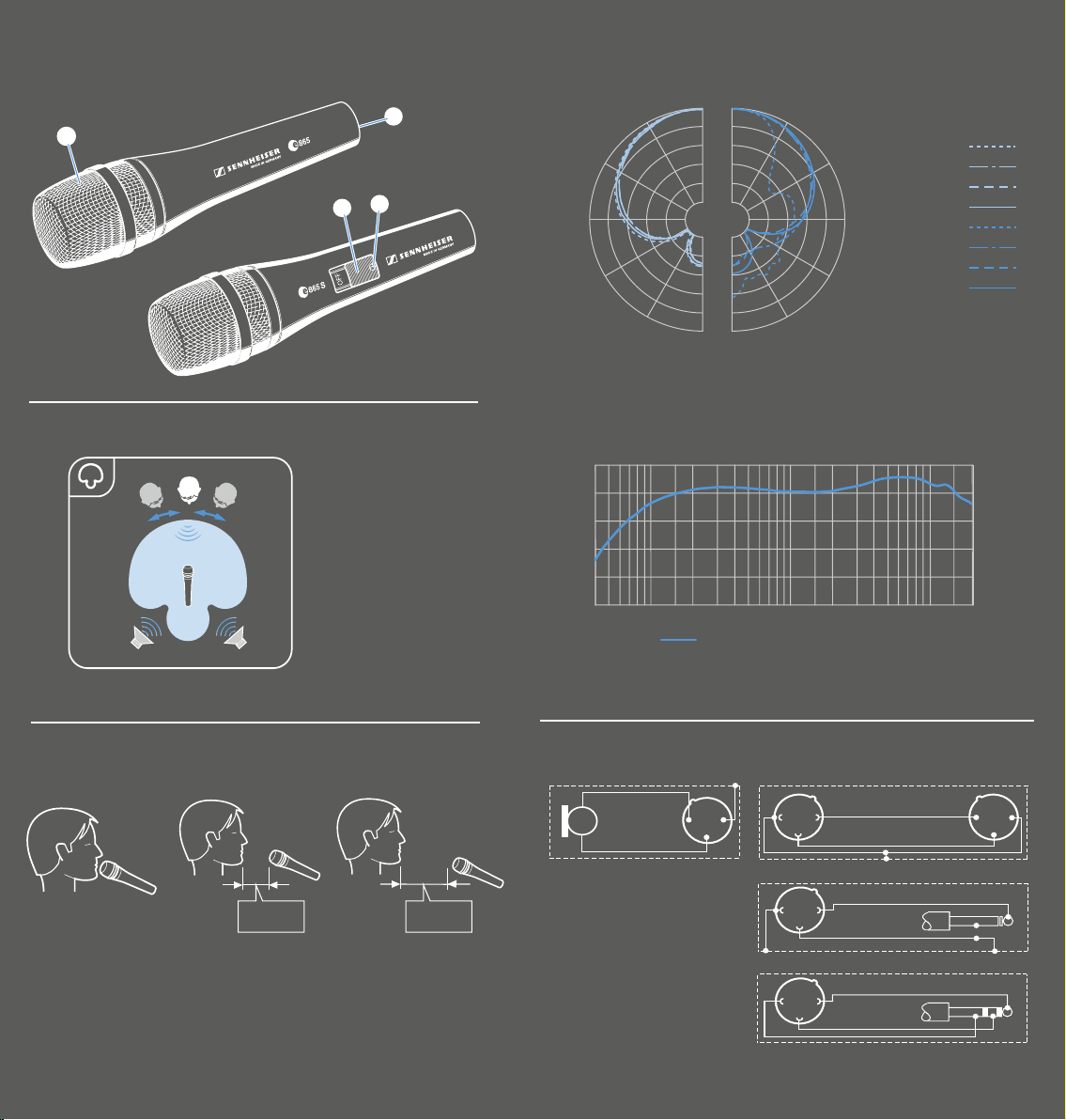

The polar diagram and the frequency response curve Dcan be found on

the cover pages.

The XLR-3 connector assignment Ecan be found on the cover pages.

e865_511658_1216_SP9.indb 4 22.02.2017 16:23:00

ENFRITPTNLRUZH ES DE

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months

on this product.

For the current warranty conditions, please visit our website at

www.sennheiser.com or contact your Sennheiser partner.

FOR AUSTRALIA ONLY

Sennheiser goods come with guarantees that cannot be excluded

under the Australian Consumer Law. You are entitled to a replacement

or refund for a major failure and compensation for any other reason-

ably foreseeable loss or damage. You are also entitled to have the

goods repaired or replaced if the goods fail to be of acceptable quality

and the failure does not amount to a major failure.

This warranty is in addition to other rights or remedies under law.

Nothing in this warranty excludes, limits or modifies any liability of

Sennheiser which is imposed by law, or limits or modifies any remedy

available to the consumer which is granted by law.

To make a claim under this warranty, contact

Sennheiser Australia Pty Ltd, Unit 3, 31 Gibbes Street Chatswood NSW

2067, AUSTRALIA.

Phone: (02) 9910 6700, email: [email protected].

All expenses of claiming the warranty will be borne by the person

making the claim.

The Sennheiser International Warranty is provided by Sennheiser

Australia Pty Ltd (ABN 68 165 388 312), Unit 3, 31 Gibbes Street

Chatswood NSW 2067 Australia.

In compliance with the following requirements

• WEEE Directive (2012/19/EU)

Please dispose of this product at the end of its operational

lifetime by taking it to your local collection point or recycling

center for such equipment.

CE Declaration of Conformity

• RoHS Directive (2011/65/EU)

• EMC Directive (2014/30/EC)

The declaration is available at www.sennheiser.com/download.

e865_511658_1216_SP9.indb 5 22.02.2017 16:23:00
