Sennheiser Evolution E 835 Manuel utilisateur

e 835

Instruction manual

Stage Microphones

5-10 cm

>10 cm







e 835

e 835 S

125 Hz

250 Hz

500 Hz

1,000 Hz

2,000 Hz

4,000 Hz

8,000 Hz

16,000 Hz

30°

0°

180°

150°

120°

60°

90°

30°

0°

180°

150°

120°

60°

90°

-40

-50

-60

-70

-80

-90

0°, 1 m

100

200

500

1,000

2,000

5,000

10,000

20,000

dBV

Important safety information

• Please read this instruction manual carefully and completely befo-

re using the product.

• Make this instruction manual easily accessible to all users at all

times.

• Always include this instruction manual when passing the product

on to third parties.

Before operation

• Never open the housing of the product. If products are opened by

customers in breach of this instruction, the warranty becomes null

and void.

• Only use attachments, accessories or spare parts specified by

Sennheiser.

During operation

• Liquids entering the product can short-circuit the electronics or

damage the mechanics. Keep all liquids away from the product.

• Solvents or cleansing agents can damage the surface of the

product. Only use a soft, slightly damp cloth to clean the product.

• Do not expose the product to extreme temperatures.

After operation

• Handle the product with care and store it in a clean, dust-free

environment.

Intended use

Intended use includes:

• having read this instruction manual, especially the chapter

“Important safety information”,

• using the product within the operating conditions and limitations

described in this instruction manual.

“Improper use” means using the product other than as described in

this instruction manual, or under operating conditions which differ

from those described herein.

The e 835

The e 835 is a cardioid lead vocal stage microphone specially designed

to perform under pressure.

Cardioid is the most commonly used pick-up pattern for live PA

applications. It provides good on-stage freedom and also picks up

sound from the sides. The “dead” side is at the rear. This pattern is

good for picking up several vocalists at once, e.g. a choir or ensemble.

The e 835’s balanced frequency response maintains signal quality

when moving on and off axis during performance. The gentle presence

boost ensures vocal clarity and projection. The minimal proximity

effect provides for consistently clear bass-end performance when sing-

ing closer to, or further from the microphone.

The cardioid pick-up pattern provides excellent feedback rejection,

enabling the microphone to handle higher sound pressure levels. The

rugged metal construction and internal damping isolates handling

noise.

The e 835 S variant features a silent on/off switch.

Features

• Dynamic cardioid microphone for speech and vocals

• Clear reproduction with a high presence

• Consistent sound quality at varying distances or when off axis

• High sound pressure handling capability

• Optional silent on/off switch

• Shock-mounted capsule provides excellent suppression of handling

noise

• Excellent feedback rejection

• Humbucking coil

• Rugged metal body

Package contents

1 e 835 / e 835 S microphone

1 MZQ 800 microphone clamp

1 pouch

1 instruction manual

Product overview A*

1 Sound inlet basket

2 XLR-3 connector

3 On/off switch (e 835 S only)

4 Screw (e 835 S only)

Diagrams can be found on the cover pages.

Using the microphone

Switching the e 835 S on/off

XUse the on/off switch to switch the the e 835 S on or off.

XIf necessary, use the screw 4to lock the on/off switch 3 in the

“on” position.

Positioning the microphone C

Pos. Resulting sound Commentary

C.1 • High proximity effect

(large bass boost)

• Powerful, direct sound

Very little crosstalk

from other sound

sources

C.2 • Less proximity effect

(less bass boost)

• Some room ambience,

natural, balanced sound

More crosstalk from

other sound sources

C.3 • Very little proximity effect

(minimal bass boost)

• More room ambience,

indirect sound

Higher crosstalk from

other sound sources

If sibilance occurs:

XPosition the microphone slightly to the side and not directly in front

of the mouth.

Positioning the monitor loudspeakers B

XTo prevent feedback and crosstalk, postion your monitor loudspeak-

ers in the angle area of the highest cancellation of the microphone

(approx. 180°).

Cleaning and maintaining the e 835

Caution Liquids can damage the electronics of the product!

Liquids entering the housing of the product can cause

a short-circuit and damage the electronics.

Keep all liquids away from the product.

Do not use any solvents or cleansing agents

XUnscrew the sound inlet basket 1.

XRemove the foam insert from the sound inlet basket 1.

XUse a slightly damp cloth to clean the sound inlet basket 1 from

the inside and ouside.

XReinsert the foam insert into the sound inlet basket 1and replace

the sound inlet basket on the microphone and screw it tight.

Specifications

Transducer principle dynamic

Frequency response 40 … 16,000 Hz

Pick-up pattern cardioid

Sensitivity

(free field, no load at 1 kHz) 2.7 mV/Pa

Nominal impedance (at 1 kHz) approx. 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Temperature range 0°C to +40°C

Dimensions Ø 48 x L 180 mm

Weight 330 g

The polar diagram and the frequency response curve Dcan be found on

the cover pages.

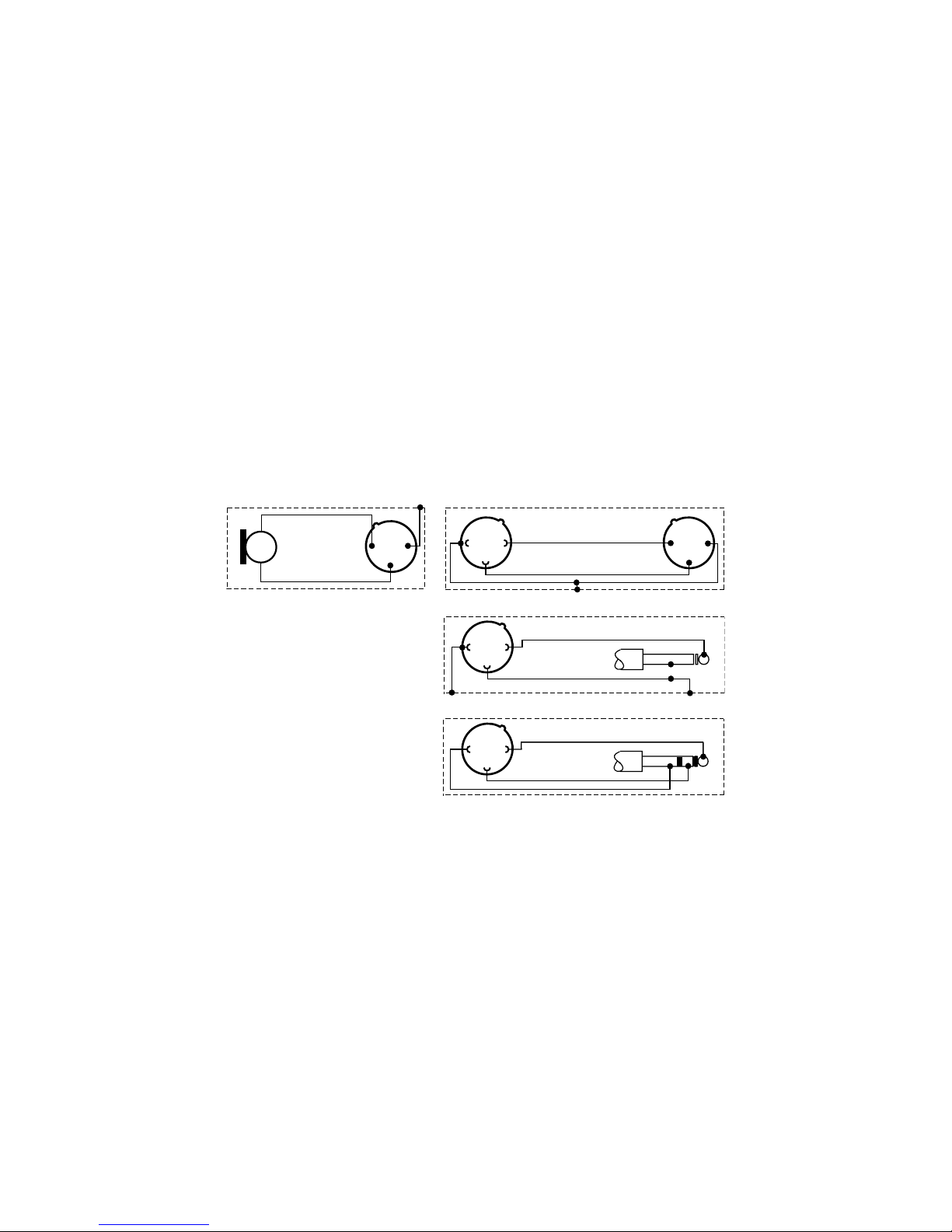

Connector assignment

+ +

XLR 6.3 mm

XLR

6.3 mm

balanced

XLR

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months

on this product.

For the current warranty conditions, please visit our website at

www.sennheiser.com or contact your Sennheiser partner.

FOR AUSTRALIA ONLY

Sennheiser goods come with guarantees that cannot be excluded

under the Australian Consumer Law. You are entitled to a replacement

or refund for a major failure and compensation for any other reason-

ably foreseeable loss or damage. You are also entitled to have the

goods repaired or replaced if the goods fail to be of acceptable quality

and the failure does not amount to a major failure.

This warranty is in addition to other rights or remedies under law.

Nothing in this warranty excludes, limits or modifies any liability of

Sennheiser which is imposed by law, or limits or modifies any remedy

available to the consumer which is granted by law.

To make a claim under this warranty, contact

Sennheiser Australia Pty Ltd, Unit 3, 31 Gibbes Street Chatswood NSW

2067, AUSTRALIA.

Phone: (02) 9910 6700, email: [email protected].

All expenses of claiming the warranty will be borne by the person

making the claim.

The Sennheiser International Warranty is provided by Sennheiser

Australia Pty Ltd (ABN 68 165 388 312), Unit 3, 31 Gibbes Street

Chatswood NSW 2067 Australia.

In compliance with the following requirements

• WEEE Directive (2012/19/EU)

Please dispose of this product at the end of its operational lifetime

by taking it to your local collection point or recycling center for such

equipment.

CE Declaration of Conformity

• RoHS Directive (2011/65/EU)

• EMC Directive (2004/108/EC)

The declaration is available at www.sennheiser.com
