Sealey PCT2 Manuel utilisateur

PLASMA CUTTING TABLE/WORKBENCH

- ADJUSTABLE HEIGHT WITH CASTOR

WHEELS

MODEL NO: PCT2

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

WARNING! Ensure Health & Safety, and local authority regulations are adhered to when assembling and using the workbench.

9Locate workbench in a suitable area where it will not be an obstruction.

9Keep the general area clean, uncluttered and ensure there is adequate lighting.

WARNING! Erect unit on a level and solid surface such as concrete.

9Keep children and unauthorised persons away from the work area.

8DO NOT use the unit for any purpose other than that for which it is designed.

8DO NOT clean the unit with any solvents which may damage the surfaces.

9Ensure that the unit is properly and securely assembled before use.

2. NTRODUCTION

Mild steel plasma cutting table/workbench. 32 Replaceable cutting slats, order Model No. PCT2RS for a pack of 10 replacements.

Removable side handles/cable tidy hanging hooks. Adjustable working height 750mm to 1011mm. Lockable castor wheels for easy

 movement.Funnelshapedbasewithslideouttrayforsaferemovalofo󰀨cutsandslag.Suppliedatpackedforeasyselfassembly

using hand tools (not provided). Supports weight capacity of 136kg.

3. SPECIFICATION

Model No.: .................................................................... PCT2

Max. weight capacity................................................... 136 kg

Height range .................................................. 750 - 1011 mm

Assembled dimensions (W x D) .....................1200 x 910 mm

Bench dimensions............................................915 x 910 mm

Replacement parts: Slats (pack of 10) ..................... PCT2RS

PCT2 Issue 1 15/09/20

Original Language Version

Refer to

instructions

Wear protective

gloves

Wear safety

footwear

4. CONTENTS

5. ASSEMBLY

NOTE: It is recommended that two people are used to assemble this item.

NOTE: DO NOTfullytightenxingsuntilallareinplace.

5.1. Assemblefootlinks(g1.15)towheels(g1.10)usingxings(g1.16,1.17,and1.18).

5.2. Fixsupportbeams(g1.14)totabsonfootsupportbeams(itemsg1.13andg1.7).

5.3. Fixmainbeams(g1.2,g.1.4)totopoffootsupportsusingxings(g1.21,1.22,1.23).Notepositioningofmainbeams(seeg1).

5.4. Tilttheassemblyandlocatetheassembledfootlinks(from5.1above)intothefootsupportsandtfootsupportpins(g1.24).

5.5. Layplatformbases(g1.12)intolowersection(seeg1).

5.6. Fixfunnelsideplatestomainbeams(g1.2,g1.4)usingxings(g1.21,1.22,1.23).Notepositioningofsideplates(seeg1).

5.7. Fixdrawersupports(g.1.8,g1.11)usingxings(g1.20,1.21,1.22)(seeg1.).

5.8. Fixsidehandles(g1.1)usingxings(g1.16,1.17,1.18).

5.9. Loadslats(g1.3)intotopframe.

5.10. Insertdrawer(g1.9)ontodrawerrunnersindrawersupports(g1.8,g1.11).

5.11. Tightenallxingsandensurethestructureissound,stableandcapableofsafelycarryingaloadofupto138kg.

6. MAINTENANCE

6.1. Clean regularly using non-abrasive cleaner and a damp cloth.

6.2. Before each use check all parts and the integrity of the structure. If damaged or suspect, remove from service and take necessary

action to correct.

Original Language Version

Item Part no. Description

1 PCT2.01 Removable side handles

2 PCT2.02 Main beam, A

3 PCT2RS Replacement slats (Pack of 10)

4PCT2.04 Main beam, B

5 PCT2.05 Funnel side plate, A

6 PCT2.06 Funnel side plate, B

7 PCT2.07 Foot support, A

8PCT2.08 Drawer support, A

9 PCT2.09 Drawer

10 PCT2.10 Wheel (c/w brake)

11 PCT2.11 Drawer support, B

12 PCT2.12 Platform base

13 PCT2.13 Foot support, B

14 PCT2.14 Support beam

15 PCT2.15 Foot link

16 SS1025.S HxHdSetScrewM8x25mm

17 SWM10.S Spring washer M10

18 SN10.S Steel nut M10

19 SS1040.S HxHdSetScrewM10x40mm

20 PCT2.20 ButtonhdsetscrewM8x25

21 SWM8.S SpringwasherM8

22 SN8.S SteelnutM8

23 SS830.S HxHdSetScrewM8x30mm

24 PCT2.24 Foot support pin

PCT2 Issue 1 15/09/20

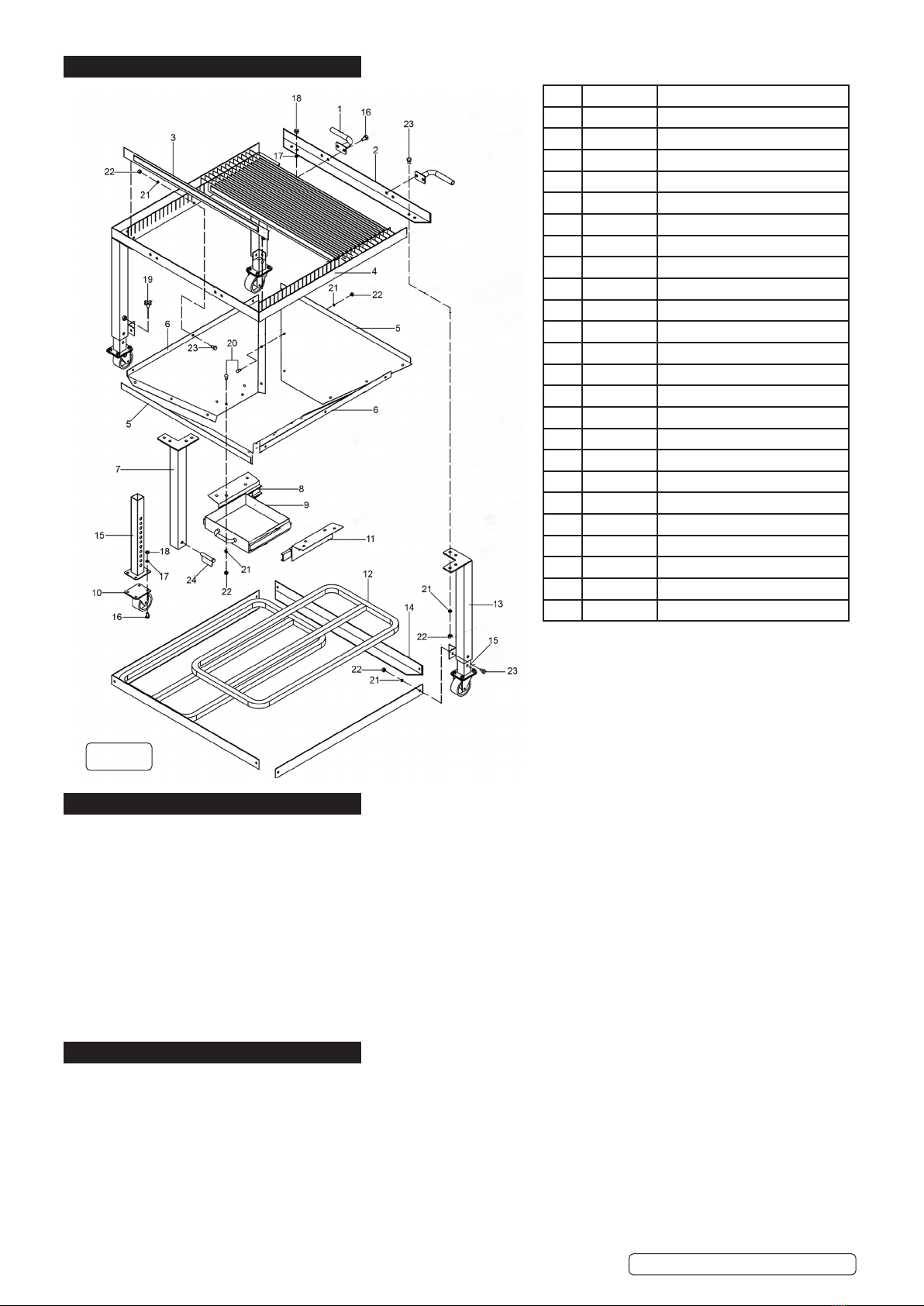

g.1

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

Partssupportisavailableforthisproduct.Pleaseemailsales@sealey.co.ukortelephone01284757500

PCT2 Issue 1 15/09/20
