1830MM HEAVY-DUTY STEEL ADJUSTABLE

WORKBENCH WITH WOODEN OR STAINLESS

STEEL WORKTOP

MODEL NO: APMS22, APMS23

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

RTA

NT:

PLEA

E READ THE

E IN

TRU

AREFULLY. N

TE THE

AFE

PERATI

NAL RE

UIREMENT

, WARNIN

AUTI

. U

ODU

RRE

TLY AND WITH

ARE F

R THE P

E F

R WHI

H IT I

INTENDED. FAIL

RE T

MAY

E DAMA

E AND

SON

AL IN

RY AND WILL INVALIDATE THE WARRANTY. KEEP TH

ESE

STR

UCT

ION

S S

AFE

R F

USE

1. SAFETY

WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this

bench.

Locate the bench in a suitable work area.

Keep the work area clean, uncluttered and ensure there is adequate lighting.

WARNING! Use the bench on level and solid ground, preferably concrete.

Keep the bench clean and tidy in accordance with good workshop practice.

Keep children and unauthorised persons away from the work area.

DO NOT use the bench for any purpose other than which it is designed.

DO NOT undertake work on the bench without the workpiece being adequately secured.

DO NOT use the bench outdoors.

DO NOT get the bench wet or use in damp or wet locations or areas where there is condensation.

DO NOT clean the bench with any solvents which may damage the surface or the protective coating on the worktop.

2. INTRODUCTION

Manufactured from heavy gauge powder-coated steel and is at the top end of our range with a weight capacity of 1000kg (evenly distributed).

Adjustable leg extensions allow worktop height to range from 680 to 1030mm. Fitted with adjustable feet to ensure work surface is level,

even if your ﬂoor is not. Durable 32mm thick solid wood worktop (APMS22), stainless steel worktop (APMS23).

3. SPECIFICATION

Model No: ................................................ APMS22, APMS23

Size (W x D x H): ...................... 1830 x 610 x (680-1030)mm

Work top:

APMS22................................................................Solid wood

APMS23.......................................................... Stainless steel

4. CONTENTS

APMS22, APMS23 Issue 1 09/08/21

Original Language Version

Refer to

instructions

ITEM DESCRIPTION QTY

1 Back stiffener 2

2 M6 x 16 Hex socket head screw 30

3 Solid wood top 1

3A Stainless steel top 1

4 Upper supporting frame 2

5 M8 Flat washer 16

6 M8 x 85 hex bolt 8

7 Bottom support frame 2

8 Adjustable foot 4

9 M8 hex nut 8

10 Front stiffener 1

ﬁg.1

5. ASSEMBLY

Unpack the product and check contents against the contents diagram (section 4.0) prior to assembly. Should there be any

damaged or missing parts contact your supplier immediately.

5.1. ATTACHING THE UPPER SUPPORT FRAMES

5.1.1. Place the work top (ﬁg 2 - 3 & 3A) top face down onto a protected ﬂoor surface (use original packaging).

5.1.2. Align the ﬁxing holes in the upper support frames (ﬁg 2 - 4) with the corresponding holes on the work top and secure with M6 x 16

hex socket head screws (ﬁg 2 - 2).

5.2. ATTACHING THE BOTTOM SUPPORT FRAMES

5.2.1. Insert the bottom support frame (ﬁg 3 - 7) into the square opening of the upper support frame (ﬁg 2 - 4).

5.2.2. Determine the desired height required and secure with M8 x 85 hex bolt (ﬁg 3 - 6), M8 washers (ﬁg 3 - 5) and M8 hex nut (ﬁg 3 - 9).

5.2.3. Repeat for other side.

NOTE: The bottom support frame (fig 3 - 7) can be adjusted in 25mm increments, to give an overall working height of between 680

and 1030mm (fig 4), with a maximum of 10 visible holes (fig 4).

5.3. ATTACHING THE FRONT STIFFENER

5.3.1. Position the front stiﬀener (ﬁg 5 - 10) to the front face, top level of the work bench part assembly.

5.3.2. Secure with M6 x 16 hex socket head screws (ﬁg 5 - 2).

5.4. ATTACHING THE BACK STIFFENERS

5.4.1. Position the back stiﬀeners (ﬁg 6 - 1) to the back face, top and bottom levels of the work bench part assembly.

5.4.2. Secure with M6 x 16 hex socket head screws (ﬁg 6 - 2).

APMS22, APMS23 Issue 1 09/08/21

Original Language Version

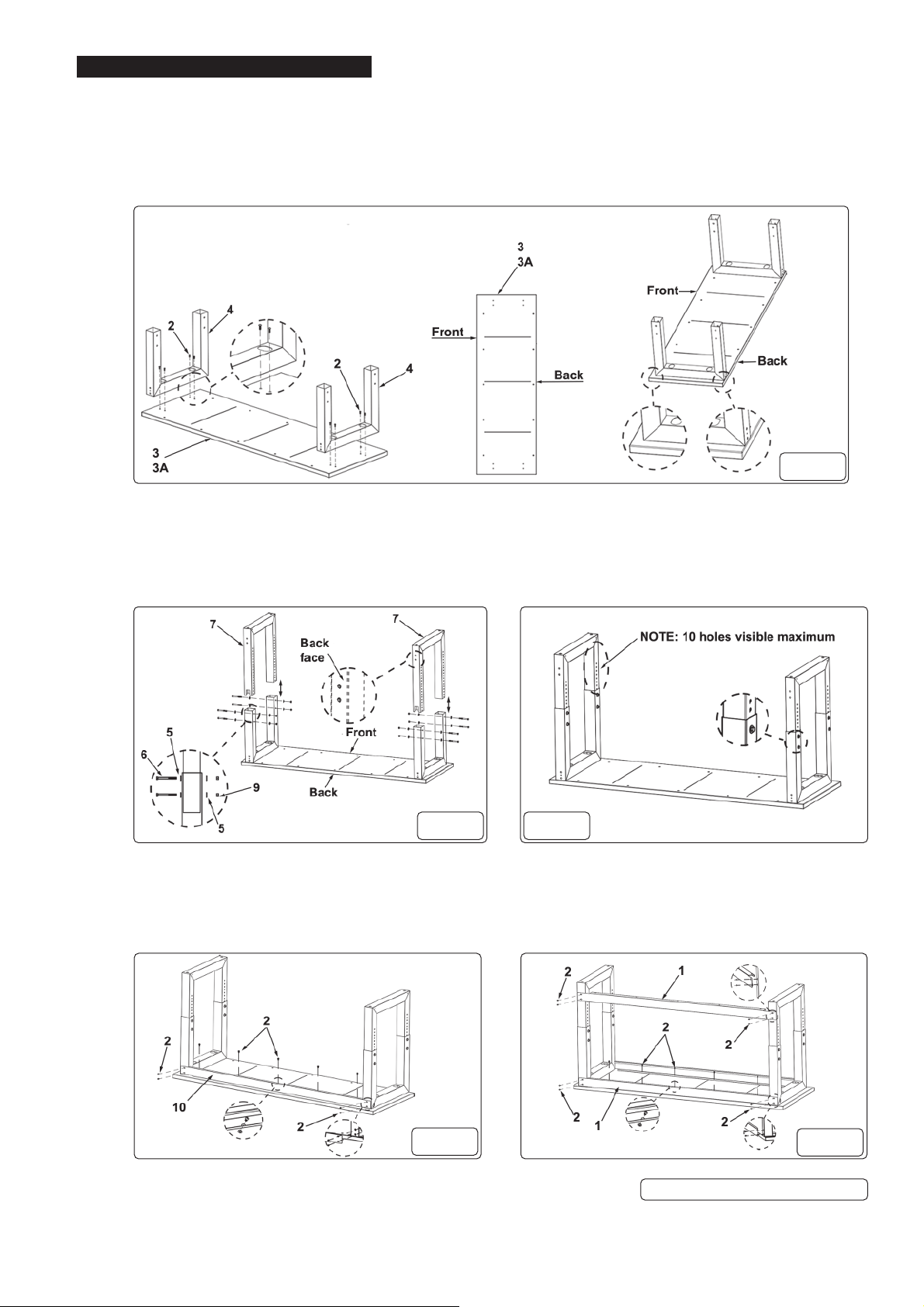

ﬁg.2

ﬁg.3 ﬁg.4

ﬁg.5 ﬁg.6

5.5. FITTING THE ADJUSTABLE FEET

5.5.1. Screw the adjustable feet (ﬁg 7 - 8) into the threaded holes in the bottom supporting frames.

5.6. LEVELLING THE WORKBENCH

5.6.1. With the assistance of another person turn the workbench over onto its adjustable feet (ﬁg - 8).

5.6.2. Place the workbench in the desired location and using a good quality spirit level adjust the feet as necessary to ensure that the

workbench is level and stable.

APMS22, APMS23 Issue 1 09/08/21

Original Language Version

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

ﬁg.7 ﬁg.8
