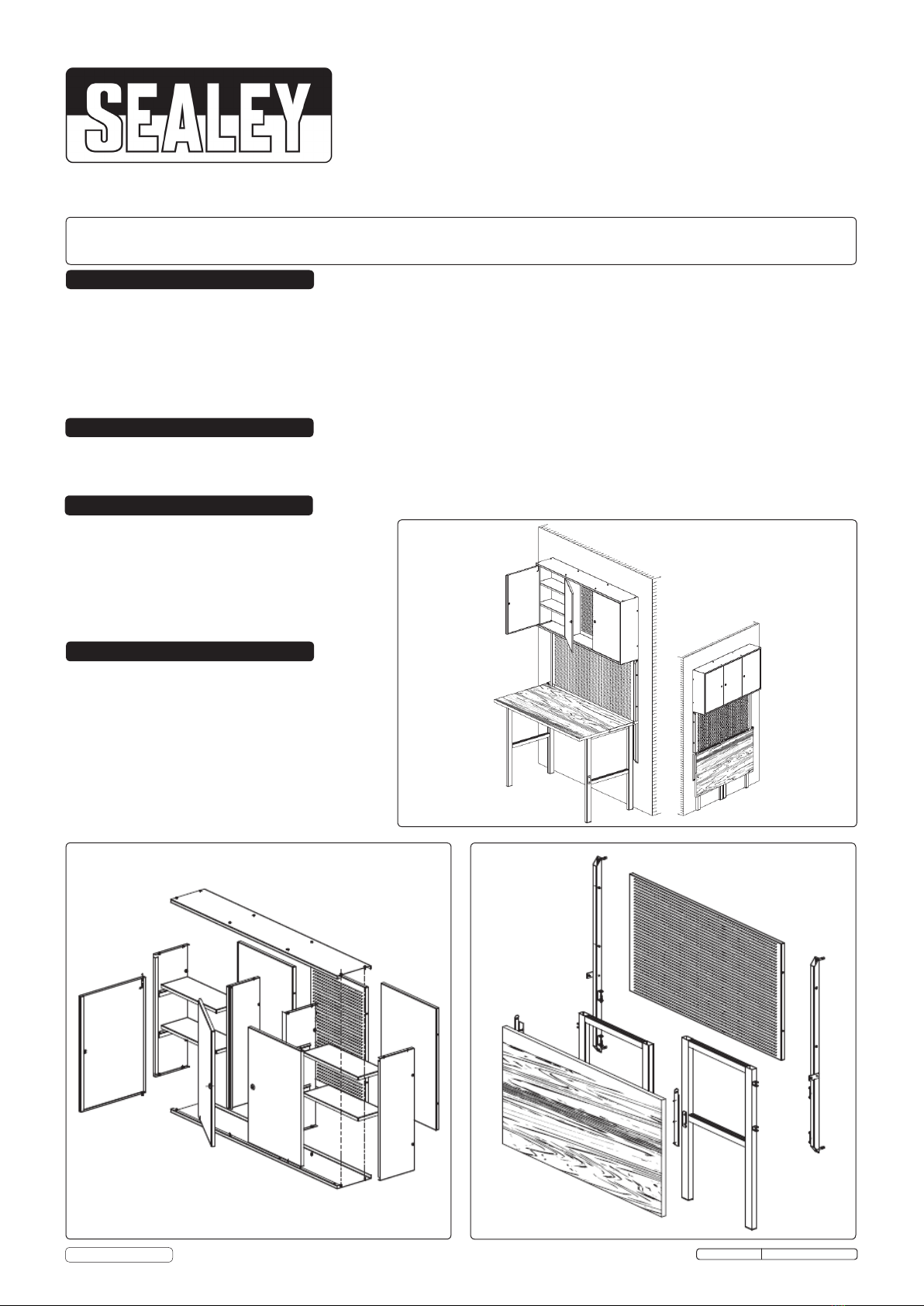

INSTRUCTIONS FOR:

FOLDABLE WORKBENCH, CABINET AND

PEG BOARD

MODEL NO: AP20FWB

3 Select a work area suitable for the workbench and keep the area clean, tidy and free from unrelated materials. Ensure there is adequate

lighting.

3 Mount the workbench on a stable wall and floor strong enough to take the weight of the workbench and cabinet.

3 Maintain the workbench in good condition.

3 Replace or repair damaged parts. Use recommended parts only, unauthorised parts may be dangerous and will invalidate the warranty.

3 Remove ill fitting clothing, remove ties, watches, rings and other loose jewellery and contain long hair.

3 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

3 Keep children and unauthorised persons away from the work area.

Space saving wall mounting folding workbench with peg board and wall mounted cabinet. Workbench provides large work area when needed

and conveniently folds away when not in use, saving space in garage/workshop. Storage provided by wall cabinet and peg board back for hand

tools. Wall cabinet has 3 locking sections, each provided with 2 keys.

Model No: .......................... AP20FWB

Dimensions (WxDxH):

Cabinet: ...................... 1200x200x600mm

Cabinet Sections (x3): ............ 385x170x590mm

Peg Board (WxH): ..................1200x585mm

Workbench Folded: .............. 1200x70x870mm

Workbench Open:............... 1200x650x870mm

Wall Area Required: ................1200x2055mm

1. SAFETY

2. INTRODUCTION

3. SPECIFICATION

4. ASSEMBLY

Original Language Version AP20FWB Issue: 2(I) - 05/12/14

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT

CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL

INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

4.1. Wall Mounted Cabinet

4.1.1. Use Wall Mounted Cabinet Parts Diagram to

identify the parts and follow diagrams to assemble,

 seeg's1to8.

4.2. Work Bench

4.2.1. Use the Work Bench Parts Diagram to identify the

 partsandfollowdiagramstoassemble,seeg's9

to 12.

Wall Mounted Cabinet

Exploded View

Work Bench

Exploded View

Original Language Version AP20FWB Issue: 2(I) - 05/12/14

Wall Mounted Cabinet

Parts Diagram

Original Language Version AP20FWB Issue: 2(I) - 05/12/14

g.1 g.2

g.3 g.4

g.5 g.6

g.7 g.8

Original Language Version AP20FWB Issue: 2(I) - 05/12/14

Work Bench

Parts Diagram

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.

IMPORTANT: No liability is accepted for incorrect use of this product.

WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.

01284 757500

01284 703534

sales@sealey.co.uk

Sole UK Distributor, Sealey Group,

Kempson Way, Suffolk Business Park,

Bury St. Edmunds, Suffolk,

IP32 7AR

www.sealey.co.uk

Web

Original Language Version AP20FWB Issue: 2(I) - 05/12/14

Environmental Protection.

Recycle unwanted materials instead of disposing of them as

waste. All tools, accessories and packaging should be sorted,

taken to a recycle centre and disposed of in a manner which

is compatible with the environment.

g.9 g.10

g.11 g.12
