Important Safety Instructions - Assembly 3

Safety Warning Labels / Serial Number 4

Specifications 5

Before Assembly 5

Parts 6

Hardware 7

Tools 7

Assembly 8

Moving the Bike 21

Leveling the Bike 21

Important Safety Instructions 22

Features 23

Console Features 24

Remote Heart Rate Monitor 26

Operations 29

Adjustments 29

Initial Setup 30

Quick Start / Manual Program 31

Guest User / Profile Program 31

User Setup Mode 32

Profile Programs 36

Fitness Test 37

Heart Rate Control Workout 37

Distance Goal Workout 38

Results/Cool Down Mode 38

Pausing or Stopping 39

User Statistics 39

Console Setup Mode 41

Maintenance 43

Troubleshooting 46

Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America

(800) 605-3369, [email protected] | outside U.S. +01-360-859-5180, [email protected] |

trademark. Nautilus, Inc. (www.NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®

and UNIVERSAL® and respective logos. Other trademarks are the property of their respective owners

TABLE Of CONTENTS

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase ____________________

To register your product warranty , go to: www.SchwinnFitness.com/register

Or call 1 (800) 605–3369.

If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).

IMpORTANT SAfETY INSTRUCTIONS

-ASSEMBLY

This icon means a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

Obey the following warnings:

Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions.

• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.

• Donotconnectpowersupplytothemachineuntilinstructedtodoso.

• Donotassemblethismachineoutdoorsorinawetormoistlocation.

• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafficandexposure

to bystanders.

• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhen

doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or

awkward movements on your own.

• Setupthismachineonasolid,level,horizontalsurface.

• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethe

safety of this machine and will void the warranty.

• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacementpartsand

hardware. Failure to use genuine replacement parts can cause a risk to users, keep the

machine from operating correctly and void the warranty.

• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformance

in accordance with the Manual.

• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforefirstuse.Keep

the Manual for future reference.

• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrect

function.

SAfETY WARNINg LABELS ANd

SERIAL NUMBER

•

300lbs. (136kg).

Keep children away.

Prior to use, read and understand the

Owners Manual.

Injury or death is possible if Caution is not

used while using this machine.

The maximum user weight for this

machine is 300 lbs (136 Kg).

Replace any “Caution” “Warning” or

“Danger” label that is illegible, damaged,

or removed.

This machine is for home use only.

•

FCC Compliance

Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

The power supply complies with part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Note: This power supply has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedetermined

byturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyone

or more of the following measures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

SpECIfICATIONS

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the

locationmustbeonahard,levelsurface.Allowaworkoutareaofaminimum103”x65”(2.6mx

1.7m).

Basic Assembly Tips

Follow these basic points when you assemble your machine:

• Read and understand the “Important Safety Instructions” before assembly.

• Collect all the pieces necessary for each assembly step.

• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten,

and the left (counterclockwise) to loosen, unless instructed otherwise.

• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt

through the holes.

• Theassemblyrequires2people.

Maximum User Weight: 300 lbs. (136 kg)

Power Requirements:

Operational Voltage: Operational Voltage 9VDC

Operating Current: 1500 mA

Regulatory Approvals:

AC Power Adapter: UL listed, CSA certified (or

equivalent),Rated120V60Hz

Input, 9VDC, 1500mA Output.

Class 2 or LPS.

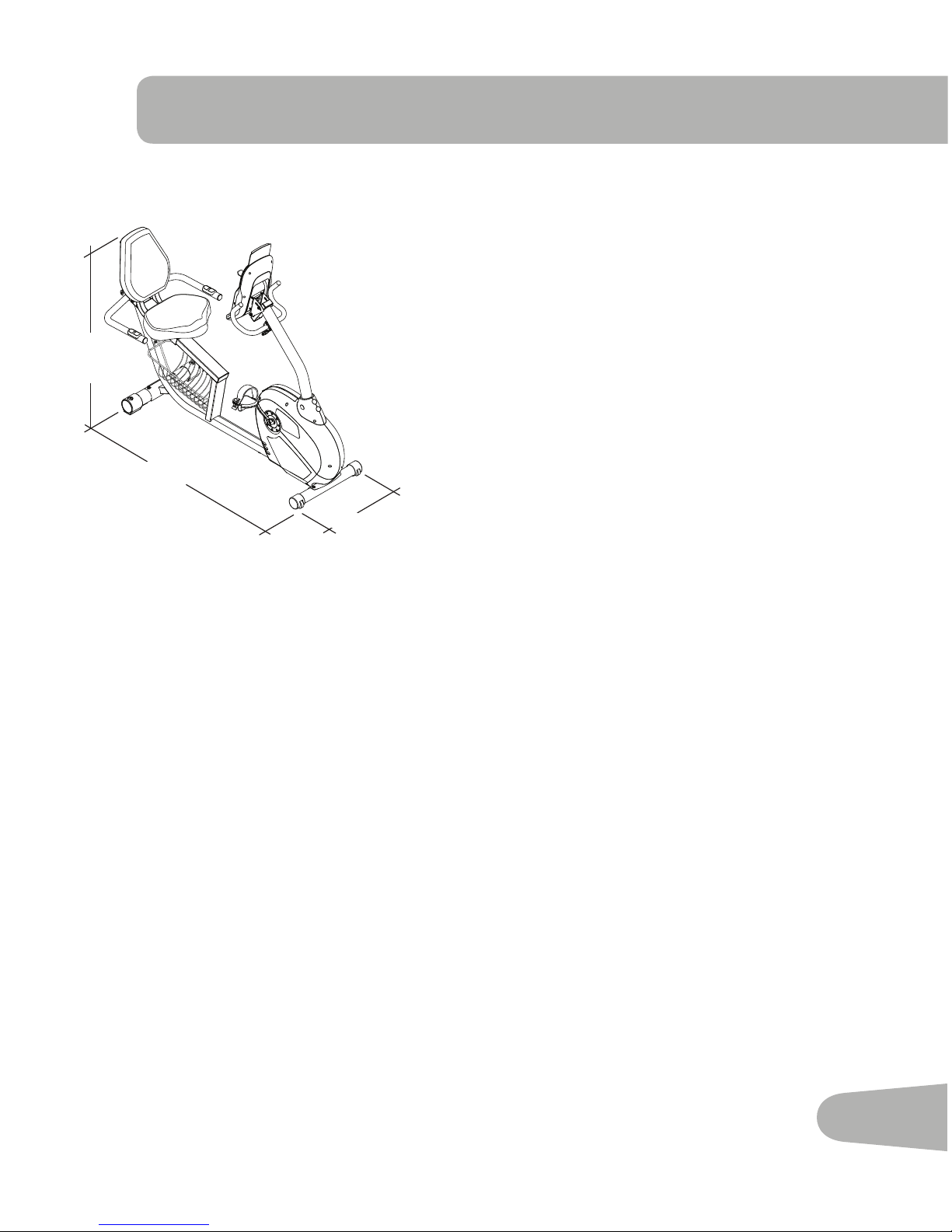

46”

(117 cm)

25”

(63.5 cm)

63” (160 cm)

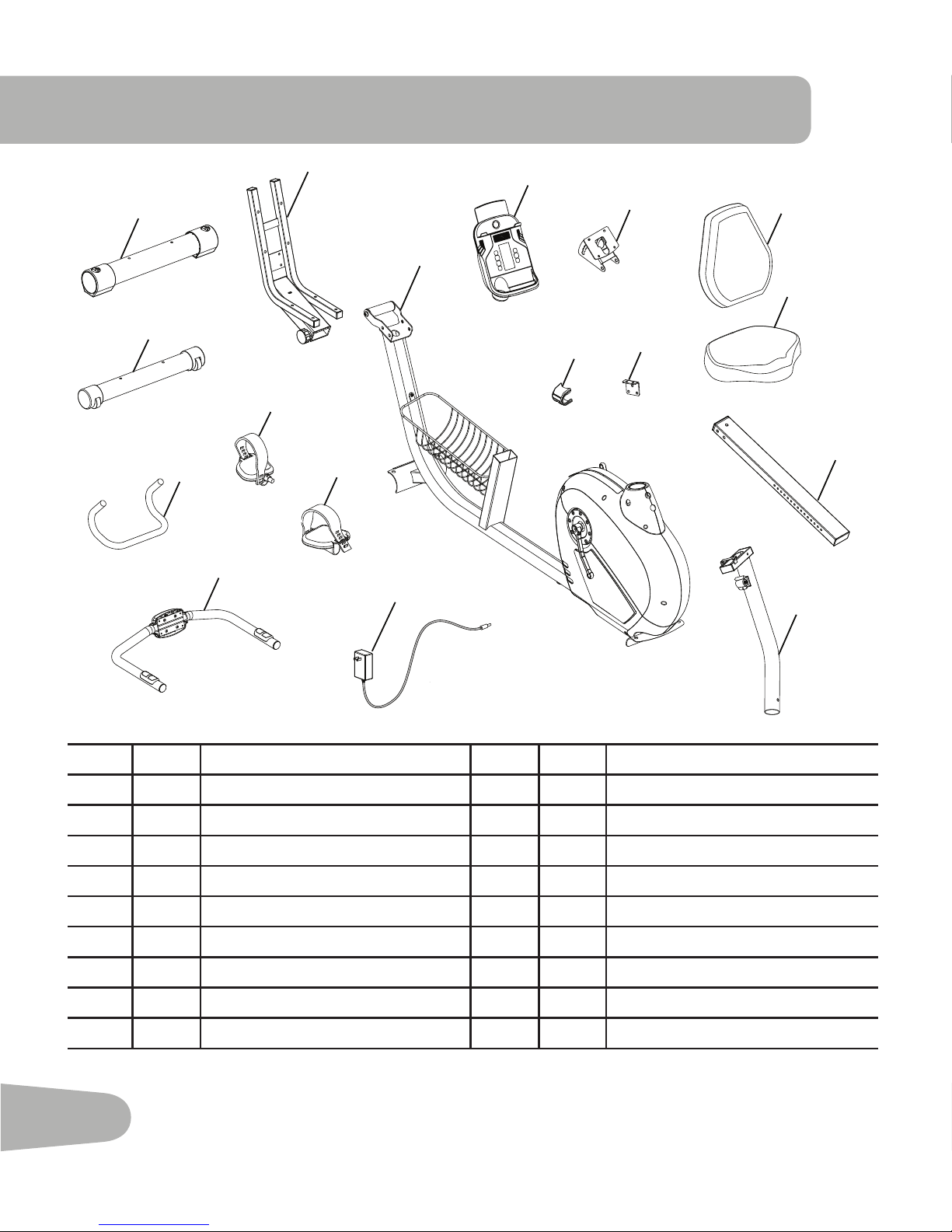

Item Qty Description Item Qty Description

1 1 Rear Stabilizer 10 1 Seat Bottom

2 1 Front Stabilizer 11 1 Seat Rail *

3 1 Seat Frame 12 1 Console Mast

4 1 Frame 13 1 AC Adapter

5 1 Console 14 1 Left Pedal

6 1 Console Bracket 15 1 Right Pedal

7 1 Handlebar Bracket 16 1 Upright Handlebar

8 1 Seat Rail Bracket * 17 1 Side Handlebar

9 1 Seat Back 18 1 MP3 Cord (not shown)

* Pre-installed on Frame (Item 4).

pARTS

Tools

Included Not Included

6 mm

Item Qty Description Item Qty Description

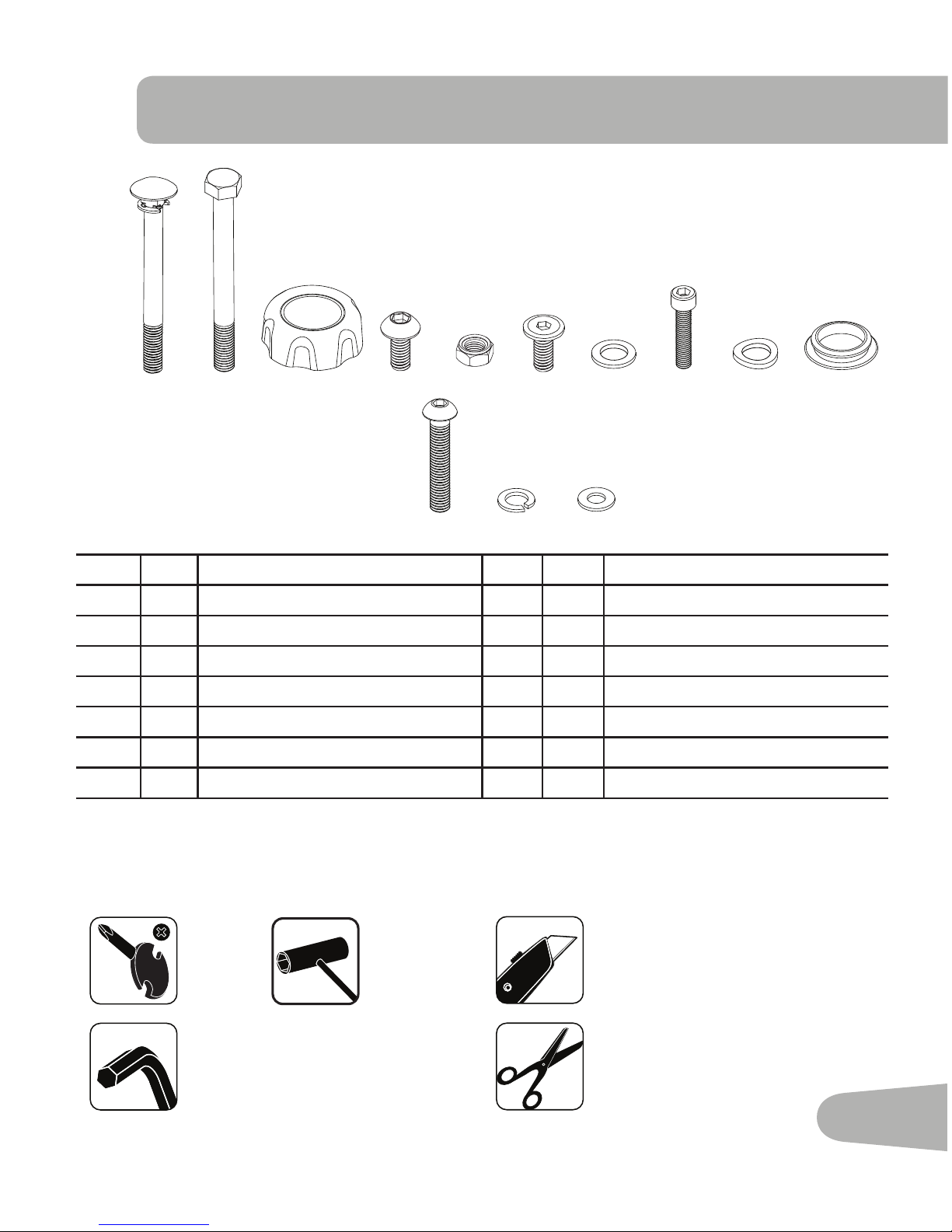

A 1 CarriageBolt,M8x85 H 1 HexBolt,M7x30

B 1 HexBolt,M8x85 I 4 Curved Washer, M8

C 1 ConsoleTiltAdjustmentKnob J 4 Cap

D 8 ButtonHeadHexScrew,M8x16 K 8ButtonHeadHexScrew,M8x45

E 1 Lock Nut, M8 L 1 Lock Washer, M6

F 4 HexScrew,M8x16 M 1 Flat Washer, M6

G 14 Flat Washer, M8

(recommended)

HARdWARE / TOOLS

A B C D E F G H I J

K L M

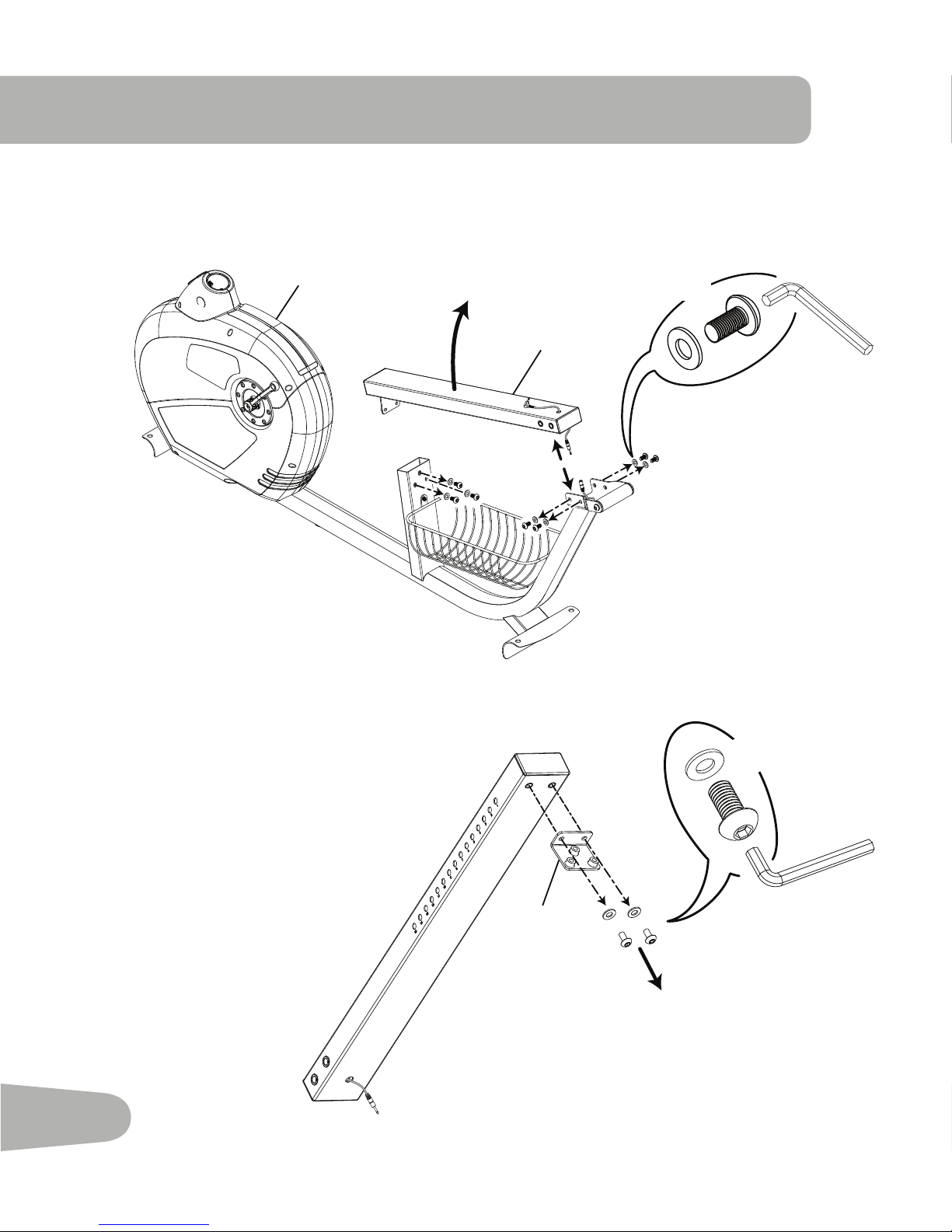

1. Remove Seat Rail from Frame and Disconnect Heart Rate Cable

NOTICE : Make sure that the heart rate cable does not fall into the frame tube. Hardware is

not on hardware card.

2. Remove Seat Rail Bracket from Seat Rail

NOTICE : Hardware is not on hardware card.

ASSEMBLY

11 D

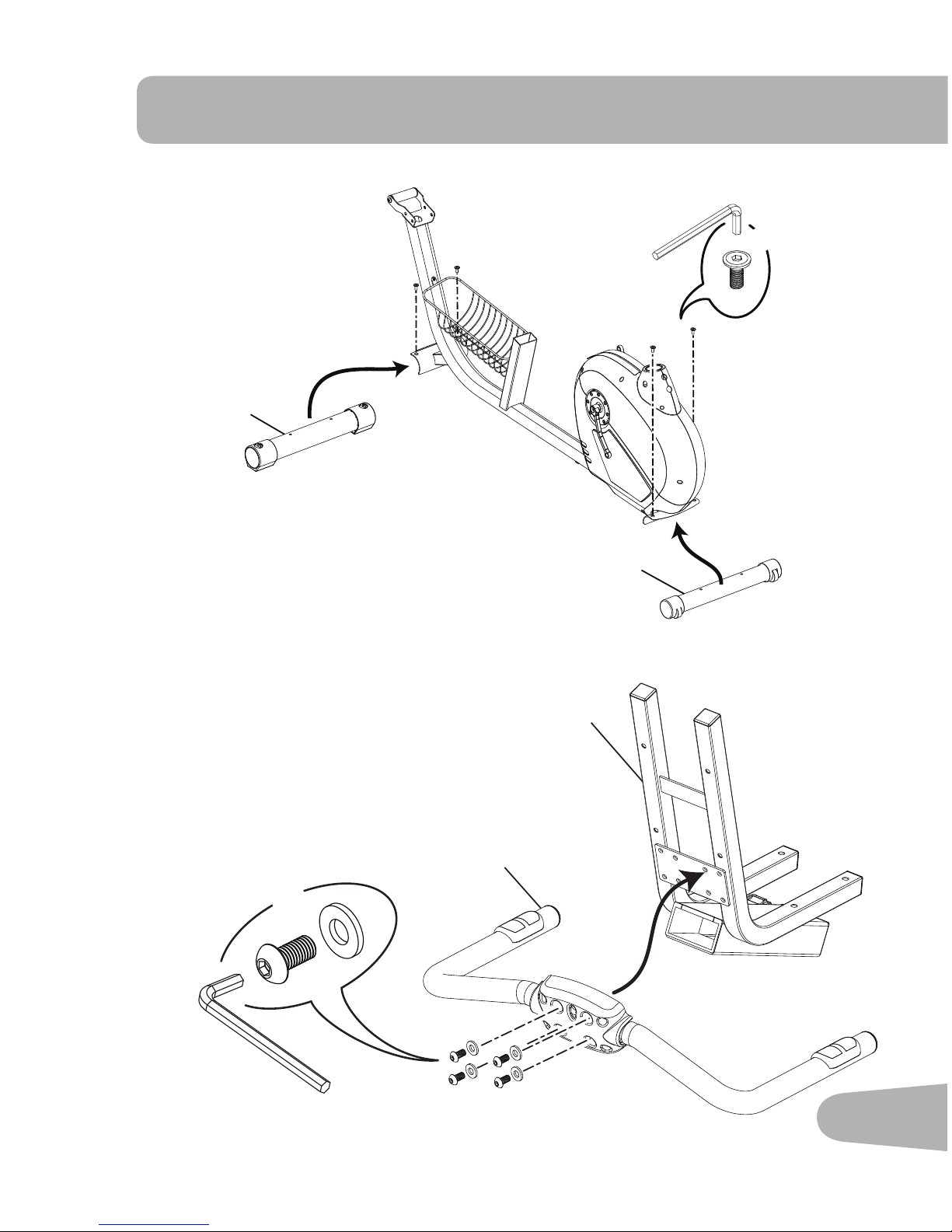

3. Attach Stabilizers to Frame

4. Attach Side Handlebar to Seat Frame

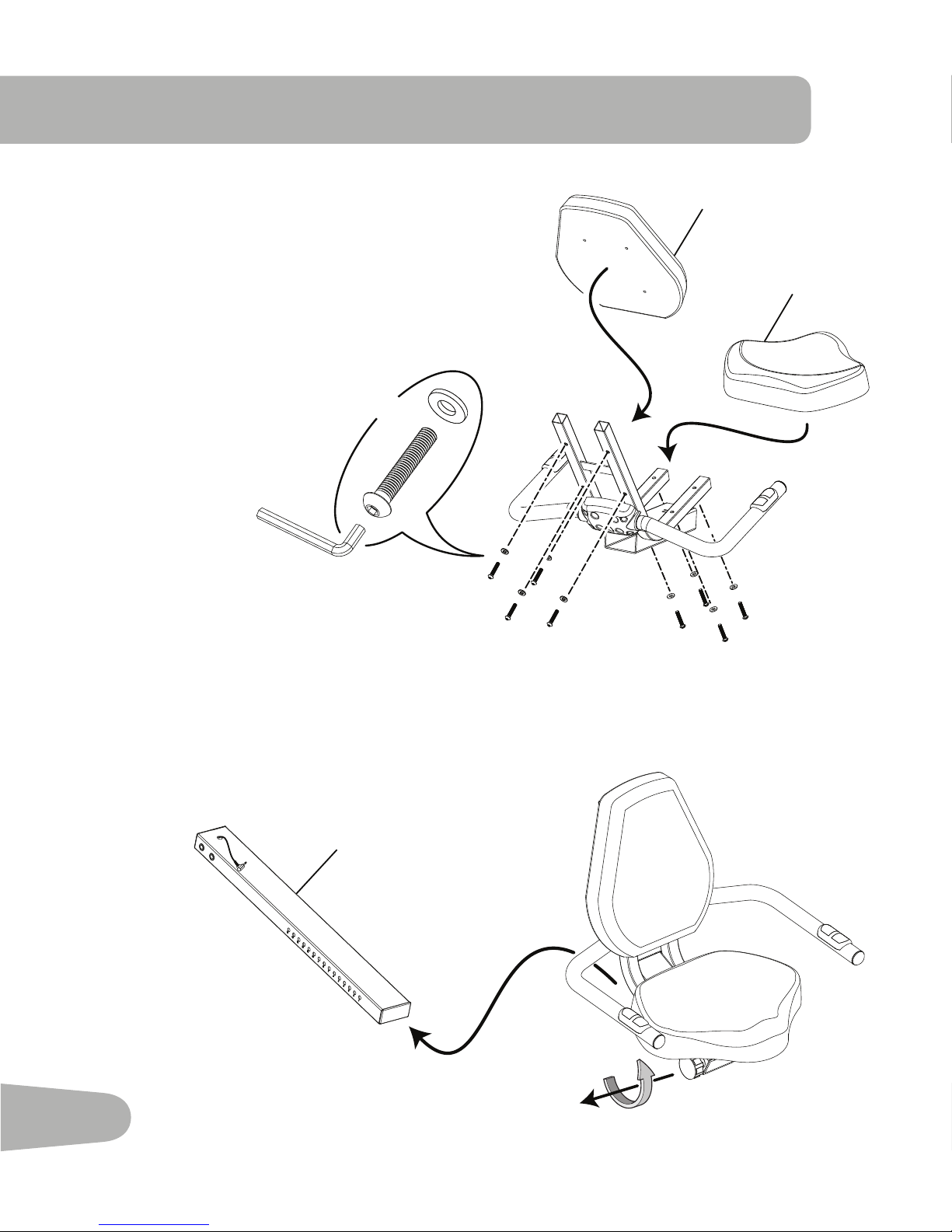

5. Attach Seat Pads to Seat Frame Assembly

6. Loosen and Pull the Seat Post Adjustment Knob to Slide Seat Assembly onto Seat Rail

NOTICE : Do not crimp the Heart Rate Cable.

Note:LocktheAdjustmentKnobintooneoftheSeatRaillockingholes.
