ASSEMBLY MANUAL / OWNER’S MANUAL

230i

This product is compliant with the

applicable CE requirements.

Important Safety Instructions - Assembly 3

Safety Warning Labels / Serial Number 4

Specications 5

BeforeAssembly 5

Parts 6

Hardware 7

Tools 7

Assembly 8

Moving the Machine 18

Leveling the Machine 19

Important Safety Instructions 20

Features 21

Console Features 22

Operations 27

Adjustments 27

Power Up / Idle Mode 27

Quick Start Program 28

 UserProles 28

Pausing or Stopping 32

Results / Cool Down Mode 33

GOAL TRACK Statistics 33

Console Service Mode 36

Maintenance 37

Maintenance Parts 38

Troubleshooting 40

TABLE OF CONTENTS

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase ____________________

To register your product warranty, contact your local distributor.

If you have questions or problems with your product, please contact your local Schwinn distributor.

Tondyourlocaldistributor,goto:www.nautilusinternational.com

Nautilus,Inc.,www.NautilusInc.com-CustomerService:[email protected]|Nautilus,Inc.,18225NERiversideParkway,Portland,

registered in other nations or otherwise protected by common law. MyFitness Pal®is a registered trademark of its owner.

IMPORTANT SAFETY INSTRUCTIONS

-ASSEMBLY

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Obey the following warnings:

Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions.

• Keep bystanders and children away from the product you are assembling at all times.

• Do not connect power supply to the machine until instructed to do so.

• Do not assemble this machine outdoors or in a wet or moist location.

• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.

• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps

involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

• Set up this machine on a solid, level, horizontal surface.

• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and

will void the warranty.

• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use

genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the

warranty.

• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the

Manual.

• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.KeeptheManualforfuture

reference.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.

• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesataclose

range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Given

the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical

provider in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number”

section to determine the location of the magnets on this product.

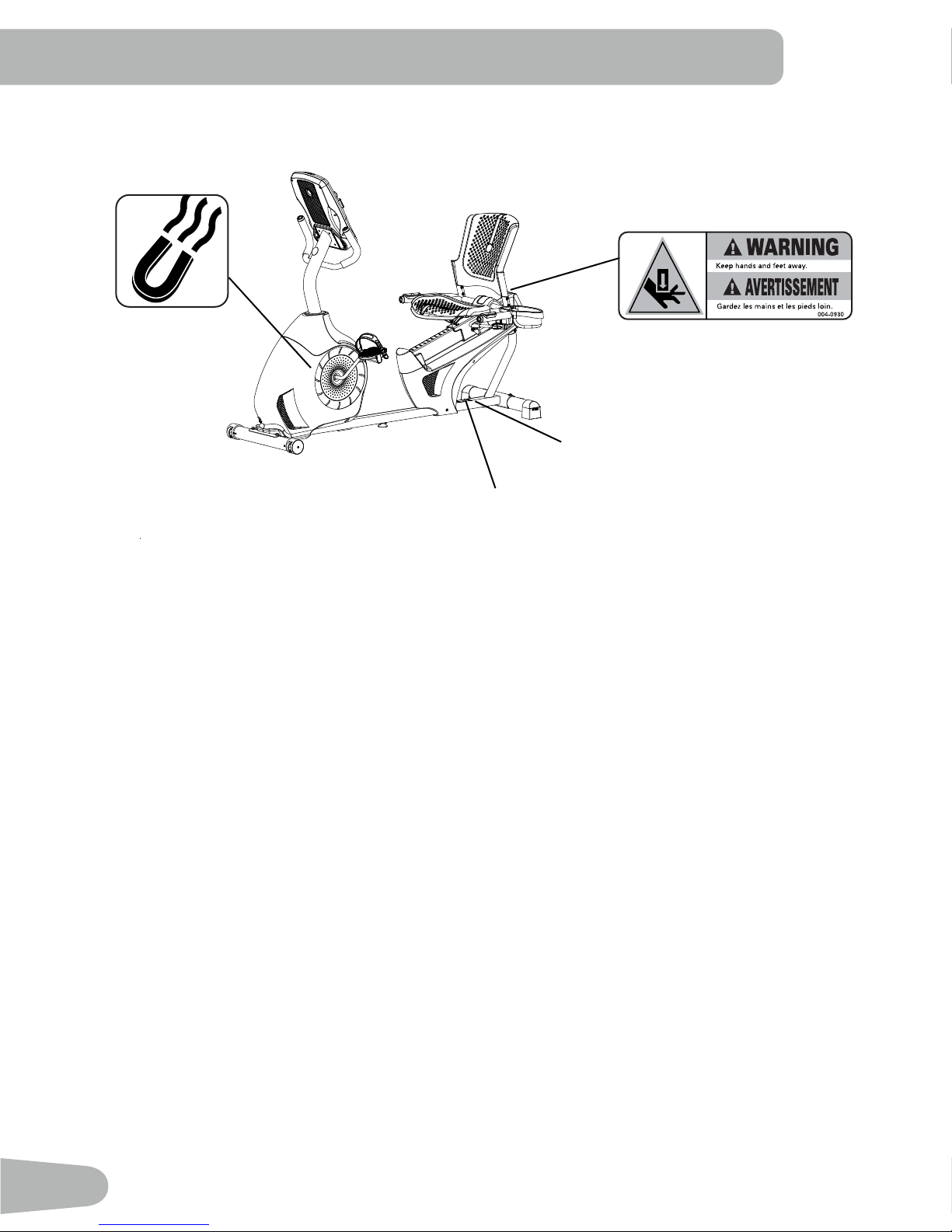

SAFETY WARNING LABELS AND

SERIAL NUMBER

Serial Number

Product

speciﬁcation

REVISIONS

ECO

REVISION

REV DESCRIPTION

APPROVED

DATE

TITLE.

PART NO.

REV.

SHEET 1 OF 1

SCALE: 1:1

DO NOT SCALE DRAWING

1. ALL ITEMS MUST BE RoHS COMPLIANT

2. ALL DIMENSIONS APPLY BEFORE PLATING OR COATING.

3. REMOVE ALL BURRS, BREAK SHARP EDGES 0.5 MM MAX.

4. ALL MACHINES SURFACES Ra 3.2 uM.

5. ALL APPLICABLE NAUTILUS STANDARDS AND

SPECIFICATIONS APPLY.

6. ALL DIMENSIONS ARE IN MILLIMETERS

7. ALL DUAL DIMENSIONS ARE IN INCH

UNLESS OTHERWISE SPECIFIED:

METRIC

THIRD ANGLE

PROJECTION

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

2.5

1.5

0.75

0.25

1°

X.X

X.XX

X.XXX

ANGULAR

SIZE

This document is the property of Nautilus, Inc. It may not be reproduced in whole or part, provided to third parties, or used for any purposes other than the performance of work for Nautilus, Inc. without written authorization. All rights are reserved, including copyrights.

TOLERANCES.

DRAWN

DESIGNED

DATE

METRIC_C_REV G

NAUTILUS, INC.

16400 SE NAUTILUS DRIVE, VANCOUVER, WA 98683

LIFECYCLE

7-22-10

APPROVALS

- -

- - - -

WARRANTY ITEM:

A RELEASED

NPI 13149 DLOVELY 7-22-10

D.LOVELY

07 /22 / 2010

D.LOVELY

004-0930

CRUSH WARNING

21.78mm

54.8mm

MATERIAL.

COLOR.

DIE LINE

PMS 152

PMS 109

BLACK

WHITE

Labels must be created from an agency approved tamper proof labeling system

such as "UL Recognized component marking and labeling system (example: UL PGGU2) or equivalent.

Label and adhesive must be rated for surface it is applied to (painted metal or ABS plastic),

Label and adhesive must be rated for 60 degrees C minimum. Labels must meet UL 1647 Permanence of Marking Test.

•

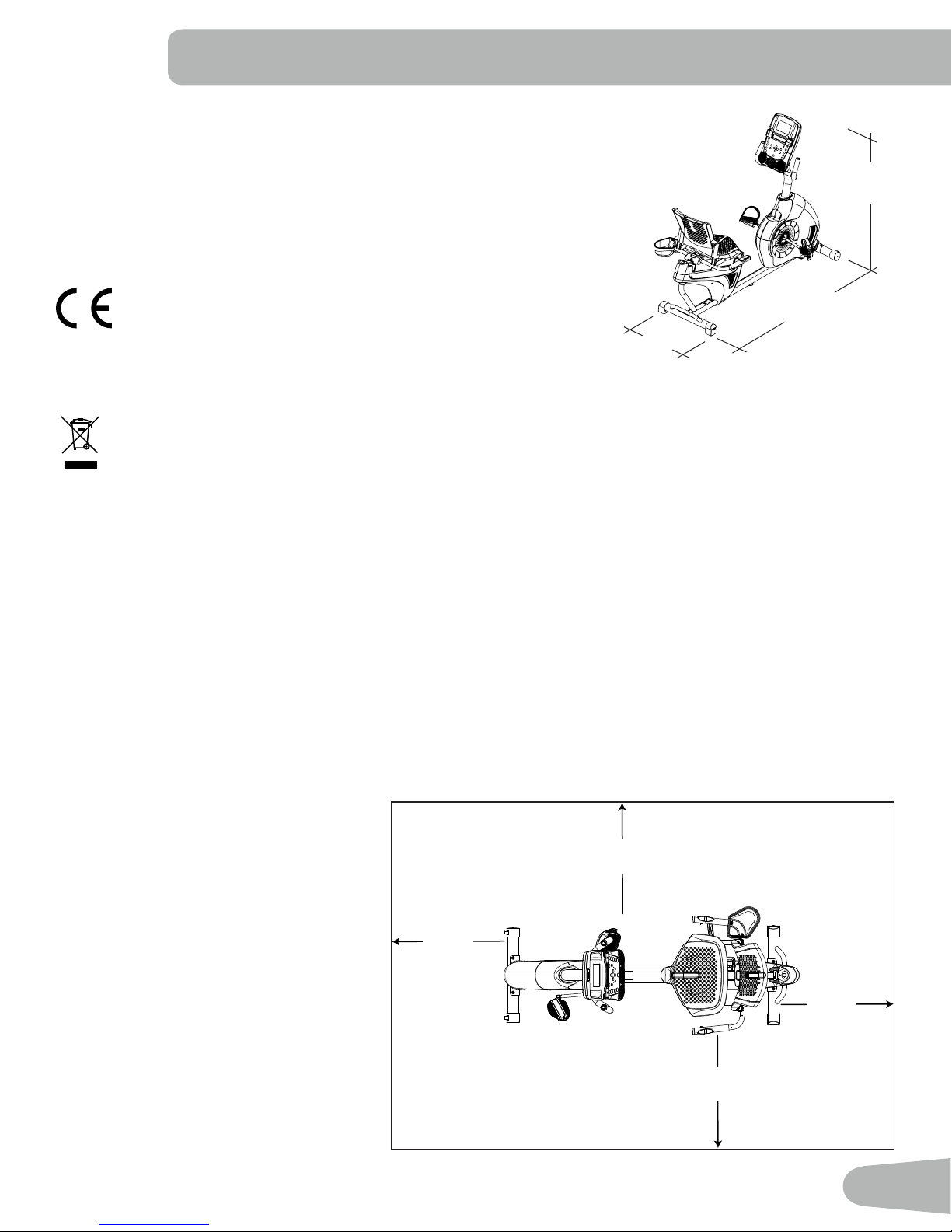

SPECIFICATIONS

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a

hard,levelsurface.Allowaworkoutareaofaminimum1.9mx2.8m(75”x112”).

Basic Assembly Tips

Follow these basic points when you assemble your machine:

• Read and understand the “Important Safety Instructions” before assembly.

• Collect all the pieces necessary for each assembly step.

• Usingtherecommendedwrenches,turntheboltsandnutstotheright(clockwise)totighten,andtheleft(counter-

clockwise)toloosen,unlessinstructedotherwise.

• When attaching 2 pieces, lightly lift

and look through the bolt holes to help

insert the bolt through the holes.

• The assembly can require 2 people.

Maximum User Weight: 136kg(300lb)

Machine Weight: 37kg(81.57lb)

Total Surface Area (foot print) of equipment:10,705.5cm2(1662.5inches2)

Power Requirements:

 OperationalVoltage:220V-240VAC,50Hz

Operating Current: 0.4A

Complies with the following:

ISO20957compliant.

DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product,

please follow the prescribed methods at an approved waste center.

126.8 cm

( 49.9”

)

162.5 cm

( 64” )

70.3 cm

( 27.7” )

2.8m (112”)

1.9m

(75”)

0.6m

( 24” )

0.6m

( 24” )

0.6m

( 24” )

0.6m

( 24” )

Item Qty Description Item Qty Description

1 1 Console 10 1 AC Adapter

2 1 Water Bottle Holder 11 1 Left Pedal

3 1 Seat Back 12 1 Front Stabilizer

4 1 Cover 13 1 Right Pedal

51Seat Frame Assembly 14 1 Upper Shroud

6 1 Seat Bottom 15 1 Shroud Cap

7 1 Seat Adjustment Handle 16 1 Console Mast

8 1 Rear Stabilizer 17 1 MP3 Cord

9 1 Frame

PARTS

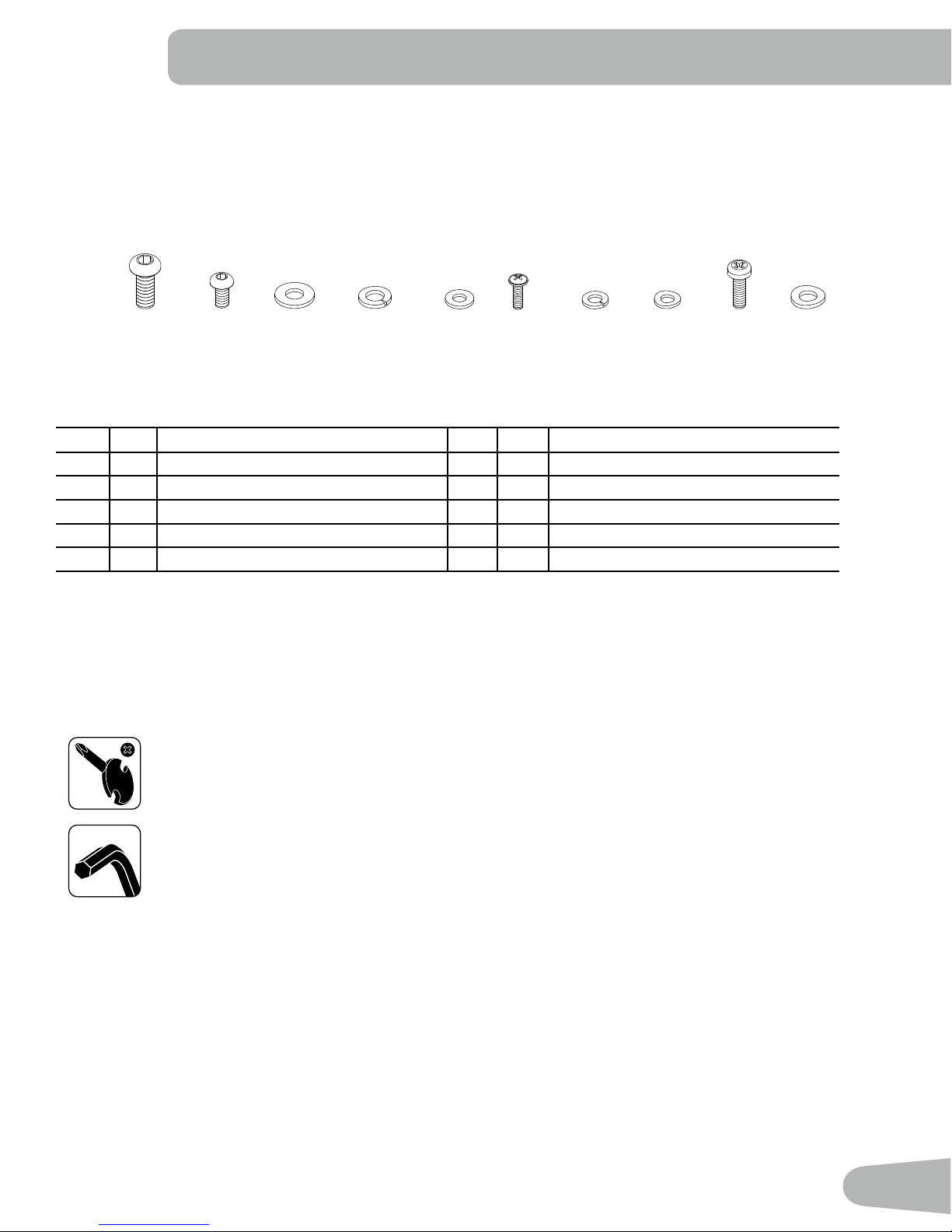

Item Qty Description Item Qty Description

A 8 ButtonHeadHexScrew,M8x20 F 2 PhillipsHeadScrew,M5x12

B 10 ButtonHeadHexScrew,M6x12 G 14 Lock Washer, M6

C 4 Flat Washer, M8 H 4 Curved Washer, M6

D 8 Lock Washer, M8 I 4 PhillipsHeadScrew,M6x25

E10 Flat Washer, M6 J 4 Curved Washer, M8

HARDWARE / TOOLS

Tools

Included

4 mm

6 mm

A B C D E F G H I J

ASSEMBLY

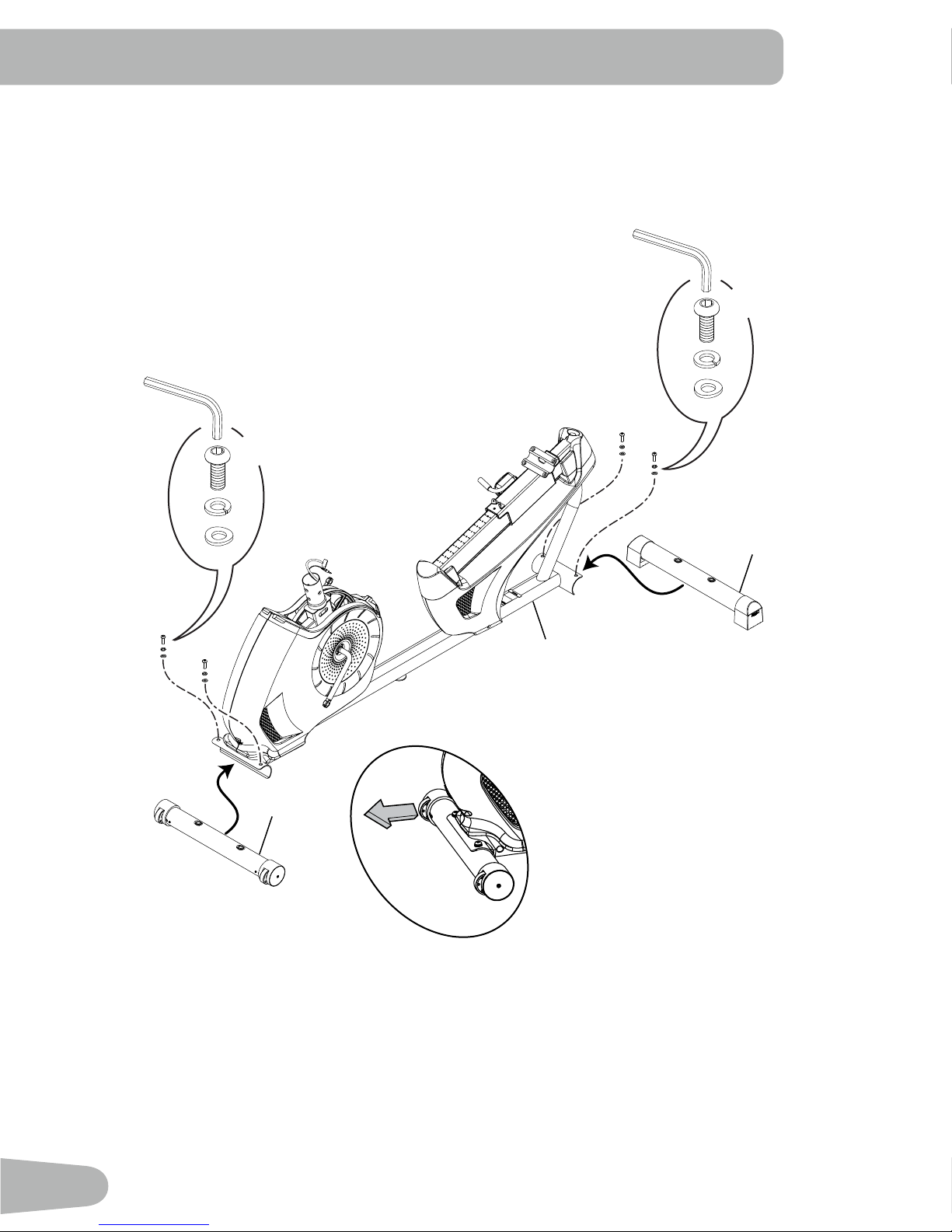

1. Attach Stabilizers to Frame

Note: Hardware is pre-installed and not on the Hardware Card. *

6mm

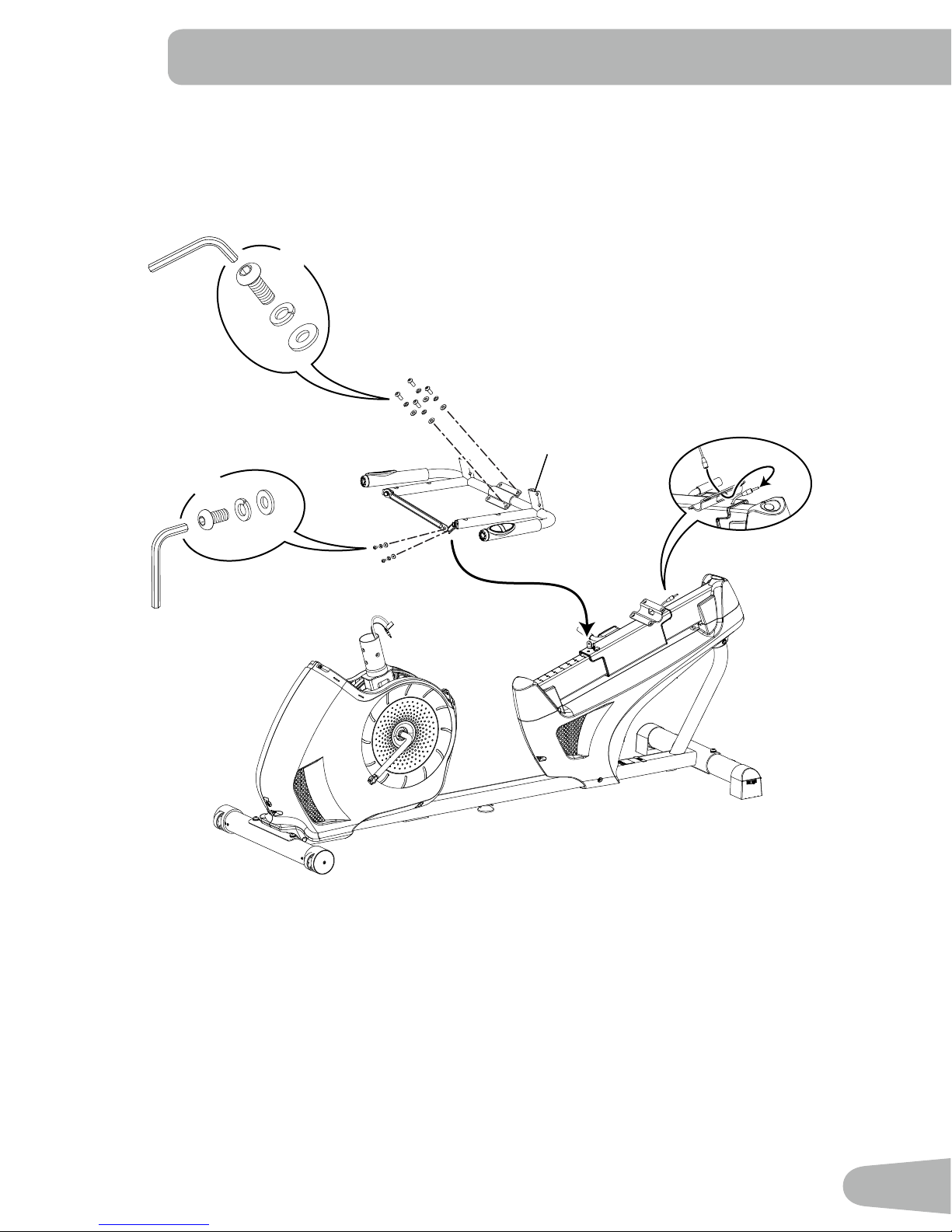

2. Attach the Seat Frame Assembly to the Seat Rail

NOTICE: Do not crimp the Heart Rate Cable. Once all hardware has been inserted, be sure to fully tighten it.

4mm

6mm X4

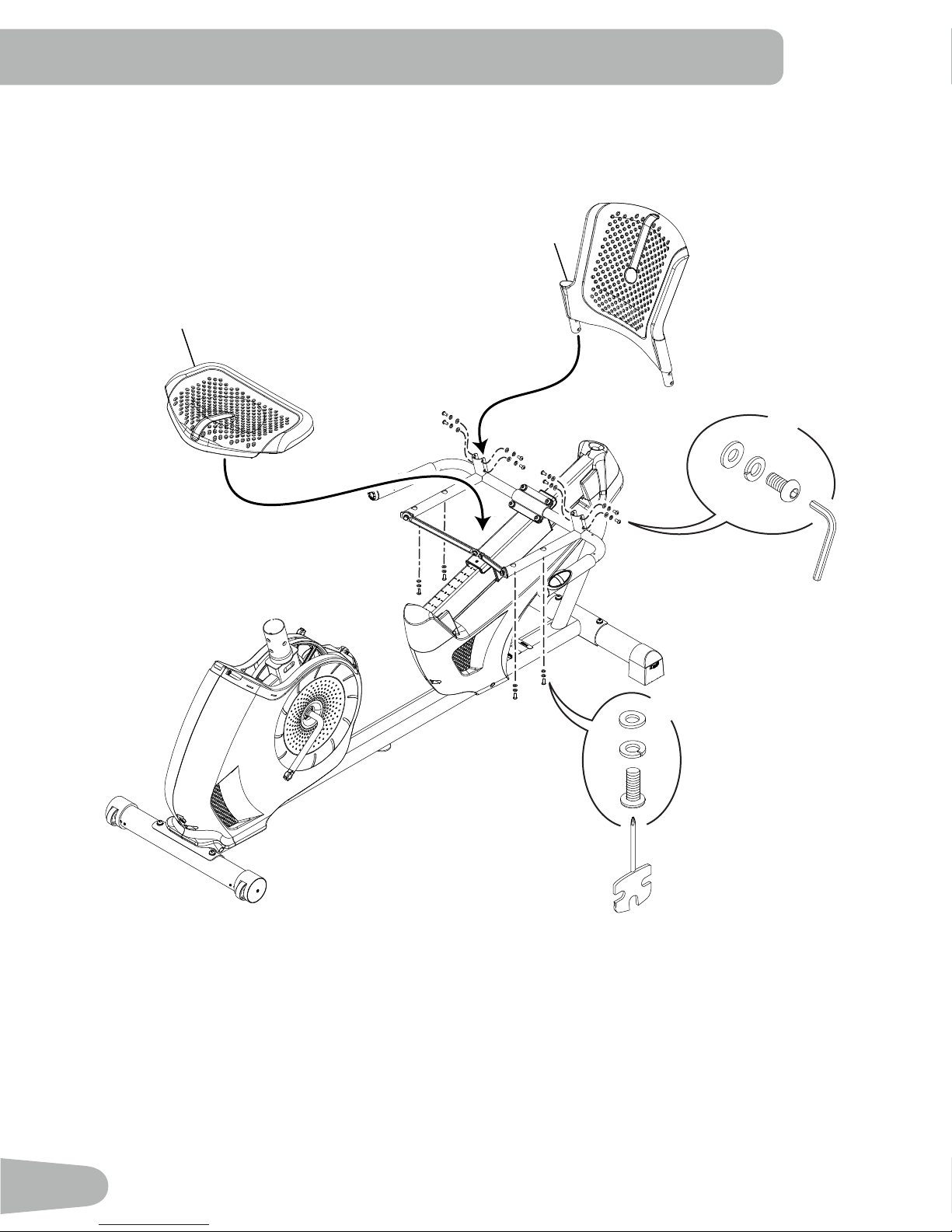

3. Attach Seat Pads to Seat Frame Assembly

4mm
