http:/]ww%scE"swnnfitness_com ASSEMBLY MANUAL / OWNER'S MANUAL

Important Safety Instructions - Assembly 3

Safety Warning Labels /Serial Number 4

Specifications 5

Before Assembly 5

Parts 6

Hardware 7

Tools 7

Assembly 8

Leveling the Bike 21

Moving the Bike 21

Important Safety Instructions

Features

Console Features

Remote Heart Rate Monitor

Operations

Adjustments

Initial Setup

Quick Start /Manual Program

Guest User/Profile Program

User Setup Mode

Profile Programs

Fitness Test

Heart Rate Control Workout

Distance Goal Workout

Results/Cool Down Mode

Pausing or Stopping

User Statistics

Console Setup Mode

Maintenance

Troubleshooting

Limited Warranty

Tovalidatewarrantysupport,keepthe original proofof purchaseand recordthe following information:

Serial Number

Dateof Purchase

Toregisteryourproductwarranty, goto: www.SchwinnFitness.com/register

Orcall 1(800) 605-3369.

If youhavequestions orproblemswithyourproduct,pleasecall 1(800) NAUTILUS(628-8458).

Nautilus, Inc., (800) NAUTILUS /(800) 628-8458, www.Nautiluslnc.com - Customer Service: North America

(800) 605-3369, [email protected] I outside U.S. +01-360-859-5180, [email protected] I

trademark. Nautilus, Inc. (www.Nautiluslnc.com) trademarks include NAUTILUS@, BOWFLEX@, SCHWINN@

and UNIVERSAL@ and respective Iogos. Other trademarks are the property of their respective owners

,_IL This icon means a potentially hazardous situation which, if not avoided, could result in death

or serious injury,

Obey the following warnings:

Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions.

• Keep bystanders and children away from the product you are assembling at all times.

Do not connect power supply to the machine until instructed to do so.

Do not assemble this machine outdoors or in a wet or moist location.

Make sure assembly is done in an appropriate work space away from foot traffic and exposure

to bystanders.

Some components of the machine can be heavy or awkward. Use a second person when

doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or

awkward movements on your own.

Set up this machine on a solid, level, horizontal surface.

Do not try to change the design or functionality of this machine. This could compromise the

safety of this machine and will void the warranty.

If replacement parts are necessary, use only genuine Nautilus® replacement parts and

hardware. Failure to use genuine replacement parts can cause a risk to users, keep the

machine from operating correctly and void the warranty.

Do not use until the machine has been fully assembled and inspected for correct performance

in accordance with the Manual.

Read and understand the complete Manual supplied with this machine before first use. Keep

the Manual for future reference.

Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect

function.

• Keep children away.

Prior to use, read and understand the

Owners Manual.

Injury or death is possible if Caution is not

used while using this machine.

The maximum user weight for this

machine is 300 Ibs (136 Kg).

Replace any "Caution" "Warning" or

"Danger" label that is illegible, damaged,

or removed.

This machine is for home use only.

Gardez les enfants et les animaux de compagnie

_loign_s de cette machine en tout temps.

, Lisez et familiarisez-vous avec le Manuel du

propri_taire et avec tousles avertissements avant

d'utiliser cette machine.

, Soyez prudent lorsque vous utilisez cet

_quipement pour ne pas vous infliger de graves

blessures.

Cette machine supporte un poids maximal de

3OOlbs. (136kg).

Remplacez toute _tiquette d'avertissement

endommag_e, illisible ou manquante.

Cette machine est _ usage domestique

uniquement. 003-5800

\,\

\\k \

\ \,\

Serial Number

00000000000000000000000

18225 NE Riverside Parkway, Portland, Or. 97230

www.nautilus.com [_

Model: XXXXXXXX

Rating: XXXXXXXX

Made in: China

oooo

\_AUTIAUS, ooo-oooo_xj

FCCCompliance

_ hanges or modifications to this unit not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

The power supply complies with part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Note: This power supply has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna.

• increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

MaximumUserWeight:

Power Requirements:

Operational Voltage:

Operating Current:

Regulatory Approvals:

AC Power Adapter:

300 Ibs. (136 kg)

Operational Voltage 9VDC

1500mA

UL listed, CSA certified (or

equivalent), Rated 120V 60Hz

Input, 9VDC, 1500mA Output.

Class 2 or LPS.

BeforeAssembly

Select the area where you are going to set up and operate your machine. For safe operation, the

location must be on a hard, level surface. Allow a workout area of a minimum 103" x 65" (2.6m x

1.7m).

Basic AssemblyTips

Follow these basic points when you assemble your machine:

• Read and understand the "Important Safety Instructions" before assembly.

Collect all the pieces necessary for each assembly step.

Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten,

and the left (counterclockwise) to loosen, unless instructed otherwise.

When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt

through the holes.

The assembly requires 2 people.

Item Qty Description Item Qty Description

1 1 Rear Stabilizer 10 1 Seat Bottom

2 1 Front Stabilizer 11 1 Seat Rail *

3 1 Seat Frame 12 1 Console Mast

4 1 13 1 AC Adapter

5 1 14 1 Left Pedal

6 1 15 1 Right Pedal

7 1 16 1 Upright Handlebar

8 1 17 1 Side Handlebar

9 1 18 1 MP3 Cord (not shown)

Frame

Console

Console Bracket

Handlebar Bracket

Seat Rail Bracket *

Seat Back

• Pre-instalied on Frame (item 4),

C I JEF_-_ G H

Item Qty Description Item Qty Description

A 1 Carriage Bolt, M8x85 H 1 Hex Bolt, M7x30

B 1

C 1

D 8

E 1

F 4

G 14

Hex Bolt, MSx85 i 4

Console Tilt Adjustment Knob J 4

Button Head Hex Screw, M8x16 K 8

Lock Nut, M8 L 1

Hex Screw, M8xl 6 M 1

Flat Washer, M8

Curved Washer, M8

Cap

Button Head Hex Screw, MSx45

Lock Washer, M6

Flat Washer, M6

Tools

Included NotIncluded

(recommended)

G mm

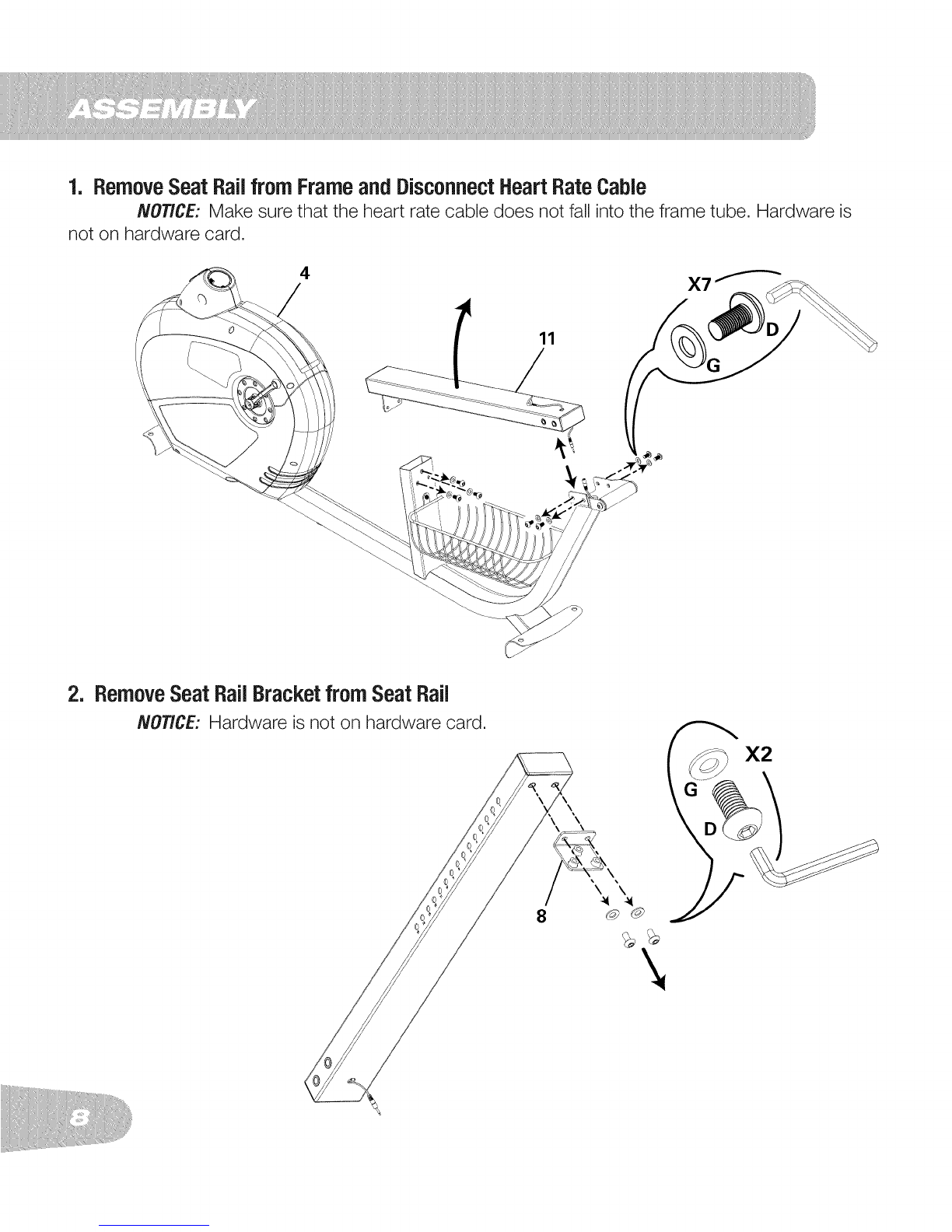

1. RemoveSeatRailfrom Frameand DisconnectHeartRateCable

NOTICE: Make sure that the heart rate cable does not fall into the frame tube, Hardware is

not on hardware card,

4X7

1RemoveSeatRailBracketfrom SeatRail

NOTICE: Hardware is not on hardware card,

\, \\

3. AttachStabilizersto Frame

4. AttachSideHandlebarto SeatFrame

5.AttachSeatPadsto SeatFrameAssembly 9

6. Loosenand Pullthe SeatPostAdjustmentKnobto SlideSeatAssemblyontoSeatRail

NOTICE: Do not crimp the Heart Rate Cable=

Note: Lock the Adjustment Knob into one of the Seat Rail locking holes.
