SCAN SCAN 4 Manuel utilisateur

SCAN 4

INSTRUCTIONS FOR

INSTALLATION AND USE

This manual is accompanied by a

pamphlet with General Instructions for

Installation. Edition 10.04 - GB

MONTERINGSVEJLEDNING

med brugs- og fyringsanvisning

Indhold:

Generelle råd og anvisninger . . . . . . . . . .2-3

Reklamationsret

Type- og miljøgodkendelse

Udpakning

Tilbehør til din pejs

Montering af kakler og fedtsten

Kvalitetskontrol

Anmeldelsespligt

Skorstenstjek

Skorstensløsninger

Bærende underlag

Brændbar eller ikke brændbar væg

Gulvplade

Varmefordeling

Justerskrue

Typeskilt

Produktionsnr.

Servicepakke

Monteringsvejledning. . . . . . . . . . . . . . . . .4-7

Tilslutning til eksisterende/muret skorsten

Tilslutning topafgang til stålskorsten

Forbrændingsluft udefra

Brugs- og fyringsanvisning . . . . . . . . . . . 8-10

Vedligeholdelse af pejseovnen

Håndtering af brændsel

Optænding og fyring

Fejlsøgning . . . . . . . . . . . . . . . . . . . . . . . . 11

SCAN 3

BRUGSANVISNING

TildenneBrugsanvisninghørerogsåen

generelMonteringsvejledning. Udgave03.03-DK

MONTERINGSVEJLEDNING

medbrugs-ogfyringsanvisning

Indhold:

Generellerådoganvisninger..........2-3

Reklamationsret

Type-ogmiljøgodkendelse

Udpakning

Tilbehørtildinpejs

Monteringafkaklerogfedtsten

Kvalitetskontrol

Anmeldelsespligt

Skorstenstjek

Skorstensløsninger

Bærendeunderlag

Brændbarellerikkebrændbarvæg

Gulvplade

Varmefordeling

Selvlukkendelåge

Justerskrue

Typeskilt

Produktionsnr.

Servicepakke

Monteringsvejledning.................4-7

Tilslutningtileksisterende/muretskorsten

Tilslutningtopafgangtilstålskorsten

Forbrændingsluftudefra

Brugs-ogfyringsanvisning...........8-10

Vedligeholdelseafpejseovnen

Håndteringafbrændsel

Optændingogfyring

Fejlsøgning........................11

Tildennemonteringsvejledninghørerogsåen

separatbrugsanvisningfordenenkeltepejs.

Udgave02/03-DK

Til dennemonteringsvejledning hørerogsåen

separatbrugsanvisning fordenenkelte pejs.

Udgave 02/03 - DK

Approved according to DIN 18891

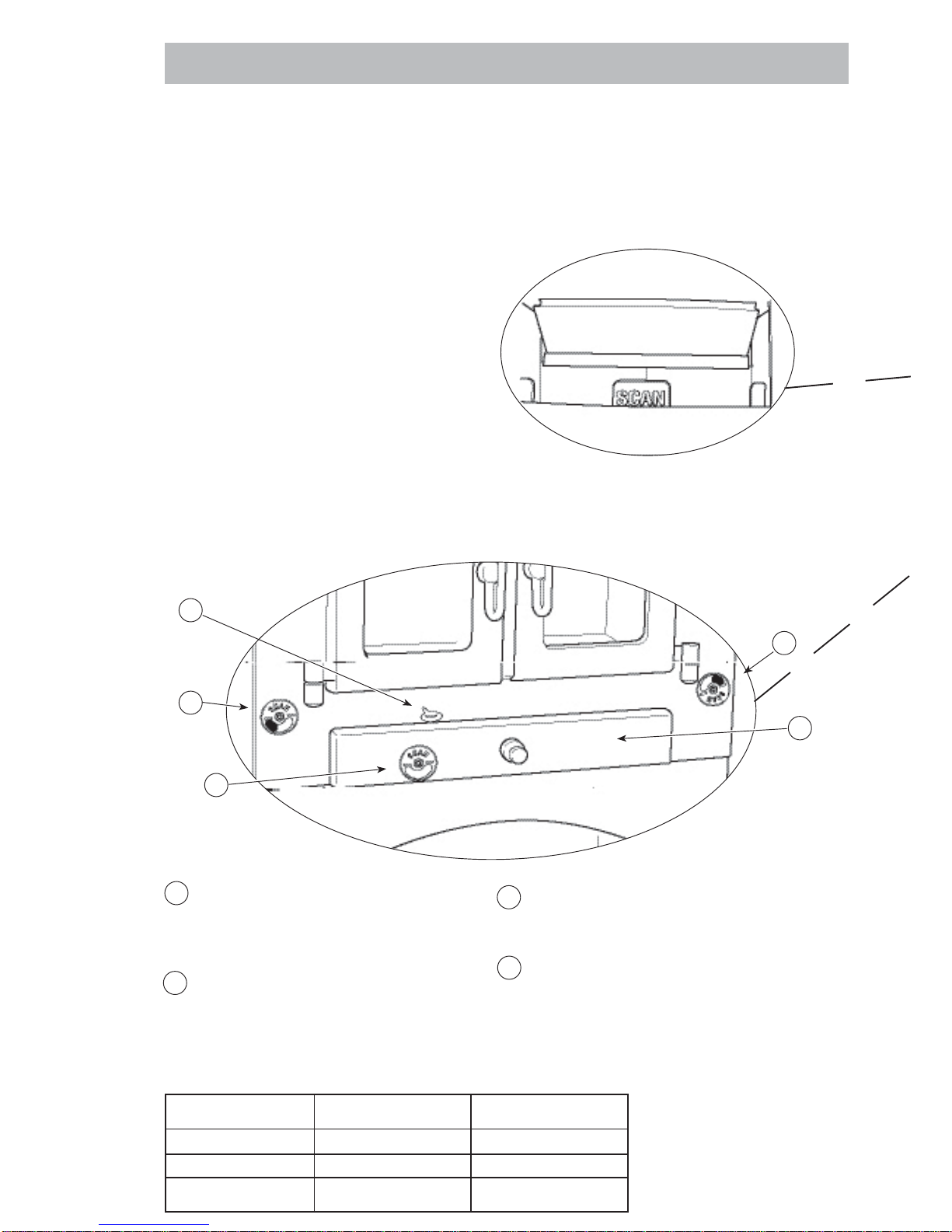

1 Ashtray. The ashtray is placed below the com-

bustion chamber. Attention! Be careful when you

empty ashes from the stove. There may be embers

left for up to 24 hours after the stove was last

used.

2 Handle for shaking grate. The stove is equipped

with a shaking grate. When you activate the grate

handle, the ashes from the combustion chamber

are emptied into the ashtray.

3 Regulation for primary air. Turn the air valve

in order to open. The primary air is used when

lighting and refuelling the stove. It should always

be closed during continuous firing.

4 Regulation for combustion air. Turn the air valve

to the right for opening and to the left for closing.

The air is used for the combustion and regulates

the output of the stove.

The ashtray, shaking grate, and primary air should

always be closed during continuous firing.

Ceramic smoke deflector

In order to dismount the ceramic smoke

deflector, lift up the plate at the front edge.

Lower it at the back and take it out.

You have chosen a product from one of Europe's lea-

ding manufacturers of wood-burning stoves. We are

convinced that your stove will be to your full satisfaction

and give you many hours of pleasure if you follow the

advice and instructions of this manual.

Please read this manual as well as the General

Instructions for Installation before beginning the

installation.

Congratulations on your new SCAN stove!

SCAN 4

Adjustment of the air

Wood / briquettes Fuel kg/h (beechwood

max. 20% humidity)

SCAN 4 2 kg

Combustion air % 100

Primary air % 0-50

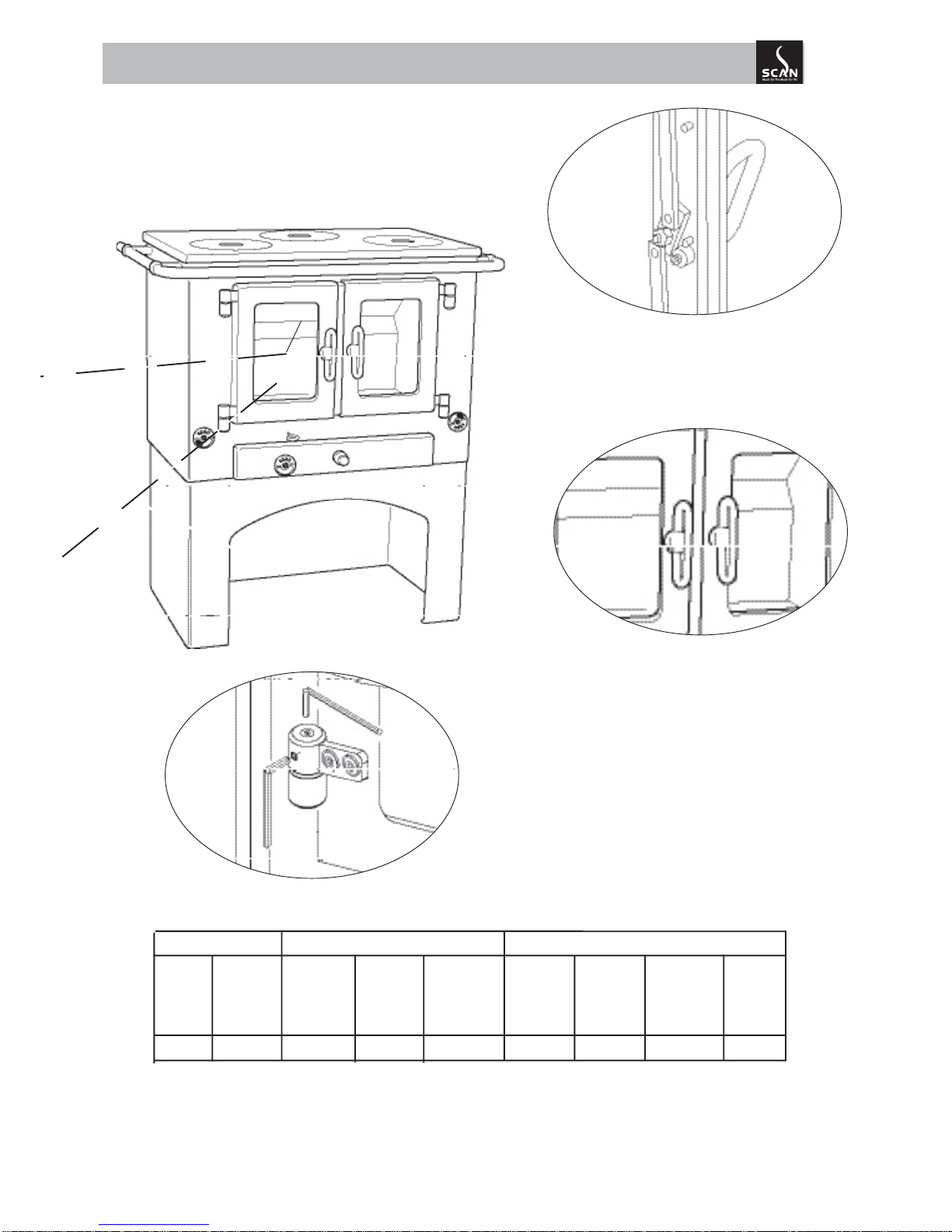

Adjustment of the handle

If the handle is not in the vertical position, you

can adjust as follows: loosen the screw (see

illustration), put the handle in the vertical posi-

tion and tighten the screw.

Handle

The door is opened by turning the handle

counter-clockwise.

Self-closing door (BA 1)

The door is prepared with a self-closing function at the fac-

tory. If you tighten the spring with the hexagon spanner, the

door will close automatically when you let go of it.

Accessories

For this model you can have the following accessories:

• Large grill

• Steel floor plate

SCAN 4

Stove

model

SCAN

Connecting

adaptor

Density of

flue gas

flow

g/s

Flue gas

tempera-

ture

Minimum

draft

Density of

flue gas

flow

g/s

Flue gas

temperature

Minimum

draft

0,8

Minimum

draft

4150 - - - 6 320 14 11

With closed doorsWith open doors

Data for calculation of the chimney

Column 2 and 5 show the flue gas temperature in the connecting adaptor

Column 3 and 6 show the lowest/minimum draft in Pa by rated value

Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value

Krog Iversen & Co. A/S - DK-5492 Vissenbjerg

Warranty conditions

All SCAN wood-burning stoves and inserts are made of first-class material and

are subject to a strict quality control before they leave the factory. However, if

an error should occur, we back all SCAN wood-burning stoves and inserts with

an extensive, five-year limited warranty.

See also the General Instructions for Installation delivered with your stove

for more details.

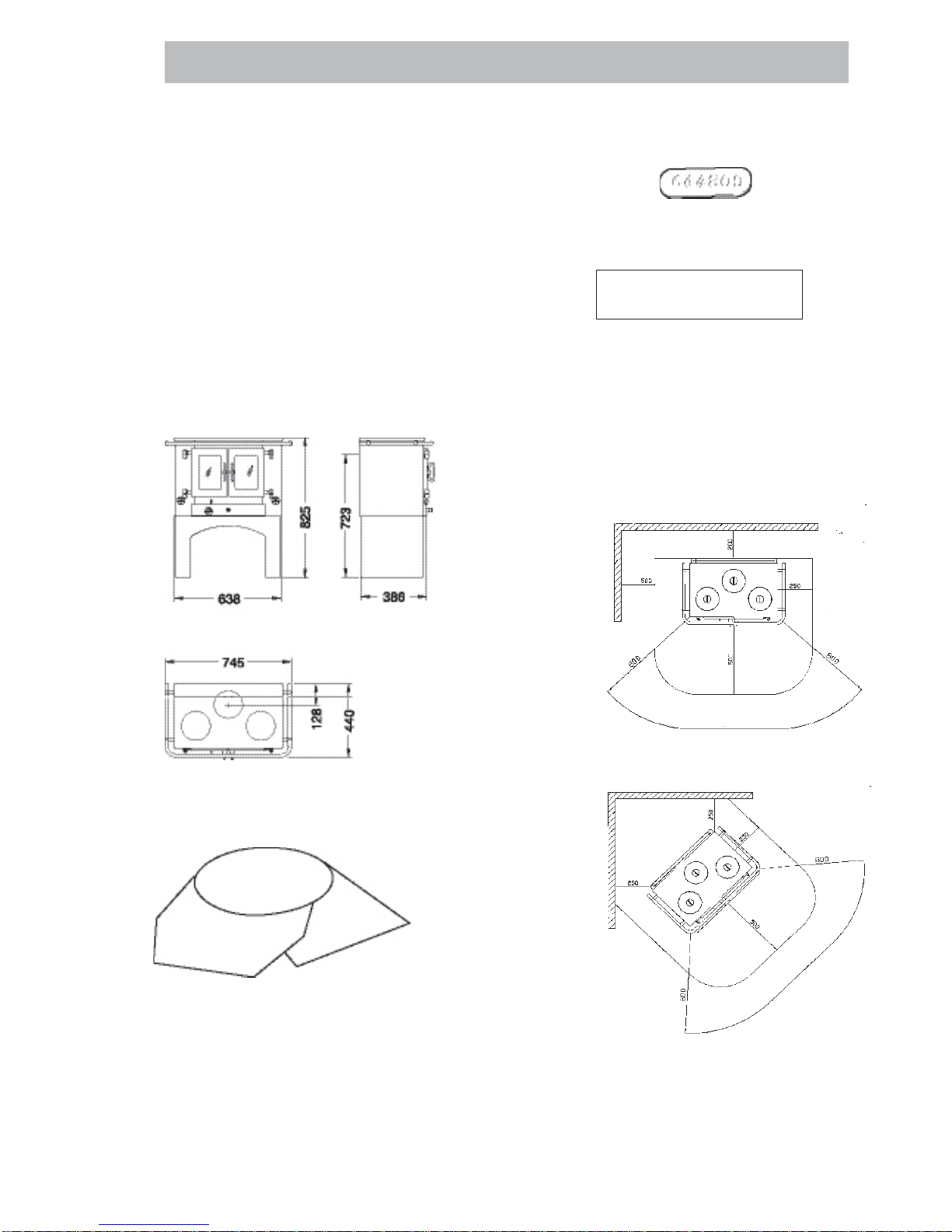

Technical info

Rated output: 7 kW

Min./max.: 3 - 9 kW

Weight: 115 kg

Connection piece, diameter: int. 135 mm / ext. 148 mm

*To the middle of the rear outlet

Distances to flammable

materials (mm)

Production number

Write the production number of your

stove here so that you have it at hand

in case you need to contact us.

You can choose between several floor plates in

different shapes and dimensions for your stove.

Please contact your local authorities concer-

ning the security distances needed.

SCAN 4

Base plate

Radiation area

You should read this manual as well as the General Instructions for Installation before beginning the installation.
