SCAN Basic1 Manuel utilisateur

SCAN Basic1

& SCAN Basic 3

INSTRUCTIONS FOR

INSTALLATION AND USE

This manual is accompanied by a

pamphlet with General Instructions for

Installation.

MONTERINGSVEJLEDNING

med brugs- og fyringsanvisning

Indhold:

Generelle råd og anvisninger . . . . . . . . . .2-3

Reklamationsret

Type- og miljøgodkendelse

Udpakning

Tilbehør til din pejs

Montering af kakler og fedtsten

Kvalitetskontrol

Anmeldelsespligt

Skorstenstjek

Skorstensløsninger

Bærende underlag

Brændbar eller ikke brændbar væg

Gulvplade

Varmefordeling

Justerskrue

Typeskilt

Produktionsnr.

Servicepakke

Monteringsvejledning. . . . . . . . . . . . . . . . .4-7

Tilslutning til eksisterende/muret skorsten

Tilslutning topafgang til stålskorsten

Forbrændingsluft udefra

Brugs- og fyringsanvisning . . . . . . . . . . . 8-10

Vedligeholdelse af pejseovnen

Håndtering af brændsel

Optænding og fyring

Fejlsøgning . . . . . . . . . . . . . . . . . . . . . . . . 11

SCAN 3

BRUGSANVISNING

TildenneBrugsanvisninghørerogsåen

generelMonteringsvejledning. Udgave03.03-DK

MONTERINGSVEJLEDNING

medbrugs-ogfyringsanvisning

Indhold:

Generellerådoganvisninger..........2-3

Reklamationsret

Type-ogmiljøgodkendelse

Udpakning

Tilbehørtildinpejs

Monteringafkaklerogfedtsten

Kvalitetskontrol

Anmeldelsespligt

Skorstenstjek

Skorstensløsninger

Bærendeunderlag

Brændbarellerikkebrændbarvæg

Gulvplade

Varmefordeling

Selvlukkendelåge

Justerskrue

Typeskilt

Produktionsnr.

Servicepakke

Monteringsvejledning.................4-7

Tilslutningtileksisterende/muretskorsten

Tilslutningtopafgangtilstålskorsten

Forbrændingsluftudefra

Brugs-ogfyringsanvisning...........8-10

Vedligeholdelseafpejseovnen

Håndteringafbrændsel

Optændingogfyring

Fejlsøgning........................11

Tildennemonteringsvejledninghørerogsåen

separatbrugsanvisningfordenenkeltepejs.

Udgave02/03-DK

Til dennemonteringsvejledning hørerogsåen

separatbrugsanvisning fordenenkelte pejs.

Udgave 02/03 - DK

Edition 10.04 - GB

Approved according to DIN 18891

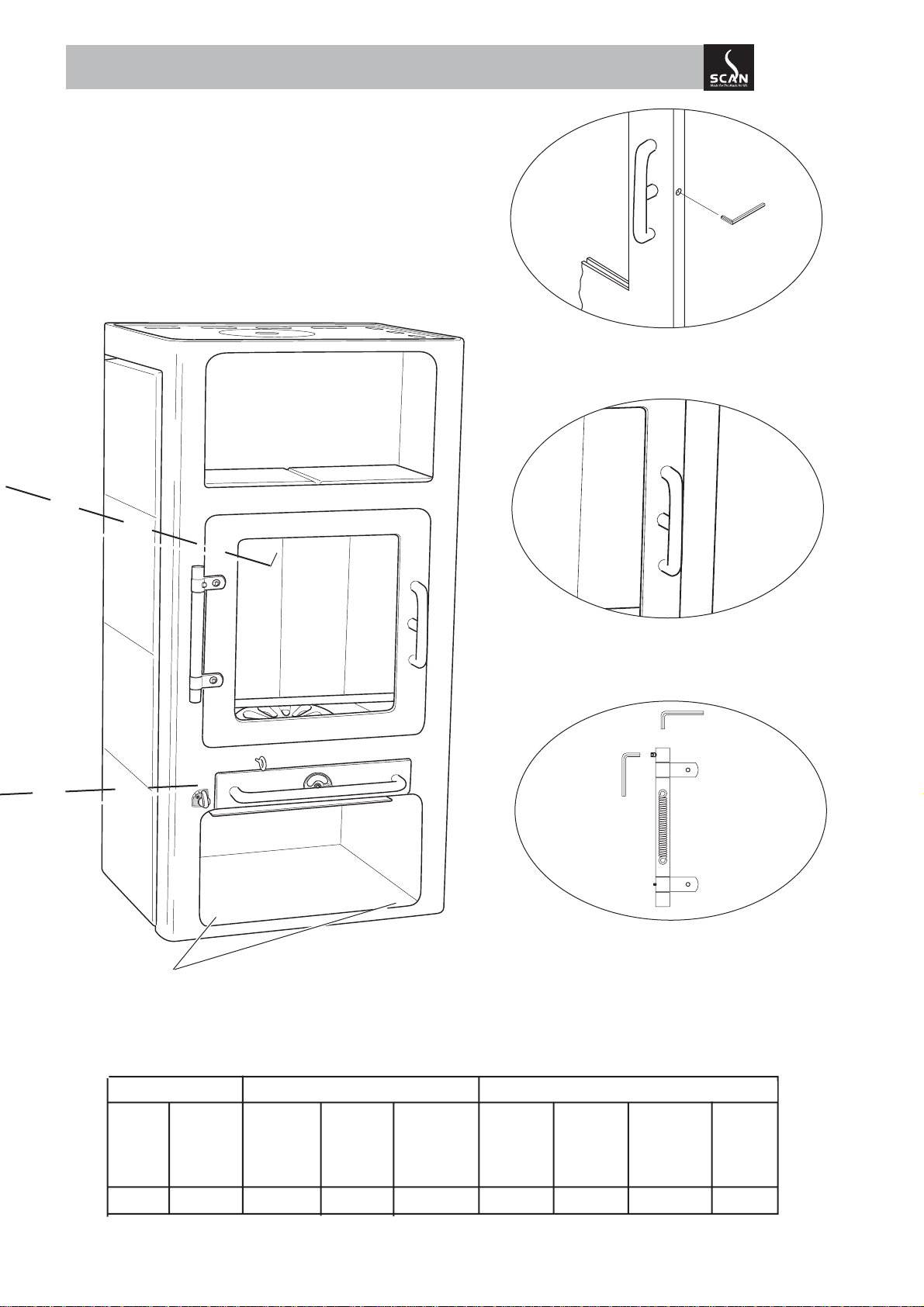

1 Ashtray. The ashtray is placed below the com-

bustion chamber. Attention! Be careful when

you empty ashes from the stove. There may be

embers left for up to 24 hours after the stove was

last used.

2 Handle for shaking grate. The stove is equipped

with a shaking grate. When you activate the grate

handle, the ashes from the combustion chamber

are emptied into the ashtray.

3 Regulation for primary air. Turn the air valve

in order to open. The primary air is used when

lighting and refuelling the stove. It should always

be closed during continuous firing.

4 Regulation for combustion air. Push the button

sideways. Left position is closed and right position

is open. The air is used for the combustion and

regulates the output of the stove.

The ashtray, shaking grate, and primary air should

always be closed during continuous firing..

Ceramic smoke deflector

In order to dismount the ceramic smoke

deflector, lift the plate so that it is free of the

fitting on one side and remove it through the

combustion chamber.

You have chosen a product from one of Europe's leading manufacturers of wood-burning stoves. We are

convinced that your stove will be to your full satisfaction and give you many hours of pleasure if you follow

the advice and instructions of this manual.

Please read this manual as well as the General Instructions for Installation before beginning the

installation.

Congratulations on your new SCAN stove!

Adjustment of the air

SCAN Basic 1 & SCAN Basic 3

Wood / briquettes Fuel kg/h (beechwood

max. 20% humidity)

SCAN Basic 1 & 3 2,2 kg

Combustion air % 75

Primary air % 0

Adjustment of the handle

The vertical position of the handle can be

adjusted with the screw in the door frame.

Accessories

For these models you can have the following accessories:

Handle

The door is opened by turning the handle

counter-clockwise.

Adjustment screws

The stove has two adjustment screws

on the bottom that can be used for

levelling the stove.

Self-closing door (BA 1)

The door is prepared with a self-closing function at the

factory. If you tighten the spring with the hexagon spanner,

the door will close automatically when you let go of it.

• Lateral covering in soapsto-

ne or ceramic tiles (white or

blue) for SCAN Basic 3

• Top plate in soapstone for

SCAN Basic 3

• Baking-compartment door

• Small grill

• Steel floor plate

• Connection piece

for fresh-air intake

SCAN Basic 1 & SCAN Basic 3

Data for calculation of the chimney

Stove

model

SCAN

Connecting

adaptor

Density of

flue gas

flow

g/s

Flue gas

tempera-

ture

Minimum

draft

Density of

flue gas

flow

g/s

Flue gas

temperature

Minimum

draft

0,8

Minimum

draft

B1&3 150 23 240 10 6 300 14 11

With closed doorsWith open doors

Column 2 and 5 show the flue gas temperature in the connecting adaptor

Column 3 and 6 show the lowest/minimum draft in Pa by rated value

Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value

The stoves can be prepared for an external air supply where

fresh air is let directly into the combustion chamber (must be

mounted from the factory).

Krog Iversen & Co. A/S - DK-5492 Vissenbjerg

Warranty conditions

All SCAN wood-burning stoves and inserts are made of first-class material and

are subject to a strict quality control before they leave the factory. However, if

an error should occur, we back all SCAN wood-burning stoves and inserts with

an extensive, five-year limited warranty.

See also the General Instructions for Installation delivered with your stove

for more details.

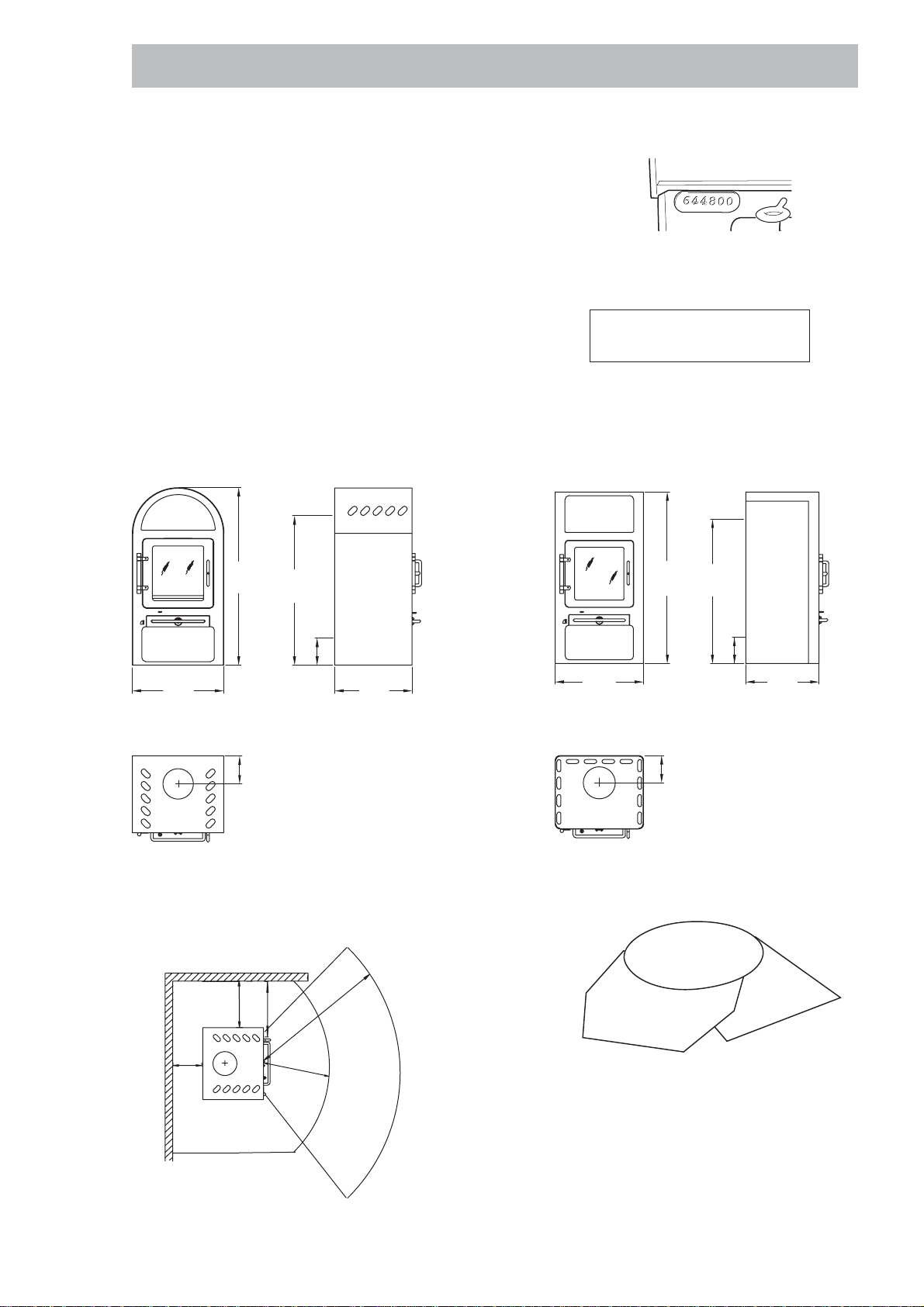

Technical info

Rated output: 7 kW

Min./max.: 3 - 9 kW

Weight SCAN B1: 125 kg

Weight SCAN B3: 130 - 210 kg

Connection piece, diameter: int. 135 mm / ext. 150 mm

Production number

Write the production number of your

stove here so that you have it at hand

in case you need to contact us.

You can choose between several floor

plates in different shapes and dimensions

for your stove. Please contact your local

authorities concerning the security distan-

ces needed.

980

825

150

506

156

420

506

156

426

150

825

980

* To the middle of the rear outlet

** Connection to fresh-air intake

Distances to flammable materials (mm)

SCAN Basic 1 SCAN Basic 3

SCAN Basic 1 & SCAN Basic 3

Base plate

200

300

200

500

800

Radiation area

You should read this manual as well as the General Instructions for Installation before beginning the installation.
