Sauter TPE-N Manuel utilisateur

Sauter GmbH

Ziegelei 1

D-72336 Balingen

e-mail: info@kern-sohn.com

Phone : +49-[0]7433- 9933-0

Fax: +49-[0]7433-9933-149

Internet: www.sauter.eu

Instruction Manual Peel Test

Attachment

SAUTER TPE-N

Version 1.0

12/2020

TPE-N-BA-e-2010

PROFESSIONAL MEASURING

2 TPE-N-BA-e-2010

SAUTER TPE-N

V. 1.0 12/2020

Instruction Manual Peel Test Attachment

Congratulations on the purchase of the SAUTER TPE-N test stand. We hope you enjoy

your qualitymeasurement system with its wide range offunctions. If operated correctly,

this high-quality product will give you many years of use.

For questions, wishes or suggestions we are always at your disposal.

Table of contents:

1Attaching the TPE-N to a TVO-S 1000/2000 test stand............................... 3

2Technical data................................................................................................ 5

3How it works................................................................................................... 6

4Maintenance................................................................................................... 6

5Scope of delivery........................................................................................... 6

TPE-N-BA-e-2010 TPE-N-BA-e-20103

1 Attaching the TPE-N to a TVO-S 1000/2000 test stand

In order to be able to attach the TPE-N to a TVO-S 1000/2000 test stand, you must

carry out the following steps as preparation:

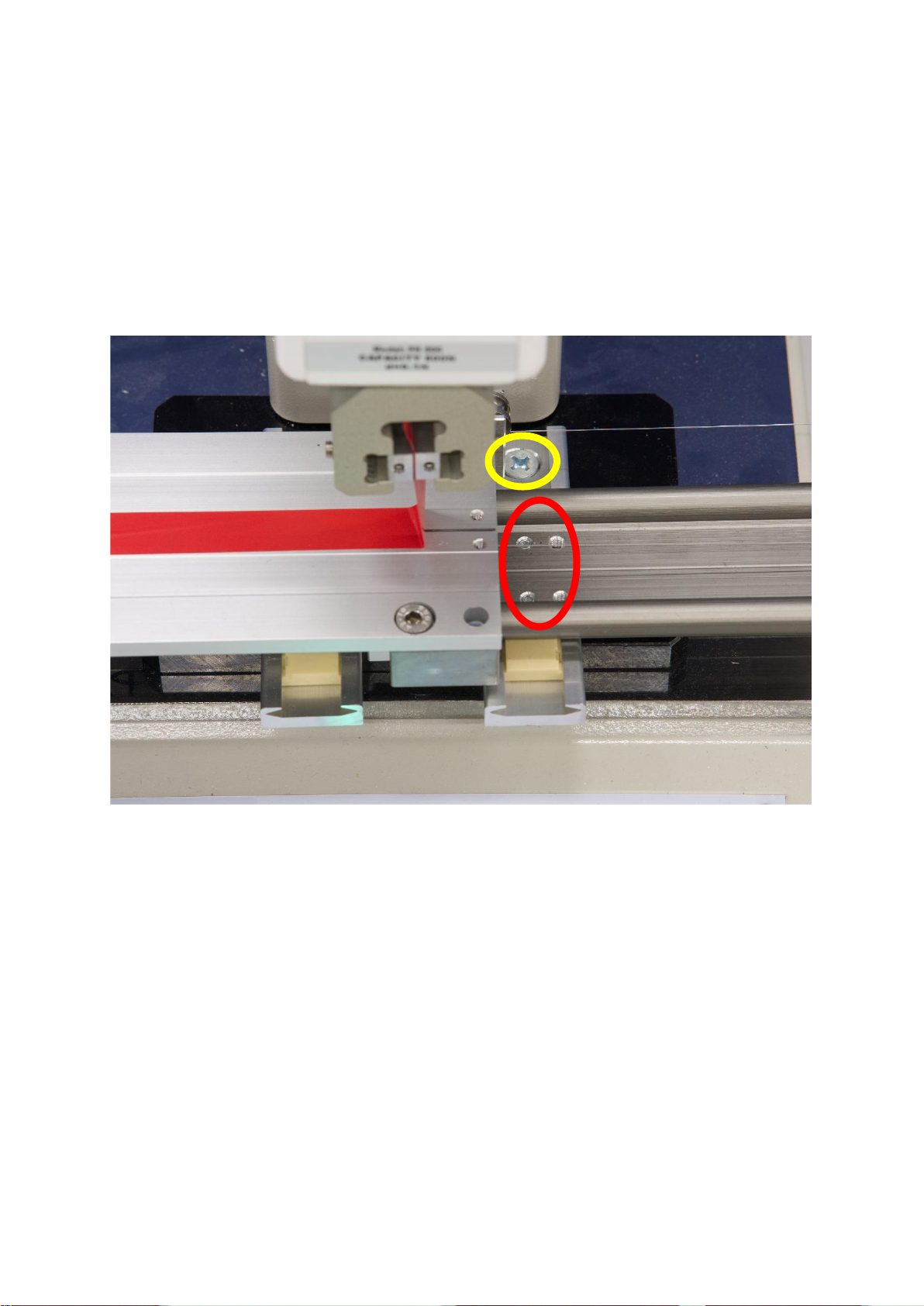

1.1 Fit the TPE-N running rails according to the drilling pattern of the TVO-S

1000/2000 base plate (marked red). These drill holes must be adjusted on both

tracks of the TPE-N

1.2 Now fix the TPE-N with the two screws supplied (marked yellow)

4 TPE-N-BA-e-2010

1.3 The next step is to mount the force gauge on the TVO-S 1000/2000. Use the

adapter plates supplied with the TVO-S 1000/2000 and the screws provided.

During assembly, clamp the TPE-N thread between the adapter plates (see red

marking in the picture). The position should be as low as possible to have as

much test travel as possible.

1.4 Now you can mount the clamp to the force gauge (here AE 500, red marking)

TPE-N-BA-e-2010 TPE-N-BA-e-20105

1.5 Now glue your test specimen on the TPE-N and clamp one end of the test

specimen in the clamp of the force gauge. IMPORTANT: Glue the test

specimen in the centre of the TPE-N.

1.6 As a last step, wire the test stand and the force gauge according to the operating

instructions provided in order to start the test of the test specimen (possible with

or without software, not included in the scope of delivery).

2 Technical data

Capacity

500N

Maximum tractive force

500N

Maximum length of the test specimen

Up to 200mm

Working temperature

20±10°C

Storage and delivery temperature

-27°C up to 70°C

Relative air humidity

15% up to 80%

6 TPE-N-BA-e-2010

3 How it works

Please check everything before commissioning!

1. The carriage of the device should be checked for easy movement by moving it

back and forth without a suspended load.

4 Maintenance

1. The surroundings of the TPE-N must be kept clean;

2. The rail responsible for the movement should be kept free of liquids or objects.

3. The TPE-N should always be stored dust-free and free from moisture when not

in use.

5 Scope of delivery

•TPE-N

•Adapter plates with screws

•Operating instructions
