SATO M-5900RVe Series Manuel utilisateur

PN 9001121B

M5900RVe PRINTER

PARTS LIST

SATO America, Inc.

10350A Nations Ford Road

Charlotte, NC 28273

Main Phone: 704.644.1650

Technical Support Hotline: 704.644.1660

Technical Support Fax: 704.644.1662

E-Mail: satosale[email protected]

www.satoamerica.com

SATO M5900RVe Parts List PN 9001121B Page 1

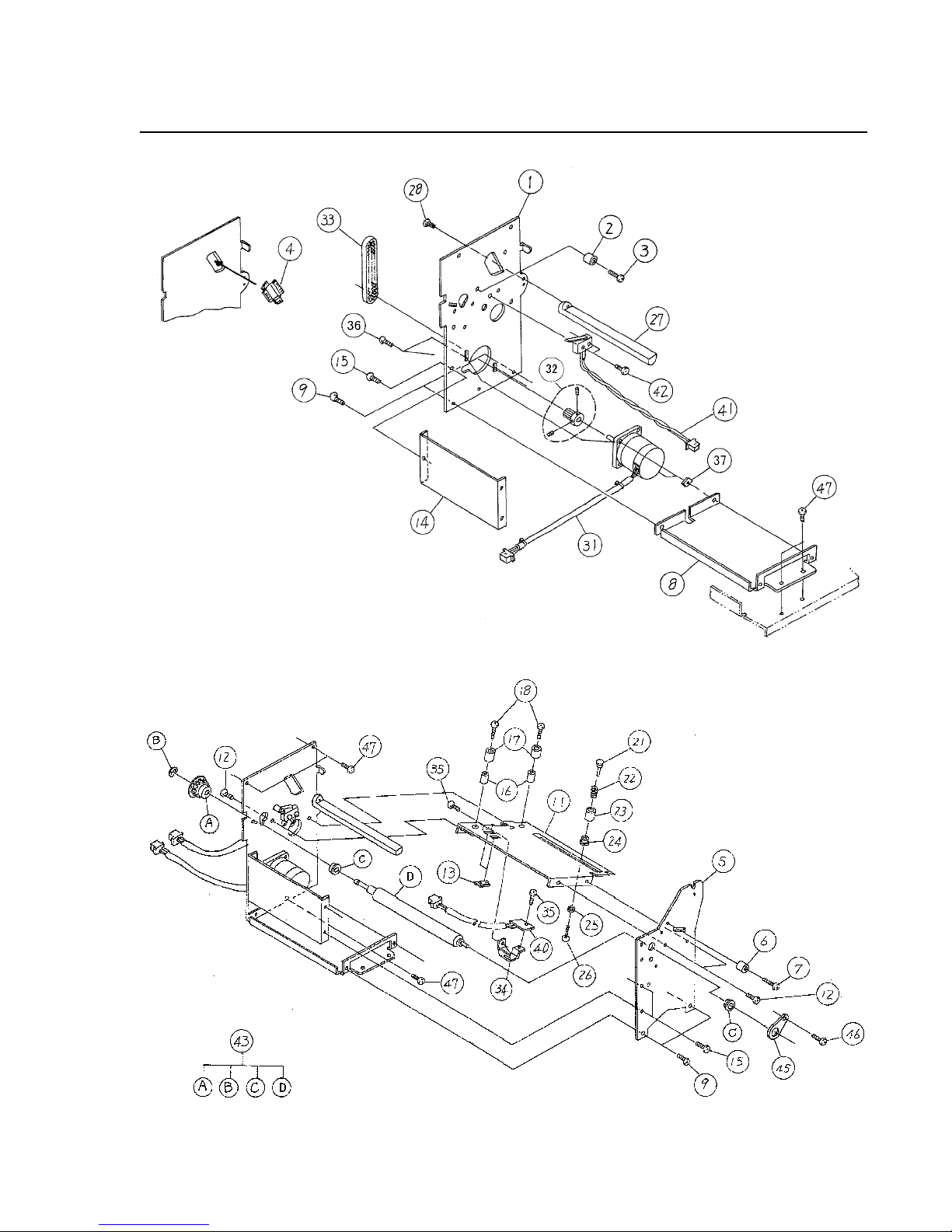

FRAME ASSEMBLY WITH DRIVE TRAIN

Figure PL1a, Frame Assembly

Figure PL1b, Frame Assembly

SATO M5900RVe Parts List PN 9001121B Page 2

FRAME ASSEMBLY WITH DRIVE TRAIN

ITEM PART NUMBER PART DESCRIPTION QTY

1 PA2520600 LEFT FRAME MEMBER 1

2 PB2520200 COLLAR 1

3 MA0401021 PAN HEAD SCREW 1

4 PV9720200 BUSH 1

5 PA2520700 RIGHT FRAME MEMBER 1

6 PB2520200 COLLAR 1

7 MA0401021 PAN HEAD SCREW 1

8 PA3522500 LOWER BRACKET 1

9 MH4300821 PAN HEAD SCREW, S-TIGHT 4

11 PA3522600 PAPER RAMP 1

12 MH4300821 PAN HEAD SCREW, S-TIGHT 4

13 PE1570801 SENSOR WINDOW 2

14 PA3523700 FRONT BRACE 1

15 MH4300621 PAN HEAD SCREW, S-TIGHT 3

16 PE3520400 SPACER 2

17 PE3520500 ROLLER 2

18 MA0301022 PAN HEAD SCREW 2

21 PE2520300 KNOB CAP 1

22 PC1520200 SPRING 1

23 PE3520101 KNOB 1

24 PM6401200 BUSH 1

25 PT9520400 WASHER 1

26 MH0300821 PAN HEAD SCREW, P-TIGHT 1

27 PE1520300 LABEL GUIDE, BLACK PLASTIC 1

28 MH0300821 PAN HEAD SCREW, P-TIGHT 1

31 PR7520100 MOTOR, STEPPER 1

32 PR7520200 MOTOR PULLEY 1

33 PT8122064 TIMING BELT 1

34 PA3522700 SENSOR BRACKET 1

35 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 2

36 MD4401421 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 2

37 PA1190000 PLATE NUT 2

40 RJ3520000 SENSOR 1

41 RH1523300 HEAD OPEN SWITCH 1

42 MD3201221 PAN HEAD SCREW W/NARROW FLAT & LOCK WASHER 2

43 PR1520300 PLATEN ROLLER 1

45 PA1680200 RETAINING CLAMP 1

46 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 1

47 MD4300821 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 5

SATO M5900RVe Parts List PN 9001121B Page 3

HOUSING AND ELECTRONICS ASSEMBLIES

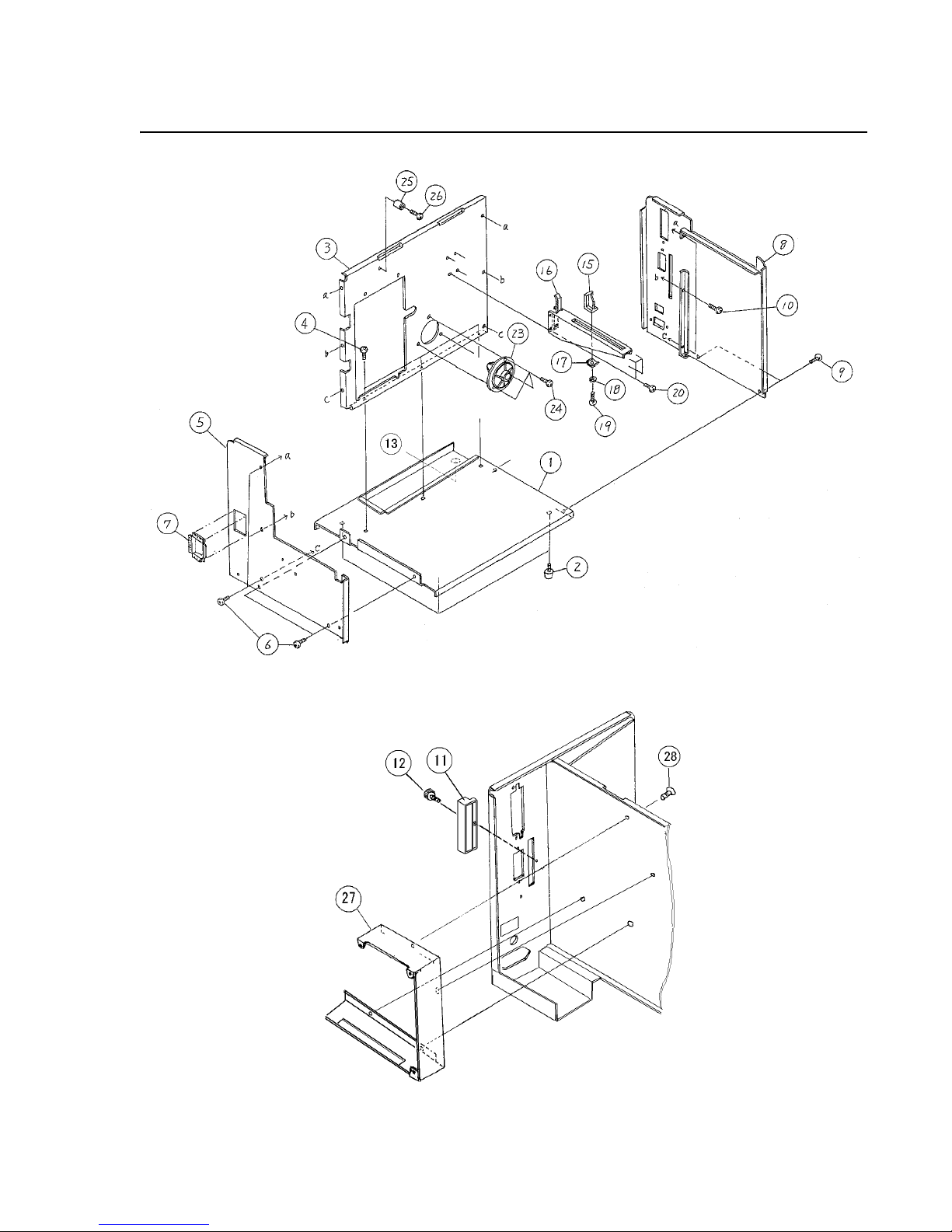

Figure PL2a, Housing Cover Assembly

Figure PL2b, Housing Cover Assembly

SATO M5900RVe Parts List PN 9001121B Page 4

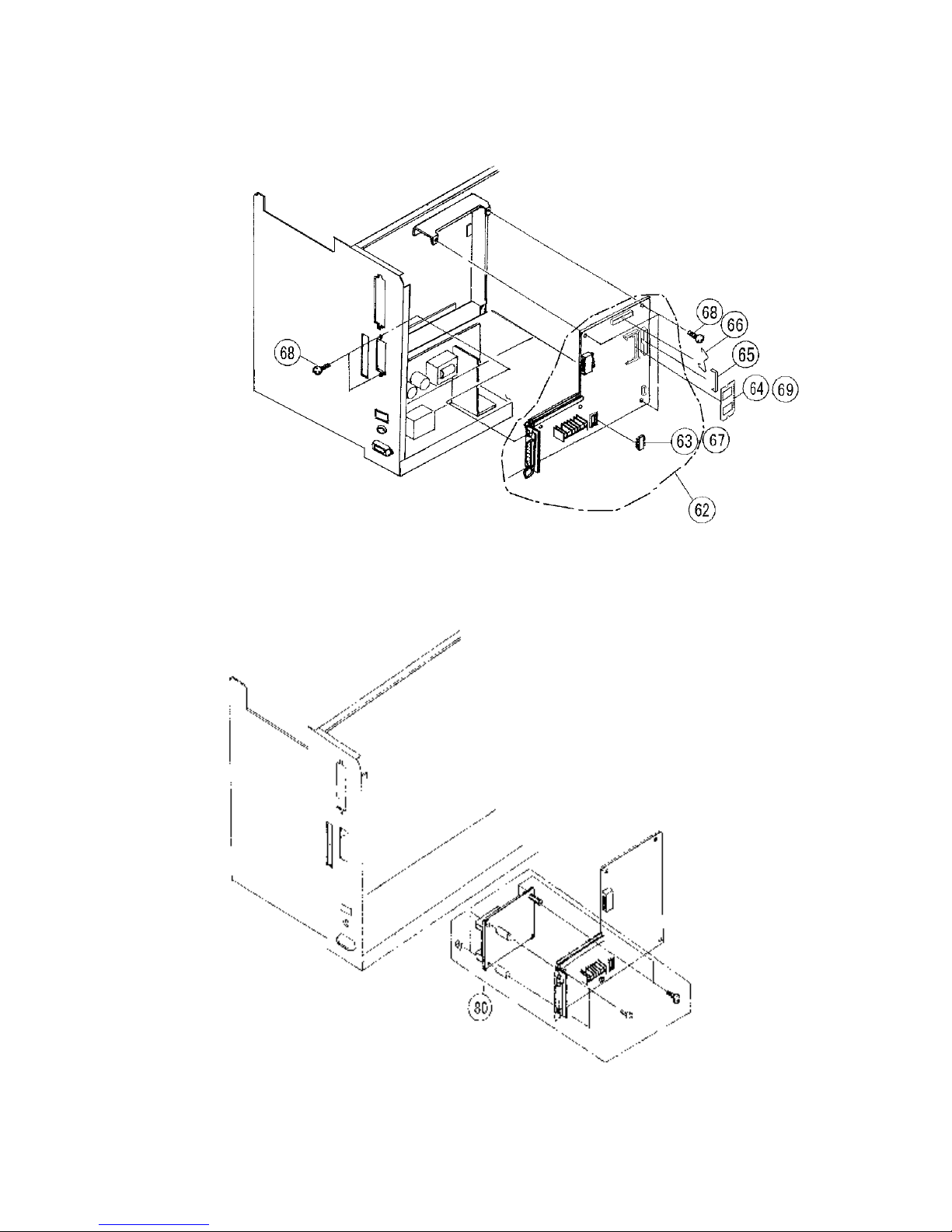

Figure PL2c, Housing cover Assembly

Figure PL2d, Housing Cover Assembly

SATO M5900RVe Parts List PN 9001121B Page 5

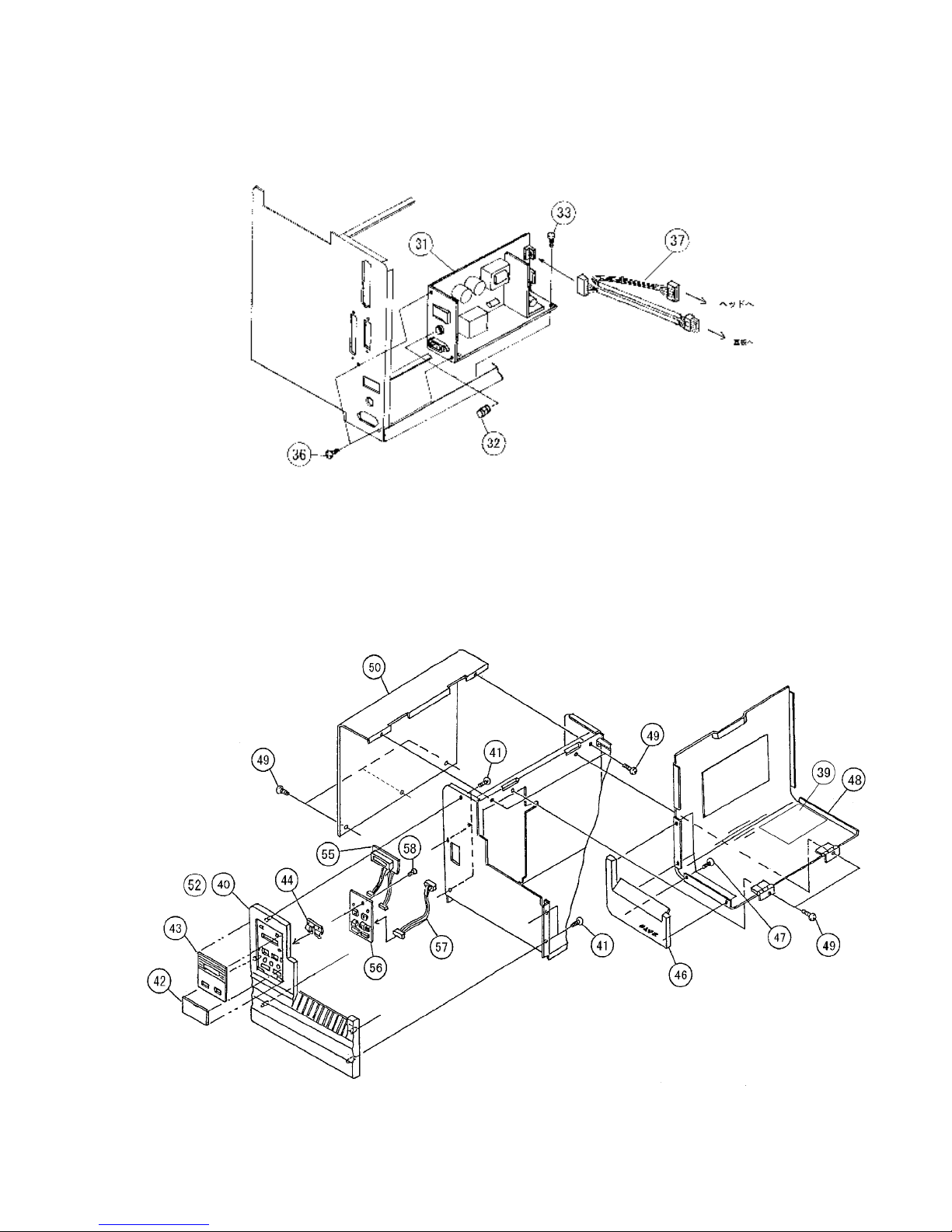

Figure PL2e, Housing Cover Assembly

Figure PL2f, Housing Cover Assembly

SATO M5900RVe Parts List PN 9001121B Page 6

HOUSING AND ELECTRONICS ASSEMBLIES

ITEM PART NUMBER PART DESCRIPTION QTY

1 P00893000 BASE ASSEMBLY 1

2 P00796000 BOOT, RUBBER 3

3 P00319010 CENTER FRAME 1

4 MH4300821 PAN HEAD SCREW 3

5 PH1523300 FRONT PLATE 1

6 MH4300821 PAN HEAD SCREW 5

7 PV9520300 BUSH 1

8 P00316000 REAR HOUSING COVER 1

9 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 2

10 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 3

11 PE6771001 MEMORY CARD 1

12 PB5A20001 THUMB SCREW, KNURLED 1

13 PV2760100 BOOT, RUBBER 1

15 PE1720300 LABEL GUIDE 1

16 PA3524000 LABEL SUPPLY BRACKET 1

17 PA4520300 LABEL GUIDE SPRING 1

18 NA1003022 FLAT WASHER 1

19 MH0300821 PAN HEAD SCREW, P-TIGHT 1

20 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 4

23 PE1520600 REWIND SHAFT BRACKET, PLASTIC, BLACK 1

24 MH4300821 PAN HEAD SCREW 3

25 PE2520101 SPACER 1

26 MA0401621 PAN HEAD SCREW 1

27 P00321000 CIRCUIT BOARD BRACKET 1

28 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 4

31 KA500631A POWER BOARD ASSEMBLY 1

32 HD100321A CERAMIC FUSE, 250V/3.15A 1

33 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 2

36 MD4300821 PAN HEAD SCREW, P-TIGHT 2

37 RH1775100 POWER/HEAD WIRING HARNESS 1

39 Q00128000 ADHESIVE LABEL 1

40 PH0520700 FRONT HOUSING COVER (A), PLASTIC, GREY 1

41 MH0300821 PAN HEAD SCREW, P-TIGHT 5

42 PH0520800 DIP SWITCH COVER, PLASTIC, GREY 1

43 PH2520700 PANEL, CLEAR PLASTIC 1

44 PE1520800 SWITCH BUTTON 1

46 P00532000 FRONT HOUSING COVER (B), PLASTIC, GREY 1

47 MH0300821 PAN HEAD SCREW, P-TIGHT 4

48 PH1523500 RIGHT HOUSING COVER 1

SATO M5900RVe Parts List PN 9001121B Page 7

49 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER 7

50 P00317000 LEFT HOUSING COVER 1

52 PV3520700 FRONT HOUSING COVER (C) 1

55 RH1745700 LCD BOARD W/WIRING HARNESS 1

56 RJ2522020 PANEL BOARD 1

57 RH1770500 PANEL BOARD WIRING HARNESS 1

58 MH0300821 PAN HEAD SCREW, P-TIGHT 1

62 R00459000 MAIN CIRCUIT BOARD 1

63 CJ058651A EEPROM 1

64 RJ7770200 MEMORY CARD 1

65 PA3739900 CONNECTOR LOCK 1

66 PC9730100 LOCK SPRING 1

67 CV617431A REAL-TIME CLOCK (OPTION) 1

68 MD4300621 PAN HEAD SCREW 3

69 RJ7770300 4MB MEMORY CARD (OPTION) 1

80 RJ4770100 EXPANSION BOARD (OPTION) 1

HOUSING AND ELECTRONICS ASSEMBLIES

ITEM PART NUMBER PART DESCRIPTION QTY

SATO M5900RVe Parts List PN 9001121B Page 8

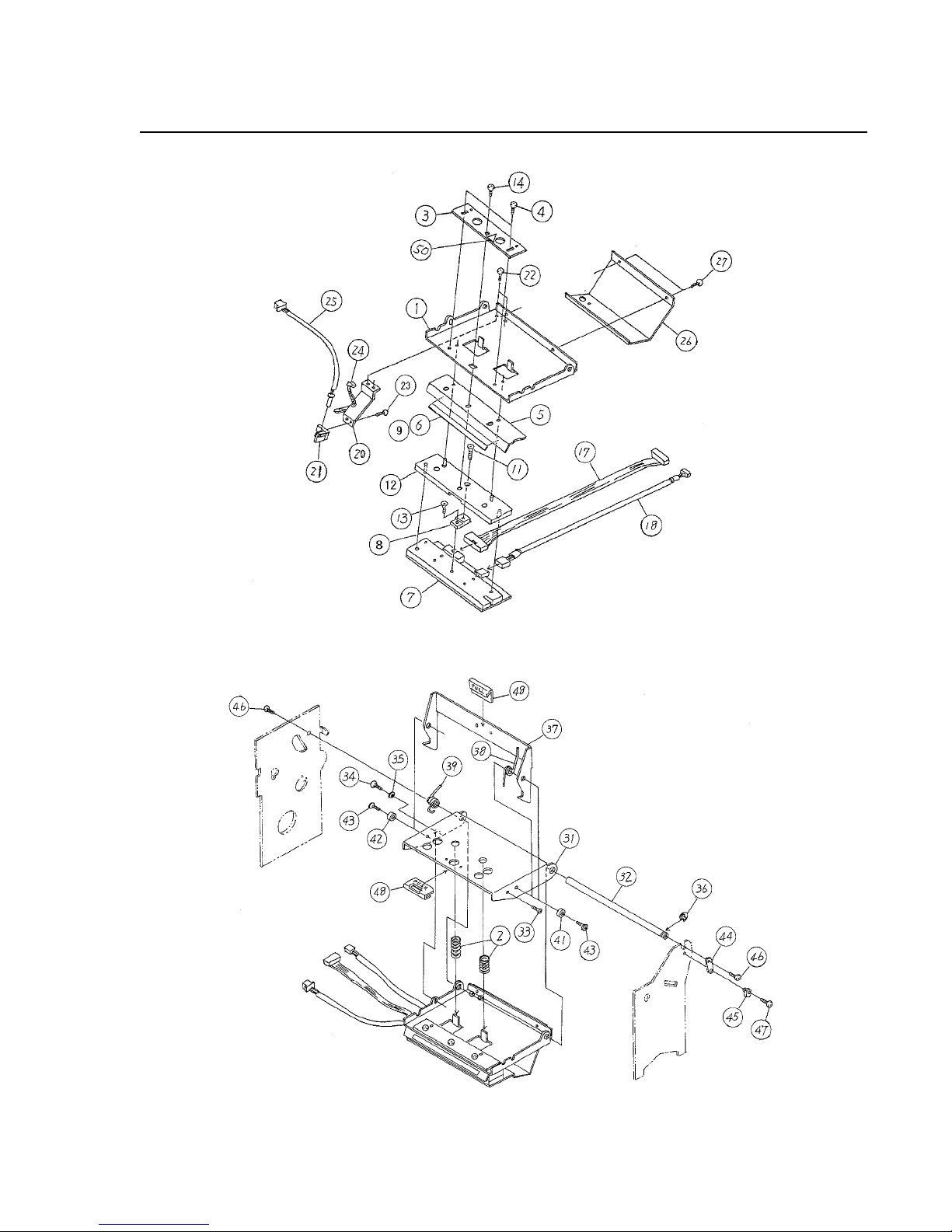

PRINT ASSEMBLY

Figure PL3a, Print Assembly

Figure PL3b, Print Assembly
