SATO D508 Manuel utilisateur

PN: 9001182

D508/D512

PRINTER

PARTS LIST

PN: 9001182

SATO America, Inc.

10350A Nations Ford Road

Charlotte, NC 28273

Main Phone: (704) 644.1650

Technical Support Hotline: (704) 644.1660

Technical Support Fax: (704) 644.1661

E-Mail: satosale[email protected]

techsupport@satoamerica.com

www.satoamerica.com

Sato D508 / D512 Parts List Page 1/10

BASE COVER ASSEMBLY

Item No. Part No. Description Type Qty

1 MA0300622 Screw Pan Head 4

2 MA0300822 Screw Pan Head 1

3 MH0301022 Screw Pan Head P Tight 1

4 MH9300822 Screw Pan Head P Tight 1

5 P10277000 Shaft Label Guide 1

6 P10719000 Button Opening 1

7 P10724000 Cover RFID 1

8 PE6A21900 Driver Micro 1

9 PJ0A20500 Gear L Guide 1

10 R07184000 Cabinet Bottom 1

Page 2/10 Sato D508 / D512 Parts List

BASE COVER ASSEMBLY (CONT’D)

Sato D508 / D512 Parts List Page 3/10

Item

No. Part No. Part

Type Part Name Qty Item

No. Part No. Part

Type Part Name Qty

1 MH0250625 Screw P-TAP PAN

TIGHT

7 11 PE5A21202 Guide LABEL (L) 1

2 MH1300825 Screw FLAT HEAD P

TIGHT

1 12 PE5A21302 Guide LABEL (R) 1

3 ND0025030 Ring E SNAP 2 13 PE5A21402 Cover SENSOR 1

4 PA2A20000 Cover GUIDE 2 14 PE5A21802 Stopper GUIDE 1

5 PA4A20000 Spring PLATE G 1 15 R04681000 Assy LABEL sensor

(A) (eye-mark

and lower gap)

6 PB0A20500 Shaft LABEL 2 16 R04683000 Assy LABEL sensor

(B) (upper gap)

7 PB0A20600 Shaft FLAP 2 17 R04684000 Relay PB ASSY 1

8 PC1A20100 Spring FLAP 2 18 R05162000 Assy LABEL (L) SA

9 PE3A20100 Collar LABEL 2 19 R05612000 Assy LABEL (R)

10 PE5A21100 Guide FLAP 2

Page 4/10 Sato D508 / D512 Parts List

BASE COVER ASSEMBLY (CONT’D)

Item

No. Part No. Part

Type Part Name Qty Item

No. Part No. Part

Type Part Name Qty

1MD4300822 Screw PAN HEAD 2 11 Q01289000 Sticker DIP SWITCH 1

2ND0040022 Ring E-SNAP 2 12 R04726001 Assy PLATEN SA -

Parts 2, 3, 8, 9

and 10

3P10255001 Roller PLATEN 1 13 R07238000 Assy FRONT PANEL -

Parts 4, 6, and

4P10720020 Windo

7 SEG 1

5P10722000 Cover GEAR 1

6P10727100 FRONT PANEL 1

7 P11474000 Unit CUTTER 1

8 PA3A20003 Bar DP 1

9 PB2A20100 Gear P.COLLAR 2

10 PJ0A20201 Gear P. GEAR 1

Sato D508 / D512 Parts List Page 5/10

BASE COVER ASSEMBLY (CONT’D)

Item

No. Part No. Part

Type Part Name Qt

Item

No. Part No. Part

Type Part Name Qt

1 J00040000 Clamp NYLON 1 9 PA6A20000 Brack

POWER SWITCH 1

2 JG100481A Clamp CKN 1 10 PE0A20000 Foot 4

3 MH0301022 Screw PAN HEAD P TIGHT 14 11 PE5A22250 Cover I/F MAIN 1

4 MH9300822 Screw PAN HEAD P TIGHT 4 12 R04568602 PCB MAIN 1

5 P10716010 Clamp 1 13 R04685000 Assy CONTROL PANEL 1

6 P10717000 Lens 1 14 R04688010 Assy POWER CABLE,

110V

7 P10718000 Button 1 15 R07240000 Case BOTTOM SA 1

8 P10730200 Cover IF 1 16 R07831000 Assy POWER CABLE,

220V

Page 6/10 Sato D508 / D512 Parts List

BASE COVER ASSEMBLY (CONT’D)

Item

No. Part No. Part

Type Part Name Qty Item

No. Part No. Part

Type Part Name Qty

1 F00177000 Sensor PHOTO 1 9 P10733020 Cover UW 1

2 M16247000 Screw P TAP FLAT 1 10 P12748010 Spring DAMPER 1

3 MA0300622 Screw PAN HEAD 1 11 Q01286000 Label ROUTE 1

4 MH0301022 Screw PAN HEAD P TIGHT 5 12 R04731020 Shaft HINGE L 1

5 ND0070022 Ring E-SNAP 1 13 R07161000 Cabinet TOP SA 1

6 P10302010 Shaft HINGE R 1 14 RH1A20025 Assy HEAD CABLE 1

7 P10723000 Holder HINGE SHAFT 2 15 R07241000 Hinge CLUTCH 1

8 P10726000 Cover CABLE 1

Sato D508 / D512 Parts List Page 7/10

FRAME ASSEMBLY

Item

No. Part No. Part

Type Part Name Qty Item

No. Part No. Part

Type Part Name Qty

1 JG100481A Clamp CKN 1 8 P10713010 Arm HEAD LOCK 1

2 K00081000 Motor STEPPING 1 9 P14224000 Collar HEAD LOCK 2

3 MD3300622 Screw PAN HEAD 8 10 PA3A20300 Sink HEAT 1

4a ND0020030 Ring E-SNAP (D512) 2 11a PJ0A20101 Gear DOUBLE

(D512)

4b ND0030022 Ring E-SNAP (D508) 2 11b PJ0A20301 Gear DOUBLE

(D508)

5 P02367000 Pad HEAT CONDUCTION 1 12 PJ0A20401 Gear IDLE 1

6 P10261010 Spring HEAD LOCK 1 13 PR1A20002 Plate MOTOR 1

7 P10271000 Frame ENGINE 1

Page 8/10 Sato D508 / D512 Parts List

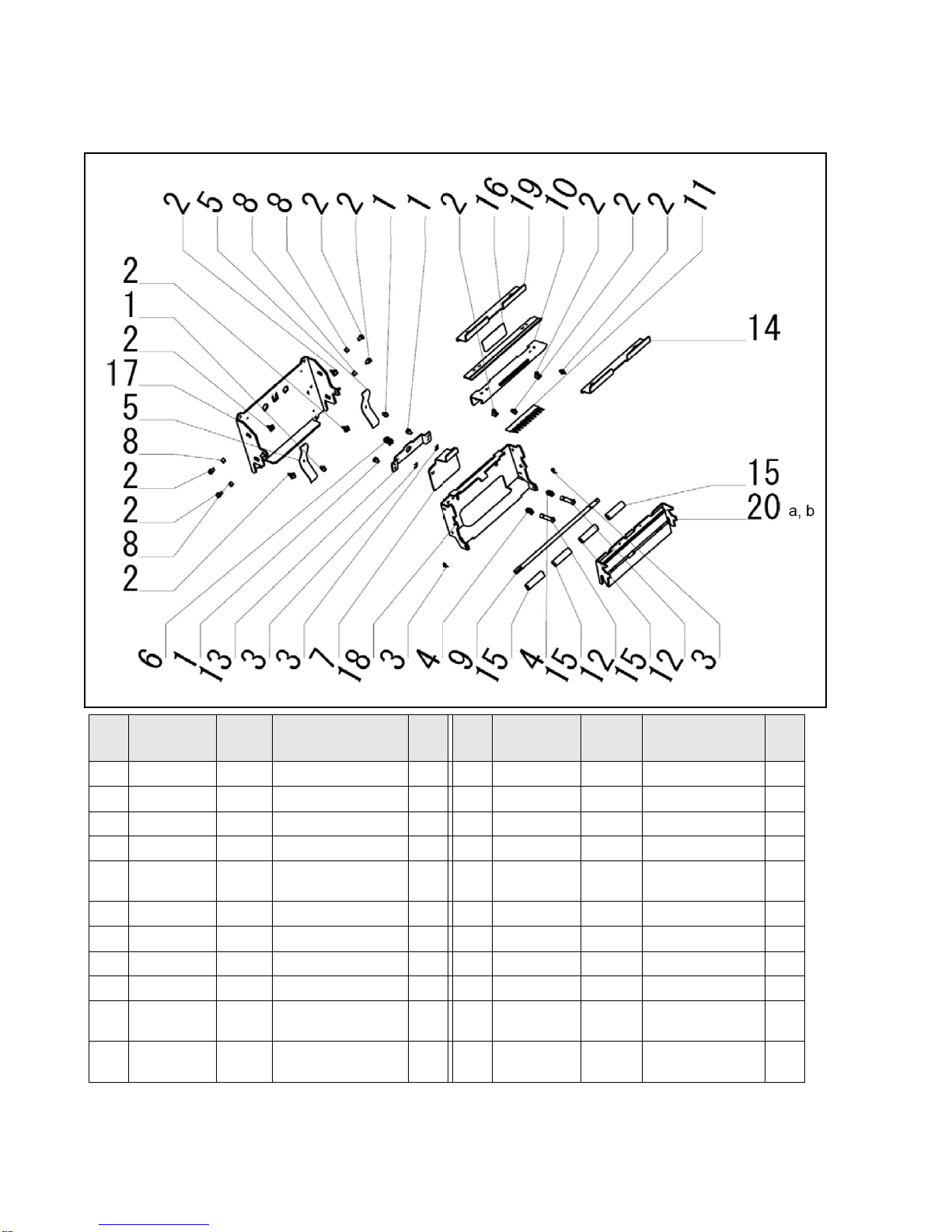

PRINT HEAD ASSEMBLY

Item

No. Part No. Part

Type Part Name Qty Item

No. Part No. Part

Type Part Name Qty

1 MD3300622 Screw PAN HEAD 4 11 P10285000 Sheet ANTI STATIC 1

2 MD4300822 Screw PAN HEAD 11 12 P10299000 Shaft H PRESSURE 2

3 ND0030022 Ring E-SNAP 4 13 P10715000 Shaft P 1

4 P10260000 Spring PRINT HEAD 2 14 P15922000 Guide FRONT LABEL 1

5 P10262000 Plate PRINT HEAD

SPRING

1 15 PE3A20000 Rollers TURN 4

6 P10264000 Spring LEVER 1 16 Q01296000 Label CAUTION 1

7 P10272000 Lever RELEASE 1 17 R04268000 Bracket TOP PRINT HEAD 1

8 P10281000 Collar 4 18 R04269001 Bracket PRINT HEAD 1

9 P10282000 Shaft TURN ROLLER 1 19 R04694000 Cover CUTTER 1

10 P10284001 Stop CUTTER 1 20a R07245000 Head PRINT 300 DPI

(D512)

20b R04733001 Head PRINT 200 DPI

(D508)
