Sartorius 2406 Guide de l'utilisateur

Digital Micro Balances

2406

Instructions for Installation and Operation

2

Unpacking 3

Installation 4

Checking 11

Weighing I 14

Weighing II 15

Checking of Balance Type 2406 16

Accuracy of Weight set 16

Correction of the Weighing Result 17

3

Unpacking

Remove Styropor insert from carton

1

Open Styropor box and lift balance out.

2

4

Installation

Make sure that the floor is level, that you have a sturdy

table, that there is no direct exposure to heat radiation or

sun light, draft or vibrations.

Recommended room temperature: 25°C,

relative humidity 60% ± 5%

Unpack accessories.

3

Weight knob indication: „19,99".

4

Positions of beam release lever:

1. Beam fully arrested

2. Beam in half release position — dial weights

3. Beam fully released

5

5

Remove outer and inner lid.

6

Remove glass plate from weighing compartment.

Check operating voltage:

7

Place the balance with its back-side on the dust cover,

open cover in the base plate, change connecting wires, if

necessary.

8

6

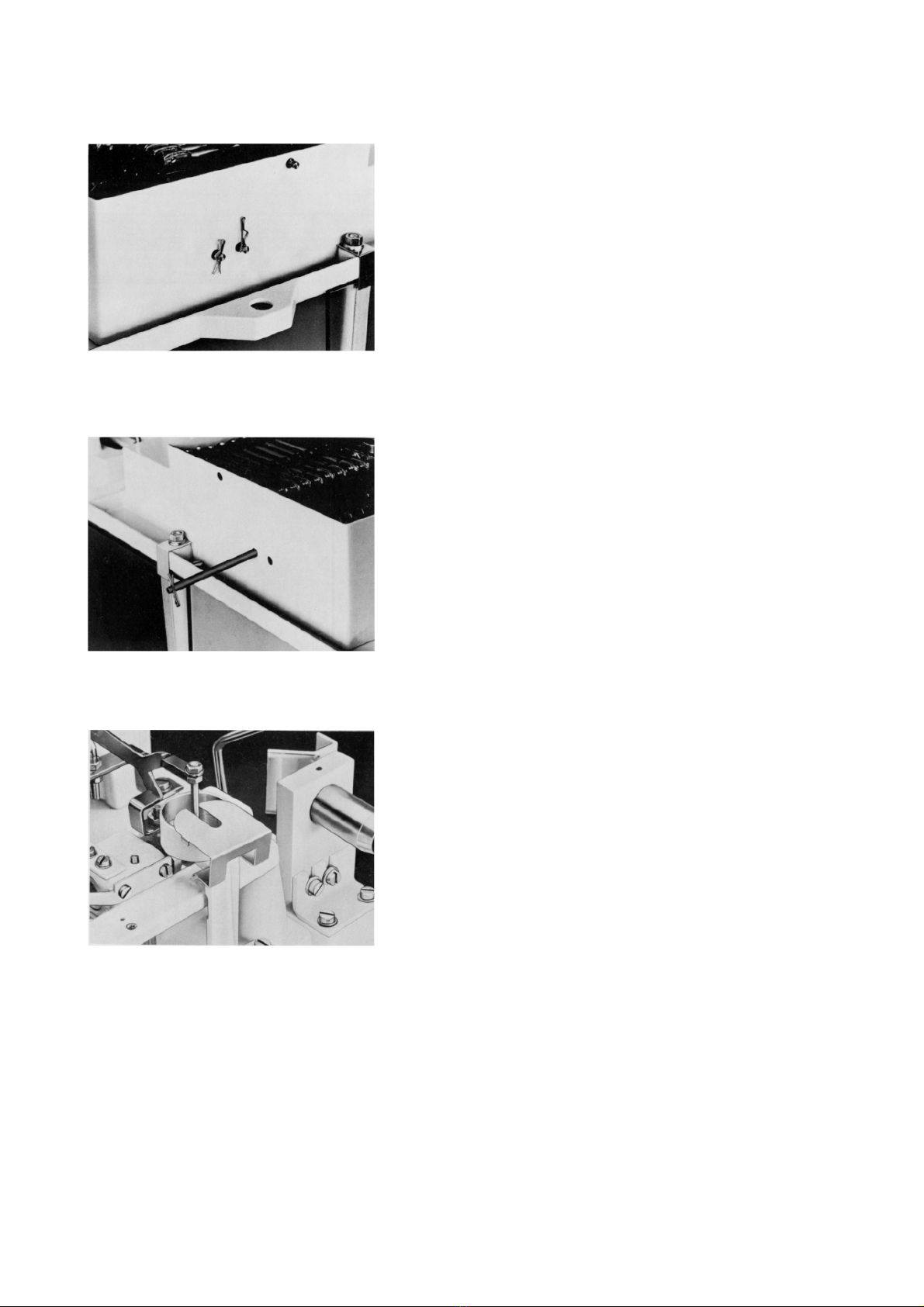

Remove brackets at the ends of the locking bars for the

weight knobs.

9

Pull out bars sideways, be sure that no ring weights

remain in the recess at the end of the bars.

10

Detach tapes from damping pot and remove cover

backwards.

11

7

Loosen nuts, swing aside springs and retighten nuts.

12

Loosen nuts, swing aside springs and retighten nuts.

13

Loosen nut, swing aside spring and retighten nut.

14

8

Remove beam, take off cardboard strip. Inspect knife

edges and arrestment pins for cleanliness.

Place beam on the arrestment pins.

15

Turn cover of damper until it stops.

16

Inspect stirrup plate for cleanliness and install („V" on the

top of the plate faces toward the front of the balance).

17

9

Remove stirrup arrestment bow.

18

Advance stirrups slightly, insert bow. „V" on the top of the

plate faces toward the front of the balance.

19

Place stirrups on stirrup plate.

20

Attach pan bow.

10

Attach pan, swing in pan lifting device. Turn mechanical

weight indicator and micrometer to zero. Level balance by

observing the spirit level.

21

Attach lamp housing. Connect balance to alternating

current line.

22
