Service Manual Portable Compact

Disc Player CDP-I 50 (XE )

[:$;

(SP)

(AU)

Specifications

(CD Player Section )

Frequency Responce . .

Wow&Flutter .......

Sampling Frequency .

DIA Converter .......

Error Correction Method

Pick-up ............

Laser output .........

20-20,000 Hz

Below measurable

limits

44.1 kHz

1-bit

CIRC

Optical 3-beam

Semi-conductor laser

(790 nm wavelerrgth)

Continuous wave:

max. 0.5 mW

PRODUCT CODE

142 989 02 (XE)

142 989 03 (UK)

142 989 04 (SS)

142 989 05 (SP)

142 989 06 (AU)

(General )

Maximum Output

(stereo headphone) . . . 15 mw +15 mw

Power Supply

No.

AC Adaptor . . . . . . . . . AC :230 V, 50 Hz (XE/UtVSP)

AC :240 V, 50 Hz (AU)

AC :11 5/230 V, 50/60 t-iz (SS)

DC . . . . . . . . . . . . . . . . 3V:Using two “AA” batteries

3V:Using the rechargeable

nickel-cadmium battery (only SS/SP)

Dimensions ......... Approx. 142( W)x35(H )x160(D) mm

Weight . . . . . . . . . . . . . Approx. 320 g (Without batteries,

main unit only)

Specifications subject to change without notia%.

REFERENCE No. SM580552

LASER BEAM SAFETY PRECAUTIONS

.Pick-up that emits alaser beam is used in this CD player.

CAUTION :

USE OF CONTROLS OR ADJUSTMENTS

OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE

LASER OUTPUT ........0.5 mW Max. (CW)

WAVELENGTH ...........790 nm

NOTES (ACCESSORIES &CONNECTION)—

.....................................................

~AC adaptor :@ I@:

.............................................. II

11’ /)

@@7@

CAUTION-INVISIBLE !MER RADIATION

WHEN OPEN AND lNlEi3LOCKS DEFEATED.

AOVARSEL-USiNLIG USER STEALING VED ABNING,

NdRSIXKEFMEDSAF6RYDEREERuDE AF FUNICTION,

IVARNING-OSYNLIG LMER STRAINING NiR

DENNA DELiROPPNAOocHSPF.RRiRURKOppLAO. I

STRALENiR FARUG

vORSICHT -UNSICHTSARE U. SEFiSTRAHLUNGTRffl AUS,

WENNOECKELGEOFFNETUNOWENN SICHERHEITSVERRIEGELUNG

iIBER8RtiCKT 1ST.NICHT, DEM STRAHLAUSSHZEN.

V~RO !-. AVAITAESSA JASUOJALUKITUSO~fTETTAESSAOLETALT711NA

NAKYMASTOMALLELASERSiTEILYLLE.ALAKATsOSATEESEEN.

Disc Compamnent 8. Display

Barte~ Compartment (bottom) 9. VOLUME Con[rot

PLAYIPAUSE Button 10. PHONES Jack

STOP Bunon 11. LINE OUT Jack

F9ACK/F FvVDBurtons 12. 9ASSXPANDER Switch

SET Button 13. DC 6V Jack

P.MODE Button

.LINE OUT

-. —’ a

Headphones h

Part No. 6142527764 E

Rechargeable nickel-cadmium

battery (NBP-30E)

?arl No. 645012 1180

(only Ssw)

II -1

ij~ ~:g “

..................................

:. Always keep

:the charging ~

Iterminal clean. I

..................................

/ \

Patch cable --

Part No. 6450119071

-1-

REMOVAL AND INSTALLATION

●Disconnect the AC adaptor’s plug. &

●Remove the batteries.

●All wiring should be returned to the original position after work is completed.

●First have ready many the new FIXERS (614 129 4971) for replacement.

a. CABINET, BOTTOM b. CABINET

(1) Remove the 5rear cabinet mounting screws. (1) Remove the bottom cabinet.

c. CD LID

d. CD MECHANISM

-2-

REMOVAL AND INSTALLATION

e. CD P.W. BOARD

f. WIRING LAYOUT

—

LIMIT SWITCH SPINDLE MOTOR SLED MOTOR

yRE~KET LEq:;g;ET LEAD SOCKET

(YELLOW)

-3-

CD MECHANISM ADJL=TMENTS

a. DISASSEMBLY OF THE CD PLAYER MECHANISM

(a)

(1)

(2)

Replacement of the spindle motor assembly

While turning the turntable, align the open hole (3)

in the turntable with the position of the spindle motor

fastening screw. (0)

Insert the watch repair driver from the screw fastening hole (4)

and remove the screw. (~)

11~111

,,~~14———Watch repair driver

Turntable ~~Spindle Motor

Turn the turntable as previously described, align the screw

fastening hole with the position of the screw (@) and

remove the screw. (@)

Remove the spindle motor in the direction shown by the

Spindle Motor =o

(b) Replacement of the pick-up

(1) Remove the pick-up rail mcwtingscrew. (0)

(2) Remove the rack gear (104) mounting screws. (@)

(3) Replacement of the pick-up- (~)

(4) Insert the pick-up rail (107) into the base chassis. (@)

(5)

(6)

(7) The pick-up P.W.Board pattern is “shorted”, as shown

in the figure, so that the new pick-~p will not be

susceptible to the effects of static.

(8) Set the pattern to “open” after the pick-up has been

replaced.

,03 ,(3 ~

The pick-up rails have been installed, first wipe the

tips of the rail with alcohol. /

After the pick-up has been replaced, apply grease

(FLOIL G-474B) to the rail.

-4-

CD MECHANISM ADJUSTMENTS

(c)

(1)

Sled motor replacement

See illustration at right.

101

REPLACEMENT AND LUBRICATION OF THE CD

........................................................................

~Note :

:EM-50L ............. MOLYKOTE, EM-50L ~

~G-474B .............. FLOILOIL, G-474B :

........................................................................

MECHANISM

............................ ... ....................

-5–

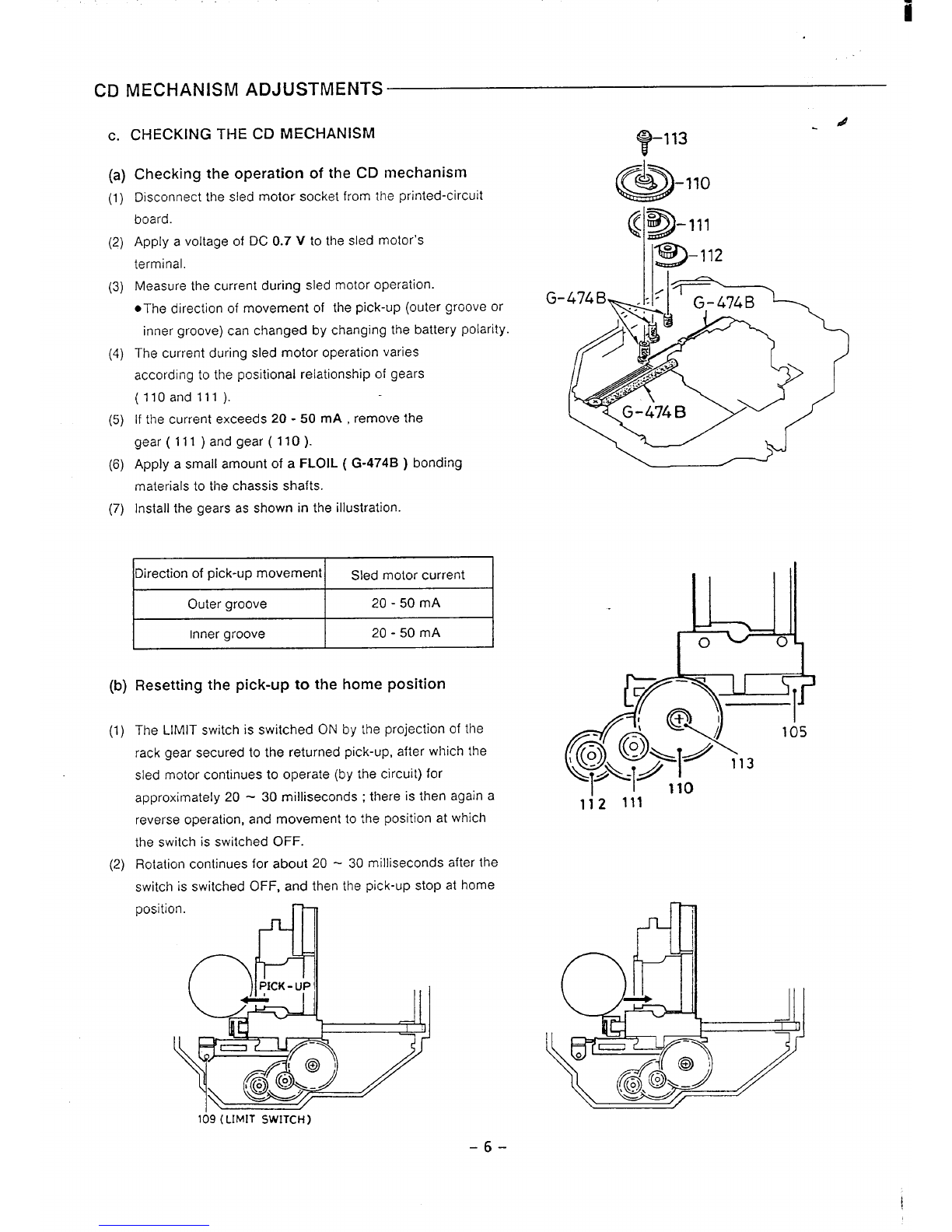

CD MECHANISM ADJUSTMENTS

c. CHECKING THECD MECHANISM

(a)

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(b)

(1)

(2)

-–113

Checking the operation of the CD mechanism

Disconnect the sled motor socket from the printed-circuit

board.

Apply avoltage of DC 0.7 Vto the sled motor’s

terminal.

Measure the current during sled motor operation.

.T’he direction of movement of the pick-up (outer groove or

inner groove) can changed by changing the battery polarity.

The current during sled motor operation varies

according to the positional relationship of gears

(11 Oandll l).

If the current exceeds 20-50 mA ,remove the

gear (lll)andgear(ll O).

Apply asmall amount of aFLOIL (G-474B )bonding

materials to the chassis shafts.

Install the gears as shown in the illustration.

G-

&-110

–111

0–112

Direction of pick-up movement Sled motor current I

IOuter groove I20-50 mA I

IInner groove I20-50 mA I

Resetting the pick-up to the home position

The LIMIT switch is switched ON by the projection of the

rack gear secured to the returned pick-up, after which the

sled motor continues to operate (by the circuit) for

approximately 20 -30 milliseconds ;there is then again a

reverse operation, and movement to the position at which

the switch is switched OFF.

Rotation continues for about 20- 30 milliseconds after the

switch is switched OFF, and then the pick-up stop at home

position.

112 111

109 (LIMIT SWITCH)

-6-

CHECKING THE CD PLAYER EYE PAITERN

a. PREPARATIONS . /

(a) Measuring instruments, tools and filter

(1) Test disc. :YEDS 18 (SONY) or etc.

(2) Oscilloscope :SS5711 (10 MHz or dual-phenomenon)

or Memory scope :DSS6521 (Storagescope)

(3) Resistor, Carbon 2.2 Kohm, l/4W

(4) EXT. DC POWER :DC 6V, 1A

b. PARTS LOCATION

c. CHECKING THE EYE PATTERN

(1) Switch ON the DC power.

(2) Connect an oscilloscope to IC131 (pin 41 ) ( RF)

and IC131 (pin 58 ) ( VC ).

(3) Load the test disc.

(4) PLAY switch push ON.

(5) Check to be sure that the “eye “pattern is at the

center of waveform and that the diamond shape is

clearly defined.

(6) Press the STOP button. center

(7) Switch OFF the DC power.

Ic 1131 2.2K ohm +

pin 41 0wvv

(RF}

Ic ?31 IOSCILLOSCOPE I

-7-

EXPLODED VIEW (CABINET &CHASSIS )

,—

–8–

PARTS LIST

PRODUCT SAFETY NOTICE d

Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol ~in the parts list

and the schematic diagram designate components in which safety can be of special significance. When replacing acomponent

identified ~, use only the replacement parts designated, or parts with the same ratings of resistance, wattage or voltage that are

designated in the parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed

parts are acceptably insulated from the supply circuit before returning the product to the customer.

CAUTION :Regular type resistors and capacitors are not listed. To know those vakses, refer to the schematic diagram.

Regular type resistors are less than l/4W carbon type and Oohm chip resistors.

Regular type capacitors are less than 50V and less than 1000PF type of Ceramic type and Electrical type.

N.S.P

ACKIN

Ref. No.

Not available as service parts.

&ACCESSORIES

Part No.

614 273 2274

614 273 2281

614 273 2311

614 273 2298

614 273 2274

614 273 2380

614 273 2397

614 273 2427

614 273 2403

614 273 2380

614 271 1026

645 011 4168

645 011 9880

614 252 7764

~645 011 8678

~645 011 8685

&645 011 8647

~645 011 8654

f!!J645 011 8326

645 011-9071

645 012 1180

614 276 8778

614 277 9590

CABINET &CHASSIS

Ref. No.

Part No.

614 271 0111

614 273 1758

614 270 3724

614 270 4035

614 273 1765

614 273 1260

614 273 1772

614 273 1765

Descri~tion

CARTON CASE,INNER (XE)

CARTON CASE,INNER (UKj

CARTON CASE,INNER (AU)

CARTON CASE,INNER (SS)

CARTON CASE,INNER (5P)

INSTRUCTION MANUAL (XE)

INSTRUCTION MANUAL (UK)

INSTRUCTION MANUAL (AU)

INSTRUCTION MANUAL (SS)

INSTRUCTION MANUAL (SP)

CAUTION,DISC,PROTECTIVE

SHEET

POLY SHEET,450X250MM,SET

(XE)

POLY SHEET,450X250MM,SET

(UK/AU/SS/SP)

HEADPHONE (UK/AU/SP)

ADAPTOR,AC-DC,6CV-230XE,

500 MA (XE/SP)

ADAPTOR,AC-DC ,6CV-230UK,

500 MA (UK)

ADAPTOR,AC-DC, 6CV-240AU,

500 MA (AU)

ADAPTOR,AC-DC,6CV-230SS,

AC 115/230V, DC 6V,500 MA

(ss)

PLUG,ADAPTOR,AC (SS)

CABLE,PATCH CA8LE,RCA-2P,Y

BATTERY,RECHARGE,2.4V,

NBP-30B (ss/sP)

LABEL,NI-CD,BATTERY (SP)

INSTRUCTION SHEET,NI-CD(SP)

Description

ASSY,LID,CD

ASSY,CABINET,TOP

BUTTON OPERATION

KNOB,SLIDE,BASSXPANDER

ASSY,CABINET, BOTTOM

(XE)

ASSY,CABINET,BOTTOM

(UK/AU)

ASSY,CABINET,BOTTOM

(ss)

ASSY,CABINET, BOTTOM

(SP)

Ref. No.

Pati No.

614 271 0203

614 271 0210

614 270 4066

614 270 4196

614 270 4219

614 125 2285

614 231 6832

Description

SPACER,MECHANISM (GRAY)

SPACER,MECHANISM (PINK)

LID,BATTERY

TERMINAL SPRING,BATTERY(+)

TERMINAL,NI-CD BATTERY

CUSHION,SHEET,8X26MM

LABEL,SAFETY,LASER,CLASS

FIXING PARTS

Ref. No. Part No. Description

Yol 411 022 6800 SCR S-TPG PAN 2X1OMM,

CABINET-BOTTOM

Y02 41% 098 5202 SCR S-TPG PAN 2X5MM,

CD P.W.BOARD-BOTTOM

:D P.VV

Ref. No.

A1501

CN101

CN141

CN142

CN143

CN151

CN191

CN192

D1301

D1401

D1402

D1403

D1404

D1405

D1406

D1407

;;511

;;512

D1901

IC131

IC141

IC145

IC151

0AR5ASSY

Part No.

614 271 0029

614 270 4127

645 011 8906

614 270 4202

645 011 8913

645 005 9995

645 005 7366

645 011 8890

645 005 7380

645 000 1413

40? 007 9904

407 012 4406

407 080 4209

407 007 9904

407 012 4406

407 007 9904

407 012 4406

407 050 7209

407 007 9904

407 012 4406

409 350 9808

4091 303 2504

409 361 4601

409 369 7000

Description

ASSY,PWB,CD

MOUNTING,LCD

LCD,DISPLAY

TERMINAL SPRING,BATTERY (-)

SOCKET,FPC 13P,PICK UP

PLuG,2P,sLED/YELLow

PLuG,2P,sPINDLE/wHITE

SOCKET,DC,EXT POWER

PLuG,2P,LIMIT/RED

JACK,PHONE D3.6,LINE OUT

JACK,PHONE D3.6,PHONES

DIODE GMAO1

DIODE 1SS133

DOOOE SB1O-O3A

DOODE SB1O-O3A

DOOOE SB1O-O3A

DOODE SB1O-O3A

DIODE GMAO1

DIODE 1SS133

OIODE GMAO1

DIODE 1SS133

ZENER DIODE GZA8.2X

OIODE GMAO1

OIOOE 1SS133

IC LA9230MS

IC LB81OBM

IC LC78621E

IC LC5876-1G59

-9-

Autres manuels pour CDP-150

Table des matières

Autres manuels Sanyo Lecteur CD

Sanyo

Sanyo FXD-C200 Manuel utilisateur

Sanyo

Sanyo CDP-4700 Manuel utilisateur

Sanyo

Sanyo MCD-Z260F Manuel utilisateur

Sanyo

Sanyo CDP-4800B Manuel utilisateur

Sanyo

Sanyo MCD-ZX500F Manuel utilisateur

Sanyo

Sanyo FXD-C300 Manuel utilisateur

Sanyo

Sanyo CDP-244 Manuel utilisateur

Sanyo

Sanyo CDP-M300 Manuel utilisateur

Sanyo

Sanyo MCD-UB685M Manuel utilisateur

Sanyo

Sanyo MCD-Z260F Manuel utilisateur

Sanyo

Sanyo MCD-X77L Manuel utilisateur

Sanyo

Sanyo MCD-S870F Manuel utilisateur

Sanyo

Sanyo CDP-M420 Manuel utilisateur

Sanyo

Sanyo CDP-455 Manuel utilisateur

Sanyo

Sanyo MCD-S670F Manuel utilisateur

Sanyo

Sanyo MCD-XJ790 - PORTABLE CD RADIO CASSETTE RECORDER PLAYER CD-R/CD-RW/CD AM/FM... Manuel utilisateur

Sanyo

Sanyo MCD-Z165F Manuel utilisateur

Sanyo

Sanyo CDP-990 Manuel utilisateur

Sanyo

Sanyo CDP-4700 Manuel utilisateur

Sanyo

Sanyo CDP-4800B Manuel utilisateur

Sanyo

Sanyo MAX-5000 Manuel utilisateur

Sanyo

Sanyo MCD-Z250F Manuel utilisateur

Sanyo

Sanyo FXD-CI00 Manuel utilisateur

Sanyo

Sanyo CDP-4000 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur
