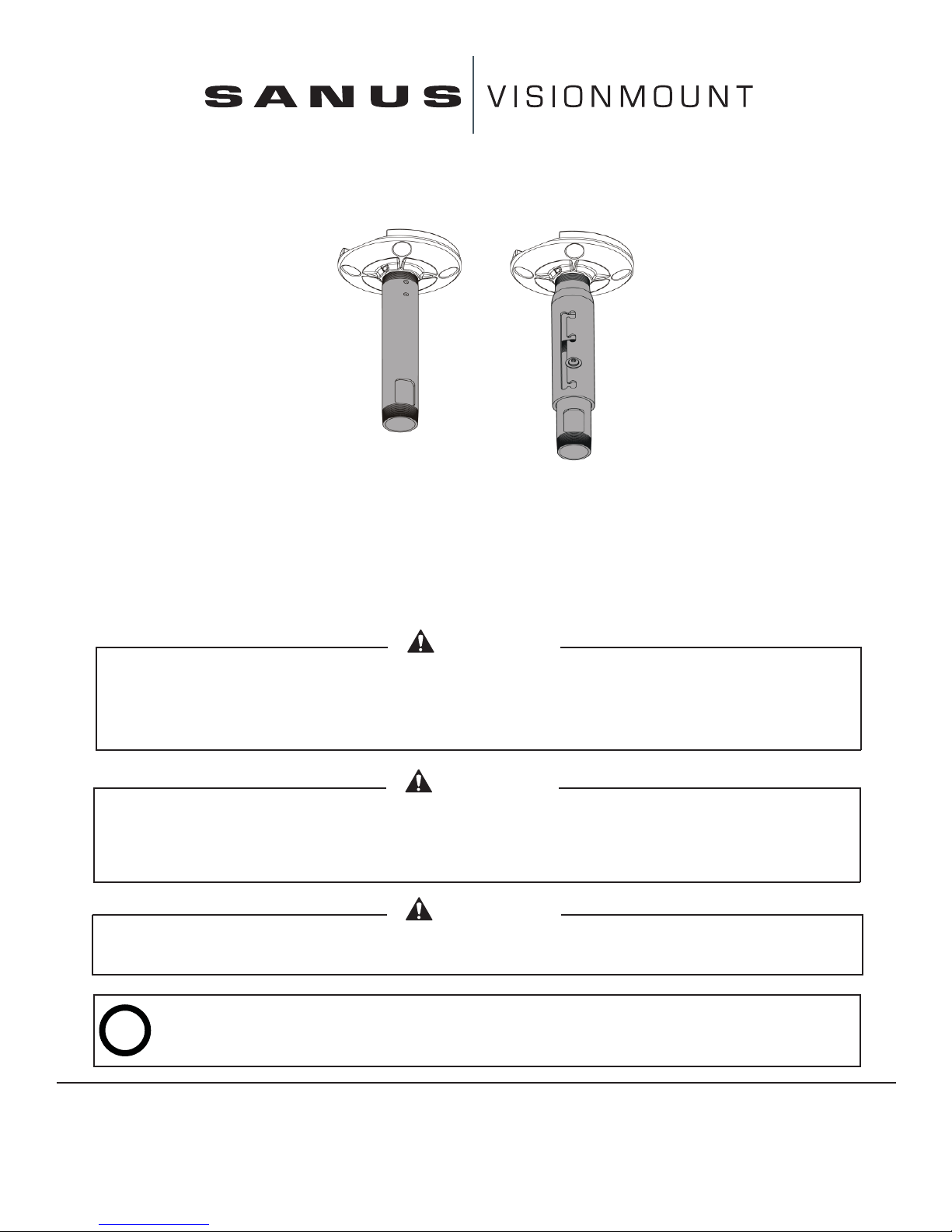

Sanus Systems VisionMount 6901-100068 Manuel utilisateur

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA

Customer Service: 1-800-359-5520 • 651-484-7988

[email protected]om • www.sanus.com

VMCA10

(6901-100068 <02>)

Thank you for choosing the VisionMount VMCA10 extension column. The VMCA10 extension column is designed

to suspend your A/V equipment mount from a ceiling attachment.The VMCA10 will accommodate an NPT 1-1/2 in.

threaded pipe. The VMCA10 will support a maximum weight of 226.8 kg (500 lbs).

Do not use this product for any purpose not explicitly specied by Sanus Systems. Improper assembly may cause

property damage or personal injury. If you do not understand these directions, or have doubts about the safety

of the assembly, contact Customer Service or call a qualied contractor. Sanus Systems is not responsible for

damage or injury caused by incorrect assembly or use.

CAUTION

This product contains small items that could be a choking hazard if swallowed. Keep these items away

from young children!

WARNING

OPT

Hardware and procedures for multiple mounting configurations are included.When you see this symbol,

choose the correct configuration to suit your needs. Not all hardware included will be used.

Improper installation may result in serious injury! The ceiling structure and mounting hardware (not included)

must be capable of supporting up to ve times the weight of the A/V equipment and mount combined. If you

have any doubts about the ability of the ceiling to support the installation, contact Sanus Systems Customer

Service, or a qualied contractor.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

6901-100068 <02>

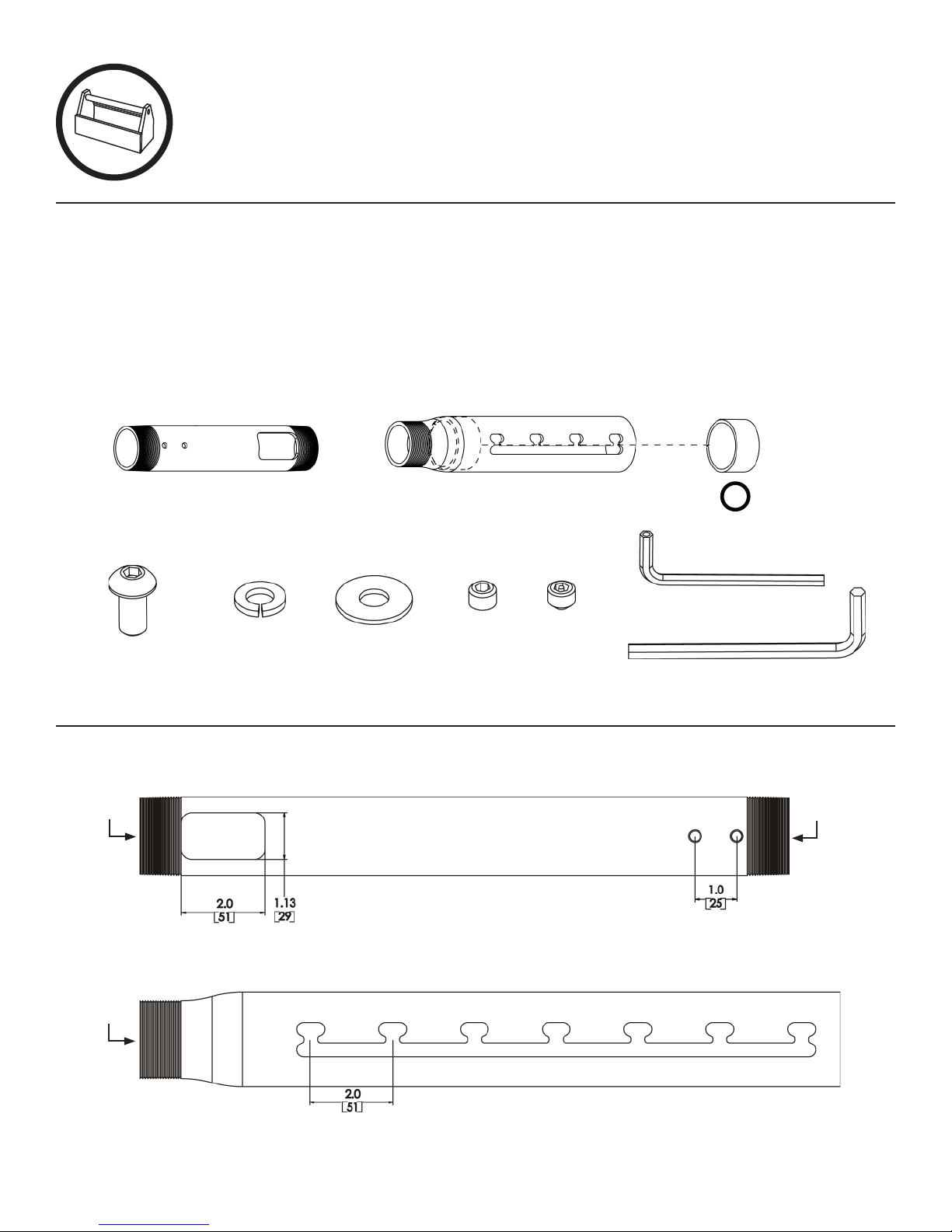

Supplied Parts and Hardware

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item

to your dealer; contact Customer Service. Never use damaged parts!

OPT

[01] x 1 [02] x 1

[03] x 1 [04] x 1 [05] x 1 [06] x 2 [07] x 2

[08] x 1

[09] x 1

1-1/2 in. NPT 1-1/2 in. NPT

1-1/2 in. NPT

Dimensions

6901-100068 <02>

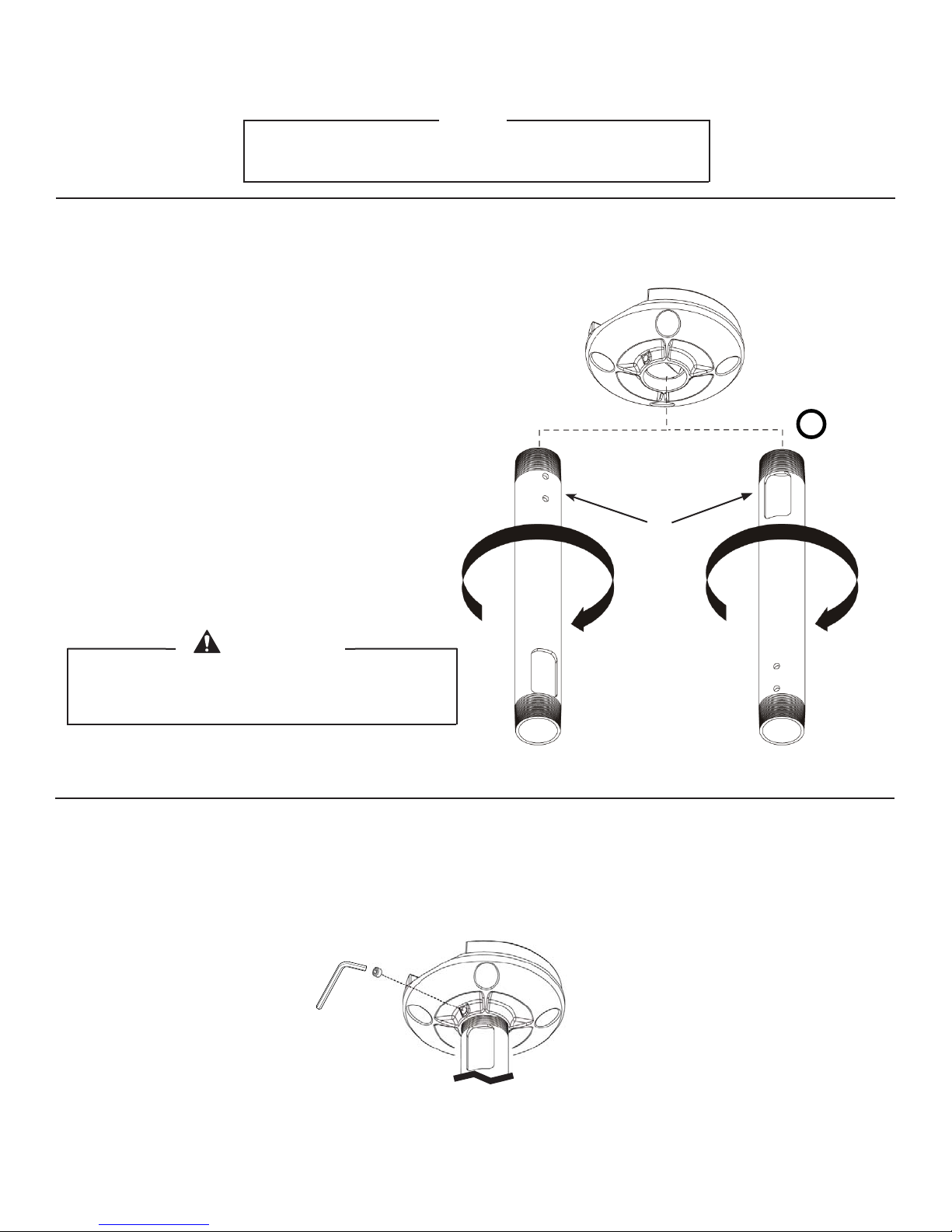

Fixed Length Extension Column

OPT

[01]

1: Install Extension Column

2: Tighten Set Screw

The ceiling attachment shown in this manual is generic; it is

intended to illustrate a procedure only.

NOTE

Avoid potential injuries and / or property damage!

Always use a minimum of seven turns to thread the

extension pipe [01] into a mating surface.

CAUTION

6901-100068 <02>

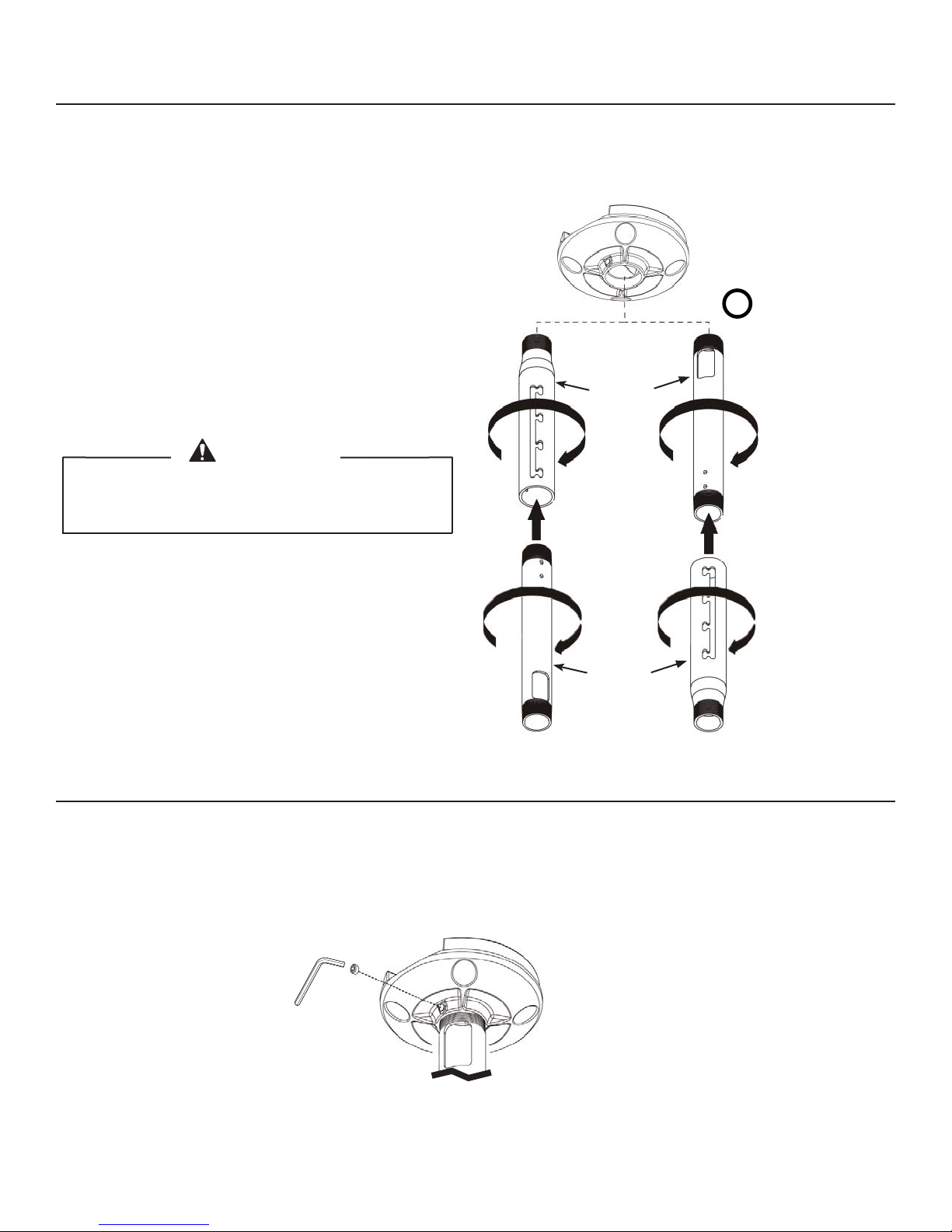

Adjustable Length Extension Column

2: Tighten Set Screw

OPT

[01]

[02]

[01]

Avoid potential injuries and / or property damage!

Always use a minimum of seven turns to thread the

extension pipe [01], [02] into a mating surface.

CAUTION

1: Install Extension Columns

6901-100068 <02>

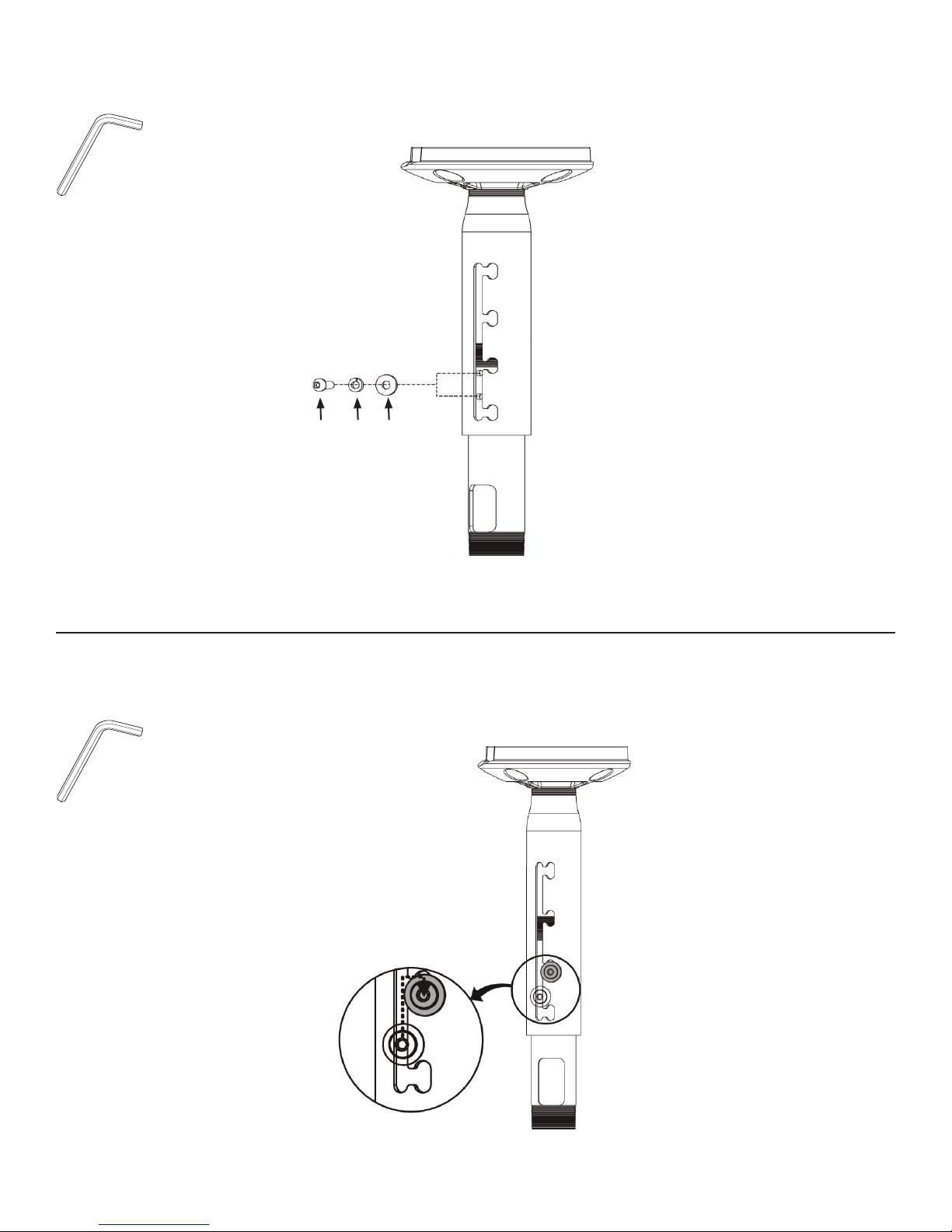

3: Install and Tighten Screw and Washers

4: Adjust Column Length

[09]

[03] [04] [05]

6901-100068 <02>

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively,“Milestone”), intend to make this manual accurate and complete.However, Milestone makes no claim

that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product.

The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty,expressed or implied, regarding

the information contained herein.Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

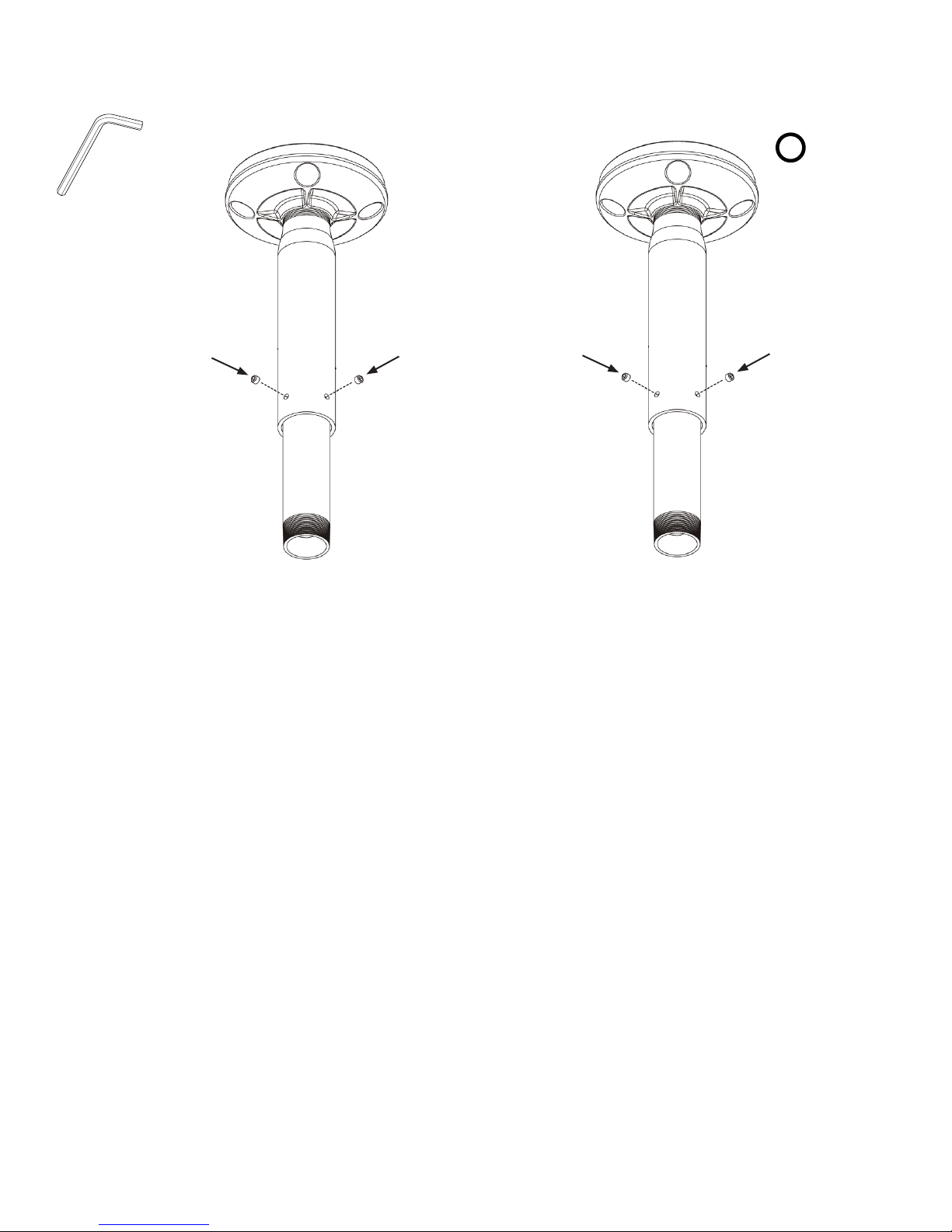

5: Install and Tighten Set Screws

[08]

[06] [06] [07] [07]

OPT
