International Assembly Instructions for model VMUC1

ENGLISH

Assembly Instructions for Model: VMUC1

Thank you for choosing a Sanus Systems Vision Mount under cabinet mount. The

VMUC1 is designed to hold up to a 17 inch ﬂat panel LCD weighing up to 18

lbs.

Safety Warning: If you do not understand these directions, or have any doubts

about the safety of the installation, please call a qualiﬁed contractor or contact

Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there

are no missing or defective parts. Our customer service representatives can quickly

assist you with installation questions and missing or damaged parts. Replacement

parts for products purchased through authorized dealers will be shipped directly to

you. Never use defective parts. Improper installation may cause damage or serious

injury. Do not use this product for any purpose that is not explicitly speciﬁed by

Sanus Systems. Sanus Systems can not be liable for damage or injury caused by in-

correct mounting, incorrect assembly, or incorrect use. Please call Sanus Systems

before returning products to the point of purchase.

Required Tools: Phillips screw driver, drill, 1/4 inch drill bit

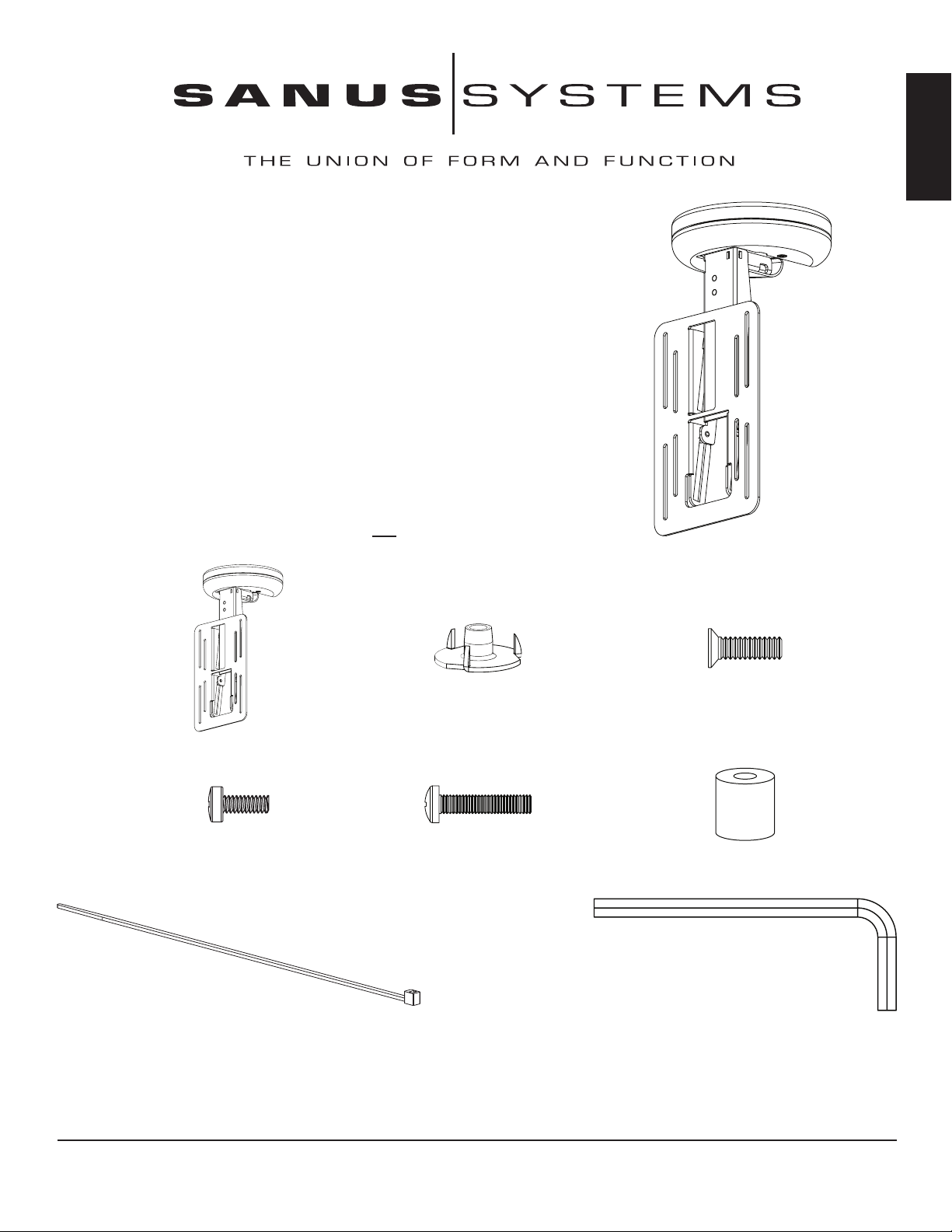

Supplied Parts and Hardware: Some parts not shown as actual size*

(3) T - Nuts - b (3) 10-24 x 5/8 Bolt - c

(1) Mount Assembly - a

(4) M4 x 10 mm Bolt - d (4) M4 x 20 mm Bolt - e

(4) .5 inch Spacer - f

(4) Cable Tie - g (1) Allen Key - h

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 12.30.05

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

ENGLISH

1.89 1.89

3.28

Step 1: Remove Cover

Using a Phillips screw driver loosen the two ﬂat head bolts from the cover and slide it down and away from the mounting plate. See

Diagram 1 for assistance. You will re-install the cover once cable management is complete.

Diagram 1

mounting plate

cover ﬂat head bolts

Step 2: Prepare Mounting Surface

Use the base of the Mount Assembly

(a) as a template to mark three holes

in the cabinet in the desired location.

Drill three 1/4 inch holes at the marked

locations.

See the dimensional drawing on the

right for assistance.

See page 9 for a 1:1 scaled version of

the dimensional drawing.

Dimensional Drawing

ENGLISH

Step 3: Secure Mount Assembly to cabinet

Using the 10-24 x 5/8 Bolts (c) and the T - Nuts (b) secure the Mount Assembly to the cabinet. See Diagram 3 for assistance. Note: Make

sure the spikes on the T - Nuts is facing toward the cabinet.

Diagram 3

Detailed View

cabinet

c spike

Step 4: Attach ﬂat panel display to mounting plate

Make sure no power is supplied to the display before mounting the display!

Warning: Watch for pinch points. Do not put your ﬁngers or cables between movable parts.

Once the Mount Assembly (a) is secured to the cabinet, align the appropriate slots in the mounting plate with the four mounting holes of

your LCD display. Use either four M4 x 10 mm Bolts (d) or four M4 x 20 mm Bolts (e) with four .5 inch Spacers (f). Diagram 4a below

shows the M4 x 10 mm Bolts being used. Diagram 4b on the next page shows the M4 x 20 mm Bolts with the .5 inch Spacers.

Detailed View

Diagram 4a

LCD panel

mounting plate

ENGLISH

Step 4 (cont)

The .5 inch Spacers (f) should only be used if there is an obstruction or the hole pattern is physically recessed on the back of the LCD

panel. See Diagram 4b for assistance.

Detailed View Diagram 4b

mounting plate

LCD Panel

Step 5: Adjusting the screen height.

Using a Phillips screw driver, slightly loosen the Bolts (d,e) that secure the LCD panel to the mounting plate. Adjust the LCD panel to

the desired height. Tighten the Bolts (d,e) to secure the LCD panel to the mounting plate. See Diagram 5 for assistance.

Diagram 5

d,e

mounting plate

ENGLISH

Step 6: Adjust tension of Mount Assembly

The tension of the Mount Assembly (a) can be adjusted by simply tightening or loosening the tension bolt labeled in Diagram 6 with the

provided Allen Key (h).

Diagram 6 Detailed View

tension bolt

Step 7: Remove Cable Cover

Using a Phillips screw driver, loosen the screw in the center of the cable cover and remove cover. See Diagram 7 for assistance. Note:

You will re-install the cable cover once cable management is completed.

Diagram 7 Detailed View

cable cover

screw

ENGLISH

Step 8: Cable Management (±35° swivel)

Swivel the Mount Assembly (a) 35° either left or right. You will run the cables in the opposite direction. You can attach the Cable Ties

(g) in locations marked in Diagram 8 below.

Diagram 8

cable path

cable tie

holder

ENGLISH

Step 9: Remove Degree Stop

Using provided Allen Wrench (h), remove the 35 degree stop. See Diagram 9 for assistance.

Diagram 9

35 degree stop

ENGLISH

Step 10: Cable management (±110°)

Swivel the Mount Assembly (a) 110° either left or right. You will run the cables in the opposite direction. Cables must be wrapped a

complete 360° inside the base of the Mount Assembly. You can attach the Cable Ties (g) in locations marked in Diagram 8 below.

Diagram 10

cable tie

holder

a cable path

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 12.30.05

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
