QUICK INSTALLATION GUIDE v1.0

TOWERSTOR TS5CT

Sans Digital TowerSTOR TS5CT User Manual

Sans Digital TowerSTOR TS5CT User Manual 1

Contents

Preface....................................................................................................................... 2

Before You Begin ....................................................................................................... 3

Chapter 1 Introduction.............................................................................................. 4

1.1 Technical Specification............................................................................................................. 4

1.2 Identifying Parts of the RAID Subsystem..................................................................................5

1.2.1 Front View......................................................................................................................... 5

1.2.1.1 Disk Drive Carrier ...................................................................................................... 5

1.2.1.2 LED Indicators ........................................................................................................... 6

1.2.2 Rear View ......................................................................................................................... 6

1.3 RAID Concepts ........................................................................................................................ 7

1.3.1 Definition of RAID Levels .................................................................................................. 7

1.3.2 RAID Levels Summary....................................................................................................10

Chapter 2 Getting Started ...................................................................................... 10

2.1 Installing Hard Drives ............................................................................................................. 10

2.1.1 Installing the Rubber Feet ............................................................................................... 11

2.2 Preparing the Subsystem and Powering On........................................................................... 12

Chapter 3 Configuration Utility ............................................................................... 14

3.1 Installing the Sans Digital RAID Monitoring Software in Microsoft Windows........................... 15

3.2 Starting the Sans Digital RAID Monitoring Software in Linux.................................................. 16

3.3 Starting the Sans Digital RAID Monitoring Software in Mac OS.................................................... 16

3.4 Mini-EPICa Management GUI................................................................................................17

3.4.1 Other Buttons of the mini-EPICa Management GUI ........................................................ 18

Chapter 4 RAID Management ............................................................................... 20

4.1 Basic Mode ............................................................................................................................ 20

4.1.1 RAID and Disk Information..............................................................................................20

4.1.2 Event Log Viewer............................................................................................................ 22

4.1.3 Basic Raid Configuration................................................................................................. 23

4.2 Advanced Mode ..................................................................................................................... 26

4.2.1 Email Notification and Event Settings ............................................................................. 26

4.2.2 Advanced Raid Configuration ......................................................................................... 27

4.2.3 Firmware Information ...................................................................................................... 30

4.2.4 RAID Settings ................................................................................................................. 31

Chapter 5 Additional Information........................................................................... 32

5.1 How to Change the USB/1394 IO Interface Board to eSATA IO Interface Board ................... 32

Sans Digital TowerSTOR TS5CT User Manual

2 Sans Digital TowerSTOR TS5CT User Manual

Preface

About this manual

his manual provides information regarding the quick installation and hardware

features of the Sans Digital TowerSTOR TS5CT RAID subsystem. This

document also describes how to use the storage management software.

Information contained in the manual has been reviewed for accuracy, but not

for product warranty because of the various environment/OS/settings.

Information and specifications will be changed without further notice.

This manual uses section numbering for every topic being discussed for easy and

convenient way of finding information in accordance with the user’s needs.

No part of this publication may be reproduced, stored in a retrieval system, or

transmitted in any form or by any means, electronic, mechanical, photocopying,

recording or otherwise, without the prior written consent.

Trademarks

All products and trade names used in this document are trademarks or registered

trademarks of their respective holders.

Changes

The material in this document is for information only and is subject to change without

notice.

Sans Digital TowerSTOR TS5CT User Manual

Sans Digital TowerSTOR TS5CT User Manual 3

Before You Begin

efore going through with this manual, you should read and focus on the

following safety guidelines. Notes about the TS5CT’s controller configuration

and the product packaging and delivery are also included. To provide

reasonable protection against any harm on the part of the user and to

obtain maximum performance, user is advised to be aware of the

following safety guidelines particularly in handling hardware components:

Upon receiving of the product:

Place the product in its proper location.

It should be handled with care to avoid dropping that may cause damage to the

product. Always use the correct lifting procedures.

Upon installing of the product:

Ambient temperature is very important for the installation site. It must not

exceed 30◦C. Due to seasonal climate changes; regulate the installation site

temperature making it not to exceed the allowed ambient temperature.

Before plugging-in any power cords, cables and connectors, make sure that the

power switches are turned off. Disconnect first any power connection if the power

supply module is being removed from the enclosure.

Outlets must be accessible to the equipment.

All external connections should be made using shielded cables and as much as

possible should not be performed by bare hand. Using anti-static hand gloves is

recommended.

In installing each component, secure all the mounting screws and locks. Make

sure that all screws are fully tightened. Follow correctly all the listed procedures

in this manual for reliable performance.

Controller Configurations

This RAID subsystem supports single controller configuration.

Packaging, Shipment and Delivery

Before removing the subsystem from the shipping carton, you should visually

inspect the physical condition of the shipping carton.

Unpack and verify that the contents of the shipping carton are complete and in

good condition.

Exterior damage to the shipping carton may indicate that the contents of the

carton are damaged.

If any damage is found, do not remove the components; contact the dealer where

you purchased the subsystem for further instructions.

Package Contents

• RAID subsystem unit

• One power cord

• One USB cable

• Two IEEE 1394b cables

• Four (4) Rubber Feet

• Two screw handle

• Installation Reference Guide / CD

• Spare screws.

Sans Digital TowerSTOR TS5CT User Manual

4 Sans Digital TowerSTOR TS5CT User Manual

Chapter 1 Introduction

The RAID Subsystem

Unsurpassed Value

- Most cost-effective SATA II RAID subsystem.

- Compact Desktop size with stylish design.

Application Flexibility

- Extends useful life by adapting to future IT/SOHO requirements.

Easy Installation & Maintenance

- Provide a fast and easy way to install and manage the storage.

Low Power Consumption

- Cable-less backplane with integrated RAID processor. No more unnecessary

components inside.

Features

- USB 2.0/IEEE 1394b host interface

- Supports RAID over 2TB

- Supports hot spare and automatic hot rebuild

- Local event notification

- Easy management via In-Band data bus

- Transparent data protection for all popular operating systems

RAID Management

- Real time drive activity and status indicators

- Graphical User Interface (GUI) management utility

1.1 Technical Specification

Model TS5CT

Form Factor Compact Tower

RAID Processor Integrated Micro-processor

RAID Levels 0, 1, 3, 5, 10, CLONE, and JBOD

Host Interface USB 2.0 or IEEE 1394b

Number of Host Channel 1

Data Transfer Rate Up to 480Mbit/s (USB 2.0)/800Mbit/s (1394b)

Sans Digital TowerSTOR TS5CT User Manual

Sans Digital TowerSTOR TS5CT User Manual 5

Disk Interface SATAII (3Gb/s)

Number of Hot-swap Disk Trays Five (5) 3.5-inch Disk trays

Cooling Fans 1

Failed Drive Indicators Yes

Failed Drive Auto Rebuild Yes

Environment Monitor Yes

Auto Spare Support Yes

Power Supply 180W (full range)

Environmental Relative Humidity:

Operating Temperature:

10% ~ 85% Non-condensing

10°C ~ 40°C (50°F ~ 104°F)

Dimension 9"W x 6.4"H x 10.5"D

Weight 13lb (without disks)

Specification is subject to change without notice.

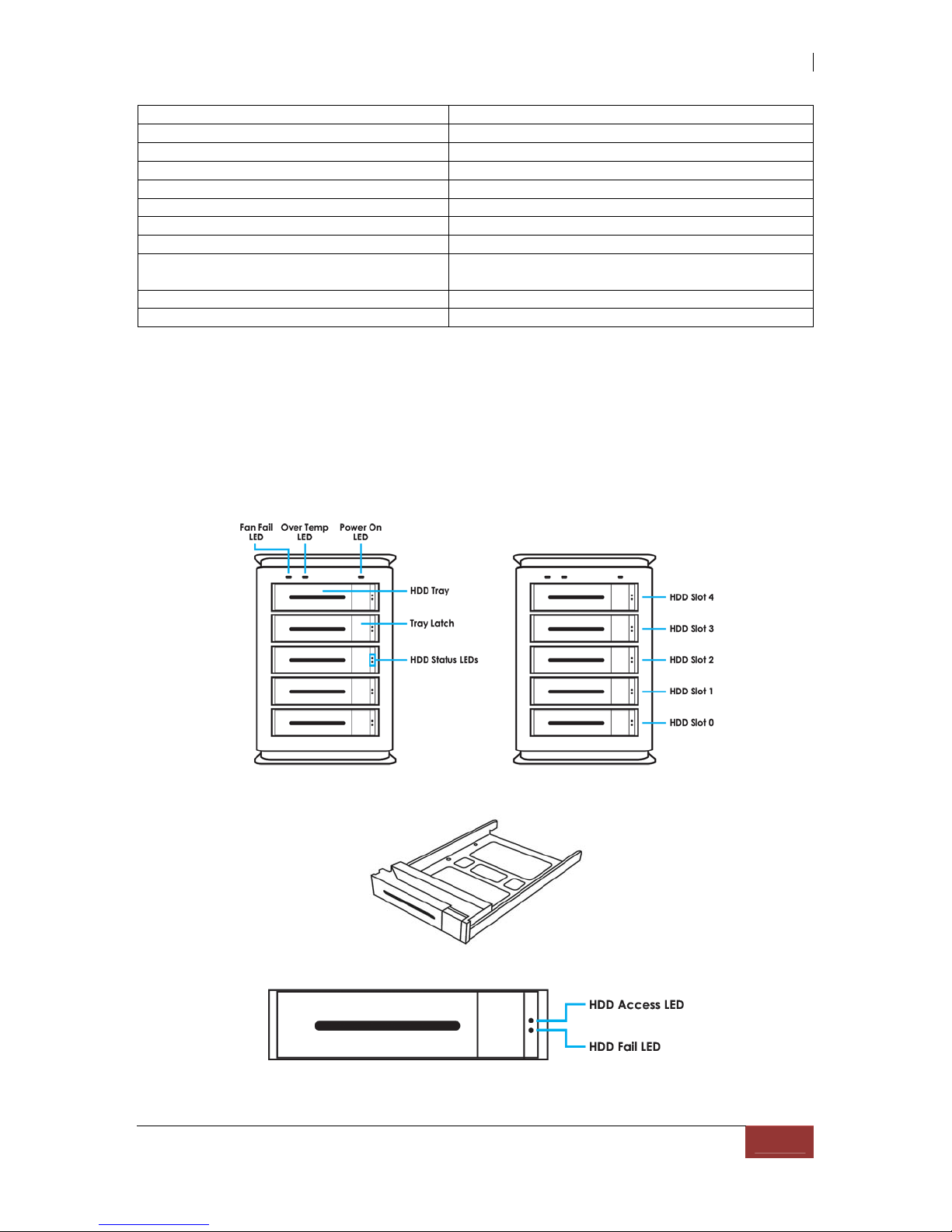

1.2 Identifying Parts of the RAID Subsystem

The illustrations below identify the various parts of the subsystem.

1.2.1 Front View

1.2.1.1 Disk Drive Carrier

HDD Status Indicator

Sans Digital TowerSTOR TS5CT User Manual

6 Sans Digital TowerSTOR TS5CT User Manual

Part Function

HDD Access LED This LED will blink blue when the hard drive is being accessed.

HDD Fault LED

Green LED means HDD is detected/good.

Red LED indicates hard drive has failed.

No LED light means no hard drive in the slot.

1.2.1.2 LED Indicators

Part Function

Fan Fail LED LED is off means Fan is good.

Red LED means Fan has failed.

Over Temp LED LED is off means Temperature is normal.

Red LED means Temperature exceeded normal range.

Power On LED White LED means RAID subsystem is powered on.

1.2.2 Rear View

USB 2.0 Port

The subsystem has one USB 2.0 port for connecting to Host/Server.

IEEE 1394b Port

The subsystem has one IEEE 1394b port for connecting to Host/Server.

Fan

The fan provides proper ventilation for the RAID subsystem.

Power On/Off Switch

Use the Power On/Off Switch to turn on or off the RAID subsystem.

Power Input Socket

Use the Power Input Socket for connecting the power cable.

NOTE: USB and IEEE 1394 ports use same channel. Only one host connection will work

at a time. You cannot use both USB and IEEE 1394 ports at the same time.

Sans Digital TowerSTOR TS5CT User Manual

Sans Digital TowerSTOR TS5CT User Manual 7

1.3 RAID Concepts

The basic idea of RAID (Redundant Array of Independent Disks) is to combine multiple

inexpensive disk drives into an array of disk drives to obtain performance, capacity and

reliability that exceeds that of a single large drive. The array of drives appears to the

host computer as a single logical drive.

The RAID subsystem provides data striping, mirroring, XOR calculation and data

verification. It supports RAID levels 0, 1, 3, 5, 10, LARGE and CLONE. All RAID levels’

capacity can exceed 2 Terabytes. The RAID subsystem behaves as a full 48-bit

addressing RAID drive and is 100% ATA compliance.

From (PC) host controller, each logical device (RAID volume) controlled by the RAID

system acts just the same as single regular hard disk although a RAID system generally

consists of more than one hard disk drives. Therefore, no extra BIOS, driver or software

is needed.

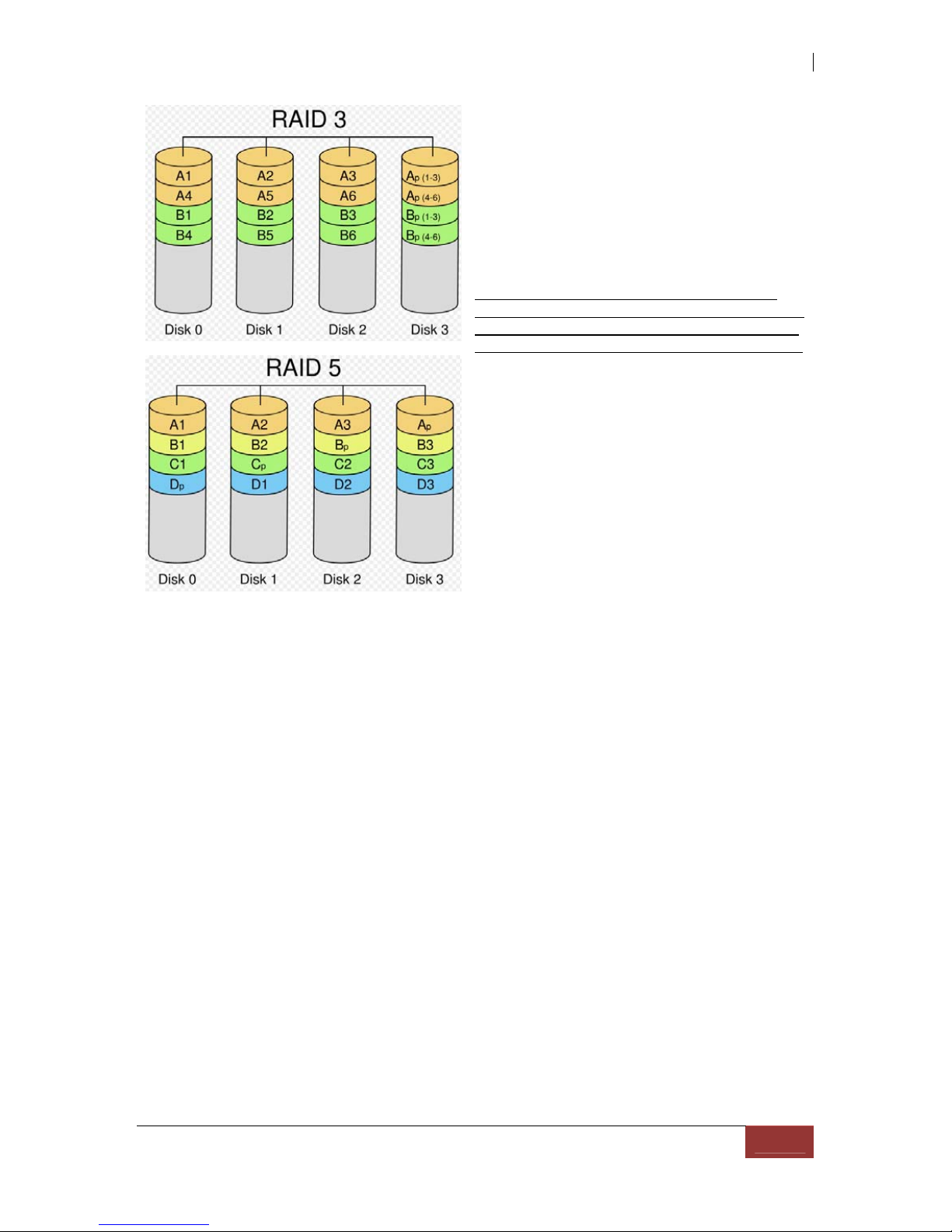

1.3.1 Definition of RAID Levels

Striping (RAID 0) for High Performance

Striping or RAID 0 is the segmentation of logically sequential

data, such as a single file, so that segment can be assigned to

multiple hard disks in a round-robin fashion and thus written

concurrently.

Advantage of RAID 0 is to achieve high performance by

accumulating each individual hard disk performance. However,

if any one hard disk gets defective, information stored in this

RAID 0 will become invalid.

The RAID subsystem will just make use of the same disk

space for each hard disk under RAID 0 condition. For example,

if a RAID 0 consists of 5 different size hard disks, the total

usable space of this RAID 0 will be [capacity of smallest size

hard disk] * [the number of hard disks in this RAID 0].

Mirror (RAID 1) for High Security

Mirror or RAID1 is the replication of data onto separate hard

disk in real time to ensure continuous availability. In a RAID 1

system with two hard disks, the data in one hard disk will be

exactly the same as the data in the other hard disk.

The RAID subsystem will also make use of same size disk

space in each hard disk in RAID 1. That is, the RAID controller

will write data to the same disk space in each hard disk. When

reading data, the RAID controller will read data from a

specified hard disk.

Failure in a hard disk will cause the RAID controller to enter

into degraded mode. The host controller can still read/write

data to the RAID without knowing any hard disk defect. Users

have to replace the hard disk then the RAID controller will

enter in on-line rebuild mode automatically.

Besides, if there is only partial defect in a hard disk, the RAID

controller will read data from the other healthy hard drive.

Sans Digital TowerSTOR TS5CT User Manual

8 Sans Digital TowerSTOR TS5CT User Manual

Stripe + Mirror (RAID 10) for High

Performance and High Security

RAID subsystem could be configured to

support Stripe and Mirror at the same

time, i.e. RAID 10. Take four hard

drives in RAID 10 as an example. Hard

drive 0 and hard drive 1 could act as

Mirror 1. Hard drive 2 and hard drive 3

act as Mirror 1 too. The RAID controller

then configures these two Mirrors as

Stripe.

At least two drives (either one in each

Mirror) can be allowed to fail without

any impact to RAID data access. If two

drives from the same Mirror are failed,

the RAID data is not accessible and

becomes invalid.

CLONE

Clone’s action is similar to RAID 1. However,

all of the hard disks will be the mirrors. For

example, in a four hard drives Clone

environment, data in each hard drive will be

the same. This mode is useful especially when

users would like to copy data from a hard

drive to several hard drives at the same time.

The number of allowed failed drives is the total

number of drives in the RAID minus one.

Concatenating (Large)

This mode is also named “Large”. In this mode,

the RAID controller will concatenate all of the hard

drives into a single hard drive with larger capacity.

For example, if three 500GB hard disks are

connected to the RAID subsystem in Large Mode,

user will get a single hard disk with capacity of

1,500GB.

If any one hard disk gets defective, information

stored in this LARGE RAID will become invalid.

Sans Digital TowerSTOR TS5CT User Manual

Sans Digital TowerSTOR TS5CT User Manual 9

Parity Protection (RAID 3 and RAID 5)

The XOR engine in the RAID controller

generates parity block. In RAID 3 mode,

parity block will be stored in the same hard

disk drive. In RAID 5 mode, parity block will

be spread over all of the different hard

drives.

The RAID controller will also make use of

the same size disk space in each hard disk

under RAID 3 / RAID 5 condition.

Failure in a hard disk will cause the RAID

controller to enter into degraded mode. Host

controller still could rear/write data thru the

RAID normally without knowing any defects.

Users have to replace the defective hard

disk. The RAID controller will then enter into

online-auto-rebuild mode automatically.

Table des matières

Autres manuels Sans Digital Stockage

Sans Digital

Sans Digital EliteSTOR ES316X12HP Manuel utilisateur

Sans Digital

Sans Digital TOWERRAID TR4M+ Manuel utilisateur

Sans Digital

Sans Digital AccuRAID AR316X12 Manuel utilisateur

Sans Digital

Sans Digital EliteSTOR ES208X12 Manuel utilisateur

Sans Digital

Sans Digital ER208UT+B Manuel utilisateur

Sans Digital

Sans Digital TOWERRAID TR5M1 Manuel d'utilisation et d'entretien

Sans Digital

Sans Digital MOBILESTOR MS4UM+(B) Manuel utilisateur

Sans Digital

Sans Digital Towerraid TR5M6G Manuel utilisateur

Sans Digital

Sans Digital TOWERSTOR TS2UT Manuel utilisateur

Sans Digital

Sans Digital TOWERRAID TR5UT+(B) Manuel d'utilisation et d'entretien

Sans Digital

Sans Digital ELITESTOR ES104T+(B) Manuel utilisateur

Sans Digital

Sans Digital Accustor AS424X6S Manuel utilisateur

Sans Digital

Sans Digital ES208X6+B Manuel utilisateur

Sans Digital

Sans Digital EliteSTOR ES212X12HP Manuel utilisateur

Sans Digital

Sans Digital ACCUNAS AN2L Manuel utilisateur

Sans Digital

Sans Digital TowerRAID TR5UT+ Manuel utilisateur

Sans Digital

Sans Digital ACCUSTOR AS212X6 Manuel utilisateur

Sans Digital

Sans Digital MOBILESTOR MS4UT+(B) Manuel utilisateur

Sans Digital

Sans Digital MOBILESTOR MS1UT Manuel utilisateur

Sans Digital

Sans Digital TOWERSTOR TS4CT Manuel utilisateur

Sans Digital

Sans Digital ES424X6+BHP Manuel utilisateur

Sans Digital

Sans Digital Towerraid TR4UT-B Manuel d'utilisation et d'entretien

Sans Digital

Sans Digital TOWERRAID TR8U-B Manuel utilisateur

Sans Digital

Sans Digital TOWERRAID TR5UT+(B) Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
