Sans Digital AR316X6(R) Manuel utilisateur

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

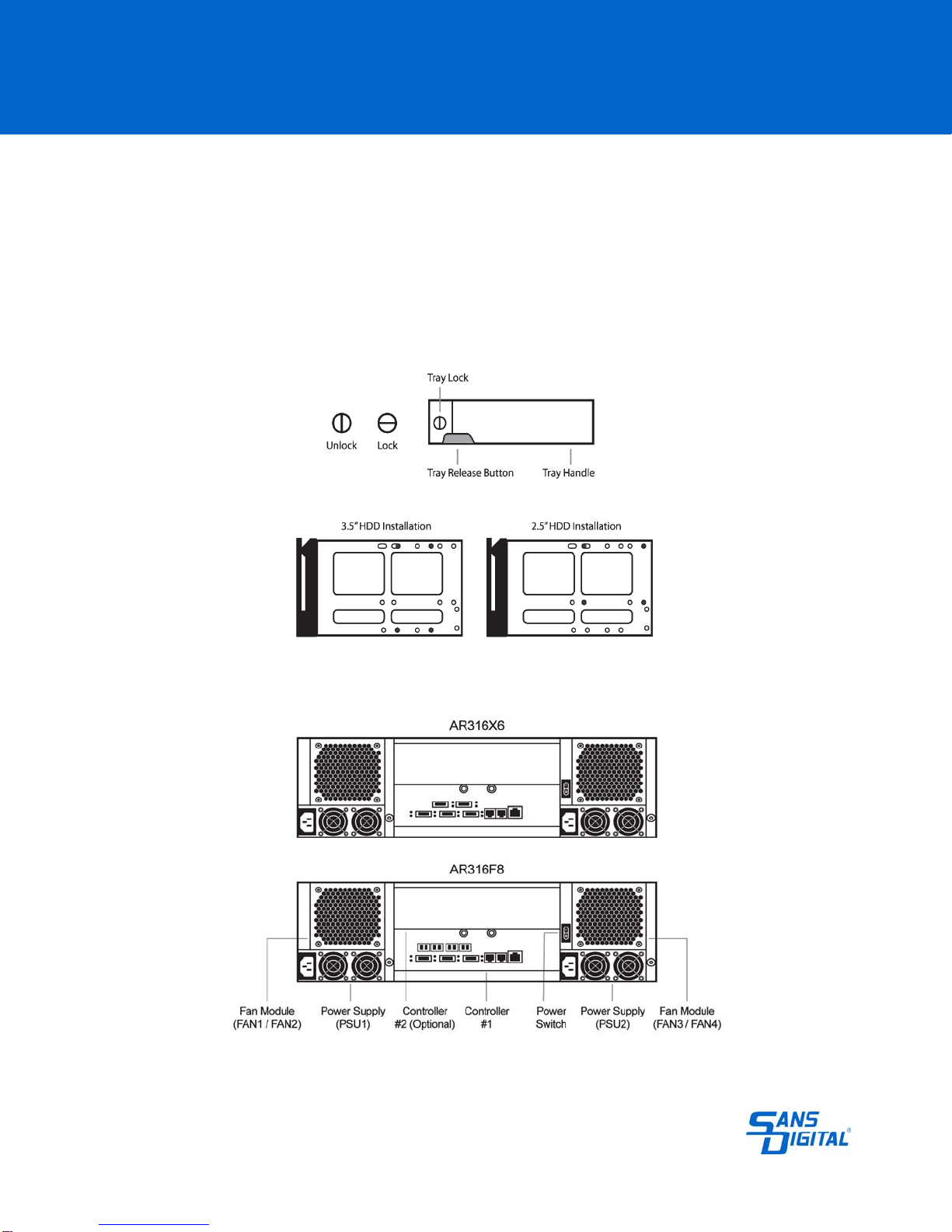

Hard Drive Installation

1. Make sure the tray is at unlock position. If the tray is locked, turn the lock clockwise using the provided key.

2. Press the button on the tray to eject the handle

3. Place the hard drive in the tray, and fasten it with the screws (included in the package) in corresponding locations at

the bottom of the tray.

4. Place the tray into the enclosure and insert the tray by pushing in the tray handle.

5. Lock the tray if desire, using the provided key, by turning the lock counter-clockwise.

NOTE: Tray support both 2.5” and 3.5” hard drives. Please use the correct hard drives holes.

Product Diagrams

Unit Backplane

AR316X6(R) / AR316F8(R) Quick Installation Guide

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

Hard Drive Locations

LCD Modules

Function keys. (ENT, ESC, Scroll up, Scroll Down)

Keys Descriptions

Up Arrow To scroll upward through the menu items

Down Arrow To scroll downward through the menu items

(ENT ) Enter To confirm a selected item

(ESC) ESC To exit a sub-menu and return to previous menu.

Install AccuRAID RAID subsystem in a Rack

A rackmounting kit is bundled with AccuRAID subsystem.AccuRAID subsystem is designed for installation into an

industry-standard 19-inch rackmount cabinet. Following below section for installing the AccuRAID subsystem into a

rackmount:

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

Install the Slide Rails

1. Combine Left slide rail and rear slide rail.

2. Measure the depth of the rack enclosure, then fasten 4 of P4*8M screws into M4 Locking nuts to fix the length.

3. Use T5*8M screws and PW14 washer to install the left slide on Front and rear Posts of Rack as Figure 1.

4. Repeat procedure 1 ~ 3 to install the right Slide into the Rack.

Figure 1

Place the AccuRAID subsystem into the rack

1. Lift the subsystem enclosure and slide it slowly and gently along the slide rail into the rack as Figure 2.

Figure 2

2. Fasten two M5 screws through the chassis ears in the front side of the chassis to secure the AccuRAID subsystem in

the rack as Figure 3.

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

Figure 3

Hardware Connection Instructions

1. Power off all devices.

2. Connect the host connection cables. For mini-SAS models (AR212X6(R),AR316X6(R) and AR424X6(R)) connect

the SAS cables to the SAS HBA on the server. For Fibre Channel models (AR212F8(R),AR316F8(R) and

AR424F8(R)), connect the SFP+ modules and LC to LC cables to the Fibre Channel HBA on server, or connect to

the Fibre switches.

3. Connect the LAN cable to the local network. Make sure it is on the same network of the host computer/server.

Web based management can reach as long as they are on the same network.

4. Connect the power cable. Please make sure connect each redundant power supply with the power cables.The use

of UPS, uninterrupted power supply, is higher recommended.

5, Connect AccuSTOR Expansion JBOD system if desire. Please refer to below diagrams for connections.

Expansion Connection

16BaysFibre RAID

16baysJBOD 16baysJBOD

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

Management Methods

There are three management methods to manage AccuRAID series, describe in the following:

Web GUI

AccuRAID Series support graphic user interface to manage the system. Be sure to connect LAN cable from the LAN

port of the AccuRAID unit to the local network.. The default setting of management port IP is DHCP.

To connect, type the IP address in the web browser. If you have trouble to locate the IP, please see the front LCD

display and the management IP will be displayed. Be sure to add the IP address to trusted network to avoid connecting

issues

Default setting:

Default password: 0000

Console Serial Port

Use NULL modem cable to connect console port of the RAID subsystem. The console setting is baud rate: 115200, 8

bits, 1 stop bit, and no parity.

Terminal type: vt100

Default password: 0000

LCD Module

All of the features within web based management GUI and console serial port can be accessed using the front LCD

display.

Default password: 0000

Controllers, Hard Drives and Front LED indicators

Host connections port LED indicators (Fibre channel and SAS ports):

LED Colors Indicate

Green LinkFC/SAS

Blue + Blink Access

Raid controller status LED & fault LED indicator:

LED Colors Indicate

Status Green + Blink Raid Controller OK

Fault Red Raid Controller Fault

SAS expand port LED Indicator:

LED Colors Indicate

Green LinkSAS

Blue + Blink Access

Front panel LED indicator:

LED Indicator Normal Status Problem Indication

Power On

indicator

Bright Blue This LED does not light up

after power switched on

Fail Indicator LED never li

ht u

LED light up as Red.

Data Access

Indicator

Blink blue during

host computer

accessing the

RAID subsystem.

LED never flickers

www.sansdigital.com | info@sansdigital.com | phone 800 980 1988 | fax 626 322 3878

Hard drives trays LED indicator:

LED Indicator Normal Status Indicate

Power / Access

LED

Solid Blue Link

Flashing Blue Access

Fail LED No LED Normal

RED Hard Drives Failure

Detail Manuals

Both detailed hardware and software installation manual is located on the CD. Please refer to detail manuals for

hardware installations, RAID setup, software setup as well as trouble-shooting information.
