Samsung MZ-7PC128N Manuel du propriétaire

MZ-7PC064

MZ-7PC128

MZ-7PC256

MZ-7PC512

Rev. 3.0

Samsung Solid State Drive

Quick User Manual

Table of Contents

1. Unpacking ..................................................................................................................3

2. SSD (Solid State Drive) Overview .......................................................................4

3. Precautions.................................................................................................................4

Handling Precautions.............................................................................................4

Installation Precautions .........................................................................................5

4. Data Migration..........................................................................................................6

5. Hardware Installation Guide ................................................................................6

Laptop PC ...................................................................................................................6

Desktop PC.................................................................................................................7

6. BIOS Conguration..................................................................................................8

7. Operating System (OS) Installation ...................................................................8

8. Magician Software Installation ...........................................................................9

9. Certied Specications..........................................................................................9

10. SAMSUNG SSD 830 Series Warranty Statement..........................................10

Samsung Solid State Drive 3

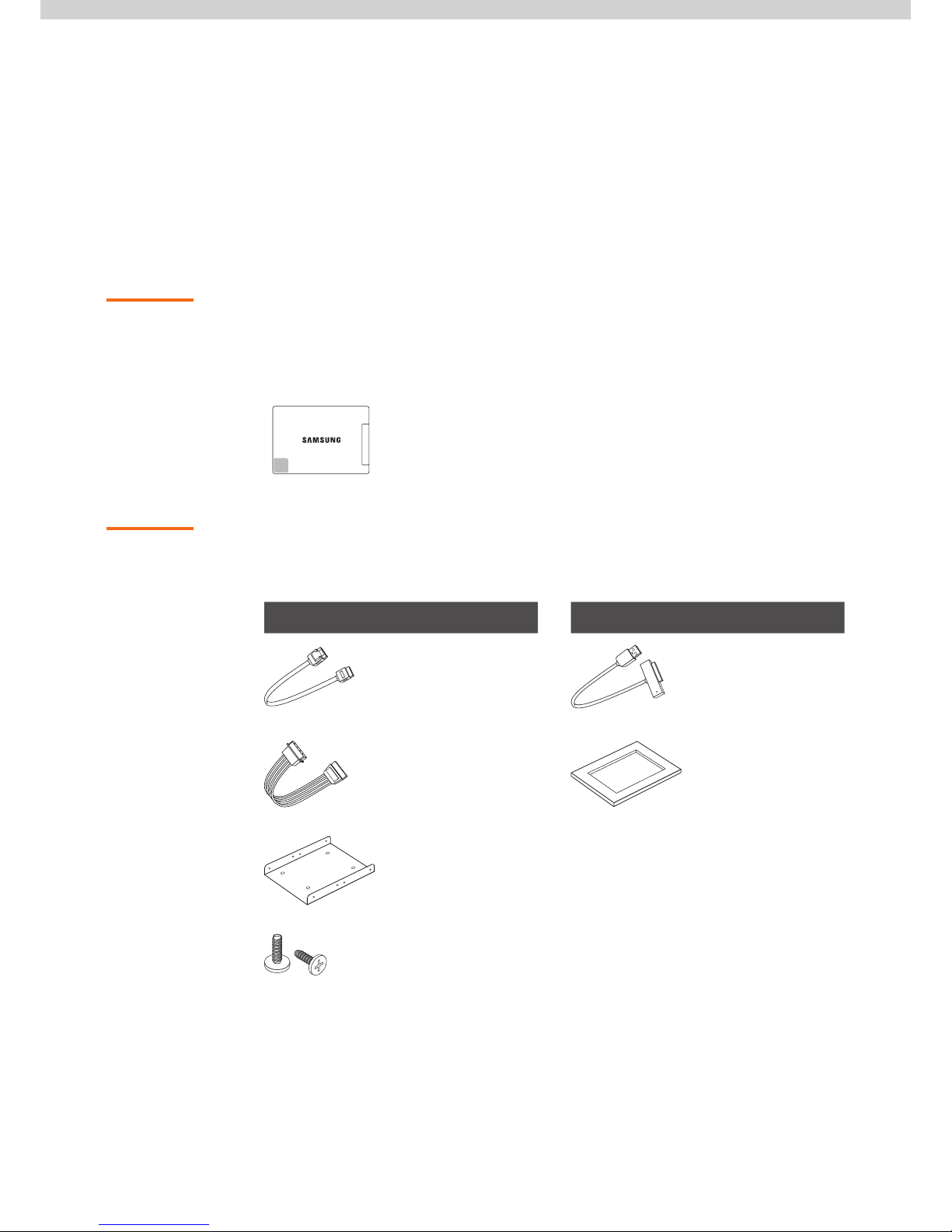

1. Unpacking

Check your product box for the following items, also please refer to the back of

the package to see the installation kit you have purchased. The illustrations may

dier from your actual items.

Basic Contents

SSD Manual kit

Norton Ghost CD

Manual CD

Quick User Manual

Installation Kit

Desktop PC Laptop PC

SATA cable SATA to USB cable

SATA Power Cable Mounting spacer

Bracket

Screws

Samsung Solid State Drive 4

2. SSD (Solid State Drive) Overview

Solid State Drives, or SSDs, are innovative data storage devices that deliver high

performance, reliability, and quality by using NAND Flash memory instead of the

magnetic disks used in traditional Hard Disk Drives (HDDs). SSDs provide very

fast PC booting and application loading speeds and perform exceptionally well

in multi-tasking environments – all while consuming less power, emitting very

little heat, producing no noise, and oering outstanding stability compared to

conventional HDDs. Please visit www.samsung.com/SSD for more information

on SSD technology.

The information contained in this document is subject to change without notice.

3. Precautions

Injury or product damage may occur if the following guidelines are not

followed.

Handling

Precautions

1 Shock SSDs are built to withstand shock and vibration and can protect data with

greater safety than conventional HDDs. However, please protect the product

against severe shock. Excessive shock may damage SSD components and may

also cause hardware detection failures or operational failures when installed in

your PC. In addition, severe shock may open or break the SSD cover.

2 Short Circuit Please keep metal objects out of the SATA interface circuit. The SSD may

short circuit if the SATA interface comes into contact with a metal object or is

exposed to an electric shock. This may cause hardware detection failures or

operational failures.

3 Disassemble/

Damage/

Removal

Please do not disassemble the SSD, damage the SSD, or remove the sticker or

the label axed on the product. Any product that has had its case opened or its

label damaged or removed shall not be covered by the warranty.

Samsung Solid State Drive 5

Installation

Precautions

1 Please ensure that the PC power is turned OFF and the power cable is unplugged

before removing the PC cover to install the SSD. Serious damage may occur

if an HDD is removed or an SSD is installed while the PC power is turned on.

Even though many PCs and storage devices support SATA’s Hot Plugging (Hot

Swapping) feature, Samsung strongly recommends that you turn the PC power

OFF before starting the installation process.

NOTE: Hot Plugging (Hot Swapping) allows storage devices to be changed while the

PC power is turned on.

2 If an existing SATA HDD is being replaced with an SSD, you can use the existing

SATA interface cable and SATA power cable. If the SSD is being newly installed to

your desktop PC, then you should have some necessary items prepared, such as

a SATA interface cable, SATA power cable, 3.5 inch adapter bracket, screws, etc. If

the SSD is being installed in your laptop PC and you would like to perform a Data

Migration, please prepare a USB to SATA adapter cable. If you purchased an 830

series with an installation kit appropriate to your system type (desktop/laptop),

the necessary items will be included in the box.

3 A SATA interface cable that is longer than 1 metre may result in hardware

detection failures or operational failures.

NOTE: SATA cables are compatible with all SATA interface types (SATA 1.5 Gbps,

3Gbps, and 6Gbps).

4 Please check the terms and conditions of your PC manufacturer’s warranty since

it may prohibit the user from disassembling the PC and self-installing the SSD.

5 This SSD 830 Series is designed, manufactured, and certied for general desktop

PC and laptop PC environments for use as a primary or secondary storage drive. It

is not intended or allowed to be used in enterprise server systems, workstations,

storage systems, PC cache memory or in any other manner. If you need SSDs for

such applications or environments (or for another scenario other than general PC

use), please purchase a dierent product made specically for such a purpose.

* Data Backup

Samsung Electronics does not warrant the data stored in the SSD and will not

be held liable for tangible/intangible damages associated with data restoration.

Therefore, please be prepared for the unexpected by backing up any important

data to another storage medium. You may use the full version of Norton Ghost

included with your SSD to accomplish this. Please refer to the quick manual on

the CD that came in your box and available online at www.samsung.com/SSD

for more information on this process.

* SSD Capacity

The actual capacity may dier from that indicated on the product label

depending on the drive formatting method, partitioning, and computer OS.

(1MB=1,000,000 bytes/1GB=1,000,000,000 bytes).

Samsung Solid State Drive 6

4. Data Migration

NOTE: If you prefer to do a clean OS install, you may skip this section.

For Windows users, a full version of Norton Ghost 15.0 is included with every

SSD 830 Series. Please refer to the “Norton Ghost – Data Migration” User Manual

included on the CD that came in your box, and is also available online at www.

samsung.com/ssd, for detailed instructions on migrating all of your data,

including your OS install, to your new SSD. If you have installed Samsung SSD

Magician on your computer, this manual is also available from the “Site Link”

section of that software.

Macintosh users can complete a data migration using the native Disk Utility

application. Insert the Restore DVD that came with your computer and restart

while holding down the “C” key.

5. Hardware Installation Guide

This section briey describes the installation procedures of the SSD.

For more information, please refer to the user manual of your PC.

Laptop PC 1 Turn OFF the laptop PC power.

Disconnect the power plug and

remove the battery from the PC.

2 Remove the HDD cover on the back

of the laptop PC and carefully remove

the HDD from the bay without

damaging the HDD connector.

3 If the HDD is xed with a bracket,

detach the HDD from the bracket.

Be careful when you disconnect the

connector/cables from the HDD.

4 Assemble the SSD with the bracket

precisely and connect the cable.

5 Carefully insert the SSD into the bay

and close the HDD cover.

NOTE: If needed, place the mounting

spacer into the bay for tight fit.

6 Reinstall the battery.

Samsung Solid State Drive 7

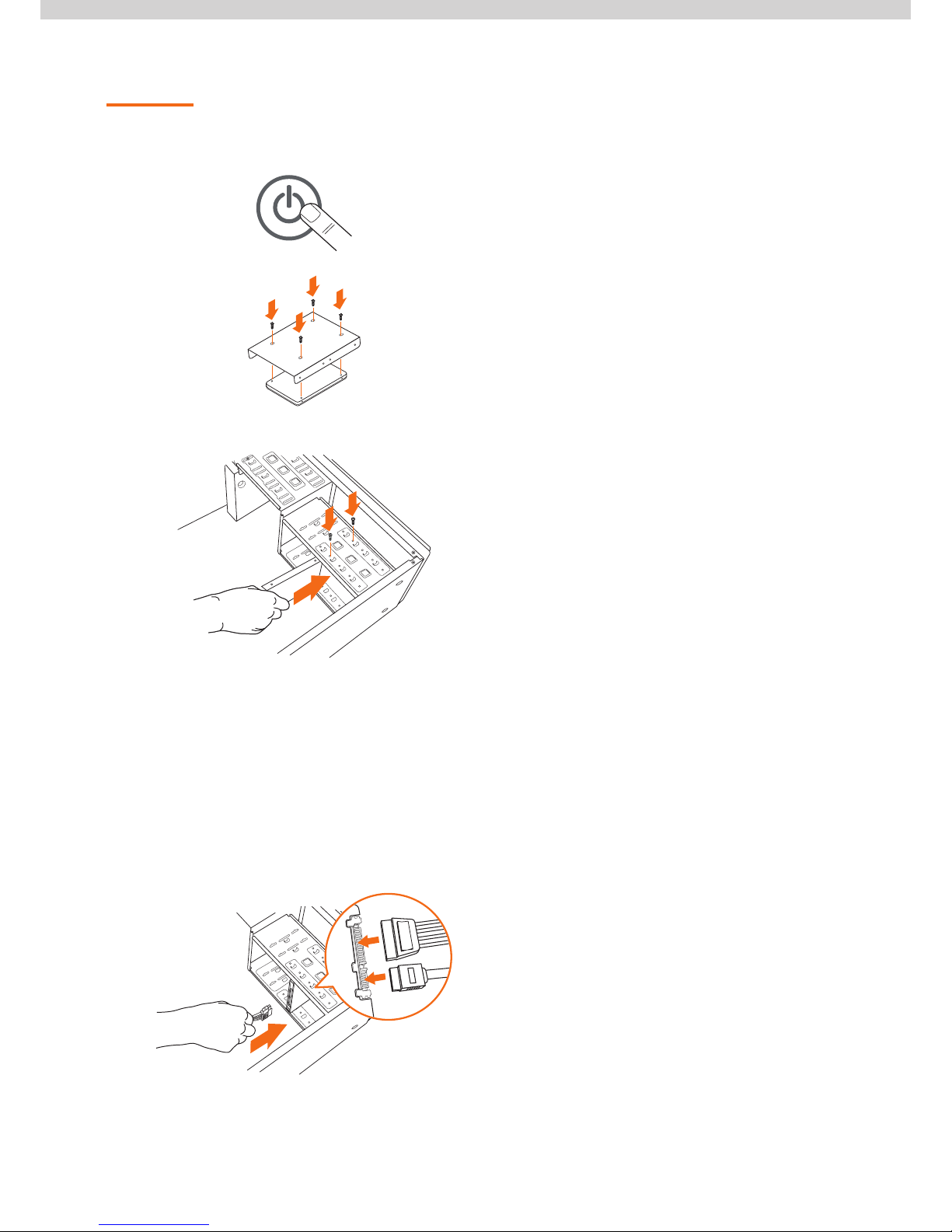

Desktop PC

1 Turn OFF the desktop PC power and disconnect

the power cable.

2 Remove the desktop PC cover.

3 If you are adding the SSD as an additional storage

device, mount it in a 2.5”HDD bay. Next, connect

the SATA cable and power cable to the SSD. If your

PC is only equipped with 3.5”HDD bays, attach

the SSD to a 2.5”to 3.5”adapter bracket before

mounting it in an empty HDD bay or slot.

4 If you are replacing an existing HDD with the SSD,

disconnect all cables connected to the HDD and

then remove the HDD from the bay. Attach the

SSD in a 2.5”to 3.5 bracket and mount the bracket

in an empty HDD bay. Finally, connect the SATA

cable and power cable properly.

NOTE: Desktop PCs have multiple SATA ports,

depending on the PC chipset and

motherboard model. Samsung recommends

that the SSD be connected to the lowest

numbered SATA 6Gbps port.

Although the 830 Series SSD is compatible

with both the SATA 3Gbps and 6Gbps ports,

for maximum performance the product

must be connected to a SATA 6Gbps port.

Most Desktop PCs have 4~6 SATA ports,

and each SATA port is numbered on the

motherboard.

If SATA port numbers are not shown on the

motherboard or you are not sure about port

numbers, then you can simply install the

SSD on any available port.

Usually SATA 6Gb/s ports are indicated by

blue colors to distinguish itself. For more

information please refer to your PC or

motherboard user manuals.

5 Close the desktop PC cover and reconnect the PC

power cable.

Samsung Solid State Drive 8

6. BIOS Configuration

NOTE: Mac users can skip this section.

In most cases, the system will automatically detect the newly installed SSD when

you restart the PC. If not, please follow the procedure below or refer to the user

manual of your PC.

1 Turn the PC power ON.

2 Press the special key for your system to get into the PC BIOS settings (also

called CMOS) during the initial boot process.

3 After entering the PC BIOS, make sure that your PC BIOS recognises your

Samsung SSD 830 series and that the operation mode is set to either [AHCI]

or [RAID] (depending on how you want to congure your system).

4 Save the changes you made to the BIOS settings and reboot the PC.

NOTE: The way to get into the BIOS and the settings menu itself differs between

PC manufacturers In most cases, the key is the F2 or Delete key. Some PC

manufacturers have the BIOS optimised exclusively for their PCs and may

provide only limited settings and options.

Some PC chipsets do not support [AHCI] operation mode even if they

support the SATA interface. Refer to your PC’s user manual for more

information.

For users who are completing a data migration with Norton Ghost:

You may stop here. Your computer should boot into Windows as normal.

For users who are doing a clean OS install:

If the BIOS detects the SSD and a booting error message appears during the PC

booting process, then the SSD installation has been done correctly and you can

now start installing an OS.

7. Operating System (OS) Installation

Samsung recommends that you do a fresh OS install to ensure an optimal

operating environment for your new SSD. For detailed OS installation procedures,

refer to the user manual or installation guide provided by your OS vendor.

NOTE: If you are using a previous version of Windows, such as Windows XP or

Windows Vista, Samsung recommends that you upgrade to Windows 7.

Windows 7’s AHCI drivers and native TRIM command support allow it to

maximise SSD performance and lifetime.

NOTE: The SSD 830 Series may not operate properly under Mac OS X versions older

than 10.5 Leopard.

Samsung Solid State Drive 9

8. Magician Software Installation

NOTE: The Samsung SSD Magician software does not support Macintosh, Linux, or

any server operating systems.

Samsung provides dedicated software for the Samsung SSD 470 and 830

Series in order to maintain the best operating environment for your new SSD.

The Samsung SSD Magician software provides various maintenance features,

including System Information analysis, SSD Performance Optimization (TRIM

command), SSD Benchmark testing, Secure Erase, and Firmware updates.

To install the Samsung SSD magician software, please visit www.samsung.com/

SSD to download the installation le and user manuals.

NOTE: The Samsung Magician software only supports the 470 and 830 Series SSDs.

9. Certified Specifications

CE (European Union/Community)

VCCI (Voluntary Control Council for Interference by Information)

FCC (Federal Communications Commission)

C-TICK (Australian Communications Authority certication mark)

KCC (Korea Communications Commission)

BSMI (Bureau of Standards, Metrology and Inspection)

cUL (C- Underwriter’s Laboratories, Inc.)

TUV (Technischer Uberwachungs Verein)

CB (IECEE CB Scheme)

This marking on products, accessories and/or accompanying documents means

that used electrical and electronic equipment should not be mixed with general

household waste. For proper treatment, recovery and recycling, take this

product to a designated collection point where it will be accepted free of

charge. Contact your local authority for further details about your nearest

designated collection point. Business users in the European Union intending to

discard electrical and electronic equipment should contact their dealer or

supplier for further information.

Samsung Solid State Drive 10

10. SAMSUNG SSD 830 Series Warranty Statement

Thank you for purchasing a SAMSUNG Solid State Drive 830 Series (the

“Product”). SAMSUNG values your business and always attempts to provide you

with the very best quality of service.

PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE

USING THE PRODUCT PROVIDED BY SAMSUNG ELECTRONICS CO., LTD.

(“SAMSUNG”). YOUR USE OF THE PRODUCT CONSTITUTES AGREEMENT WITH

THE TERMS AND CONDITIONS OF THIS SAMSUNG SSD WARRANTY STATEMENT

(“AGREEMENT”). IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF

THIS AGREEMENT, DO NOT USE THE PRODUCT.

A. Warranty

Policy

SAMSUNG warrants to the original end user customer or purchaser of this

Product (“You”) that the Product is free from material defects and workmanship,

subject to the conditions stated herein.

In the event SAMSUNG determines, in its sole discretion, that the Product

suers from material defects in manufacture and does not substantially

conform to the published specications under normal use, for as long as You

own the Product, and subject to the conditions and exceptions stated in this

Agreement, SAMSUNG will, at its option, either: (1) repair or replace the Product

with new or refurbished Product of equal or greater capacity and functionality;

or (2) issue a credit, less any rebates, in accordance with the credit schedule

provided in Section E of this Agreement. In the case of replacements, SAMSUNG

may replace Your Product with one that was previously used, repaired and

tested to meet SAMSUNG specications. This warranty is provided only to You

and is not transferable. Proof of purchase may be required.

THIS AGREEMENT CONTAINS SAMSUNG’S ENTIRE LIABILITY AND YOUR

EXCLUSIVE REMEDY FOR BREACH OF THIS AGREEMENT. SAMSUNG DISCLAIMS

ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT

LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR

A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL

SAMSUNG, ITS SUPPLIERS OR ANY AFFILIATES BE LIABLE FOR ANY INDIRECT,

CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES, ANY FINANCIAL LOSS

OR ANY LOST DATA OR FILES, EVEN IF SAMSUNG HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGE AND NOTWITHSTANDING THE FAILURE OF

ESSENTIAL PURPOSE OF ANY LIMITED REMEDY. IN NO EVENT WILL SAMSUNG’S

LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. THESE

LIMITATIONS AND EXCLUSIONS APPLY TO THE FULLEST EXTENT PERMITTED BY

APPLICABLE LAW.

Autres manuels pour MZ-7PC128N

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Stockage

Samsung

Samsung M3 Station Series Manuel utilisateur

Samsung

Samsung HN-M101MBB Manuel utilisateur

Samsung

Samsung HX-MU010EA Guide de l'utilisateur

Samsung

Samsung HS030GB Manuel utilisateur

Samsung

Samsung 840 EVO Guide de référence rapide

Samsung

Samsung STORY Station Manuel utilisateur

Samsung

Samsung SP0211N Manuel utilisateur

Samsung

Samsung HXDU010EB - Story Station 1 TB External Hard... Guide de l'utilisateur

Samsung

Samsung MZ-5PA064B Guide de l'utilisateur

Samsung

Samsung GT-B9150 Manuel utilisateur

Samsung

Samsung M3 Station Series Manuel utilisateur

Samsung

Samsung MU-PS1T0B Mode d’emploi

Samsung

Samsung T3 Manuel utilisateur

Samsung

Samsung G2 PORTABLE HX-MU025DC Manuel utilisateur

Samsung

Samsung HXSU016BA - S1 Mini - Hard Drive Manuel utilisateur

Samsung

Samsung STORY Station HX-DU050DB Manuel utilisateur

Samsung

Samsung D3 Station Manuel utilisateur

Samsung

Samsung SPINPOINT MP2 HM080HJ Manuel utilisateur

Samsung

Samsung HD080HJ - 80 GB Hard Drive Manuel utilisateur

Samsung

Samsung T7 Series Manuel utilisateur

Samsung

Samsung SV8004H - 80.0GB 5,400RPM Ultra ATA/100 Manuel utilisateur

Samsung

Samsung Series Manuel utilisateur

Samsung

Samsung MZ-5PA064B Manuel utilisateur

Samsung

Samsung SVS-5R Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
