Samsung STP131 Series Manuel utilisateur

STP131 Series

Operator's Manual

Warning - U.S

This equipment has been tested and found to comply with the limits for a Class A

digital device pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interface when the equipment is

operated in a commercial environment. This equipment generates uses, and can

radiate radio frequency energy and, if not installed and uses in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Notice - Canada

This Apparatus complies with class "A" limits for radio interference as specified in

the Canadian department of communications radio interference regulations.

Caution

Some semiconductor devices are easily damaged by static electricity. You should

turn the printer "OFF", before you connect or remove the cables on the rear side,

in order to guard the printer against the static electricity. If the printer is damaged

by the static electricity, you should turn the printer "OFF".

Get appareil est conforme aux normes class "A" d'interference radio tel que

specifier par ministre canadien des communications dans les reglements

d'interference radio.

Introduction

The STP131 Series Roll Printer are designed for use with electronic instruments such

as system ECR, POS, banking equipment peripheral equipment, etc

The main features of the printer are as follows:

1. High speed printing : 17.3(1/6" Feed) lines per second.

2. Low noise thermal printing.

3. RS-232(

STP131 Series

), Parallel(

STP131 Series

)

4. The data buffer allows the unit to receive print data even during printing.

5. Peripheral units drive circuit enables control of external devices such as

cash drawer.

6. Characters can be scaled up to 64 times compared to it's original size.

7. Bar code printing is possible by using a bar code command.

8. Different print densities can be selected by DIP switches.

Please be sure to read the instruction in this manual carefully before using your

new

STP131 Series.

NOTE : The socket-outlet shall be near the equipment and it shall

be easy accessible.

DATE: July. 2001

MANUAL REVISION 2.0

TEL:82-31-210-5620

FAX:82-31-210-5589

Chapter 1. Setting up the printer

1-1. Unpacking

1-2. Connecting the cables

1-3. Connecting the computer

1-4. Connecting the drawer

1-5. Connecting the power supply

1-6. Installing or replacing the paper roll

1-7. Adjustments and settings

1-8. Using the Printer

Table of Contents

Chapter 2. Hexadecimal dumping

Chapter 3. The self test

Chapter 4. Code table

Chapter 5. Control commands

Appendix

A. Connectors

Interface connector

Drawer connector

B. Notes

C. Specification

Chapter 1. Setting Up the Printer

1-1. Unpacking

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

Power cable

Operator's Manual

Parallel cable

Interface cable (option)

AC Adapter

STP131 Series

Roll paper

Serial cable

25 pin 25 pin 25 pin9 pin

Interface connector Drawer kick-out

connector

Power supply

connector

NOTE : Before connecting any of the cables, make sure that both

the printer and the host are turned off.

1-3. Connecting the Computer

You need an appropriate interface cable.

1. Plug the cable connector securely into the printer's interface connector.

2. Tighten the screws on both sides of the cable connector.

1-4. Connecting the Drawer

WARNING :

Use a drawer that matches the printer specification. Using an improper drawer may

damage the drawer as well as the printer.

CAUTION :

Do not connect a telephone line to the drawer kick-out connector; otherwise the printer

and the telephone line may be damaged.

Plug the drawer cable into the drawer kick-out connector on the back of the printer next

to the power supply connector.

3. Attach the other end of the cable to the computer.

1-2. Connecting the Cables

You can connect up to three cables to the printer. They all connect to the connector

panel on the back of the printer, which is shown below:

NOTE : To remove the DC cable connector, make sure that the power

supply's power cord is unplugged; then grasp the connector

at the arrow and pull it straight out.

NOTE : Be sure to use paper rolls that specifications. Do not use papaer

rolls that have the paper glued to the core because the printer

cannot detect the paper end correctly.

1. Make sure that the printer is not receiving data; otherwise, data may be lost.

2. Open the paper roll cover by pull up the cover.

You must turn on the printer before replace the paper roll.

NOTE : Do not open the print cover while the printer is operating.

This may damage the printer.

3. Remove the used paper roll core if there is one.

4. Insert the paper roll.

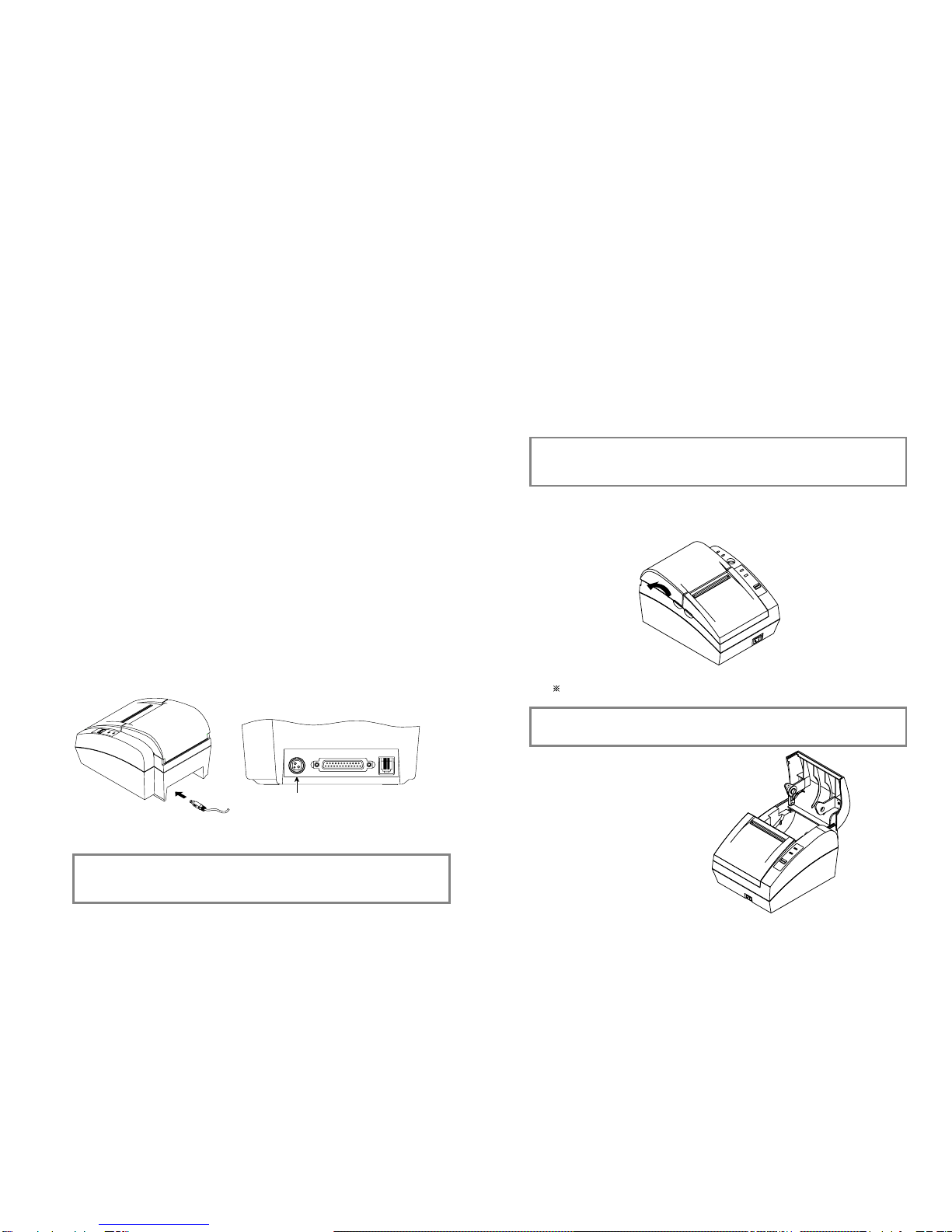

1-5. Connecting the Power Supply 1-6. Installing or Replacing the Paper Roll

CAUTION :

When connecting or disconnecting the power supply from the printer, make sure that

the power supply is not plugged into an electrical outlet. Otherwise you may damage the

power supply or the printer.

If the power supply's rated voltage and your outlet's voltage do not match, contact your

dealer for assistance. Do not plug in the power cord. Otherwise, you may damage the

power supply or the printer.

1. Make sure that the Printer's power switch is turned off, and the power supply's power

cord is unplugged from the electrical outlet.

2. Check the label on the power supply to make sure that the voltage required by the

power supply matches that of your electrical outlet.

3. Plug in the power supply's Adapter cale as shown below. Notice that the flat side of

the plug faces down.

Power connector

Adapter cable

NOTE : When closing the cover, press the center of printer cover firmlay

to prevent Paper miss-loading.

5. Be sure to note the correct direction that the paper comes off the roll.

6. Close the cover.

7. Tear off the paper as shown.

NOTE : Both Power and Error LED is blank when the mecha cover is

open.

1-8. Using the Printer

Control Panel

Button

The button can be disabled by the ESC c 5 command.

Press the FEED button once to advance paper one line. You can also hold down the

FEED button to feed paper continuously.

Panel lights

Power(Green)

The POWER light is on whenever the printer is on.

ERROR(Red)

POWER

ERROR

FEED

1-7. Adjustments and Settings

The STP131 Series is set up at the factory to be appropriate for almost all users.

It does, however, offer some settings for users with special requirements.

It has DIP switches that allow you to change communication settings, such as

handshaking and parity check, as well as print density.

Ths STP131 Series also has a near-end sensor for the paper. This can give you a

warning when the paper is almost out. If you find that there is not enough paper

remalining on the roll when the paper low is triggered, the Error LED(Red) is turn on.

1) The error LED blinks fast when paper is out.

2) The error LED blinks when the Near End Sensor triggered.

Chapter 2. Hexadecimal Dumping

This feature allows experienced users to see exactly what data is coming to the printer.

This can be useful in finding software problems. When you turn on the hexadecimal

dump function, the printer prints all commands and data in hexadecimal format along

with a gulde section to help you find specific commands.

To use the hexadecimal dump function, follow these steps:

1. Set DIP Switch 2 (sw- 7 = Hex dump mode) of your printer ON position.

2. Turn on the power of your printer.

3. Run any software rogram that sends data to the printer. The printer will print all the

codes it receives in a two-column format. The first column contains the hexadecimal

codes and the second column gives the ASCII characters that corresponds to the

codes.

4. Close the cover, then the printer enters the hexadecimal dump mode.

5. Set DIP Switch 2 (sw- 7 = Hex dump mode) of your printer off position and then

hexadecimal mode is off.

A period (.) is printed for each code that has no ASCII equivalent.

During the hex dump, all commands except DEL EOT is disabled.

. ! . .&.@@@@

. . .D. . . . ( ( (

...A.B.CCC

Serial Interface Specification

DIP Switch Functions

BPS

2400

4800

9600

19200

38400

57600

115200

Level

D/W1

OFF

D/W2

OFF

S/W3

OFF

Dip Switch 1

No.

Function

Density

Handshaking

Auto Feeding

Reserved

Language

Not used. Fixed to OFF

ON OFF

Normal

DTR/DSR

Without cutting

Completion code

Korean

Dark

Xon/Xoff

With cutting

Combination code

English

Function

Cut ON

Full Cut OFF

Partial Cut

Dip Switch 2

No.

12 345678

KONKSDOBH

12 345678

KONKSDOBH

D/S : 1

D/S : 2

13 14

Page 0 (PC437 : USA, Standard Europe)

(International Character Set : USA)

Chapter 3. The self test

Self-test printing.

Please press the FEED button

SELF TEST

* * * * * *

The self-test checks whether the printer has any problems. If the printer does not

function properly, contact your dealer. The self-test checks the following;

1. Make sure paper roll has been installed properly.

2. Turn on the power while holding down the FEED button. The self-test begins.

3. The self-test prints the current printer status, which provides the control ROM version

and the DIP switch setting.

4. After printing the current printer status, self-test printing will print the following, and

pause.

5. Press the FEED button to continue printing. The printer prints a pattern using the

built-in character set.

6. The self-test automatically ends and cuts the paper after printing the following.

The printer is ready to receive data as soon as it completes the self-test.

15 16

17 18

19 20
