Samsung ML-5000A Manuel utilisateur

LASER PRINTER

ML-5000A

Setup Guide

00-Cover&Contents 7/16/99 7:37 PM Page 1

Control Locations and Functions

Front View

4Set Up

Automatic Paper Feeder

Holds 150 sheets of paper.

Paper Guides

Adjust to the

width of paper.

Face-down Stacker

Holds printed documents.

If printed on plain paper,

a maximum of 100 sheets

can be held.

Stacker Extender

Supports paper stacked in the

paper output bin.

Face-up Stacker

Holds a single sheet of special media (transparency,

label, envelope, and heavy weight paper) with print

side facing up.

Operator Panel

Tray Extender

Supports paper stacked in the

automatic paper feeder.

Manual Paper Feeder

Used to feed a single sheet of paper.

01-Setup 7/20/99 9:25 AM Page 2

12 Set Up

2. Before loading the paper, flex the sheets back and forth to loosen

them, then fan them. Tap the edges on a table top to straighten

them. Doing this before you load paper helps prevent paper jams.

DonÕt load too much. This feeder holds up to 150 sheets.

3. Insert the paper in the paper feeder.

If the paper has a preferred print side, place the print side facing

you. If you use letterhead paper, load the paper with the letter-head

edge down and facing you.

Loading a Stack of Paper

For best results, use high quality 75g/m2 (20 lb) xerographic paper.

1. Pull the extender on the automatic paper feeder up, until it stops.

02-Printing 7/16/99 6:30 PM Page 2

Set Up

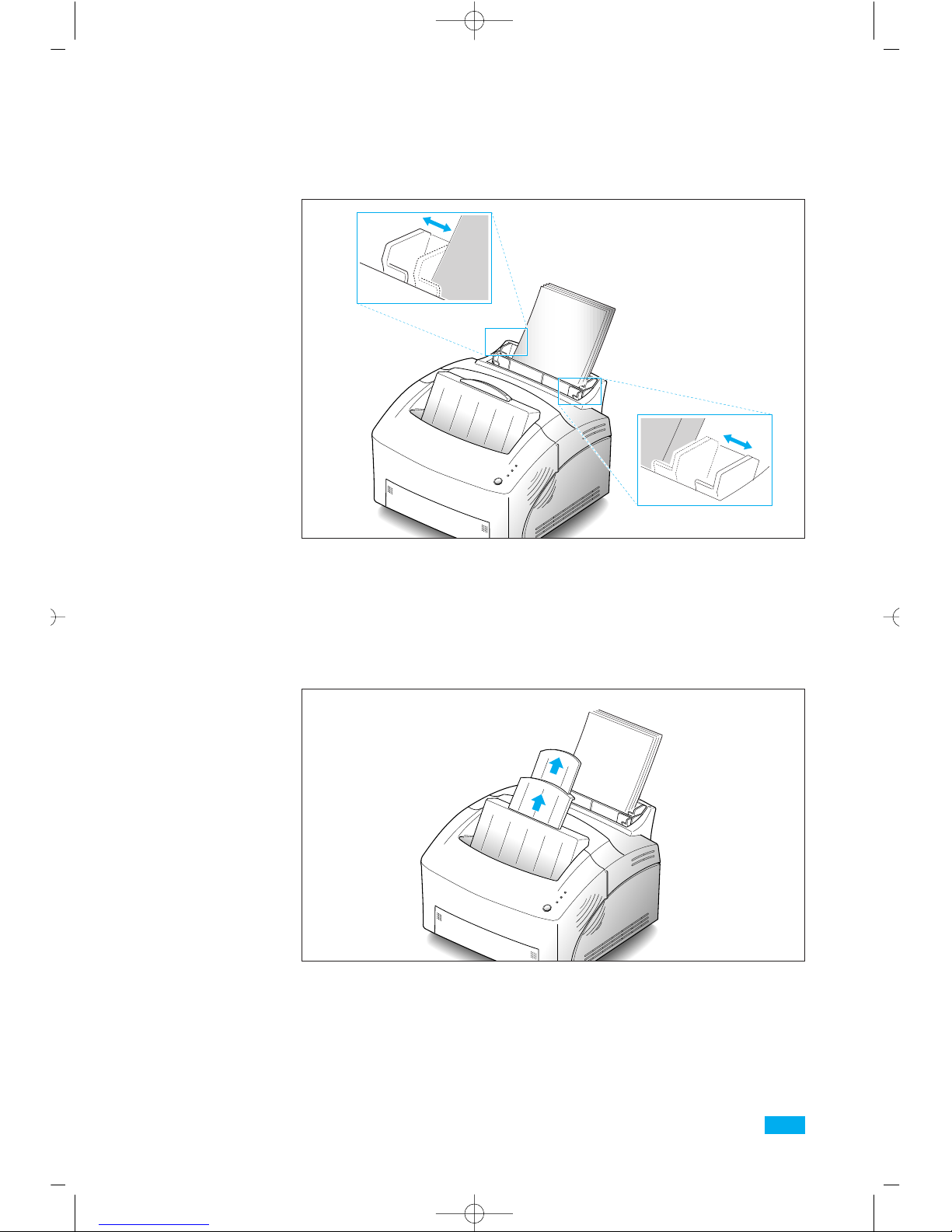

5. Pull up the extender on the face-down stacker. The face-down

stacker can hold up to 100 printed pages.

4. Adjust the paper guides to the width of the paper.

02-Printing 7/16/99 6:30 PM Page 3

14 Set Up

6. ML-5000A users may want to print a self test to check that the

printer is working properly. A self test shows current printer

configuration.

Make sure that the READY light is on. Press and hold the button

for about 3 seconds. All the indicators blink. Release the button

when each indicator starts to blink in turn. Wait until a self test

page prints.

ERROR

PAPER

READY

02-Printing 7/16/99 6:30 PM Page 4

Set Up

Installing Printer Driver

Windows 95/98/NT4.0 Installation

1. Turn on the computer and start Windows.

If Windows 95/98 recognizes the new printer,go to the section

ÒWindows 95/98 Plug and PlayÓ on page 16.

2.Insert the setup CD-ROM into your CD-ROM drive.

If Windows does not automatically run the CD-ROM,go to the

sectionÓIf Windows Does Not Run the CD-ROMÓ on page 16.

3.Click on the icon ÒPrinter Set-upÓ to install the printer drivers.

4.Click the Item you want to install.

5.Follow the instructions on the screen.

Note : WinNT and WinNTRCP item is supported under Windows NT4.0.

02-Printing 7/16/99 6:30 PM Page 5

16 Set Up

Windows 95/98 Plug and Play

1.At the ÔNew Hardware FoundÕ dialog box,click on the OK button.

2.Insert the setup CD-ROM into your CD-ROM drive.

3.Follow the instructions on the screen.

If Windows Does Not Run the CD-ROM

1.Select RUN from the Start menu.

2.Type e:\print32.exe on the command line(Ôe:\Õ is CD-ROM drive),then

click OK.

3.Follow the instructions on the screen.

Windows 3.1x Installation

1.Insert the CD-ROM disk into your CD-ROM drive.

2.From the Program Manager window,double-click Main, and File

Manager

3.From the File Manager window,select your CD-ROM drive, execute

print16.exe.

4.Click on the icon ÒPrinter Set-upÓ to install the printer drivers.

5.Follow the instructions on the screen.

02-Printing 7/16/99 6:30 PM Page 6

Set Up

Installing DOSRCP Utility

For DOS Users

DOS users should install the Remote Control Panel utility to change

print settings.

1. Insert the setup CD-ROM into your CD-ROM drive.

2. At the DOS prompt, type in:

c:\>XCOPY e:\Driver\English\DosUtil\*.* c:\DOSUTIL ↵

(Ôe:\Õ is CD-ROM drive)

<F=File, D=directory>?

3. Specify directory:

<F=File, D=directory>? D↵

4. To execute batch file, type in:

c:\DOSUTIL\ 5000A.BAT

02-Printing 7/16/99 6:30 PM Page 7

18 Set Up

Uninstall Printer Driver

In Windows 95/98

1. From the Start menu, select Settings, then Printers.

2. In the Printers windows, select Samsung ML-5000A PCL5e.

3. From the File menu, select Delete.

In Windows 3.x

1. Double-click the Control Panel icon within the Main program

group.

2. Double-click the Printers icon.

3. Select Samsung ML-5000A PLC5e from the Installed Printers

list, then click the Remove button.

02-Printing 7/16/99 6:30 PM Page 8

Set Up

Printing a Document

This procedure describes the general steps required for printing from

various Windows applications. The exact steps for printing a

document may vary depending on the application program you are

using. Refer to your software applicationÕs documentation for the

exact printing procedure.

1. Start the program you are using to create the document, and open

the document you want to print.

2. Choose Print or Print Setup from the File menu.

3. Make sure the correct printer is selected as your default printer.

4. Click on Properties, Setup or Options if you want to make any

adjustments as appropriate for printing your document.

5. Select OK to close the Properties dialog box.

6. After making any necessary changes to the printing parameters,

select OK to start the print job.

02-Printing 7/16/99 6:30 PM Page 9
