Samsung NV75J7570RS Mode d’emploi

Built-in Oven

User & installation manual

NV75J7570RS

NV75J7570RS_EU_DG68-00615D-04_EN.indd 1 2017-03-09  12:05:05

2 English

Contents

Using this manual 4

The following symbols are used in this User Manual: 4

Safety instructions 5

Important safety precautions 5

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) 9

Auto energy saving function 9

Installation 10

What’s included 10

Power connection 12

Cabinet mount 13

Before you start 16

Initial settings 16

New oven smell 17

Smart safety mechanism 17

Soft Closing Door (Gentle, Safe, and Silent) 17

Accessories 18

Dual cook mode 20

Operations 21

Control panel 21

Common settings 22

Cooking modes (except for Grill) 28

Cooking modes (Grill) 33

Dual cook mode temperature setting range 35

To stop cooking 37

Special function 38

Auto cook 39

Cleaning 41

Timer 44

Sound On/Off 44

NV75J7570RS_EU_DG68-00615D-04_EN.indd 2 2017-03-09  12:05:05

English 3

Contents

Cooking Smart 45

Manual cooking 45

Auto cook programmes 53

Test Dishes 61

Collection of frequent Auto cook recipes 63

Maintenance 67

Cleaning 67

Replacement 73

Troubleshooting 74

Checkpoints 74

Information codes 77

Appendix 78

Product data sheet 78

NV75J7570RS_EU_DG68-00615D-04_EN.indd 3 2017-03-09  12:05:05

4 English

Using this manual

Thank you for choosing SAMSUNG Built-In Oven.

This User Manual contains important information on safety and instructions intended to assist

you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your oven and keep this book for

future reference.

The following symbols are used in this User Manual:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property

damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

NOTE

Useful tips, recommendations, or information that helps users manipulate the product.

NV75J7570RS_EU_DG68-00615D-04_EN.indd 4 2017-03-09  12:05:05

English 5

Safety instructions

Installation of this oven must be performed only by a licensed electrician. The installer is

responsible for connecting the appliance to the mains power supply in observance of the

relevant safety recommendations.

Important safety precautions

WARNING

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety.

Children should be supervised to ensure that they do not play with the

appliance.

If the supply cord is defective, it must be replaced by a special cord

or assembly available from the manufacturer or an authorized service

agent. (Fixed wiring type model only)

If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualied persons in order to avoid a

hazard. (Power cord type model only)

This Appliance should be allowed to disconnection from the supply

after installation. The disconnection may be achieved by having the

plug accessible or by incorporating a switch in the xed wiring in

accordance with the wiring rules.

The method of xing is not to depend on the use of adhesives since

they are not considered to be a reliable xing means.

During use the appliance becomes hot. Care should be taken to avoid

touching heating elements inside the oven.

NV75J7570RS_EU_DG68-00615D-04_EN.indd 5 2017-03-09  12:05:05

6 English

Safety instructions

Accessible parts may become hot during use. Young children should be

kept away.

If this appliance has steam or self cleaning function, excess spillage

must be removed before cleaning and all utensils should not be left in

the oven during steam cleaning or self cleaning. The cleaning function

depends on the model.

If this appliance has self cleaning functions, during self cleaning the

surfaces may get hotter than usual and children should be kept away.

The cleaning function depends on the model.

Only use the temperature probe recommended for this oven. (Meat

probe model only)

A steam cleaner is not to be used.

Ensure that the appliance is switched off before replacing the lamp to

avoid the possibility of electric shock.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the

oven door glass since they can scratch the surface, which may result in

the glass shattering.

The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless

continuously supervised.

This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children should not play with the

appliance. Cleaning and user maintenance should not be made by

children without supervision.

NV75J7570RS_EU_DG68-00615D-04_EN.indd 6 2017-03-09  12:05:05

English 7

Safety instructions

The temperature of external surfaces may be high when the appliance

is operating.

The door or the outer surface may get hot when the appliance is

operating.

Keep the appliance and its cord out of reach of children less than 8

years.

Appliances are not intended to be operated by means of an external

timer or separate remote-control system.

Insert the wire rack into position

with the protruding parts

(stoppers on both sides) towards

the front so that the wire rack

supports the rest position for

large loads.

CAUTION

If the oven has been damaged in transport, do not connect it.

This appliance must be connected to the mains power supply only by a specially licensed

electrician.

In the event of a fault or damage to the appliance, do not attempt to operate it.

Repairs should be performed by a licensed technician only. Improper repair may result in

considerable danger to you and others. If your oven needs repair, contact a SAMSUNG Service

center or your dealer.

Electrical leads and cables should not be allowed to touch the oven.

The oven should be connected to the mains power supply by means of an approved circuit

breaker or fuse. Never use multiple plug adapters or extension leads.

The power supply of the appliance should be turned off when it is being repaired or cleaned.

Take care when connecting electrical appliances to sockets near the oven.

If this appliance has a vapour or steam cooking function, do not operate this appliance when

the water supply cartridge is damaged. (Vapour or steam function model only)

NV75J7570RS_EU_DG68-00615D-04_EN.indd 7 2017-03-09  12:05:05

8 English

Safety instructions

When the cartridge is cracked or broken, do not use it and contact your nearest service

center. (Vapour or steam function model only)

This oven has been designed only for the cooking of household foods.

During use, the oven interior surfaces become hot enough to cause burns. Do not touch

heating elements or interior surfaces of the oven until they have had time to cool.

Never store ammable materials in the oven.

The oven surfaces become hot when the appliance is operated at a high temperature for an

extended period of time.

When cooking, take care when opening the oven door as hot air and steam can escape

rapidly.

When cooking dishes that contain alcohol, the alcohol may evaporate due to the high

temperatures and the Vapour can catch re if it comes into contact with a hot part of the

oven.

For your safety, do not use high-pressure water cleaners or steam jet cleaners.

Children should be kept at a safe distance when the oven is in use.

Frozen foods such as pizzas should be cooked on the big grid. If the baking tray is used, it

may become deformed due to the great variation in temperatures.

Do not pour water into the bottom of the oven when it is hot. This could cause damage to the

enamel surface.

The oven door must be closed during cooking.

Do not line the bottom of the oven with aluminum foil and do not place any baking trays

or tins on it. The aluminum foil blocks the heat, which may result in damage to the enamel

surfaces and cause poor cooking results.

Fruit juices will leave stains, which can become permanent on the enamel surfaces of the

oven.

When cooking very moist cakes, use the deep pan.

Do not rest bakeware on the open oven door.

Keep children away from the door when opening or closing it as they may bump themselves

on the door or catch their ngers in the door.

Do not step, lean, sit or place heavy items on the door.

Do not open the door with unnecessarily strong force.

NV75J7570RS_EU_DG68-00615D-04_EN.indd 8 2017-03-09  12:05:05

English 9

Safety instructions

WARNING: Do not disconnect the appliance from the main power supply even after the

cooking process is completed.

WARNING: Do not leave the door open while oven is cooking.

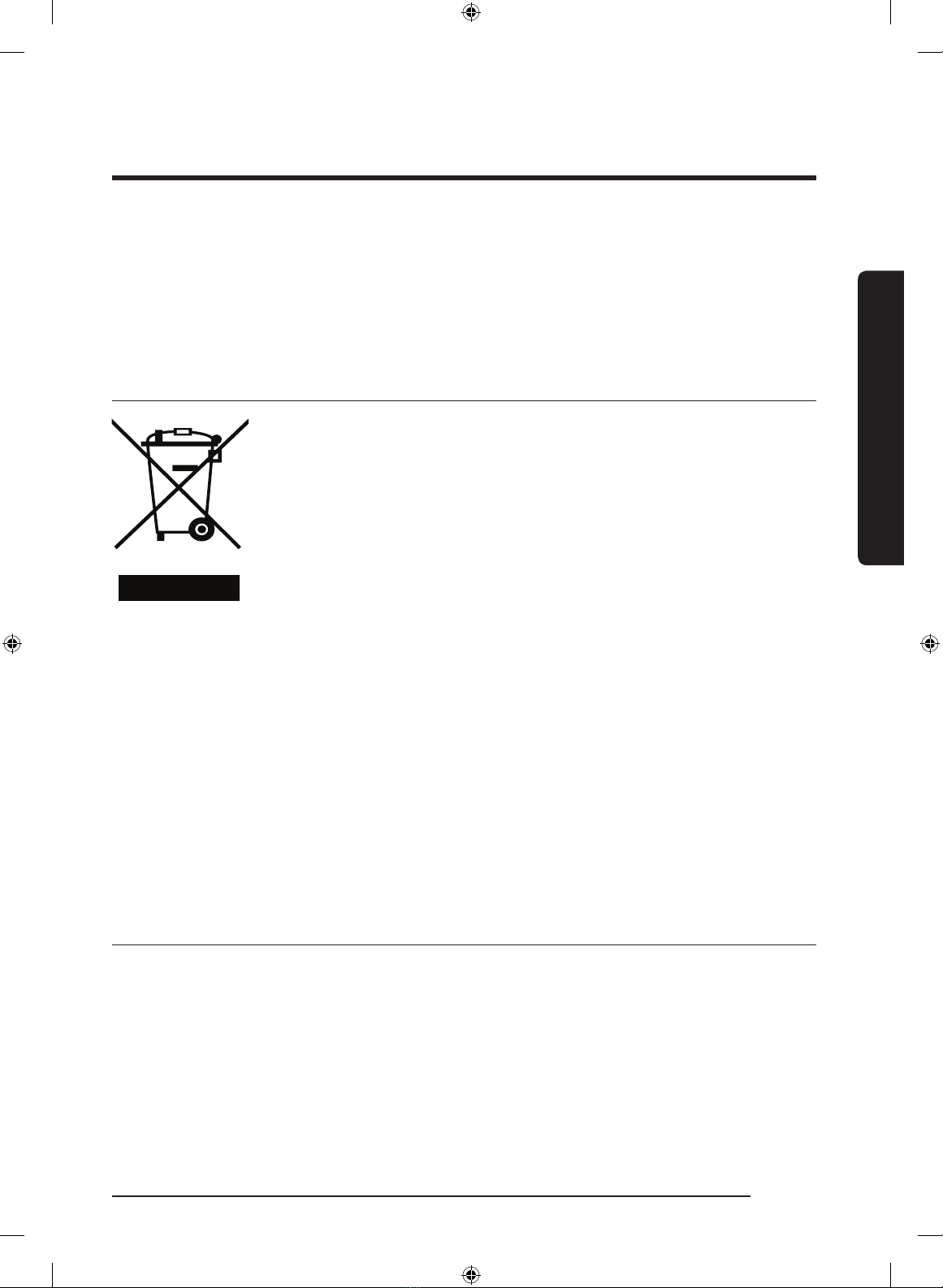

Correct Disposal of This Product (Waste Electrical & Electronic

Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that

the product and its electronic accessories (e.g. charger, headset,

USB cable) should not be disposed of with other household waste

at the end of their working life. To prevent possible harm to the

environment or human health from uncontrolled waste disposal,

please separate these items from other types of waste and recycle

them responsibly to promote the sustainable reuse of material

resources.

Household users should contact either the retailer where they

purchased this product, or their local government ofce, for details

of where and how they can take these items for environmentally

safe recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product and its electronic

accessories should not be mixed with other commercial wastes for

disposal.

For information on Samsung’s environmental commitments and product specic regulatory

obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/

corporatecitizenship/data_corner.html

Auto energy saving function

• If no user input is made for a certain time while the appliance is operating, the appliance

stops operation and goes to Standby state.

• Light : During cooking process, you can switch off Oven lamp by pressing ‘Oven light’

button. For energy saving, the oven lighting is switched off a few minutes after cooking

program has started.

NV75J7570RS_EU_DG68-00615D-04_EN.indd 9 2017-03-09  12:05:05

10 English

Installation

WARNING

This oven must be installed by a qualied technician. The installer is responsible for

connecting the oven to the main power, while observing the relevant safety regulations of

your area.

What’s included

Make sure all parts and accessories are included in the product package. If you have a

problem with the oven or accessories, contact a local Samsung customer centre or the

retailer.

Oven at a glance

01 Control panel 02 Door handle 03 Door

NV75J7570RS_EU_DG68-00615D-04_EN.indd 10 2017-03-09  12:05:06

Autres manuels pour NV75J7570RS

Table des matières

Autres manuels Samsung Four

Samsung

Samsung NV51M9770S Series Manuel utilisateur

Samsung

Samsung NV31T4551SS Manuel utilisateur

Samsung

Samsung Electric Range NE63 8 Series Manuel utilisateur

Samsung

Samsung PKG001 Manuel utilisateur

Samsung

Samsung NV6323 Series Manuel utilisateur

Samsung

Samsung FQ115T001 Guide de l'utilisateur

Samsung

Samsung NQ50C7935ES Manuel utilisateur

Samsung

Samsung NV51K6650 SERIES Manuel utilisateur

Samsung

Samsung NQ50H5537KB Mode d’emploi

Samsung

Samsung FX710 Series Instructions de montage

Samsung

Samsung NV75R3143BS Mode d’emploi

Samsung

Samsung NV51CG600DSRAA Manuel utilisateur

Samsung

Samsung BQ3D4T037 Manuel utilisateur

Samsung

Samsung FTQ352IW Series Mode d'emploi

Samsung

Samsung NV51 600D Series Manuel utilisateur

Samsung

Samsung FQV313T003 Manuel utilisateur

Samsung

Samsung NV75A657 Series Mode d’emploi

Samsung

Samsung FQ159ST-B Manuel utilisateur

Samsung

Samsung NV75J7570RS Mode d’emploi

Samsung

Samsung NV7B421 Series Mode d’emploi

Samsung

Samsung BQ1S4T133 Manuel utilisateur

Samsung

Samsung BQ2Q7G078 Prezio Dual Cook Electric Oven Manuel utilisateur

Samsung

Samsung BQ1AQ4T013 Manuel utilisateur

Samsung

Samsung NV70K2340RS Mode d’emploi

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
