Samsung YP-S5 Manuel utilisateur

SERVICE

Manual

YEPP

Model Name : YP-S5

Model Code : YP-S5JQW/XET

YEPP

Refer to the service manual in the GSPN (see the rear cover) for the more information.

CONTENTS

1. Precaution

2. Product Specification

3. Disassembly & Reassembly

4. Troubleshooting

5. Exploded View & Part List

6. PCB Diagram

7. Schematic Diagram

YP-S5

This Service Manual is a property of Samsung Electronics

Co.,Ltd. Any unauthorized use of Manual can be punished

under applicable International and/or domestic law.

GSPN (Global Service Partner Network)

Area Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast & Africa mea.samsungportal.com

Printed in Korea

Contents

1. Precaution

1-1 Safety Precautions...........................................................................................1-1

1-2 Static Electricity Precautions............................................................................1-2

2. Product Specification

2-1 Product Feature ...............................................................................................2-1

2-2 Specifications...................................................................................................2-2

2-3 Specifications Analysis.....................................................................................2-3

2-4 Accessories......................................................................................................2-5

3. Disassembly & Reassembly

3-1 Disassembly Method........................................................................................3-1

3-2 Reassembly Method ........................................................................................3-6

4. Troubleshooting

4-1 Checkpoints by Error Mode..............................................................................4-2

4-2 Upgrade Methods.............................................................................................4-17

5. Exploded View & Part List

5-1 Exploded View .................................................................................................5-2

5-2 Electrical Part List ............................................................................................5-4

6. PCB Diagram

6-1 PCB Top ...........................................................................................................6-2

6-2 PCB Bottom .....................................................................................................6-4

Contents

7. Schematic Diagram

7-1 Overall Block Diagram .....................................................................................7-2

7-2 S5L8700A02 ....................................................................................................7-3

7-3 MEMORY ......................................................................................................... 7-4

7-4 LCD/KEY/LED..................................................................................................7-5

7-5 USB/MODE/DET..............................................................................................7-6

7-6 AUDIO (EAR JACK).........................................................................................7-7

7-7 POWER............................................................................................................7-8

7-8 FM/RTC............................................................................................................7-9

7-9 CODEC ............................................................................................................7-10

7-10 JTAG & Boot ....................................................................................................7-11

Samsung Electronics 1-1

Precaution

1. Precaution

1-1 Safety Precautions

1. To remove dust from cabinet, use a dry cloth without using liquid and aerosol cleaner.

2. You should not use attachments not recommended by the company. Otherwise, it may cause critical damage.

3. You should not use this product near water such as bathtub, swimming pool or lake etc.

4. Power supply: A type of battery as displayed on the label should be only used.

5. You should not put any object or liquid into product. Otherwise, it may cause failure or mal-operation.

6. If replacement material is required, service engineer should use materials with the same standard.

The use of non-standardized materials may cause failure of product.

1-2 Samsung Electronics

Precaution

1-2 Static Electricity Precautions

Some semi-conductor parts may be easily damaged due to static electricity.

These elements are generally called as static electricity sense device (ESD). Typically examples of EST include

IC, some transistor and chip element for semi-conductor with electrical field effect.

The following methods should be used to reduce damage of elements occurred due to static electricity:

1. Contact and emit all the grounding objects with static electricity from your body before handling with elements

for semi-conductor or devices with elements for semi-conductor. You should purchase and use static electricity

arm rings or commercially available. You should remove it due to potential shock before supplying power to the

device under test.

2. You should place appliance on the conductive surface like aluminum film to prevent that static electricity is

accumulated or the device is disclosed outside after removing electrical appliance with the ESD device.

3. You should use only soldering iron that is ground when soldering the ESD device.

4. Minimize physical operation when handling with the ESD device for replacement without packing (Otherwise,

namely friction between cloth fibers or lifting of the foot from the carpet floor may cause static electricity enough

to damage the ESD device).

Samsung Electronics 2-1

Product Specification

2. Product Specification

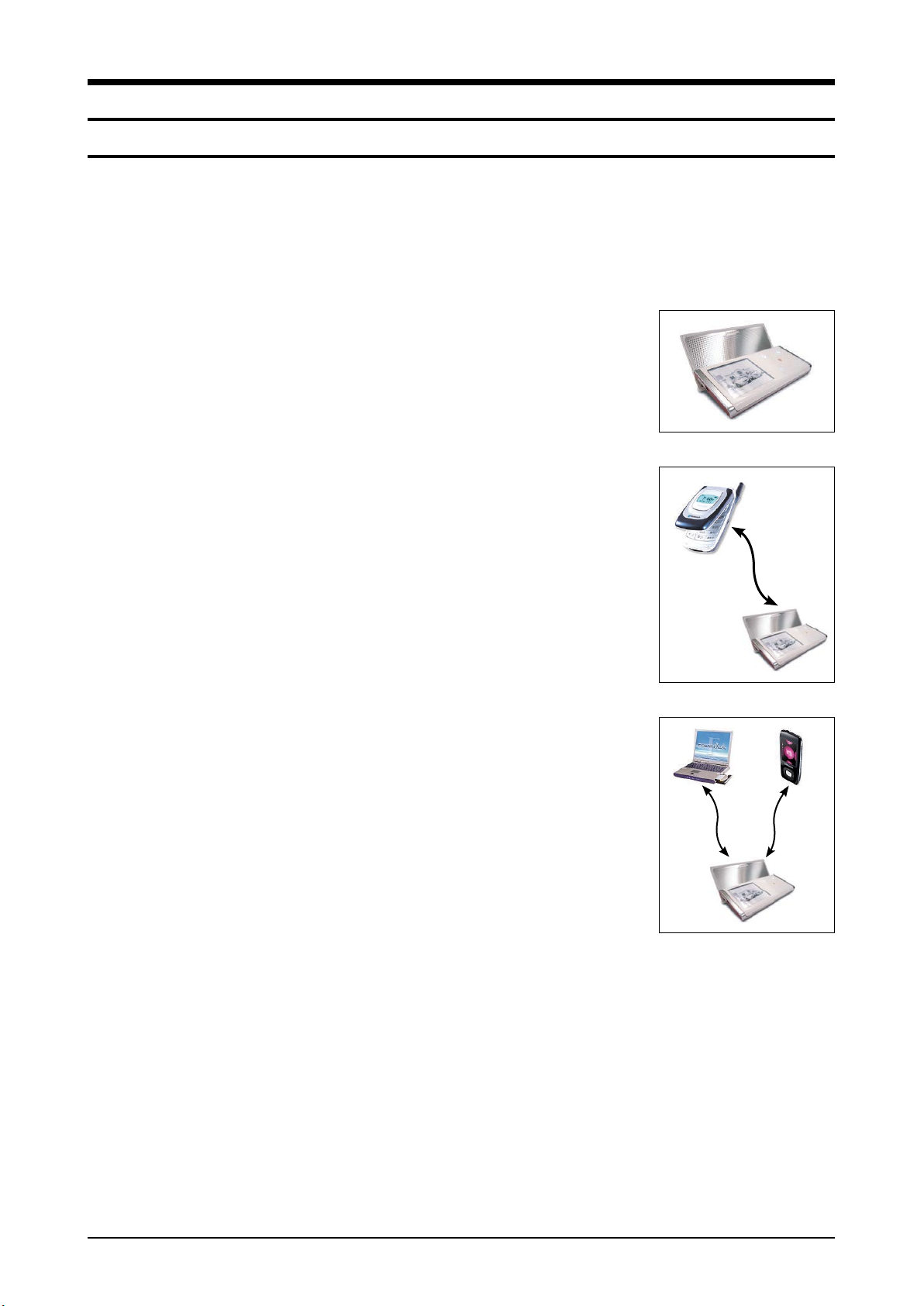

2-1 Product Feature

Advances the “SHARE” concept built on K5

Adds various features, including Bluetooth, that were implemented in T9

Develops a marketing communication that can propose a new life style

Built-in high definition stereo speaker

When the speaker part is pushed, the speaker comes out and you can listen to

lively music.

You can share your favorite songs with others at any time and from any where.

Wireless Speaker + Teleconference

- You can make and receive calls wirelessly while listening to music.

- Hands Free (Wireless) + Conference Call

- Call Recording feature

External Speaker feature

- Use as an external speaker for you PC →Useful for businessmen when giving

presentations

- Use as an external speaker for a common music device

2-2 Samsung Electronics

Product Specification

2-2 Specifications

Basic Specification

Model Name YP-S5

JQB JAB JCB JQW JAW JCW

Capacity 2GB 4GB 8GB 2GB 4GB 8GB

Color Black White

Voltage 600 mAh / DC 3.7V

Dimensions (WxDxH) / Weight 47.5 x 98 x 18.1 mm / 106g

Case Magnesium

Noise Ratio 90dB with 20KHz LPF (based on 1KHz 0dB)

Earphone Output 20mW (16Ω)

Output Frequency Range 20Hz ~ 20KHz

Temperature Characteristics -5 ~ 35℃(23 ~ 95℉)

FM Frequency 87.5 ~ 108.0MHz

FM Signal-to-Noise Ratio 50dBu

FM Distortion 1%

FM Effective Sensitivity 38dBu

Battery Type Li-Polymer Rechargeable Battery

(Built-in Rechargeable Battery Capacity 600 mAh)

Playback Time 30 Hours of Music Playback

(Based on MP3 128kbps, Volume 15, Normal Audio Mode)

Supported Files

*File Formats: MP3, WMA, Ogg

Music: MPEG1/2/2.5 Layer3 (8kbps~320kbps, 22kHz~48kHz),

WMA(48kbps~192kbps, 22kHz~48kHz), Ogg(Q0~Q10)

IMAGE: JPEG(ISO/IEC 10918-1/Annex F-Sequential DCT-based mode of

operation)

LCD 1.8” 262K QCIF TFT LCD

Speaker

Rated Output 0.7W/Ch x 2Ch

Impedance 8Ω

Frequency Range 400Hz ~ 20KHz

Samsung Electronics 2-3

Product Specification

2-3 Specifications Analysis

Model Name YP-S5 YP-K5


Basic

Storage TYPE Flash memory (MLC) Flash memory (MLC)

LCD

SIZE : 1.8” 262K QCIF TFT LCD

Display Color : 262K LCD (Real color 65K color)

Resolution : 176(H) X 220(V)

1.71” Full Color OLED

Playback Time

25 Hours of Music Playback Using Earphones

(Based on MP3 128 kbps, Volume 20, Normal

Audio Mode),

5 Hours of Playback with Maximum Speaker

Volume

30 Hours of Music Playback Using Earphones

(Based on MP3 128 kbps, Volume 15, Normal

Audio Mode),

4 Hours of Playback with Maximum Speaker

Volume

Capacity 2G / 4G / 8G 1G / 2G / 4G

Platform Blues (SYS LSI) TCC77x (Telechips)

Battery Type Li-Polymer Rechargeable Battery (Built-in

Rechargeable Battery Capacity 600 mAh)

Li-Polymer Rechargeable Battery (Built-in

Rechargeable Battery Capacity 830 mAh)

Color White / Black Silver / Black

Files

MP3  

WMA  

OGG (up to Q10) (up to Q10)

WAV X X

AAC X X

Audible X X

JPEG  

FLAC X

APE X

WMV X X

MPEG4 (SVI) (176x208, 15 Frame) X

Swf (V4.0) - Game/UI Only X

Others X X

Sound

User EQ (9 band control) (9 band control)

Etc. Street Mode -

Sound Feedback (AUI) -

Speed Control (MP3 file play 0.75~1.3X) -

Alarm  

OUTPUT POWER 20mW/CH 25mW/CH

Tuner

FM  

RDS X

DMB X X

Etc. X X

Function

Playlist  

Library  

Photo Viewer  

Text Viewer (book mark/page up,down) X

Game (Flash Gaming/3 games) X

Wallpaper (Wall paper change, Menu color change) X

Clock  

Etc. Clock Screen Saver, Dynamic EQ Display -

Resume (Audio/Video/Photo/Text) (Audio/Photo)

Bookmark (Video/Text only) X

DRM

Netsync (Korea)  

SKT Melon (Korea) X X

WMA DRM  

Janus  

2-4 Samsung Electronics

Product Specification

Quality Bitrate

Value Data

-1 44 kbps

0 64 kbps

1 80 kbps

2 96 kbps

3 112 kbps

4 128 kbps

5 160 kbps

6 192 kbps

7 224 kbps

8 256 kbps

9 320 kbps

10 500 kbps
