Samsung WNI20NC0301 Manuel utilisateur

User Guide

REV 0.0

Samsung Electro-Mechanics Proprietary and Confidential

WNI20NC0301/ WNI20NC0302

User Guide

REV 0.0

Samsung Electro-Mechanics

2013-01-25

The names of actual companies and products mentioned

herein may be the trademarks of their respective owners.

No part of this document may be reproduced, stored in a

retrieval system, or transmitted in any form or by any

means without the express written consent of Samsung

Electro-Mechanics.

This document is subject to change without notice.

User Guide

REV 0.0

Samsung Electro-Mechanics Proprietary and Confidential

Table of Contents

1INTRODUCTION.................................................................................................................. 3

2MECHANICAL DIMENSION ................................................................................................. 4

3PIN ASSIGNMENT ............................................................................................................... 5

4DATA CONNECTOR AND FPCB SPEC. .................................................................................. 6

5REVISION HISTORY............................................................................................................ 7

User Guide

REV 0.0

Samsung Electro-Mechanics Proprietary and Confidential

1Introduction

The WNI20NC0301 / WNI20NC0302 will be embedded on the Chief River platform. The module is

interfaced to the system Through an I2C interface to the Manageability Engine(ME) on the platform which

exposes the device to the host OS

Figure 1 demonstrates one implementation of the integration, where a NFC module is interfaced to the

motherboard through a flex cable connected between the module host connector and a corresponding

connector on the platform. This allows the silicon vendor to design and validate a full module, with the

OEM/ODM designing a custom motherboard to incorporate the validated module into their design. The

module provides I2C DATA and clock lines in addition to Power, Ground and a certain number of GPIO

Lines(Presently one for IRQ). The antenna is connected via a coaxial connector mounted on the module

and is located on the platform at a location that is appropriate for the user experience being targeted. EMI

shielding on the chassis directly above the antenna has to be removed. In addition if the then the location

chosen for the antenna is very close to metal parts (e.g Hard Drive etc less the 5mm away) then the

antenna may need to be shielded from the metal through the use of a ferrite sheet immediately beneath

the antenna with a small air gap to the nearest metal surface.

User Guide

REV 0.0

Samsung Electro-Mechanics Proprietary and Confidential

2Mechanical Dimension

Parameter

Conditions

Min.

Nom.

Max.

Unit

Dimension

12.3

12.4

12.5

13.2

13.3

13.4

Height

1.55

1.6

User Guide

REV 0.0

Samsung Electro-Mechanics Proprietary and Confidential

3PIN Assignment

Pin#

Signal Name

Type

Description

MOD_VDD

POWER

Digital Power Supply

GND

Ground

SWP-PWR

POWER_O

Output supply voltage for SIM Card

SE-PWR

POWER_O

Output supply voltage for SE

IRQ-OUT

Host interface

VDD-SIM

POWER_I

Voltage reference level for SIM card powering

I2C-SDA

Host interface

I2C-SCL

Host interface

GND

Ground

SE-DIN-DIO

Do not connect

SE-DOUT-CLK

Do not connect

SWP

Single Wire connection to the SIM card

MOD_VDD

POWER_I

Digital Power Supply

VDD_IO

POWER_I

Host interface supply voltage input

GND

Ground

Pin #1

User Guide

REV 0.0

Samsung Electro-Mechanics Proprietary and Confidential

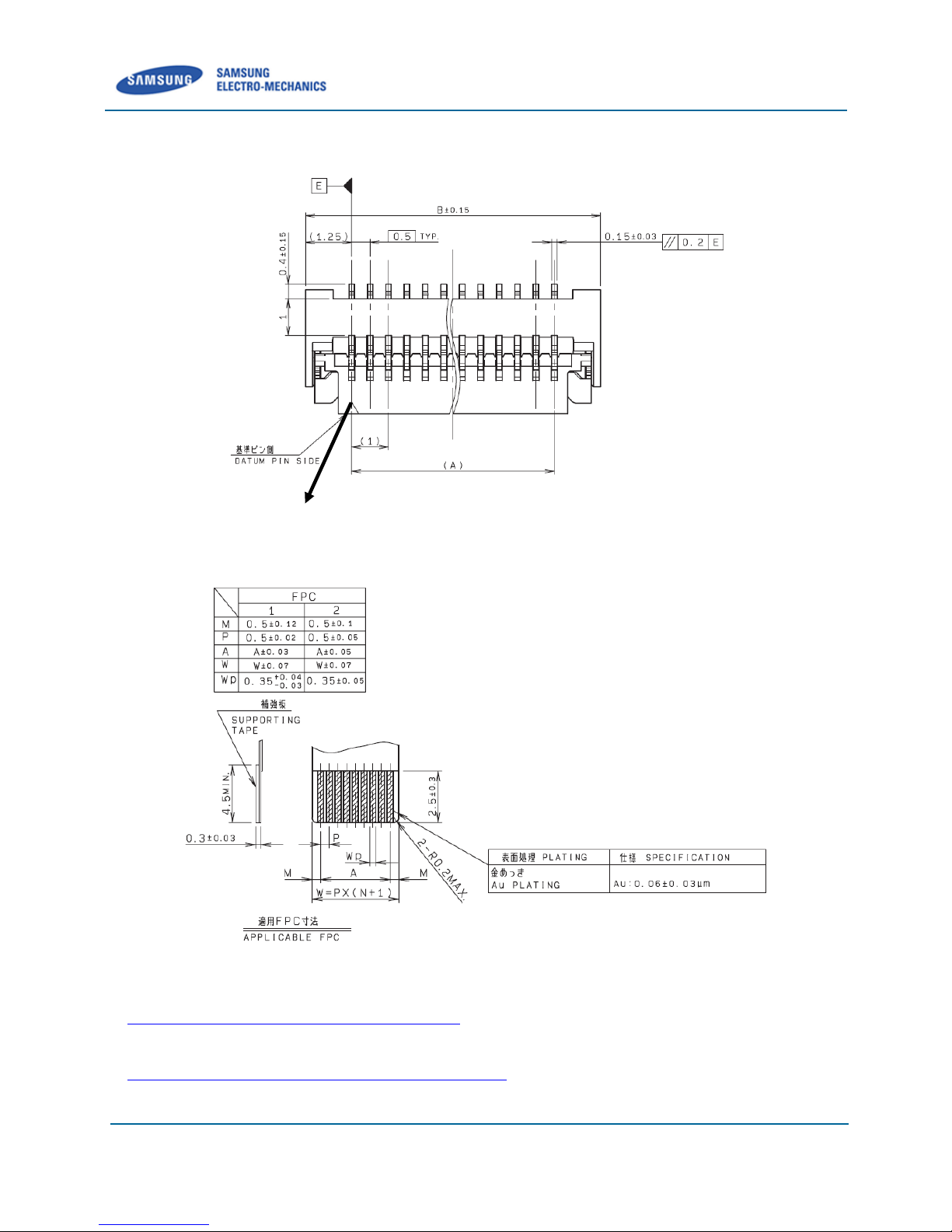

4Data Connector and FPCB Spec.

Pin#1

Datasheet is available from next link

http://www.kyocera-elco.com/prdct/pdf /6299.pdf

Instruction manual is available from next link.

http://www.kyocera-elco.com/prdct/impdf/20503174.pdf

User Guide

REV 0.0

Samsung Electro-Mechanics Proprietary and Confidential

5Revision History

Revision

Date

Descriptions

0.0

2013-01-25

Created.
