E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.

Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service agent.

8 This device must be installed according to the national electrical rules.

9 Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be hap-

pened in case of installing improperly.

E-3

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■

View of the Indoor Unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

■

View of the Outdoo Unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . .5

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . .7

◆

PERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . .8

■ CoolingYour Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

■ HeatingYour Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . .11

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .12

■ AiringYour Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . .14

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . .15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . .20

■ CleaningYour Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .20

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .21

■ OperatingYour Air ConditionerWithout the Remote Control . . . .22

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

◆

ECHNICAL SPECIFICATIONS

ENGLISH

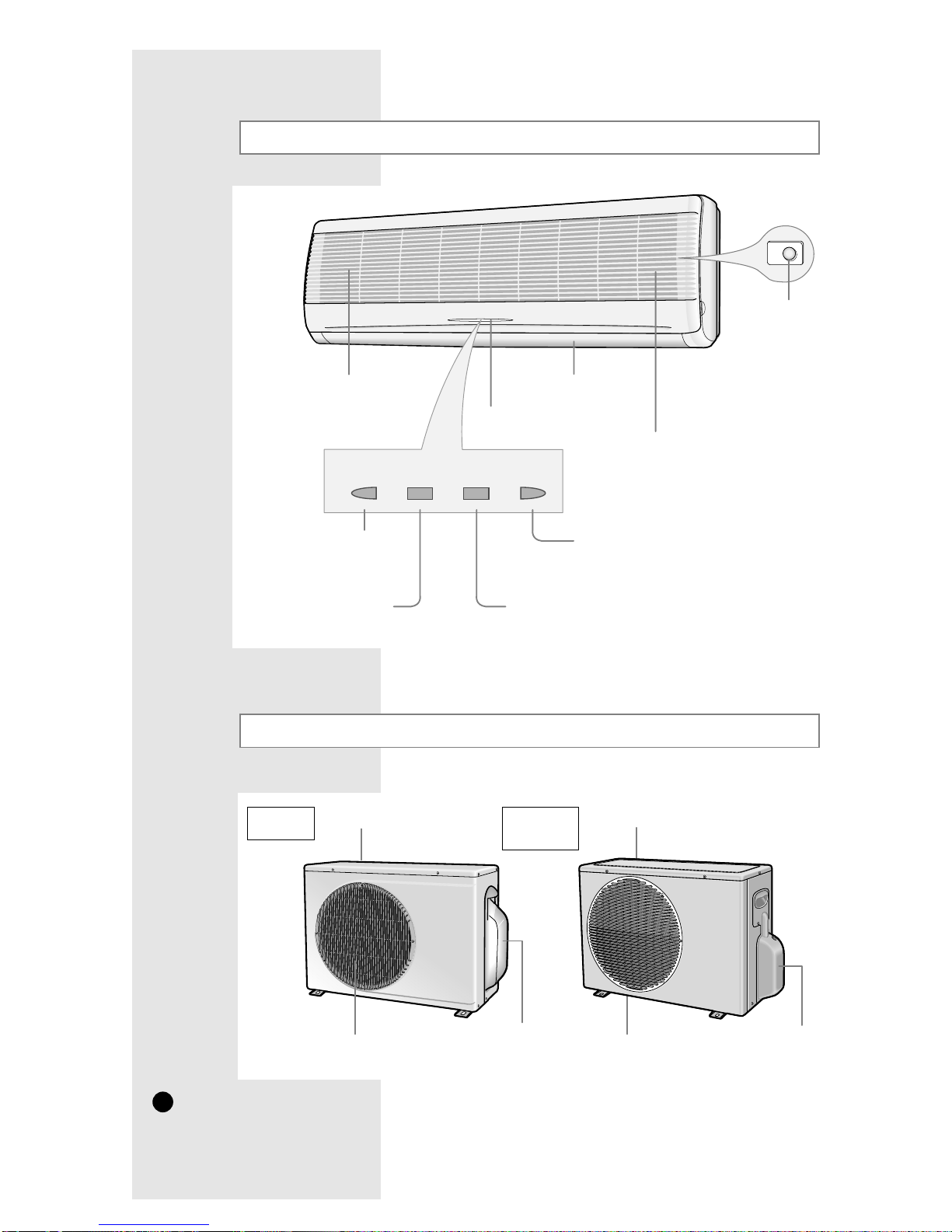

View of the Indoor Unit

OPERATION TURBO

FAN

TIMER

ON/OFF switch

(operation without

remote control)

Air Filter

(under the grille)

TIMER indicator

-YELLOW

OPERATION indicator

- Operation : GREEN

- Deice : RED

TURBO indicator

- RED

FAN indicator

- GREEN

Air flow blades (outlet)

Remote control sensor

Air Inlet

View of the Outdoor Unit

❄The design and shape are subject to change according to the model.

UQ07ACVE

SH07CA1X UQ09/12ACVE

SH09CA1X

SH12CA1X

Air Outlet Air Outlet

Connection Valve

Air InletAir Inlet

Connection Valve

E-4

E-5

ENGLISH

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL, DRY,

FAN, HEAT)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN, HEAT)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your

air conditioner. Please take the time to read them as they will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 5 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

E-7

E-8

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

E-9

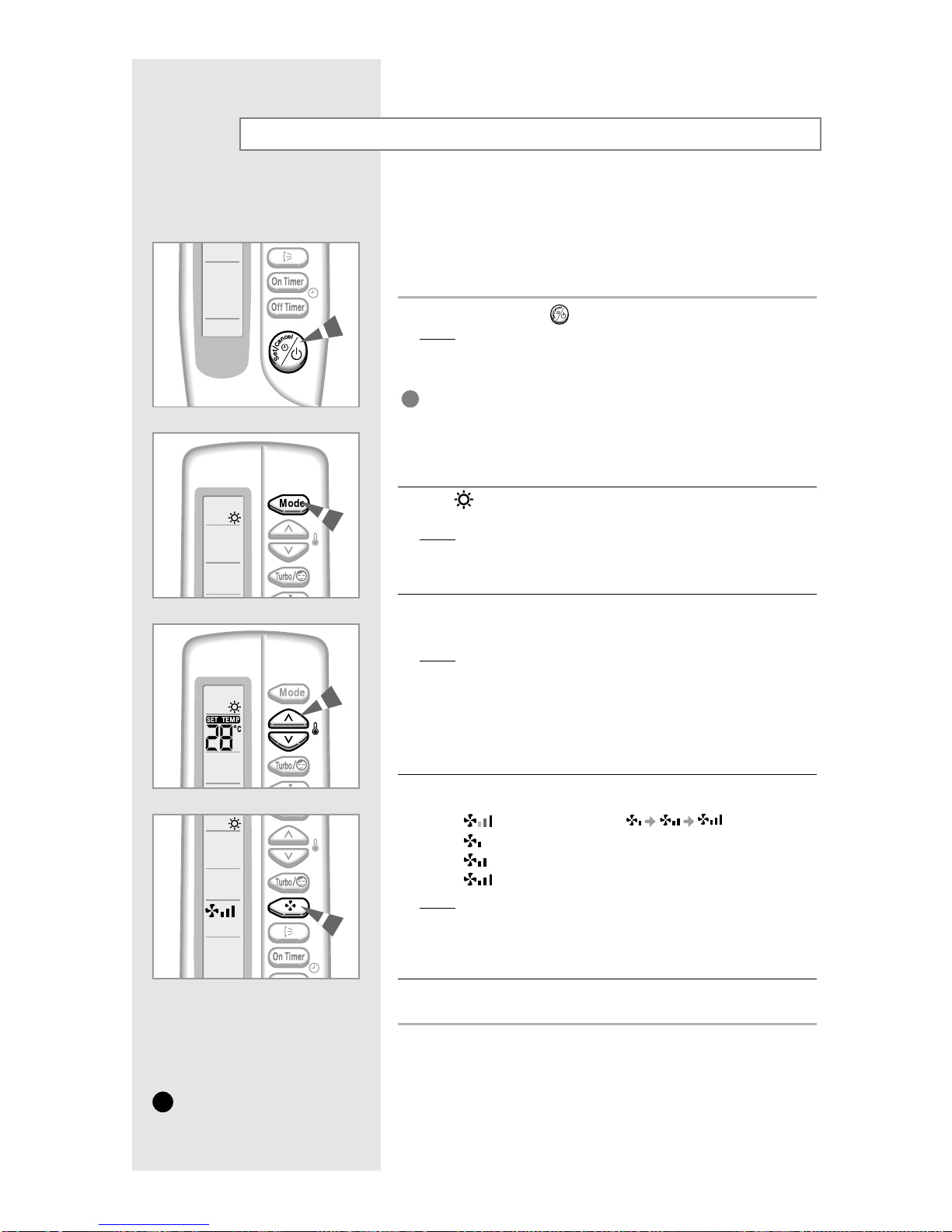

CoolingYour Room

1If necessary, press the (On/Off) button.

Result:

◆

The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the MODE button.

◆

The air conditioner runs in COOL mode.

You can change modes at any time.

To adjust the temperature, press the TEMPERATURE buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆

Each time you press the TEMPERATURE buttons:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature;

the fan will, however, operate.

Select the fan speed by pressing the FAN button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the FAN button, the indoor unit beeps.

To control the direction of the air flow, refer to page 14 and 15.

ENGLISH

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

E-10

HeatingYour Room

You must select the Heat mode if you wish to adjust the:

◆Heating temperature

◆Fan speed when heating

1If necessary, press the (On/Off) button.

Result:◆

The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected when

the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism

to prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

It will start up normally after three minutes.

2If the is not displayed at the top of the remote control, press the

MODE button on the remote control one or more times until it appears.

Result:◆

The indoor unit beeps each time you press the MODE button.

◆

The air conditioner runs in HEAT mode.

NNoo

oott

ttee

eeYou can change modes at any time.

3To adjust the temperature, press the TEMPERATURE buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result:◆Each time you press the TEMPERATURE buttons:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts heating, provided that the room

temperature is lower than the desired temperature

(selected temperature+3°C); the fan will, however, operate.

4Select the fan speed by pressing the FAN button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result:◆

Each time you press the FAN button, the indoor unit beeps.

◆

For the first three to five minutes, the fan operates very

slowly until the air has been sufficiently warmed. Once the

correct temperature has been reached, the fan is automatically

set to the required speed.

5To control the direction of the air flow, refer to page 14 and 15.

IMPORTANT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung AG026MN1DEH/EU Manuel utilisateur

Samsung

Samsung MCM-A300N Manuel utilisateur

Samsung

Samsung AIM-D01AN Manuel utilisateur

Samsung

Samsung AQT18PJG Series Manuel utilisateur

Samsung

Samsung AW070AA Manuel utilisateur

Samsung

Samsung MH026FKEA Manuel utilisateur

Samsung

Samsung AM FXMDCH Series Manuel utilisateur

Samsung

Samsung AVXDSH022EE Manuel utilisateur

Samsung

Samsung AJ CXS CH Series Manuel utilisateur

Samsung

Samsung AM009FN4DCH Manuel utilisateur

Samsung

Samsung AR TSFY WKNCV Series Manuel utilisateur

Samsung

Samsung AQV09VBA Series Manuel utilisateur

Samsung

Samsung AC KN4 Series Manuel utilisateur

Samsung

Samsung SH09BWH Manuel utilisateur

Samsung

Samsung DH105EAMC Manuel utilisateur

Samsung

Samsung AM MXVAFC Series Manuel utilisateur

Samsung

Samsung AC RNNDKG Series Manuel utilisateur

Samsung

Samsung Cassette Type Series Manuel utilisateur

Samsung

Samsung AF**FSSDA Series Mode d’emploi

Samsung

Samsung RVMH050CBM0 Manuel utilisateur

Samsung

Samsung AVXWNH022EE Manuel utilisateur

Samsung

Samsung AM KN4DCH Series Manuel utilisateur

Samsung

Samsung AQV24PSBANXAX Manuel utilisateur

Samsung

Samsung AZ09A0KE Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
